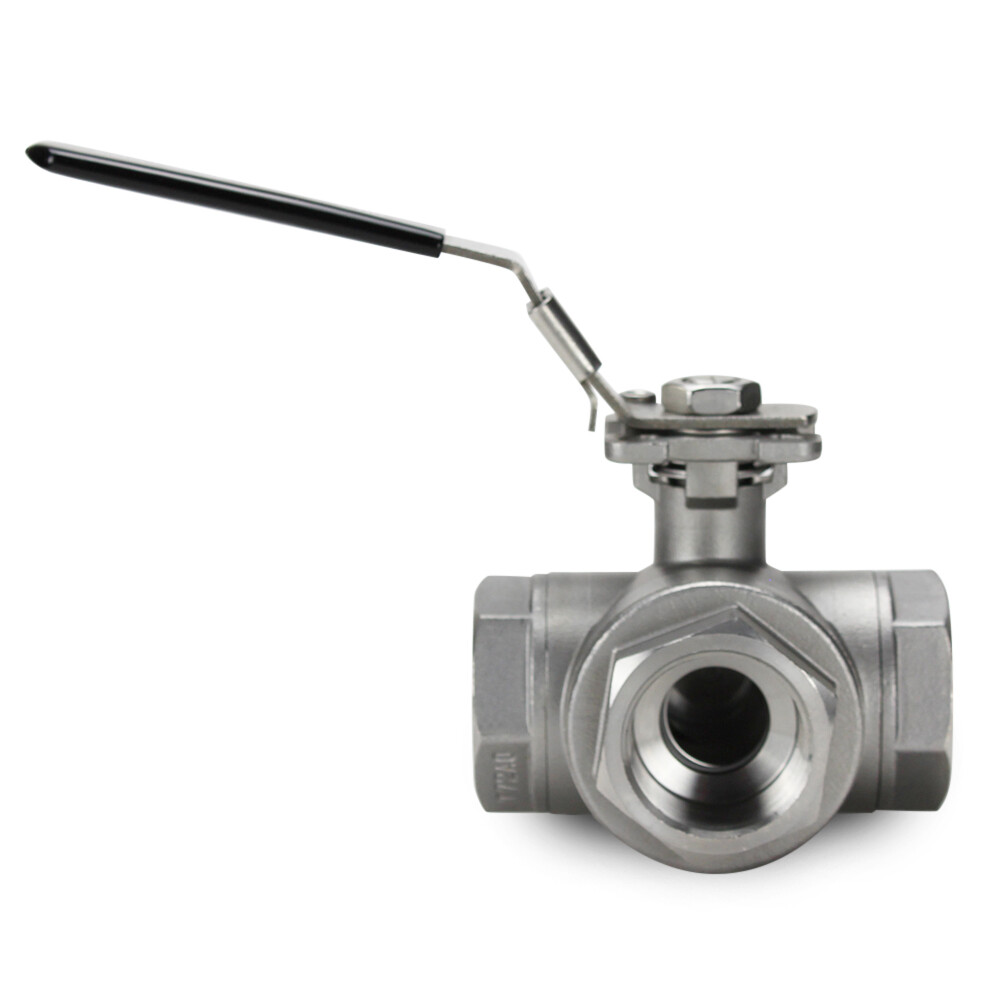

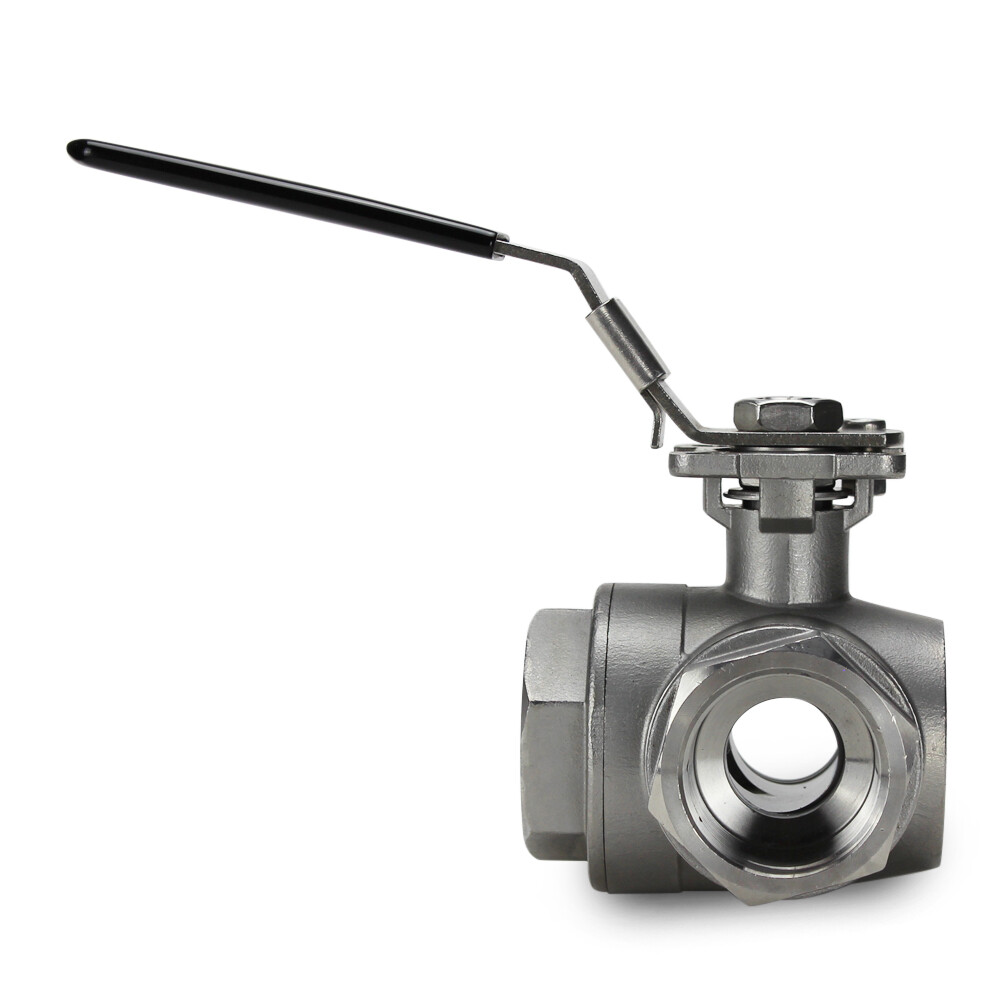

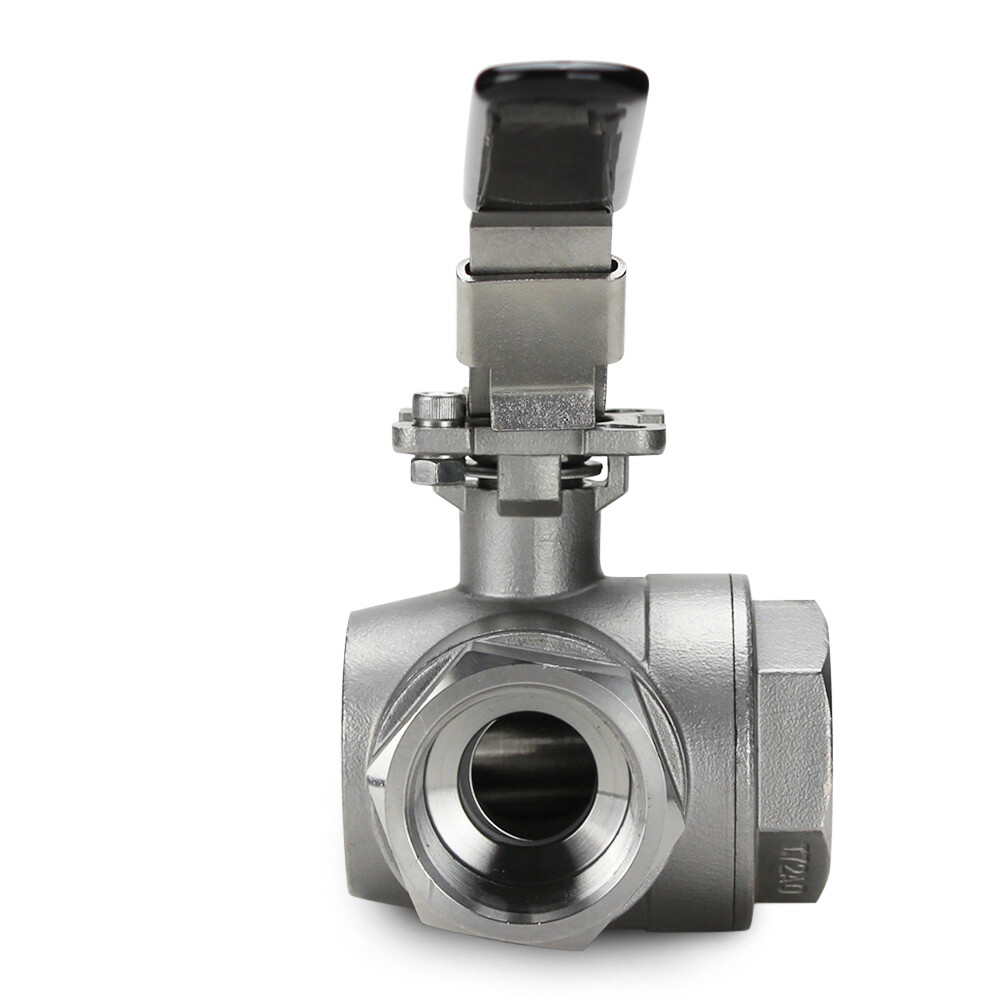

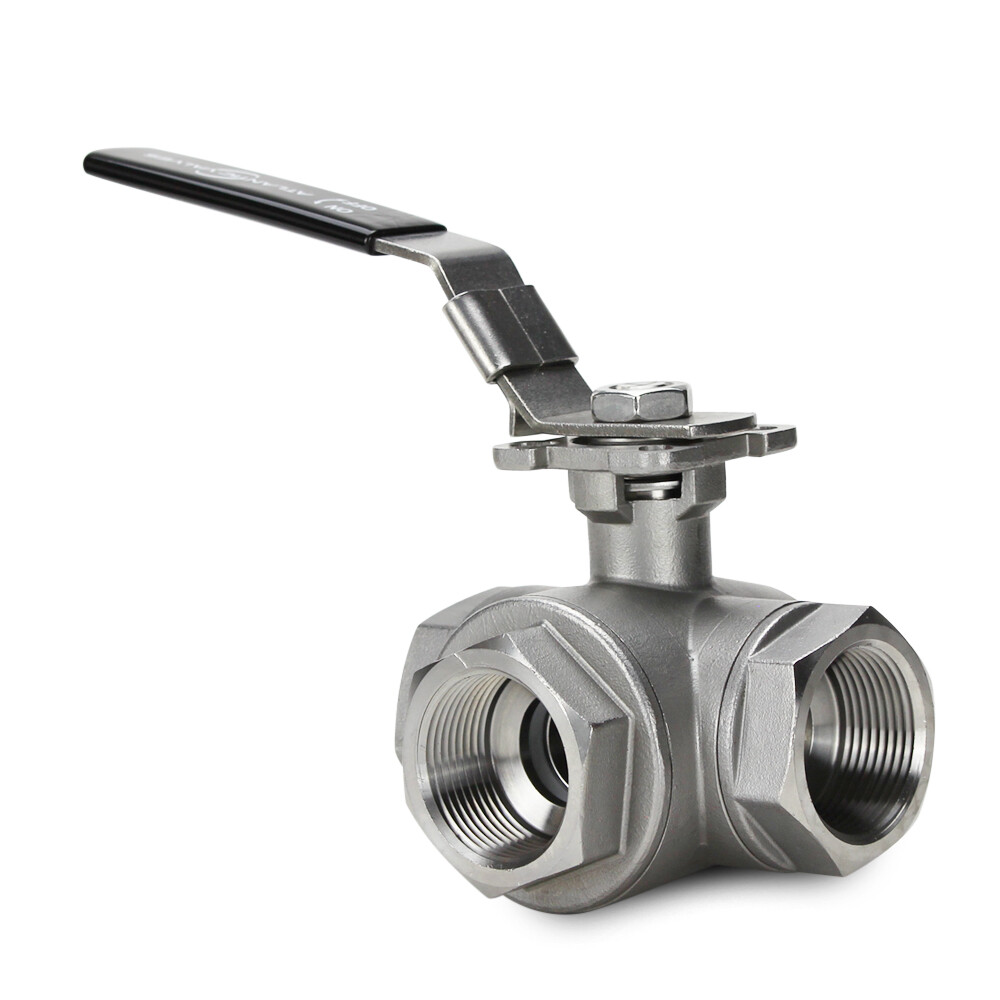

Check the listing for details. 1-1/4" 3-Way T-Port Ball Valve, Stainless Steel, NPT Threaded, 1000PSI. Condition: New. Listed at 126.16 USD. Untitled Document Stainless Steel Manual3-Way, "T" Type Ball Valve Temperature Range -4 to 356° F Pressure Rating 1000 PSI Operation Type Bi-Directional Handle Locking *Suitable Media Potable Water -*Etc Specifications Body MaterialStainless Steel Components Stainless Steel Seal Material PTFE Thrust Washer PTFE Stem Packing PTFE Orifice Size 1-1/4" Flow Bi-Directional Bore Type Standard Bore Weight 4.73 lbs Height 3.94" Length 4.37" Width 6.38" The BV-3WT032-S is a 1-¼” Stainless Steel 3-way, “T-Type” manual ball valve. These are also known as T-Port or Mixing Ball Valves. They are used to divert media flow in multiple directions at the same time. 3-way valves eliminate the need for multiple two-way valves to accomplish the same task. The ball cut out is shaped like the letter “T” allowing for many flow patterns. This ball valve is bi-directional and allows for any two or three ports to be connected, but it only allows for flow in one direction at a time, this means any of the ports can be either an outlet or an inlet. This valve cannot be closed. This 3-way valve is made from high-quality, lead-free stainless steel with PTFE seals. This allows the valve to operate under a wide range of temperatures (-25° F to 356° F ) and Pressures (max. 1000PSI). These valves are commonly used for homebrewing, and food-grade and potable water applications but due to the resistance to high-heat, and many different chemicals and gases the uses are nearly endless. A chemical compatibility expert should always be consulted to ensure any materials you are using are the correct choice. This valve is fit with a position indicator on its blow-out proof stem, a locking handle and a positional bolt that prevents the ball from being turned to unwanted positions. Each port has NPT threading for easy installation. Listing and template services provided by inkFrogUntitled Document Stainless Steel Manual3-Way, "T" Type Ball Valve Temperature Range -4 to 356° F Pressure Rating 1000 PSI Operation Type Bi-Directional Handle Locking *Suitable Media Potable Water -*Etc Specifications Body MaterialStainless Steel  Components Stainless Steel Seal Material PTFE Thrust Washer PTFE Stem Packing PTFE Orifice Size 1-1/4" Flow Bi-Directional Bore Type Standard Bore Weight 4.73 lbs Height 3.94" Length 4.37" Width 6.38" The BV-3WT032-S is a 1-¼” Stainless Steel 3-way, “T-Type” manual ball valve. These are also known as T-Port or Mixing Ball Valves.  They are used to divert media flow in multiple directions at the same time. 3-way valves eliminate the need for multiple two-way valves to accomplish the same task. The ball cut out is shaped like the letter “T” allowing for many flow patterns.  This ball valve is bi-directional and allows for any two or three ports to be connected, but it only allows for flow in one direction at a time, this means any of the ports can be either an outlet or an inlet.  This valve cannot be closed. This 3-way valve is made from high-quality, lead-free stainless steel with PTFE seals.  This allows the valve to operate under a wide range of temperatures (-25° F to 356° F ) and Pressures (max. 1000PSI). These valves are commonly used for homebrewing, and food-grade and potable water applications but due to the resistance to high-heat, and many different chemicals and gases the uses are nearly endless. A chemical compatibility expert should always be consulted to ensure any materials you are using are the correct choice. This valve is fit with a position indicator on its blow-out proof stem, a locking handle and a positional bolt that prevents the ball from being turned to unwanted positions. Each port has NPT threading for easy installation. Listing and template services provided by inkFrog
