| Brand | waltvotur |
|---|---|
| MPN | WA1019898UR |
| Type | Normally Closed |
| Quantity | 1 PC |
| Specification | No |
| Pressure Range | 0 to 145 psi (0 to 10 BAR), Vacuum |
| Temp | -5° C-100° C |
| Amperage | 1.4 A |
| Coil Options | Lead wire coil (standard), DIN connector coil |
| Suitable Media | Water, Air, Gasses, Diesel, Gasoline, Glycol |
| Supply Voltage | 12 V |
| Body Material | Brass |
| Current Type | DC |
| Custom Bundle | No |
| Bundle Description | No |
| Warranty | 1 year |

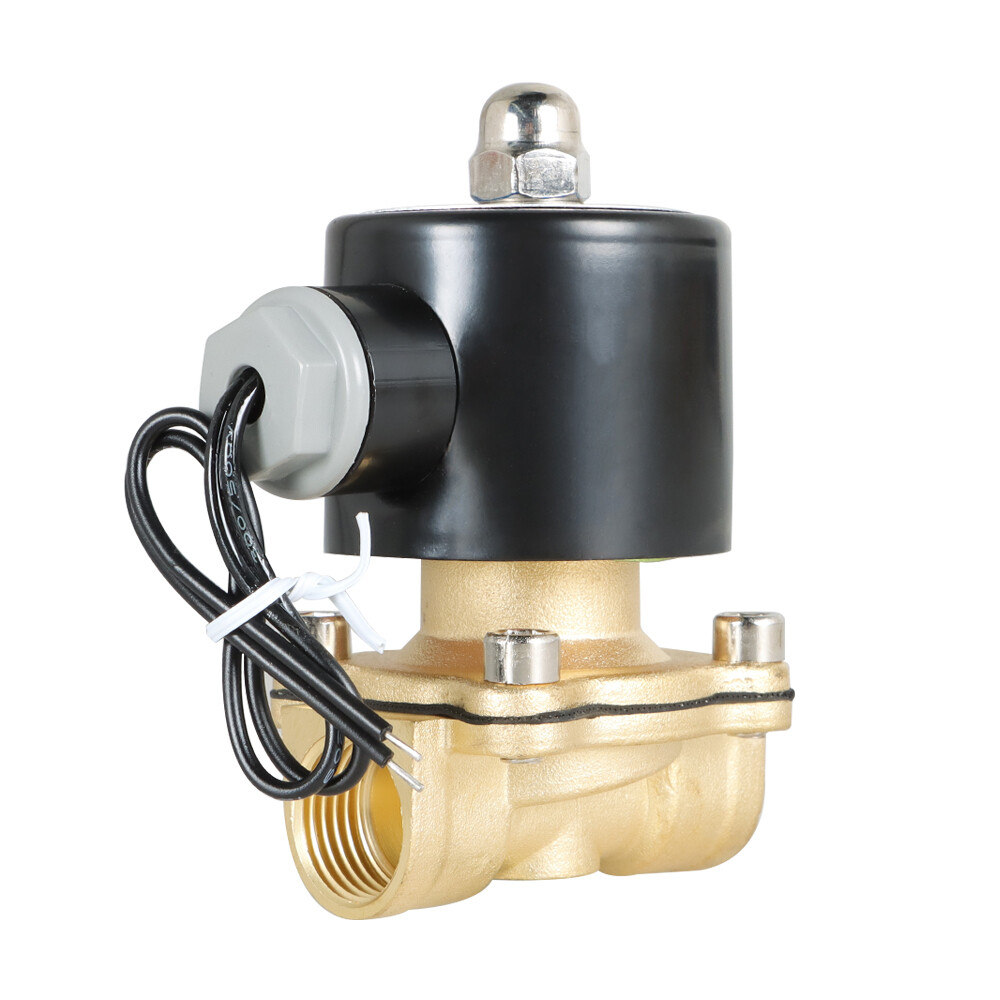

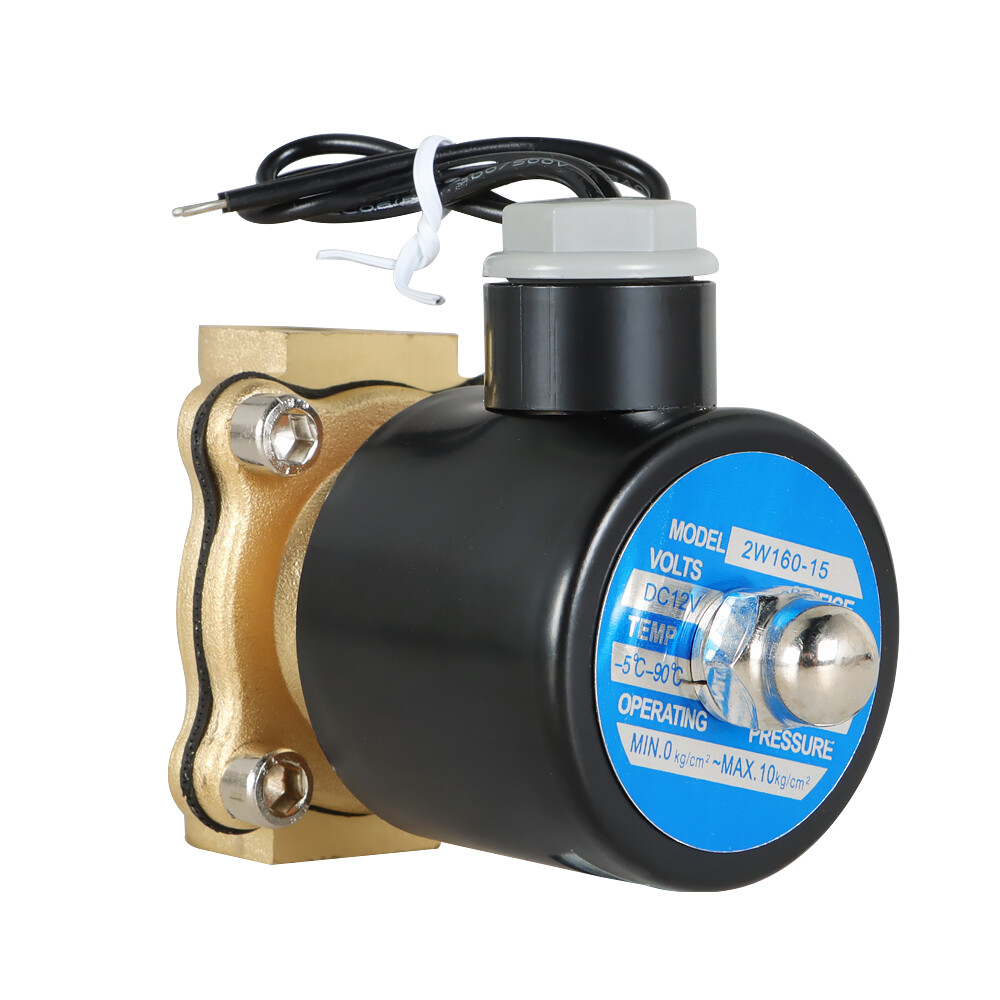

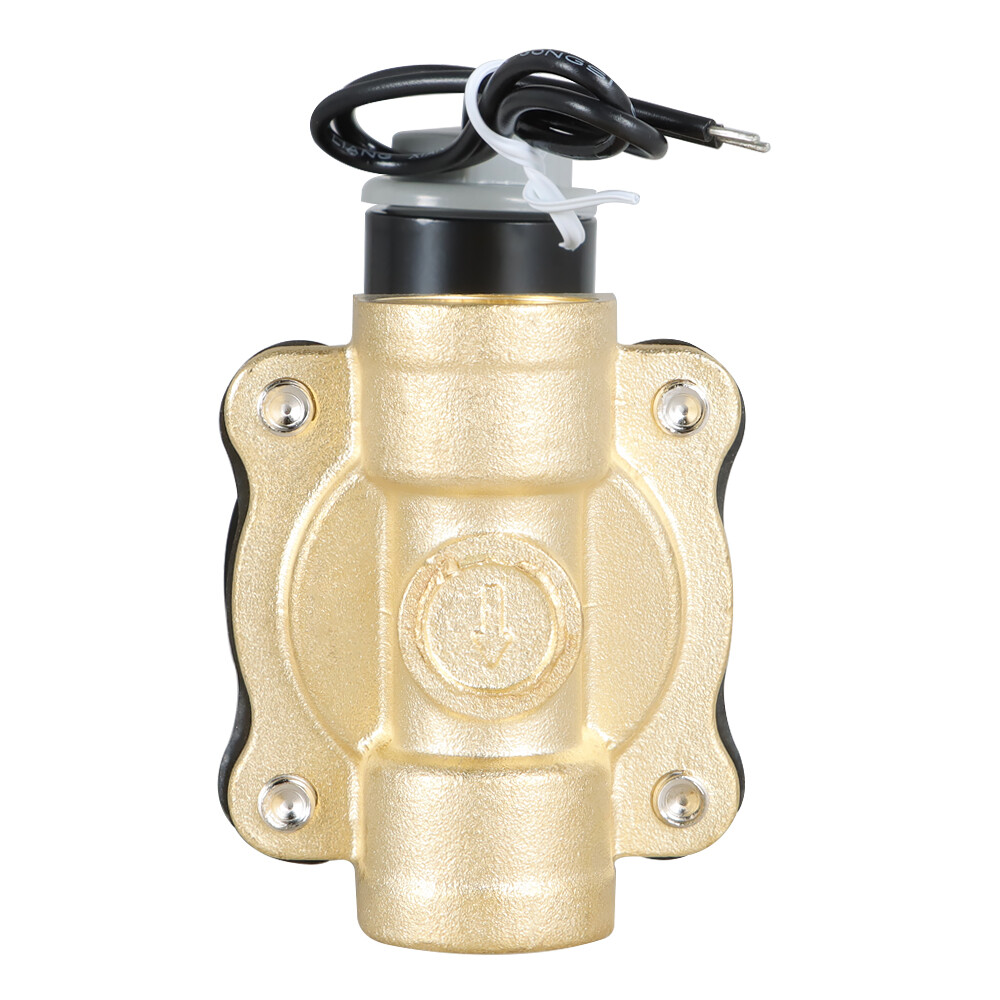

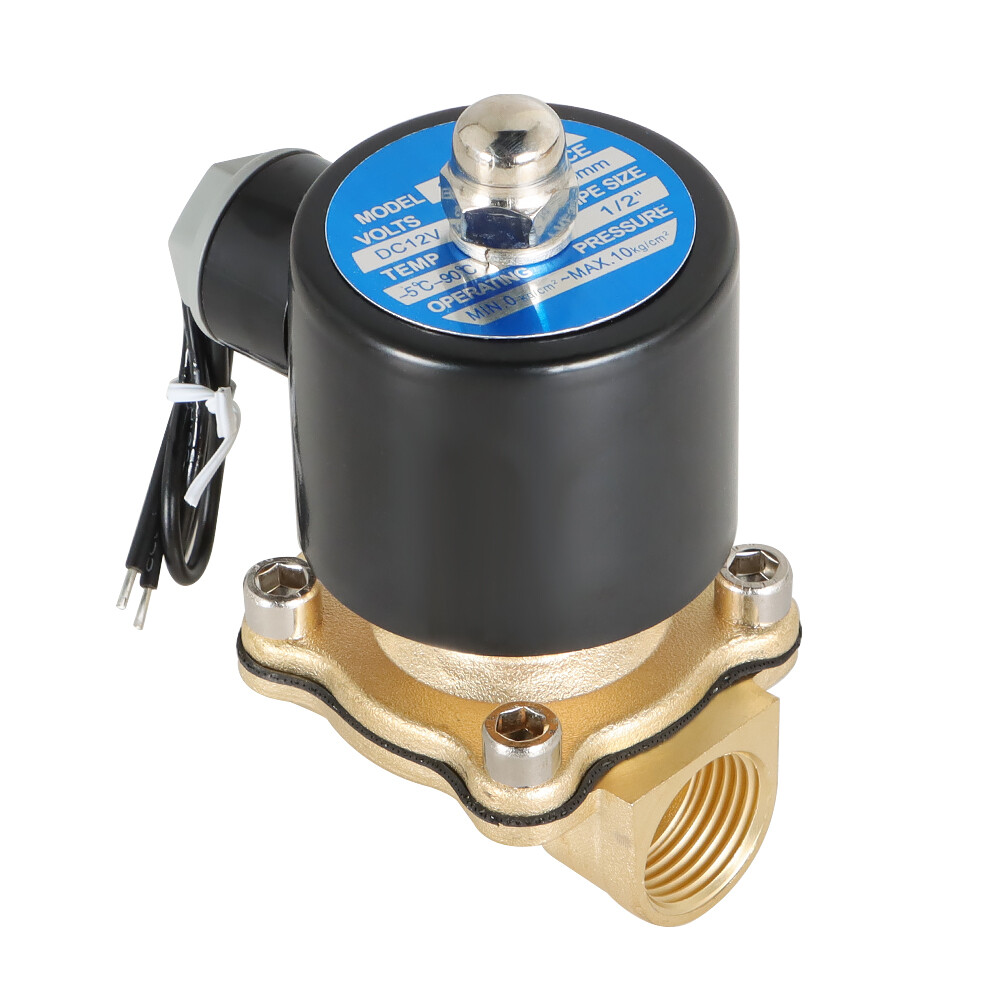

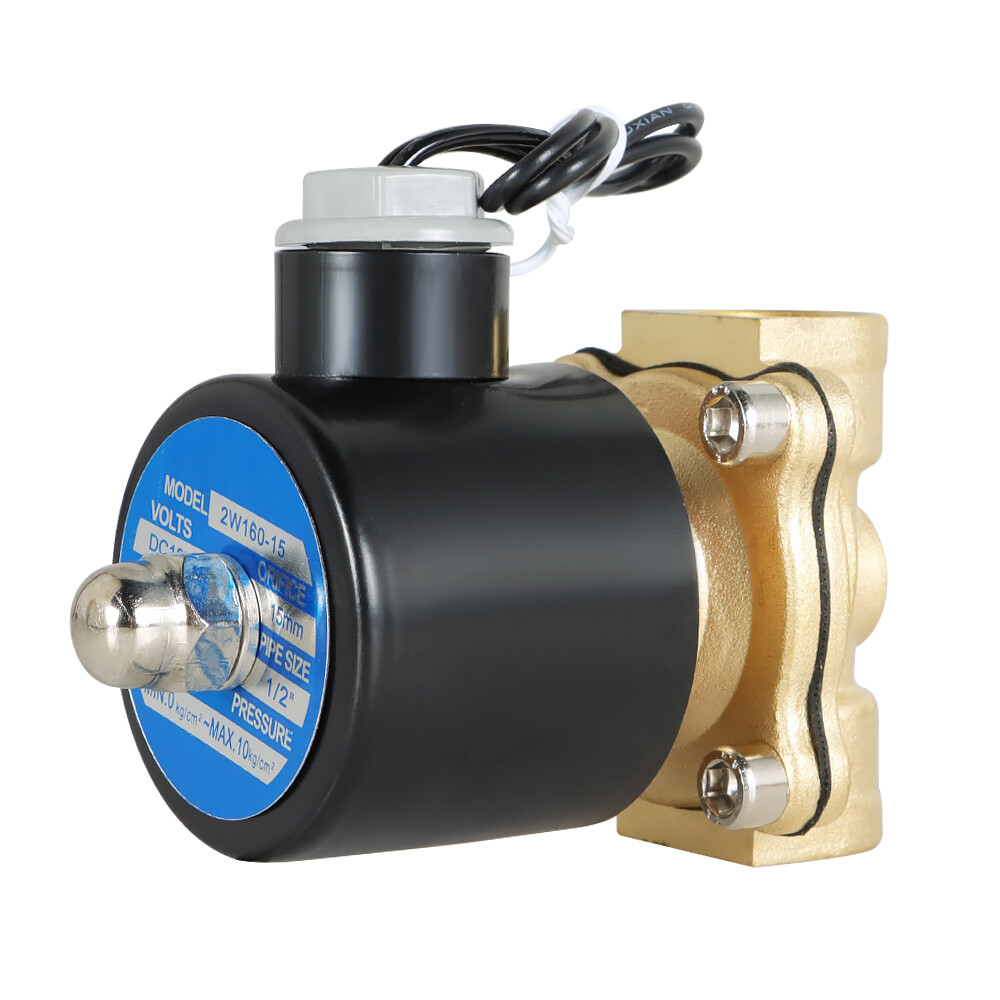

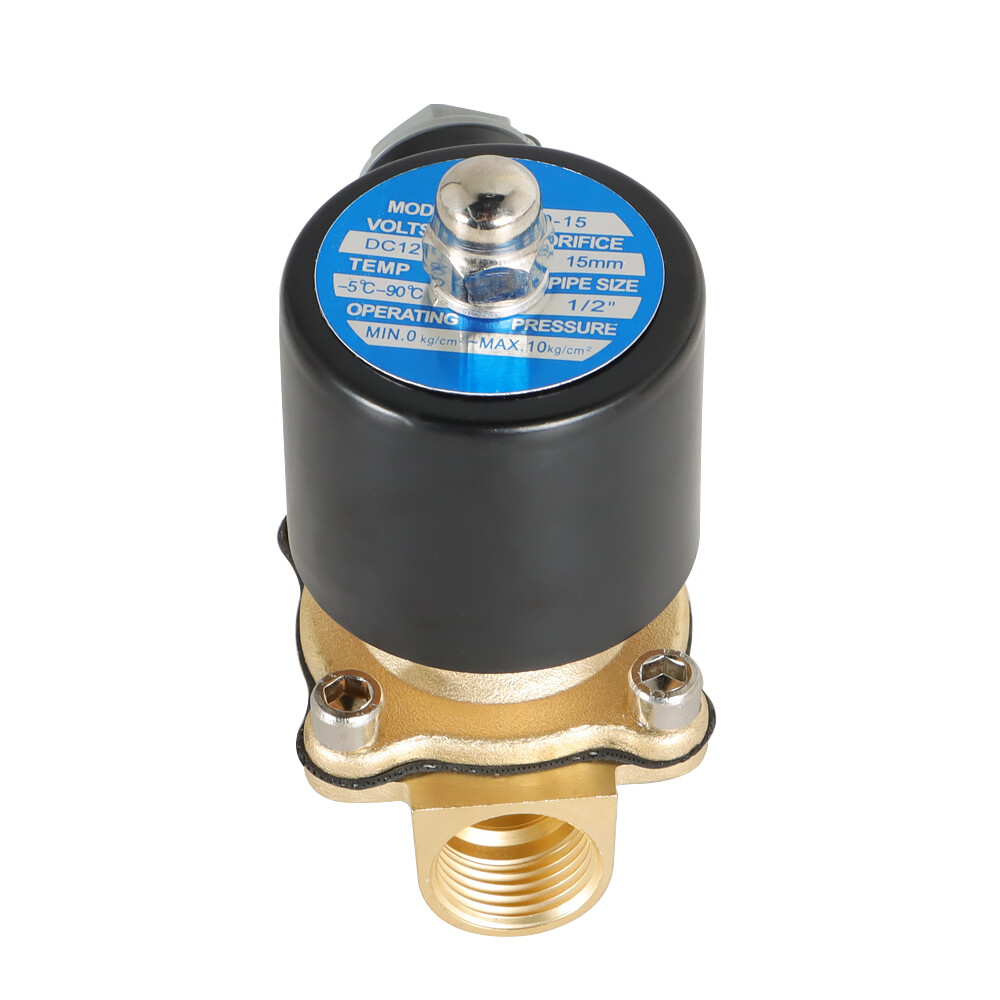

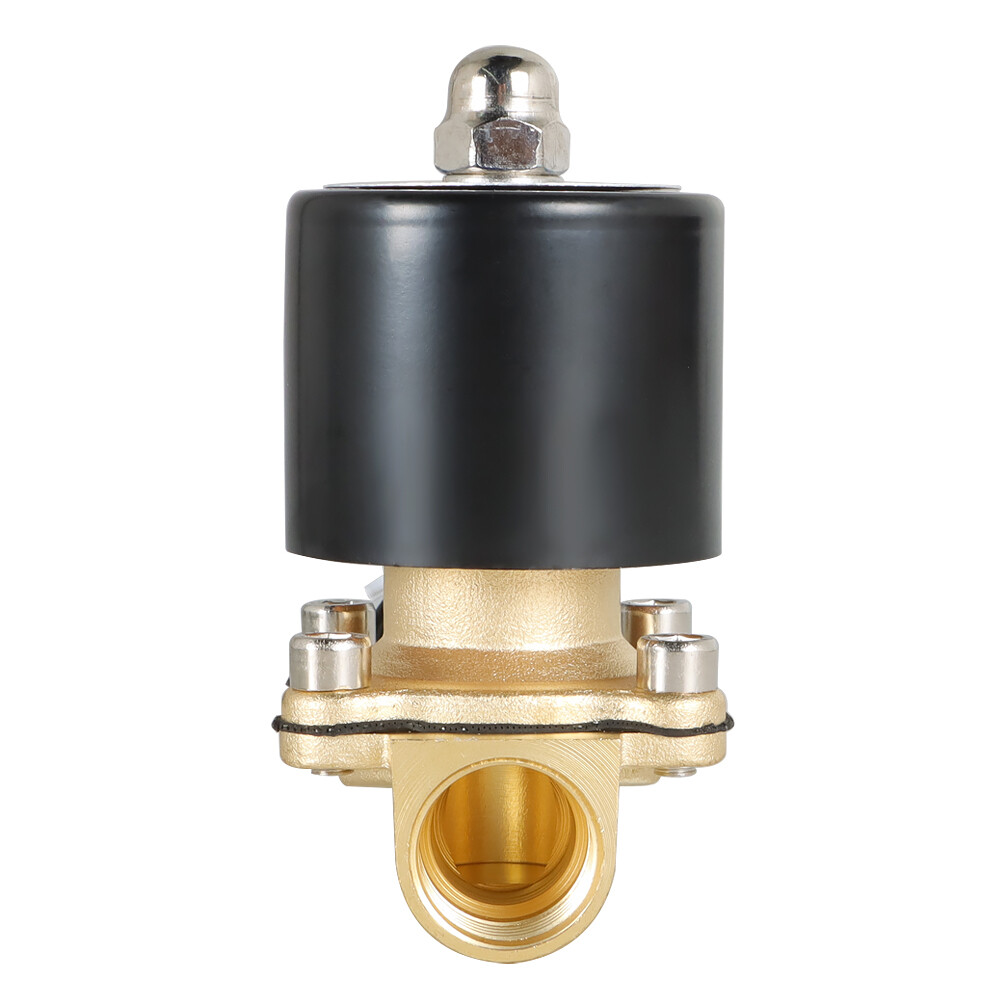

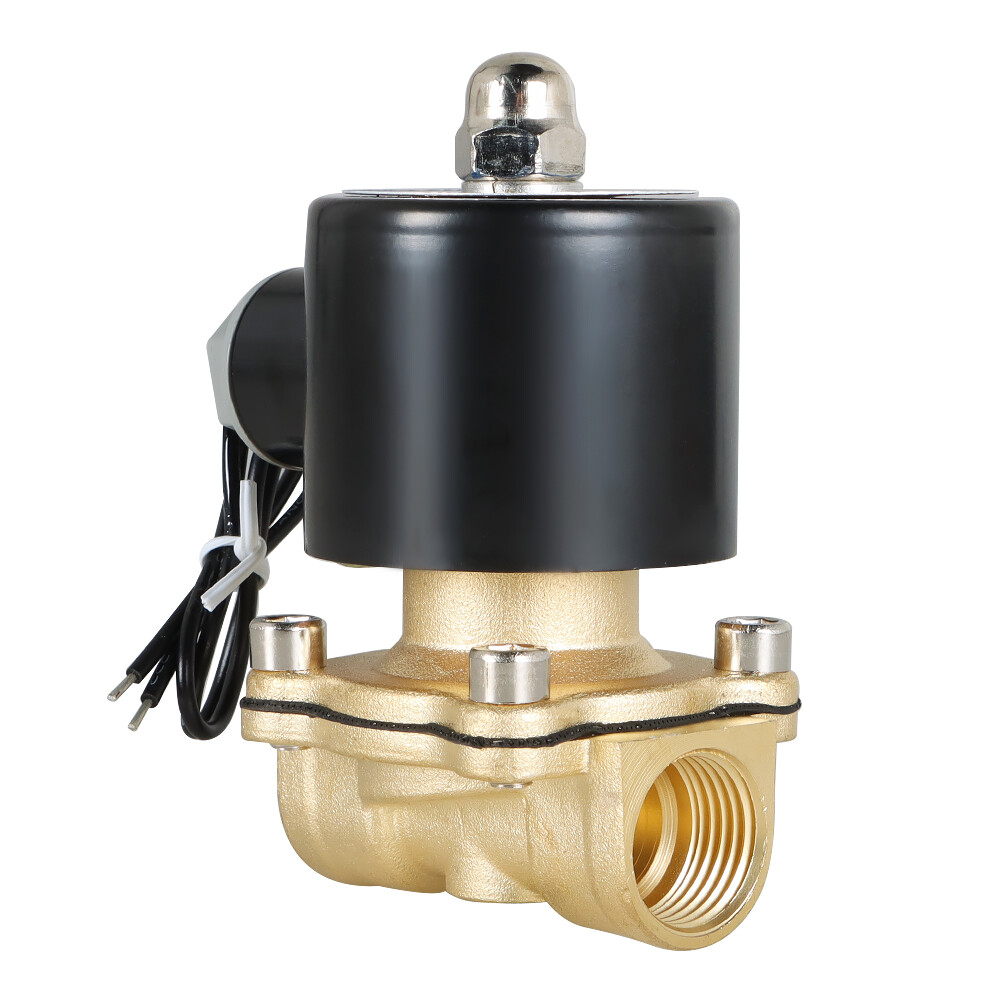

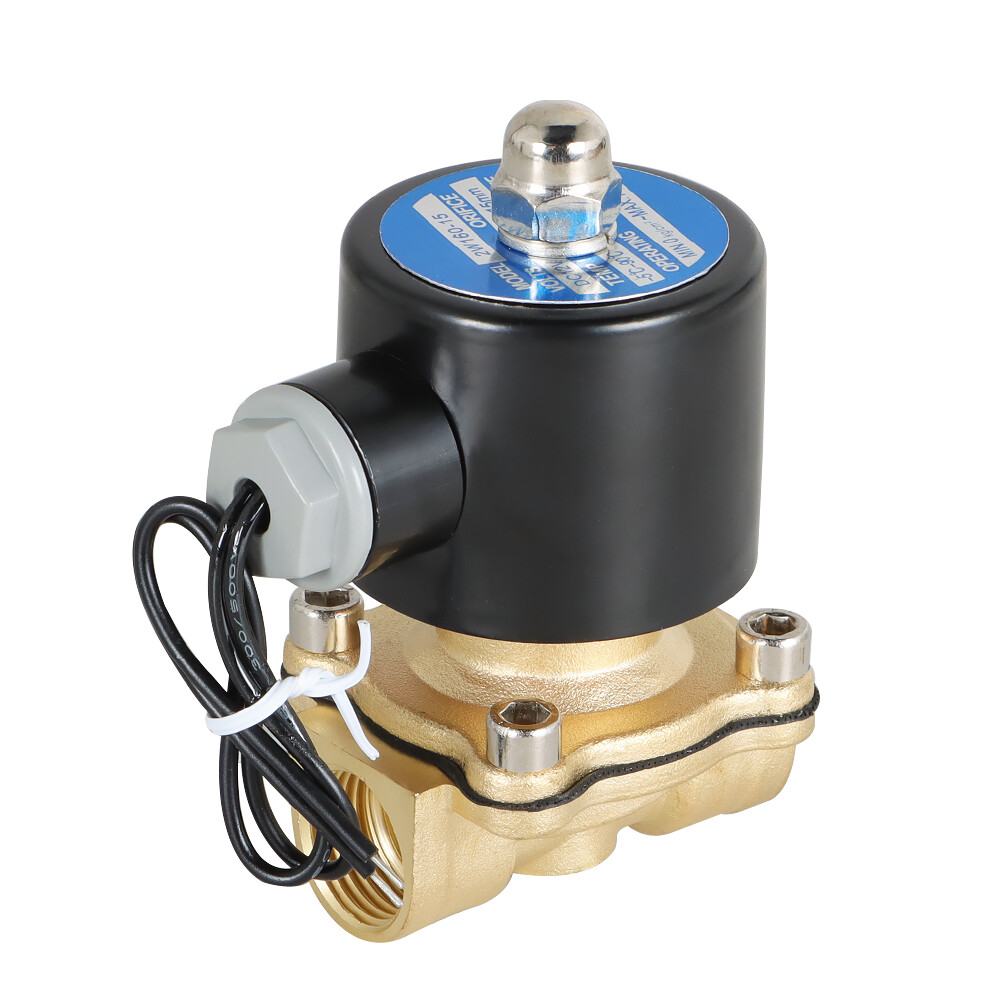

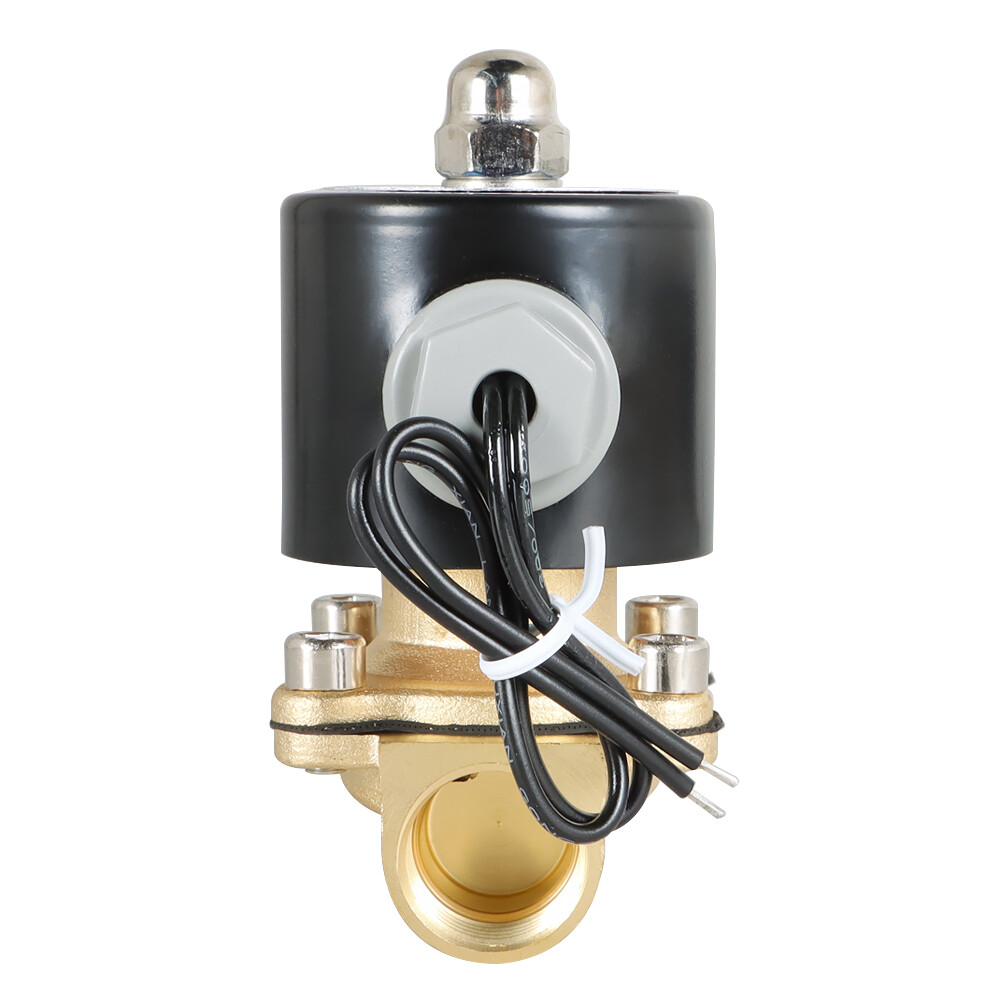

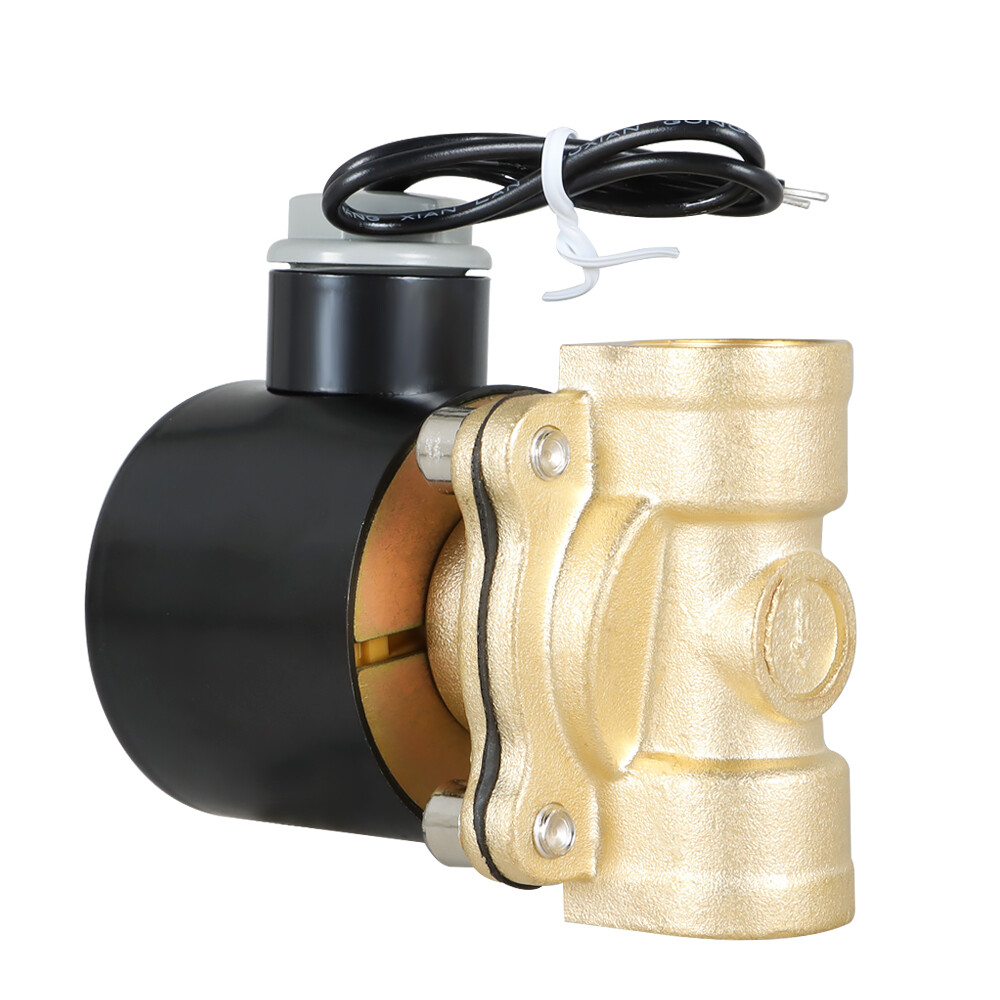

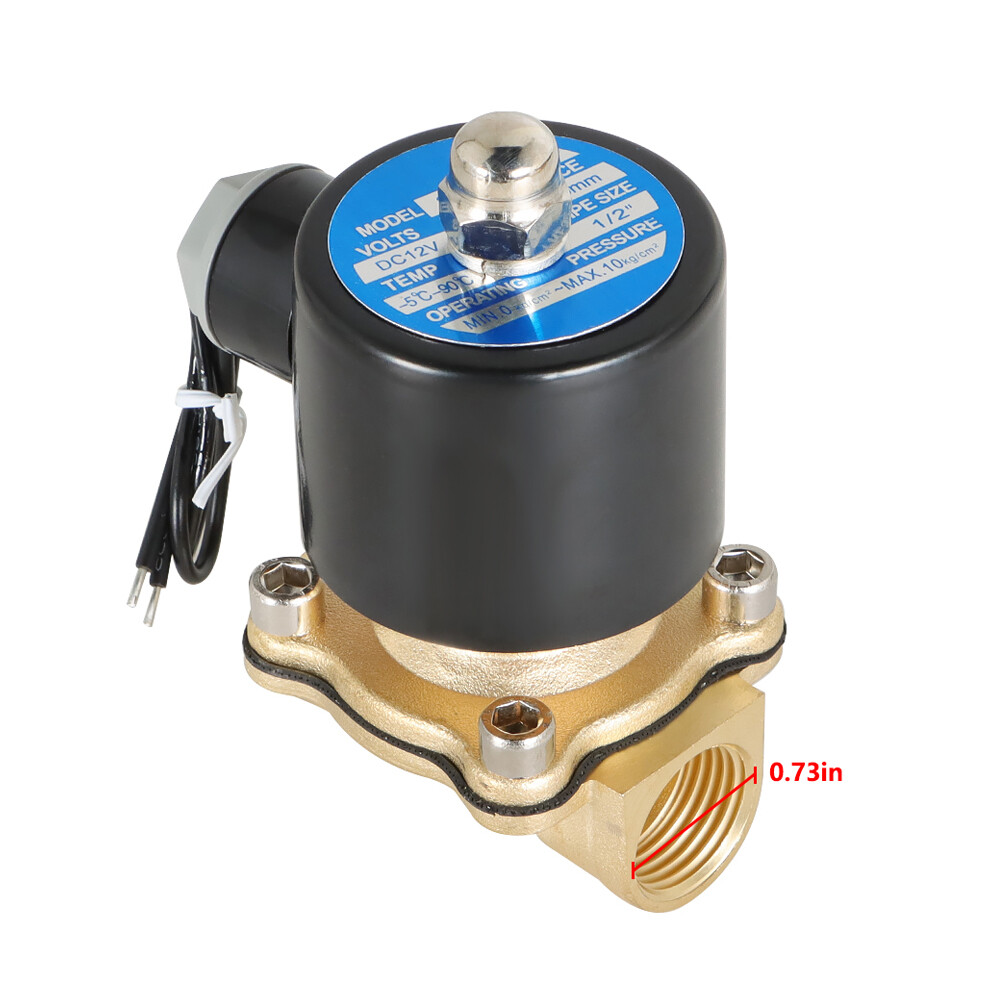

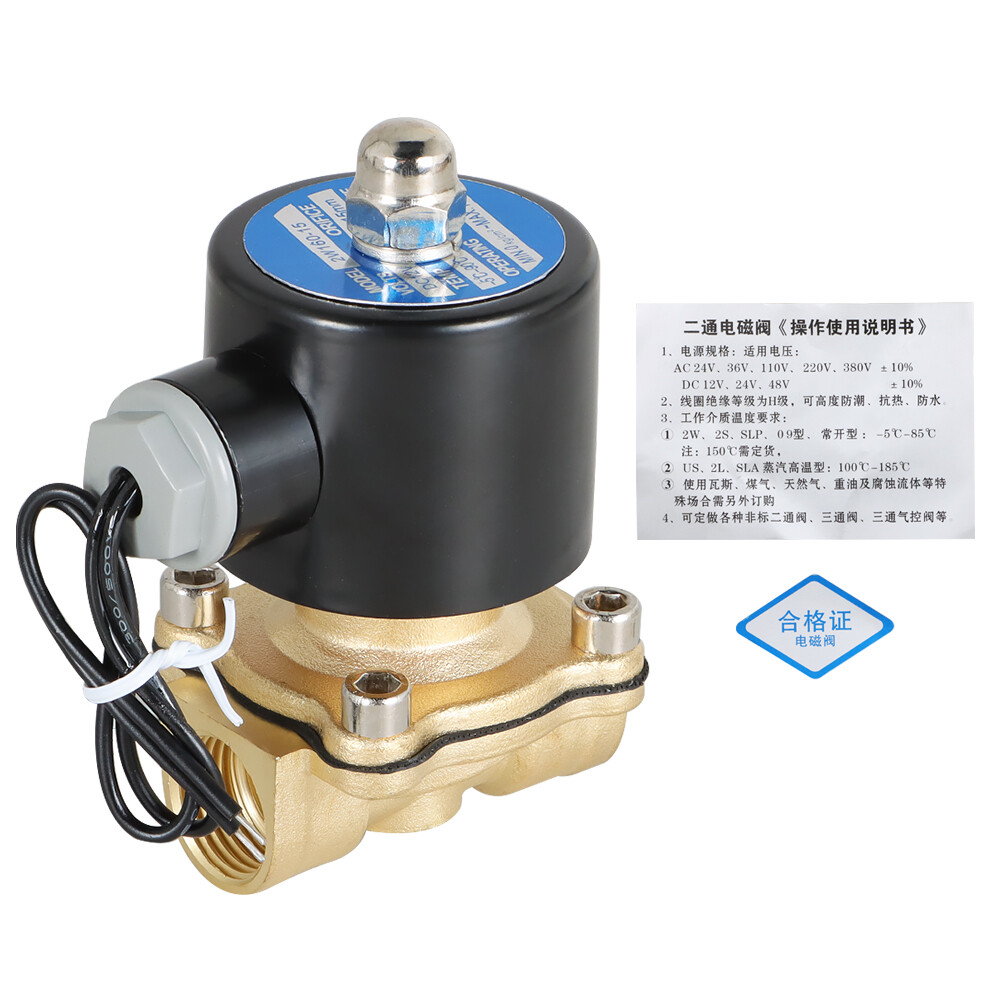

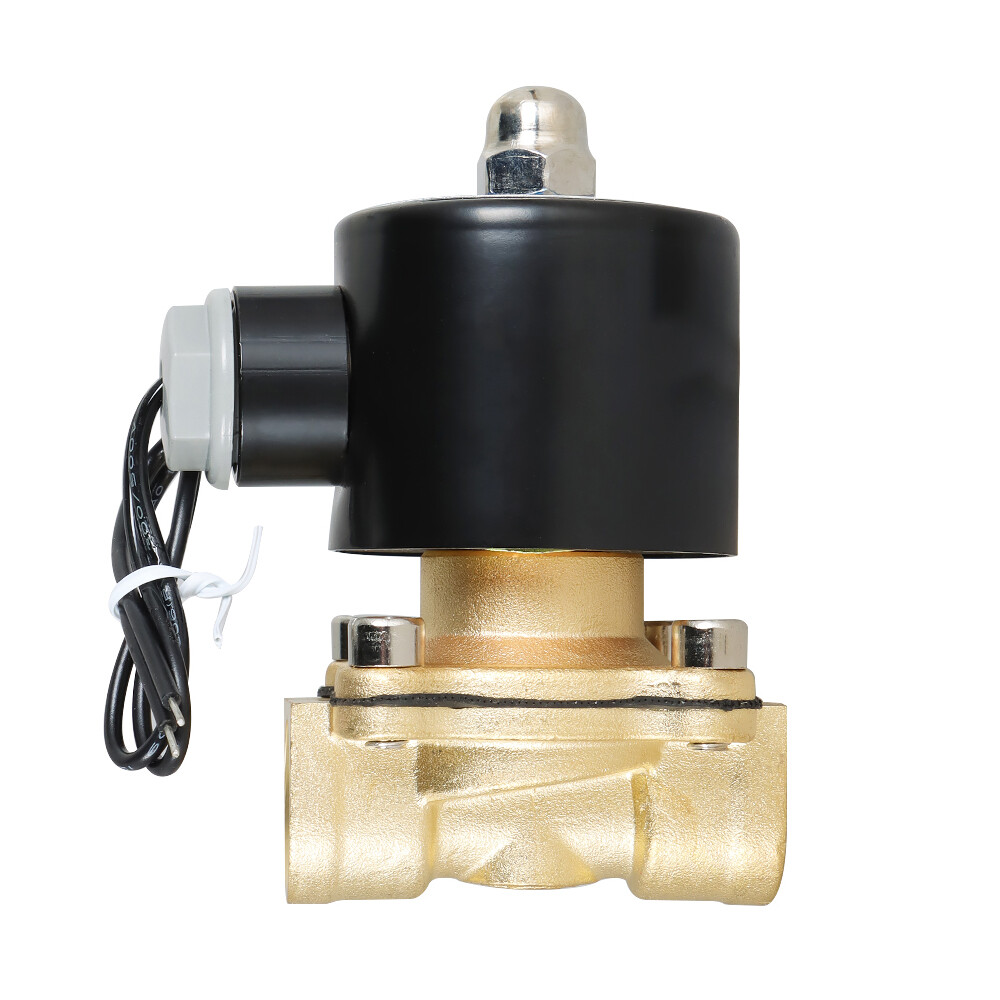

Check the listing for details. 1/2-inch 12V DC Brass Electric Solenoid Valve NPT Gas Water Air Normally Closed. Condition: New. Listed at 18.41 USD. Feature： Port / Orifice Size 1/2" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.840 inches / 14 TPI Large internal orifice (5/8" or 16 mm internal orifice diameter) Cv value: 4.8 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 100° C Excellent choice for low pressure applications due to semi-direct lift design Gravity Feed capable Valve Materials Valve body: Brass Plunger and plunger guide tube: Stainless Steel Diaphragm: FKM (Viton) Dimensions Height: 4" .Feature： Port / Orifice Size 1/2" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.840 inches / 14 TPI Large internal orifice (5/8" or 16 mm internal orifice diameter) Cv value: 4.8 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 100° C Excellent choice for low pressure applications due to semi-direct lift design Gravity Feed capable Valve Materials Valve body: Brass Plunger and plunger guide tube: Stainless Steel Diaphragm: FKM (Viton) Dimensions Height: 4" .
