| Mounting Style | Panel |
| Maximum Amperage | 125 A |
| Number of Positions | 12 |
| Bundle Description | Additional face-plate SHORE/OFF/INVERTER |
| Current Rating | 101-150 A |
| Switch Type | 3 Position 125 Amp Rotary Switch |
| MPN | A33N-61027 |
| Switch Style | Rotary |
| Suitable For | Interior |
| Brand | LiftCharger |
| Operation Method | Manual |
| Switch Action | Maintained |
| Type | Manual Transfer Switch |
| Current Type | AC |
| Termination Type | Screw |
| Contact Configuration | 3 Phase |
| Contact Material | Copper |
| Coil Voltage | 115V or 230V |
| Model | R125A12RV |
| Features | Heavy Duty |
| Compatible Wire Gauge (AWG) | 1 AWG |
| Number of Circuits | 3 |
| Panel Cutout Shape | Circular |

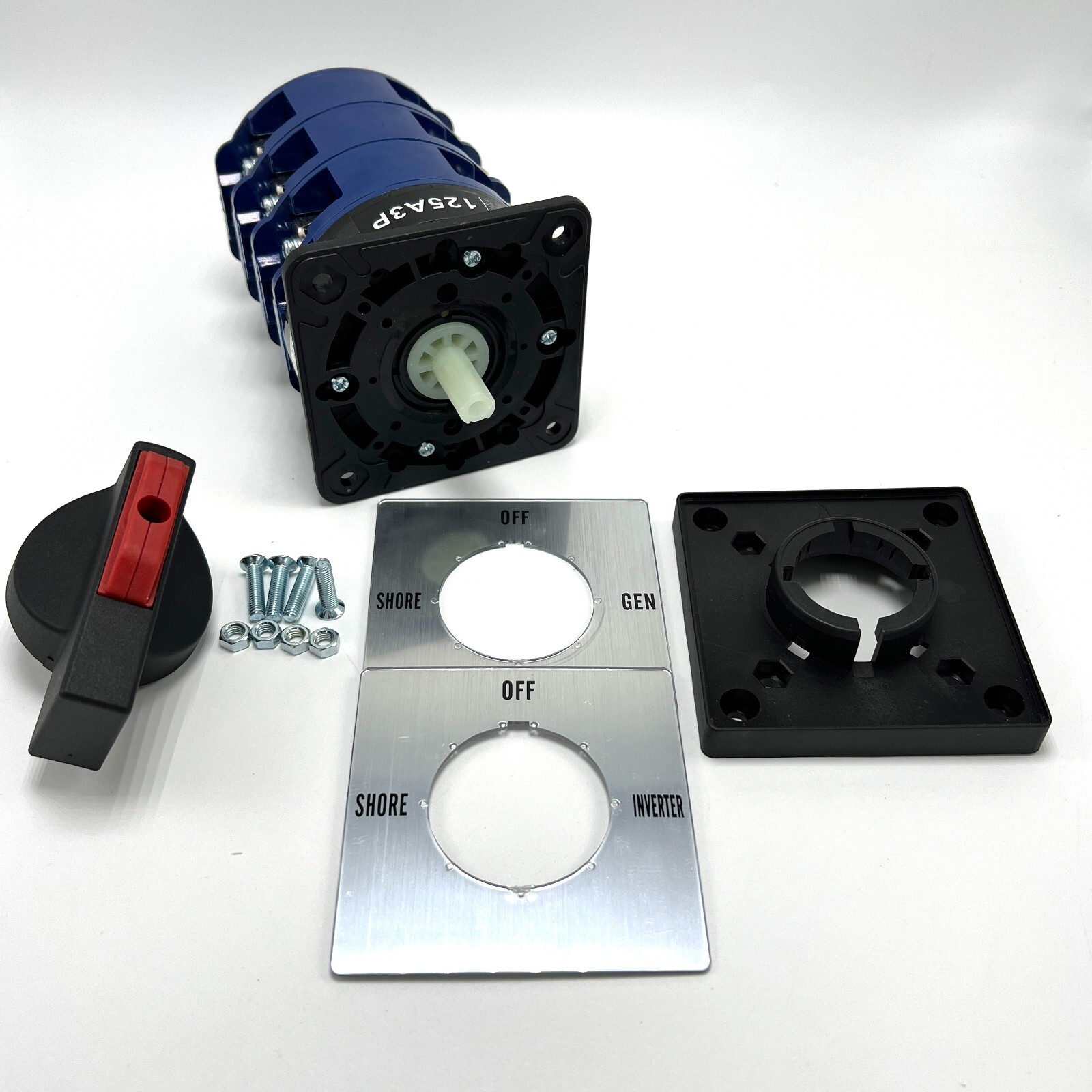

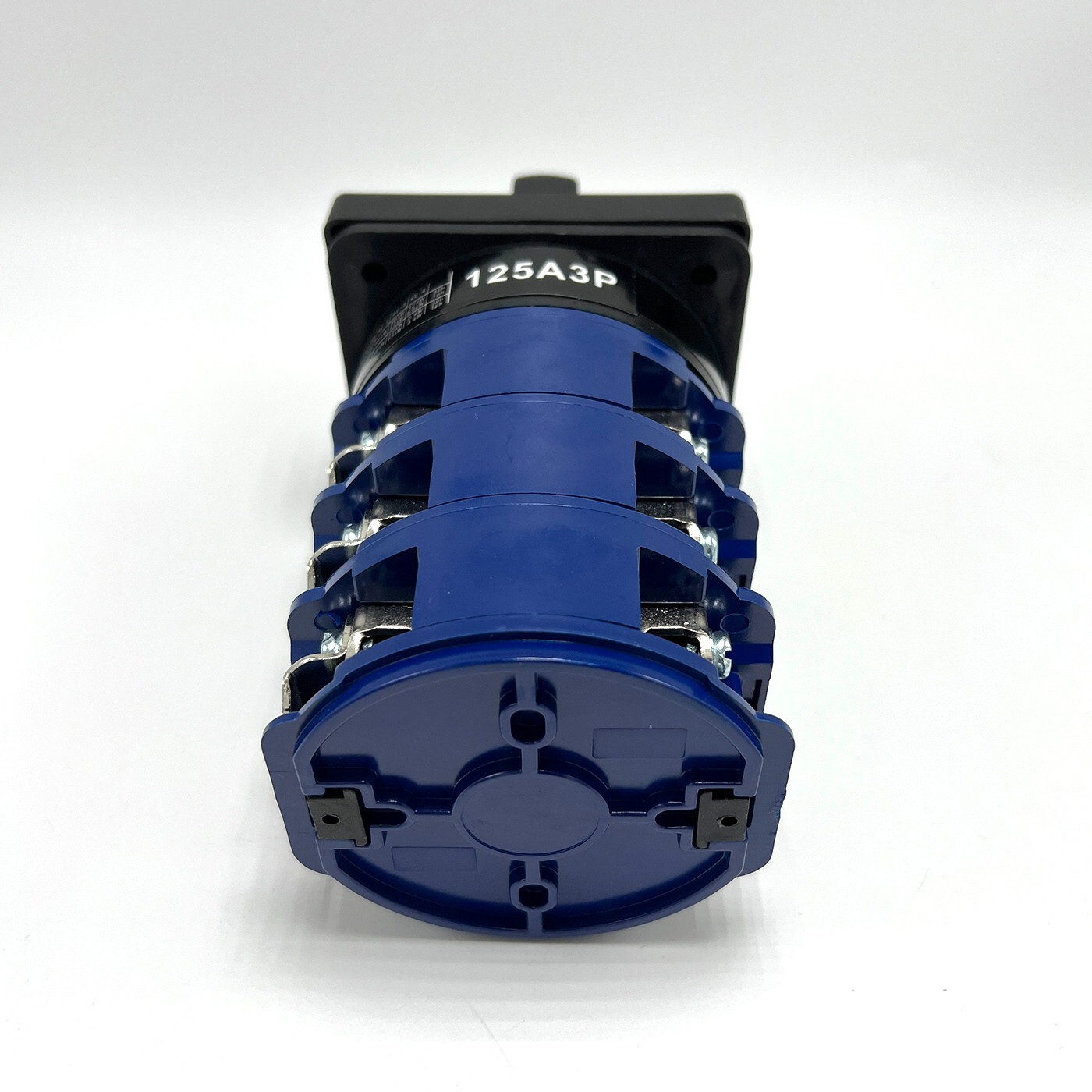

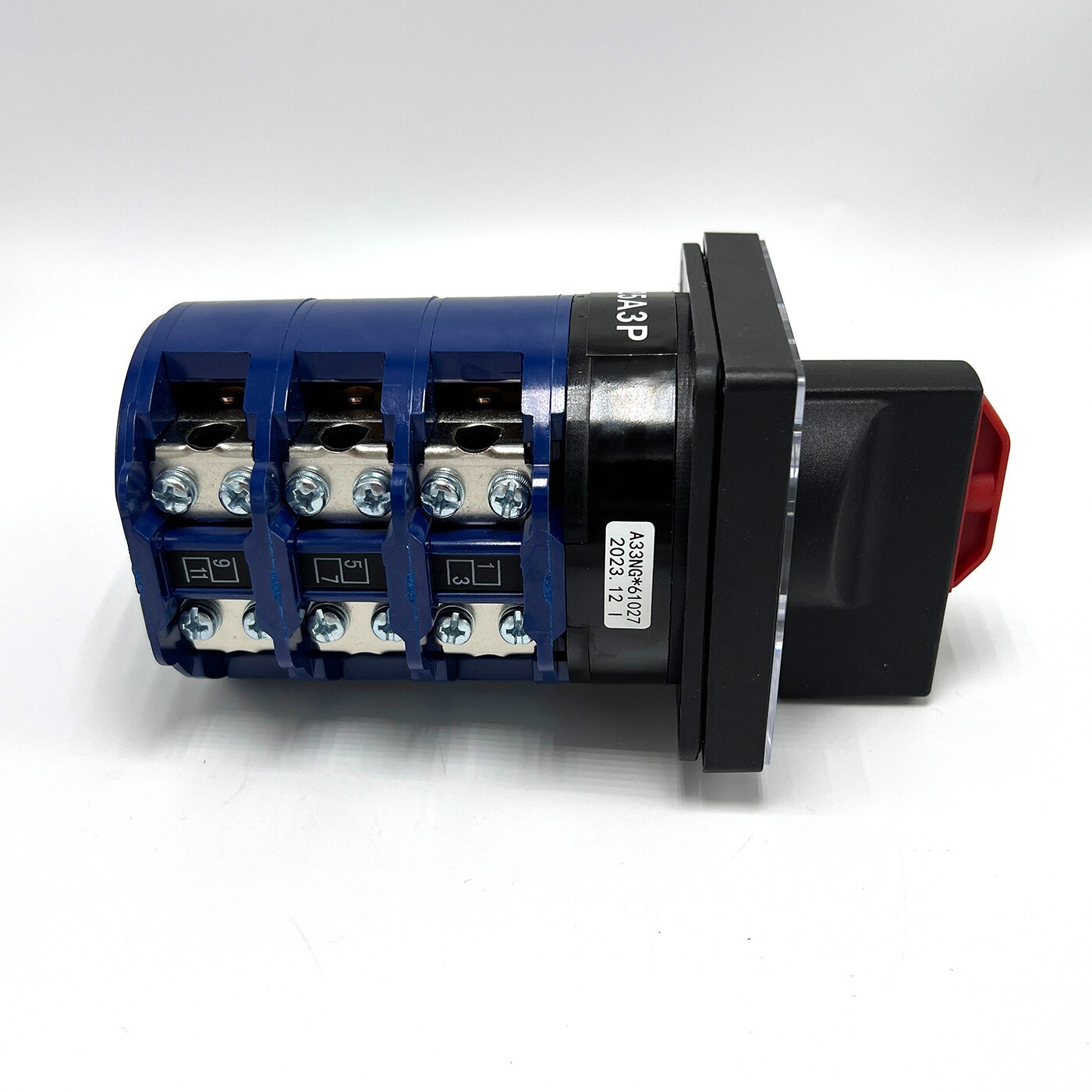

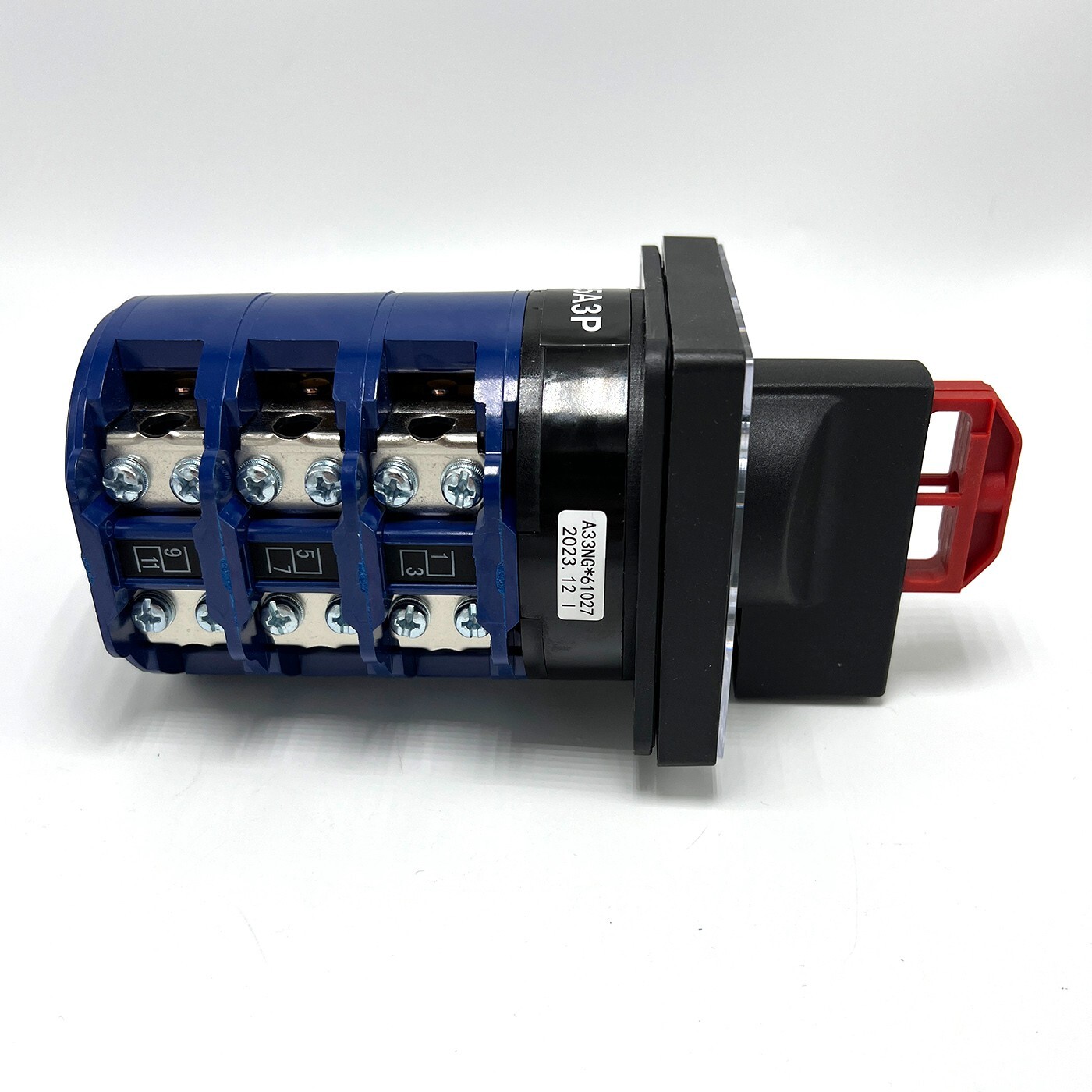

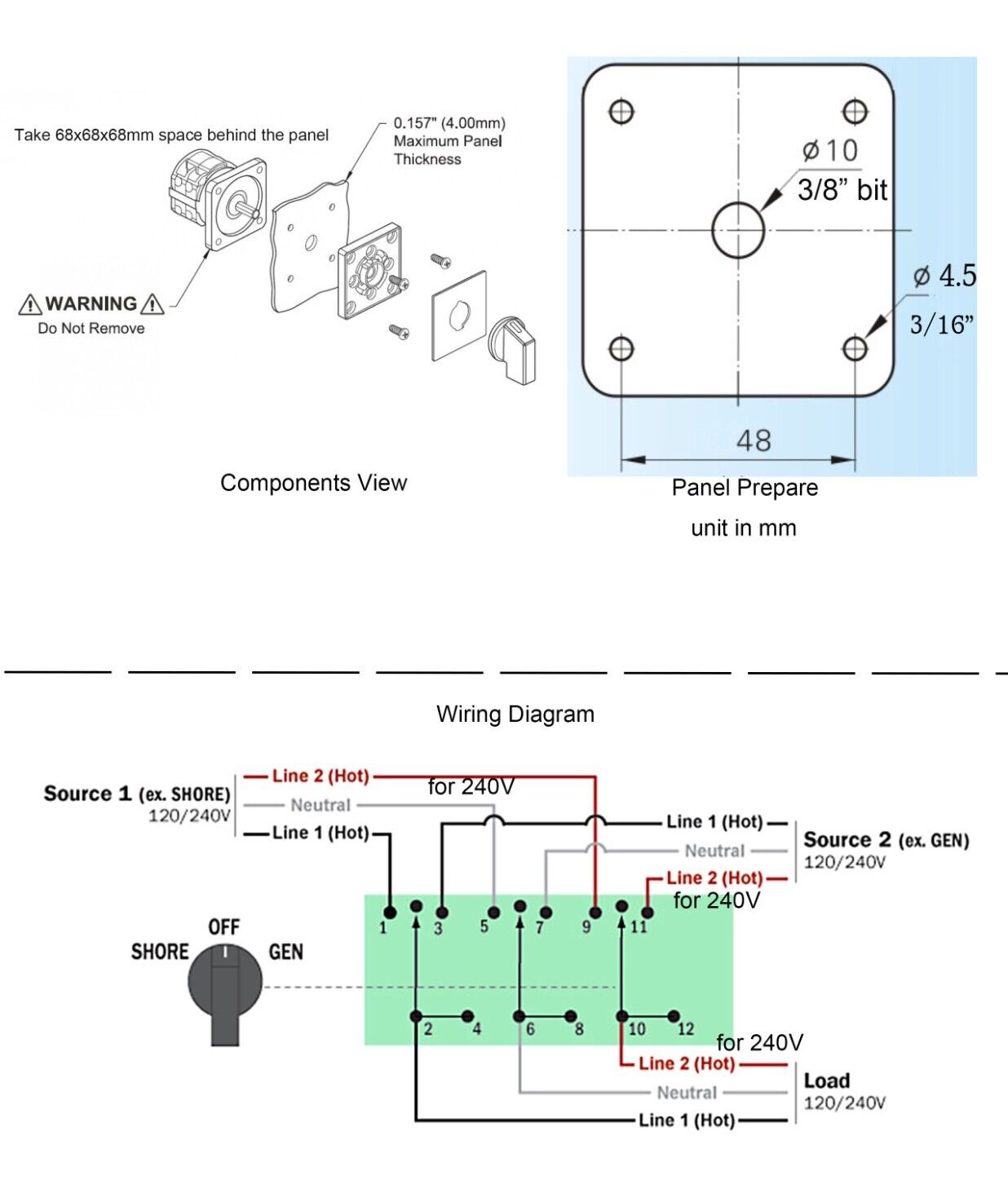

Check the listing for details. 125 Amp Transfer Switch,Shore-Off-Gen Rotary Switch for RV,Motorhome,Truck,Boat. Condition: New. Listed at 114.25 USD. 125 Amp Lockable Rotary Selector Switch, Shore-Off-Gen, Shore-Off-Inverter Manual Transfer Switch Features:Heavy duty industrial rated Shore/Off/Gen and Shore/Off/Inverter Selector AC Power Rotary Transfer SwitchIdeal for RV, motorhome, truck, boat and other equipment to safely switch between shore line and generator power selectionUp to 125 Amp for 115/230v AC power transfer, enough for most medium duty applicationsAllows for selecting one of two different 120 volt or 240 volt AC sources to one circuit; Or select between two loads with one power input.Easy to Install, easy to follow wiring instruction.Additional Face-plate with 'SHORE/OFF/INVERTER' included.Surface panel Size: 87x87x14 mm / 3.43 x 3.43 x 0.55 In.Rotary knob height: 50mm (62mm with lock) / 1.97 In. (2.44 In. with lock)Switch behind panel wall length: 115 mm/ 4.53 In.Max panel wall thickness: 12.5mm/ 0.5 in. Kit includes:3 position Shore/Off/Gen 125 Amp Selector SwitchSpare face plate engraved SHORE/OFF/INVERTERWiring manual and cutting templateMounting Hardware125 Amp Lockable Rotary Selector Switch, Shore-Off-Gen, Shore-Off-Inverter Manual Transfer Switch Features:Heavy duty industrial rated Shore/Off/Gen and Shore/Off/Inverter Selector AC Power Rotary Transfer SwitchIdeal for RV, motorhome, truck, boat and other equipment to safely switch between shore line and generator power selectionUp to 125 Amp for 115/230v AC power transfer, enough for most medium duty applicationsAllows for selecting one of two different 120 volt or 240 volt AC sources to one circuit; Or select between two loads with one power input.Easy to Install, easy to follow wiring instruction.Additional Face-plate with 'SHORE/OFF/INVERTER' included.Surface panel Size: 87x87x14 mm / 3.43 x 3.43 x 0.55 In.Rotary knob height: 50mm (62mm with lock) / 1.97 In. (2.44 In. with lock)Switch behind panel wall length: 115 mm/ 4.53 In.Max panel wall thickness: 12.5mm/ 0.5 in. Kit includes:3 position Shore/Off/Gen 125 Amp Selector SwitchSpare face plate engraved SHORE/OFF/INVERTERWiring manual and cutting templateMounting Hardware
