| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Seller |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| PCB Type | Double-Sided PCB |
| Number of Rows | 9 |
| Country/Region of Manufacture | China |
| Item Height | 1.2 mm |
| Item Width | 25 mm |
| Mounting Style | Chassis Mount |
| Material | FR-4 |
| Series | AB2Tech Protoboards |
| Type | Perfboard |
| MPN | K057-1.0 |
| Number of Tie-Points | 69 |
| Item Length | 25 mm |
| Brand | AB2Tech |

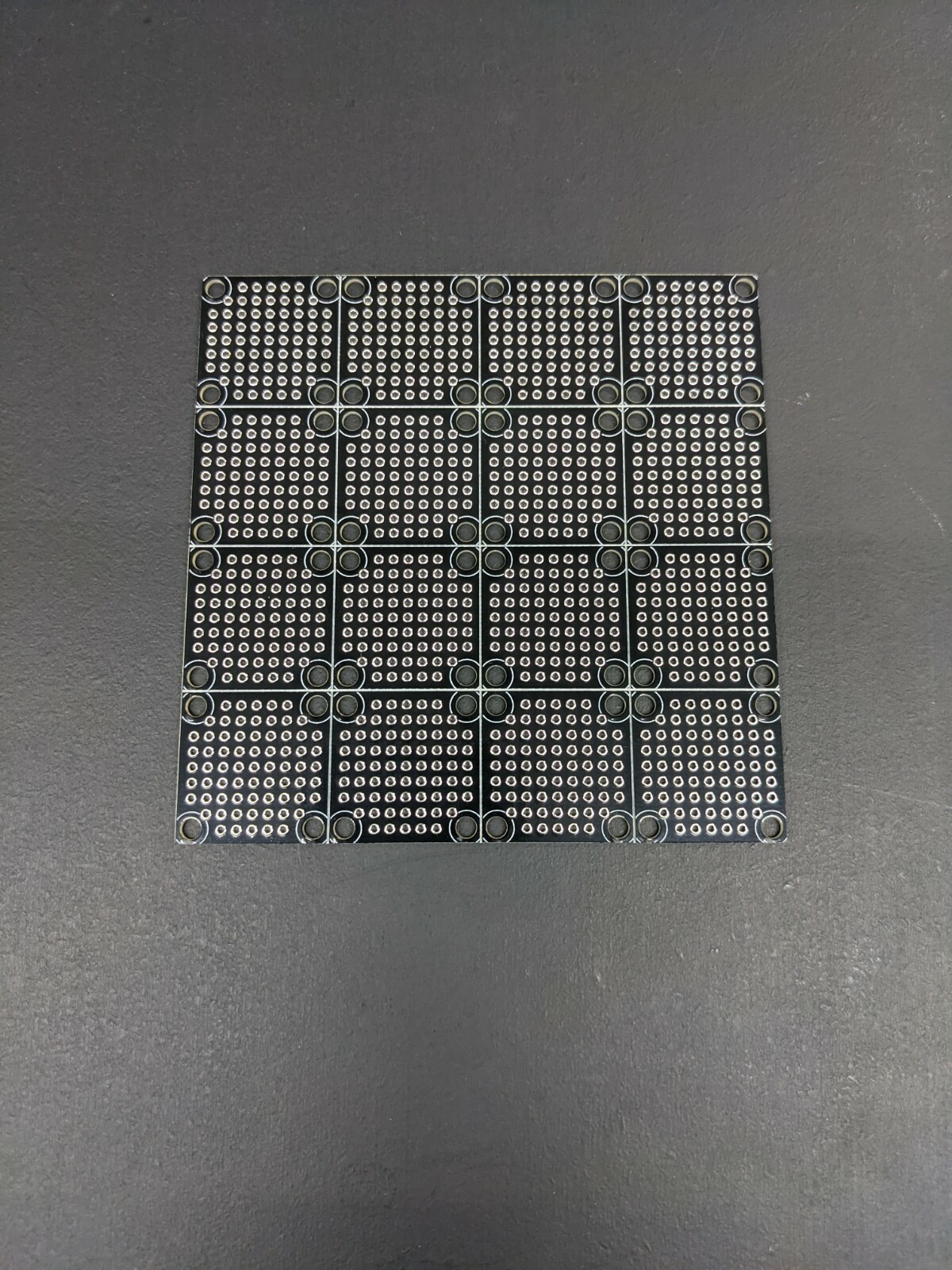

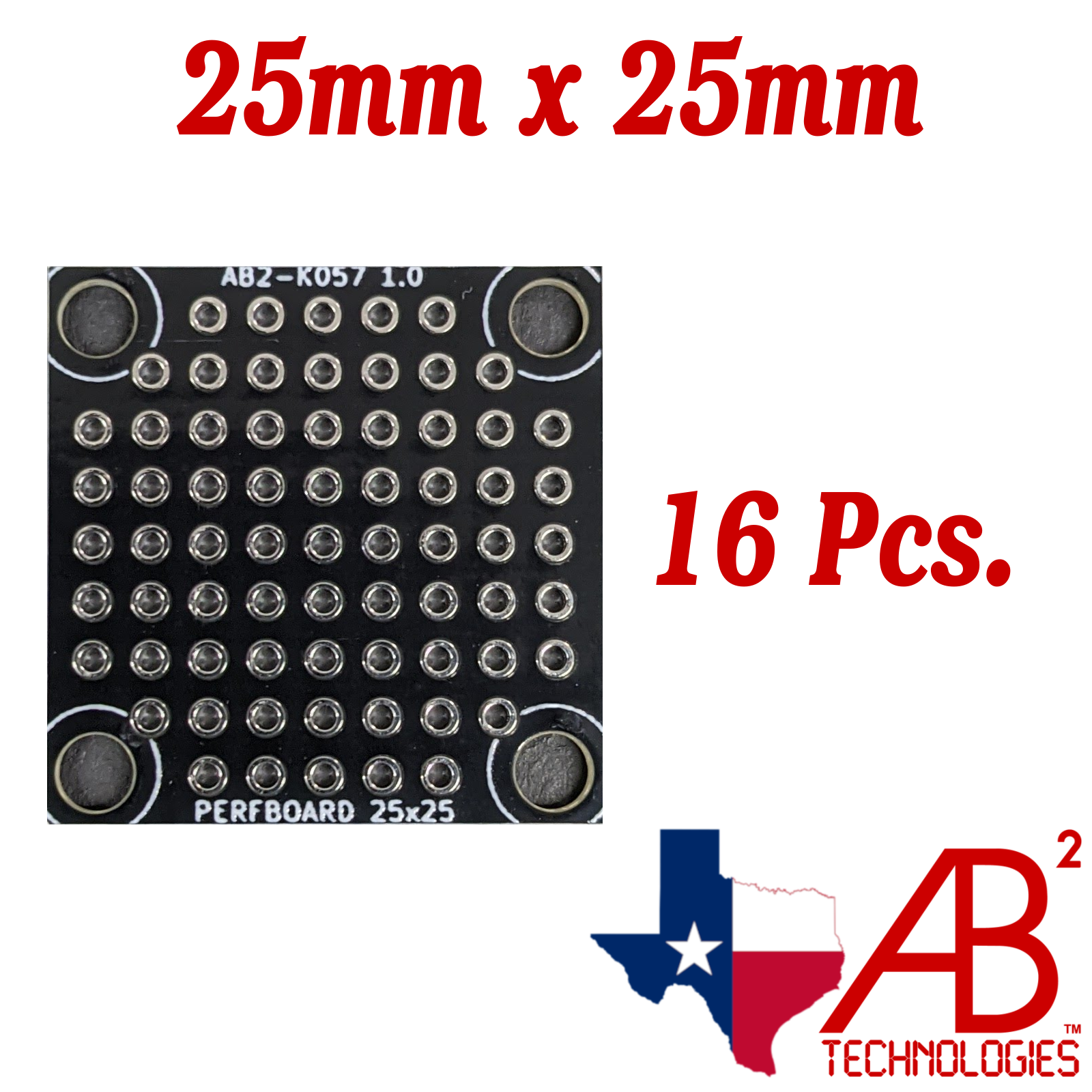

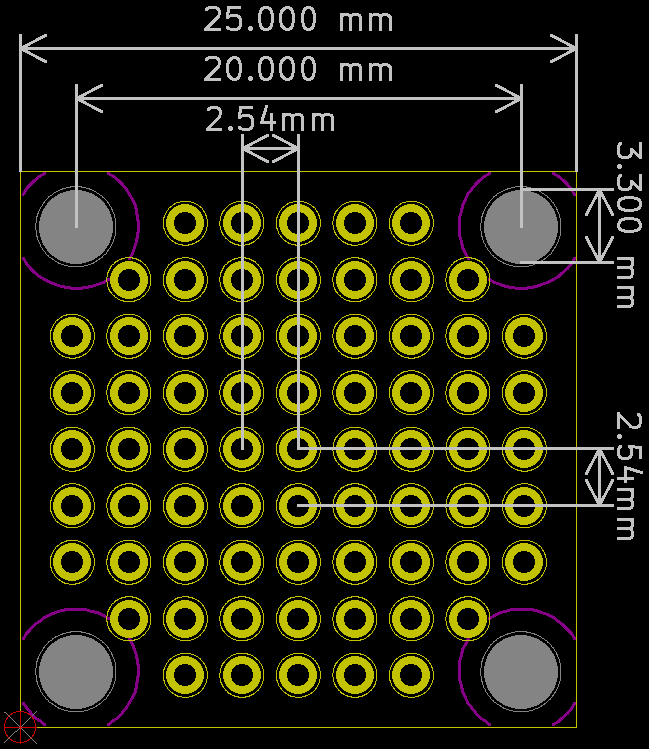

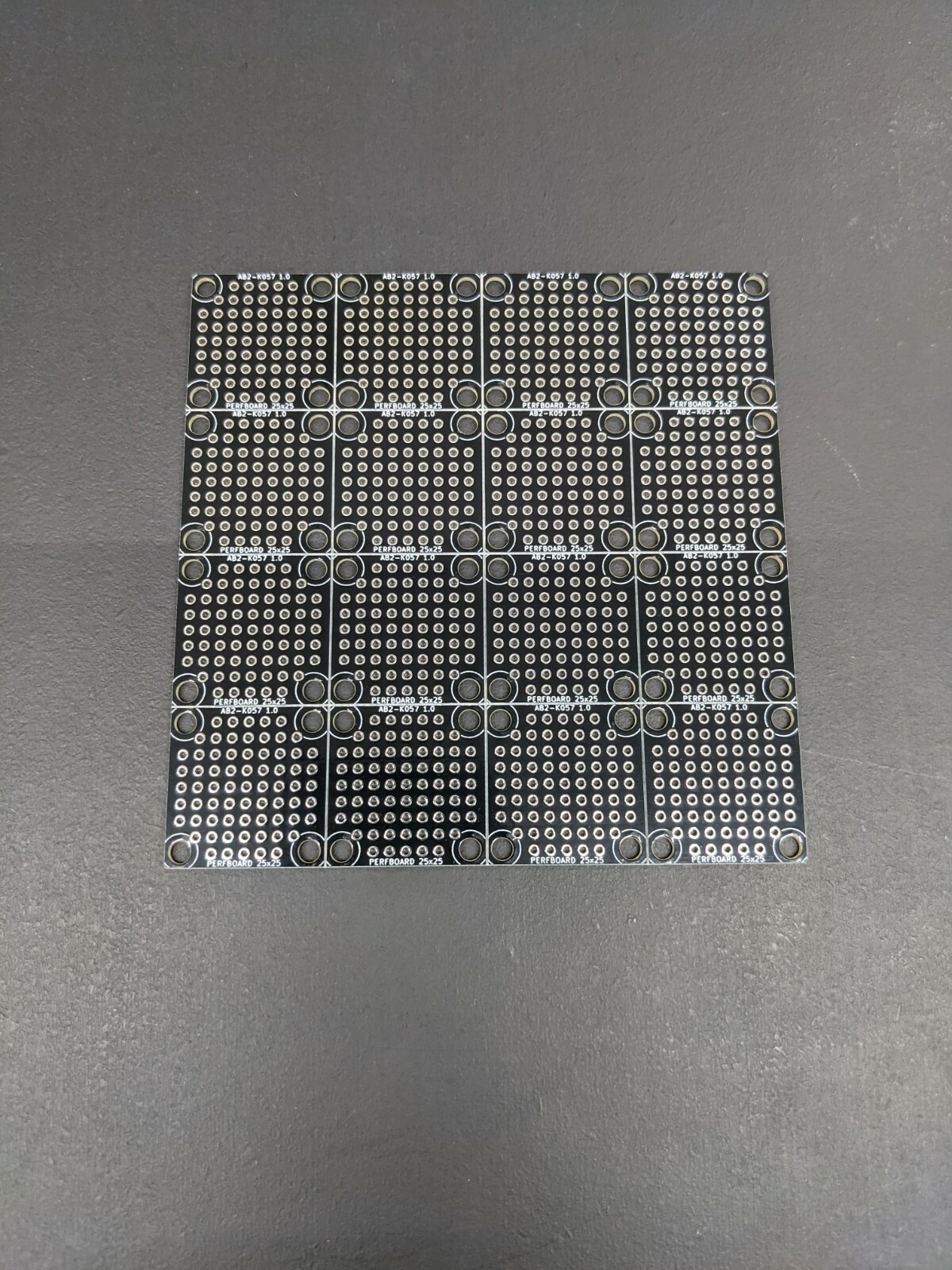

Check the listing for details. 16 Pcs Black PCB Proto / Perf Boards Double Sided 25mm x 25mm (Panel of 16). Condition: New. Listed at 2.50 USD. We occasionally need to quickly prototype and verify a design, so we created these perfboards to help speed up the proof of concept process. Since we are able to panelize these boards we would like to share them at a reasonable price and hope that you can find a use for them in your projects as well. Each 25mm x 25mm perf-board has 4 non-plated mounting holes on a 20mm grid each with a diameter of 3.302mm (130mils). There are 69 plated through-holes on a 2.54mm (100mil) grid with 1.106mm (40mil) drill and 1.6764 (66mil) pad diameters. Solder Mask: BlackSilk Screen: WhiteDimensions: 0.98" x 0.98" (25mm x 25mm) Full v-scored sheet with 16 boards (4x4 array) is 100mm x 100mm. Thanks for looking!
