| Brand | globalmart-top |
|---|---|
| MPN | GT2715804 |
| Type | Control Valves |
| Quantity | 1 PC |
| Material | cast iron |
| Specification | NO |
| Valve Operation | Manua |
| Maximum Flow Rate | 21 gpm |
| Spool Count | 2-Spool |
| Max Operating Pressure | P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI |
| Flow Rating | 21 GPM (80 l/min) |
| A & B Work Ports | SAE10 (7/8"-14) Thread |
| Inlet Port | SAE10 (7/8"-14) Thread |
| Outlet Port | SAE12 (1-1/16) Thread |
| Warranty | 1 Year |

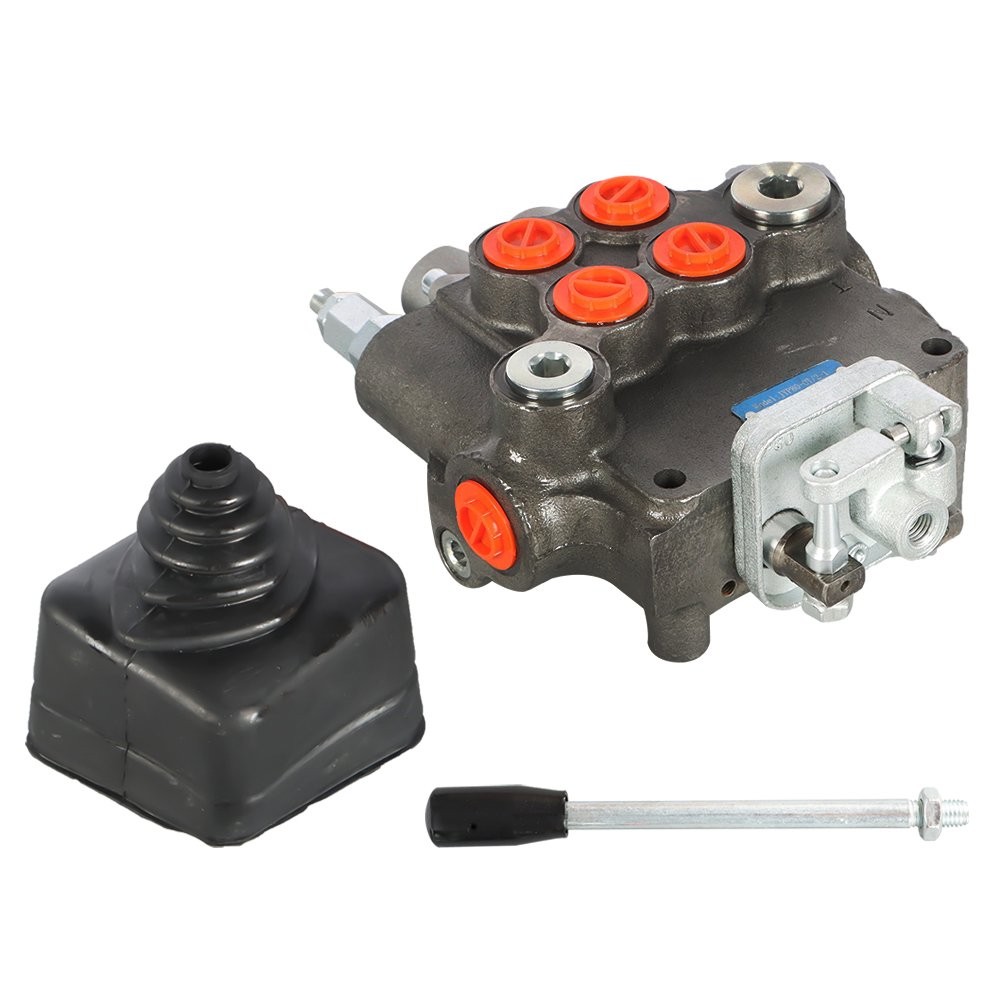

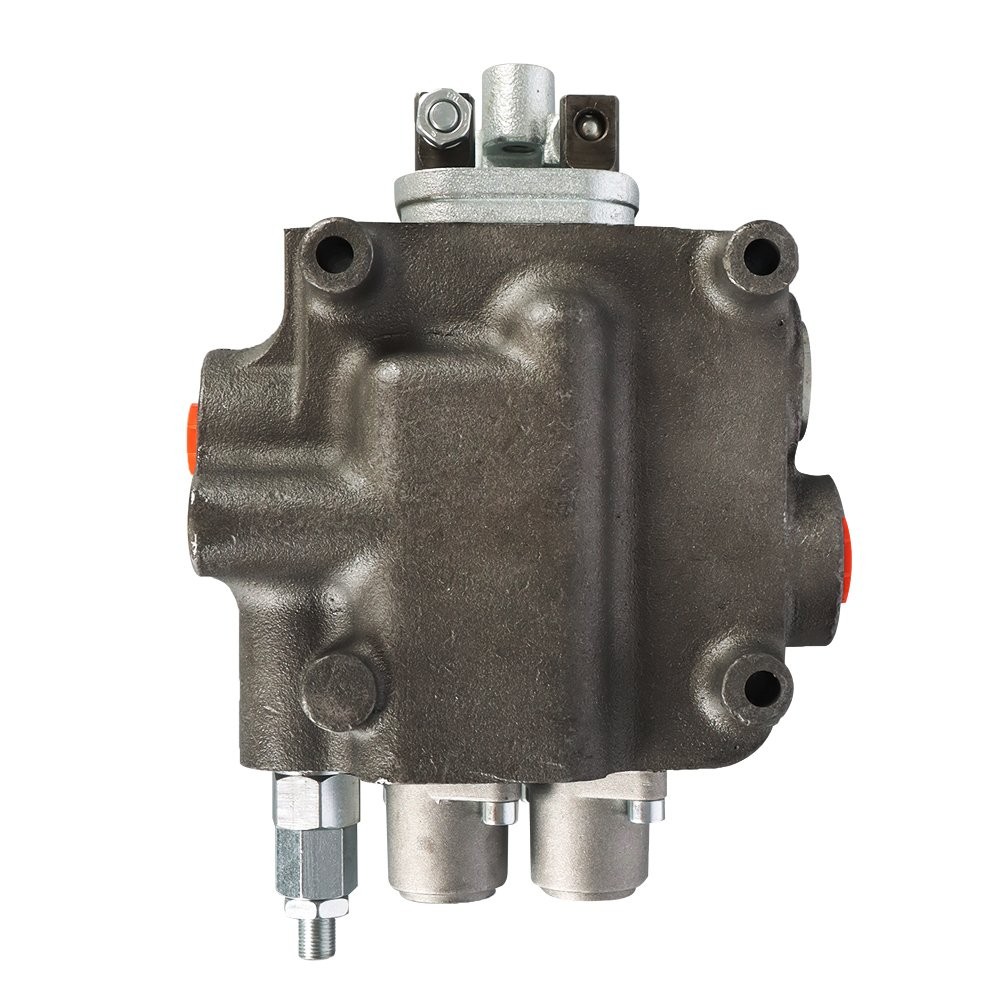

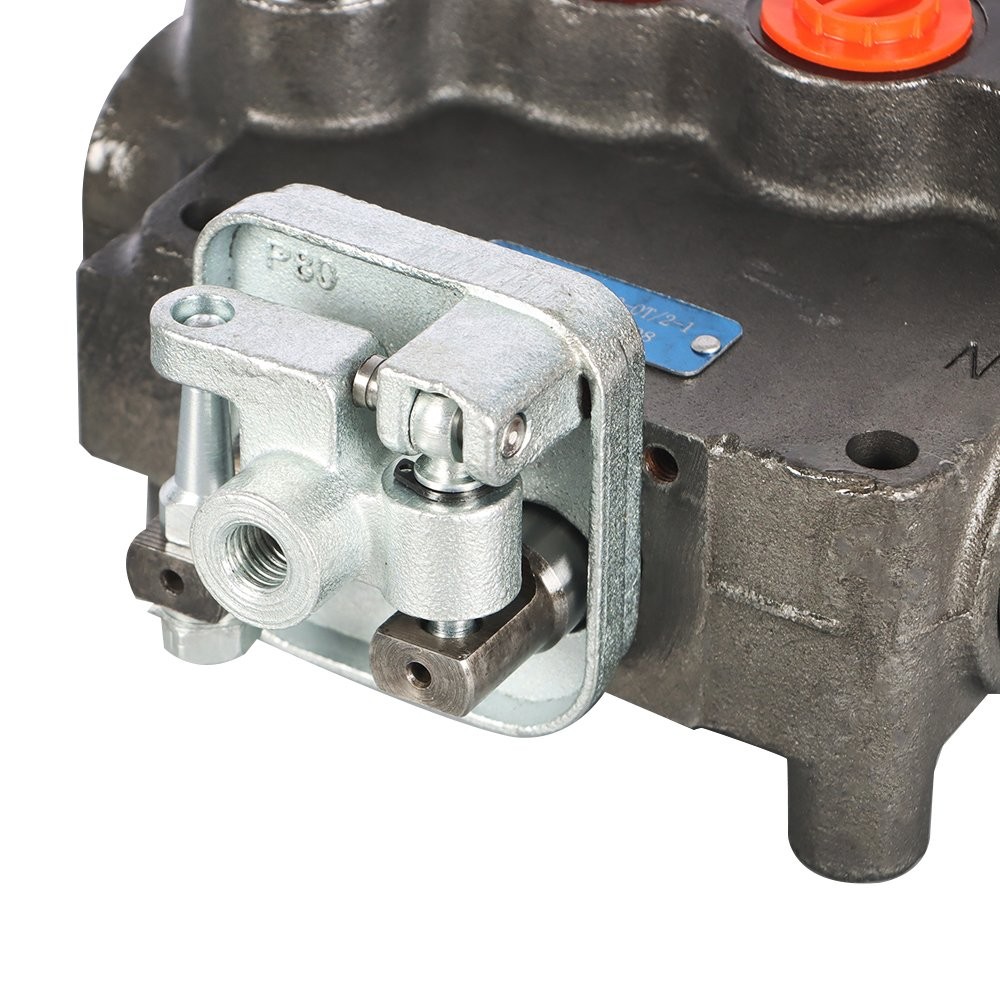

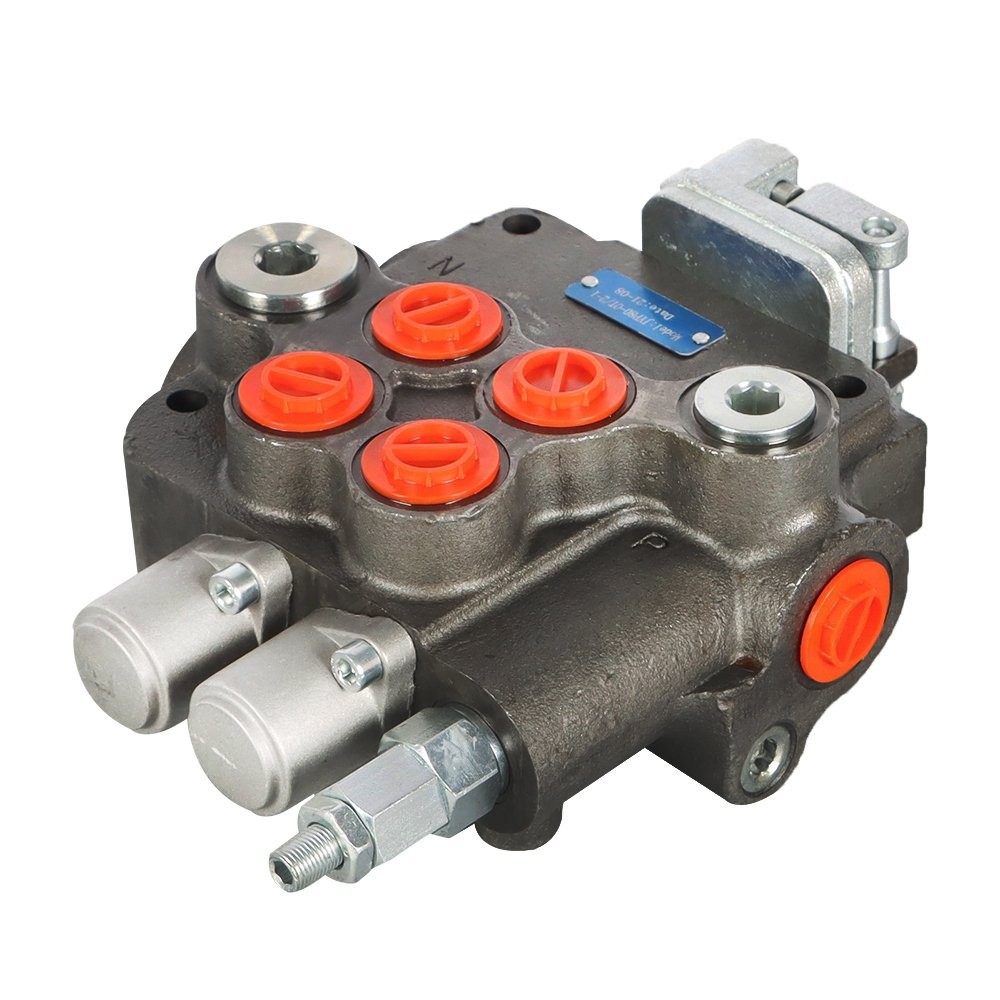

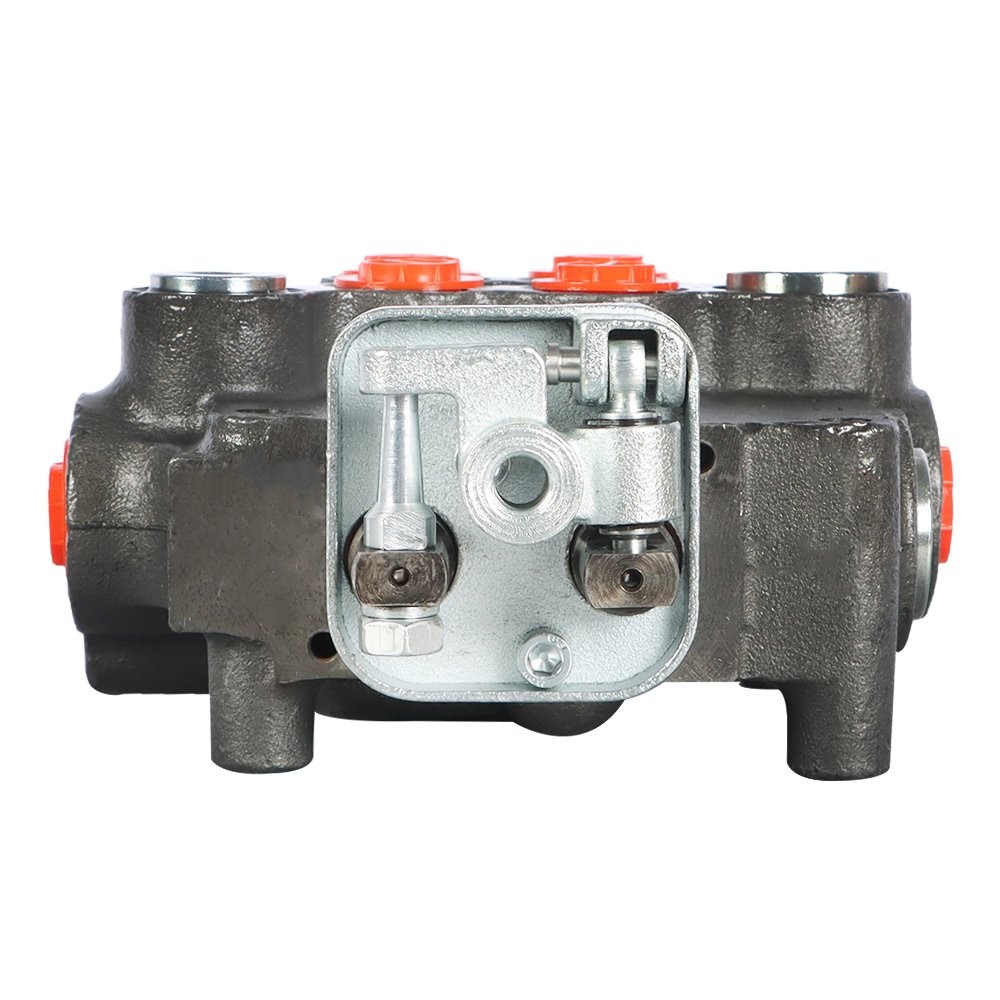

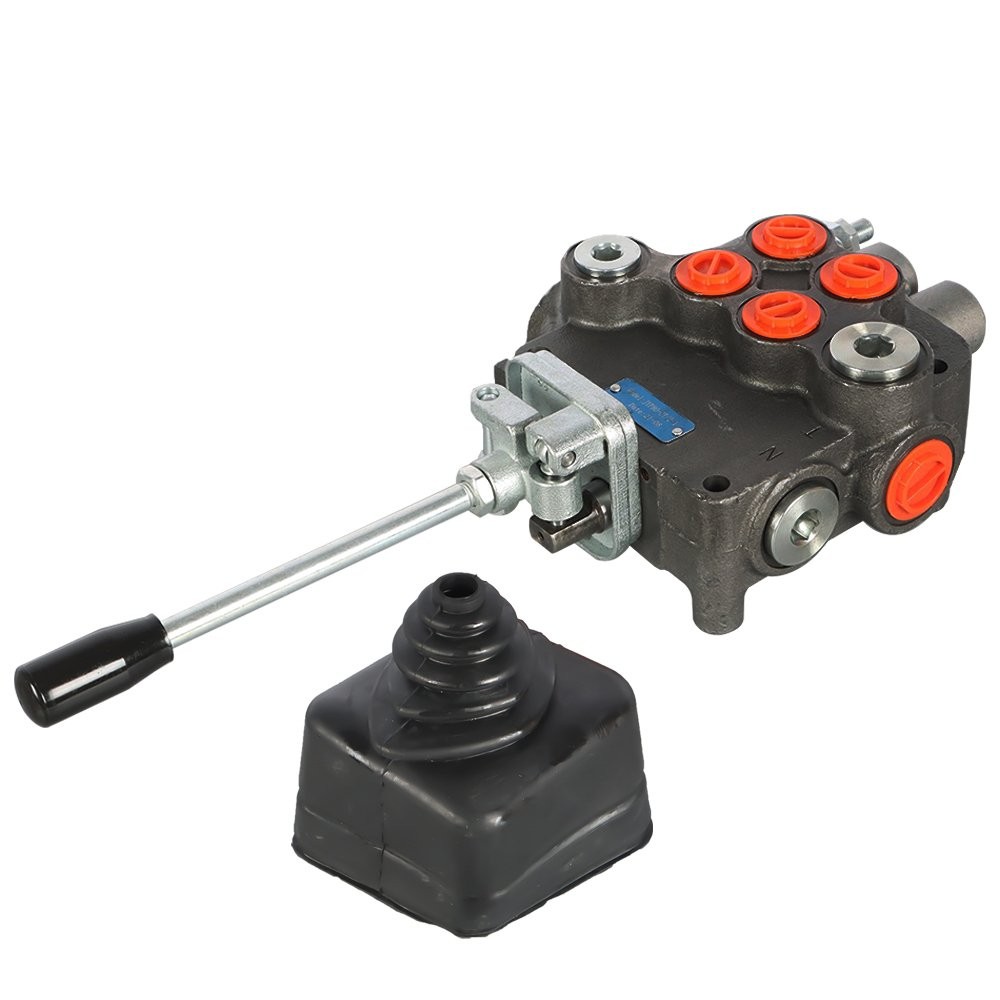

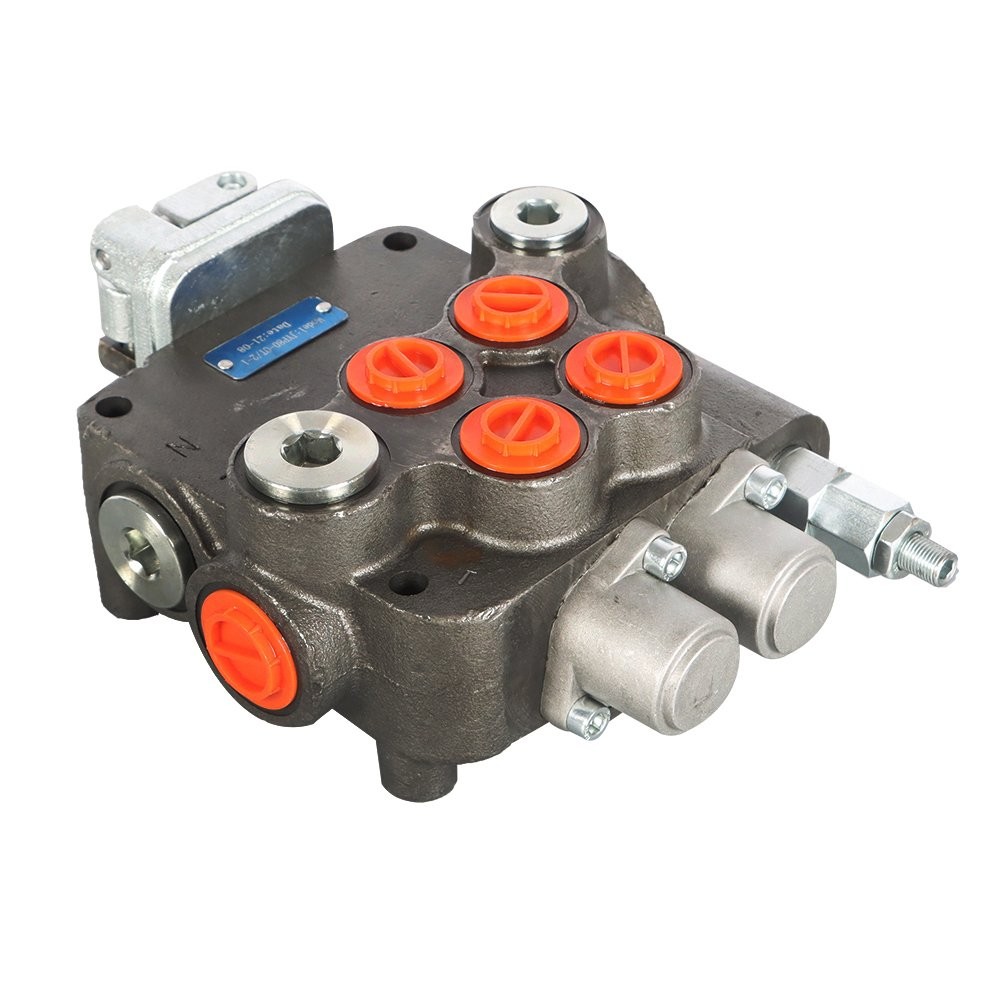

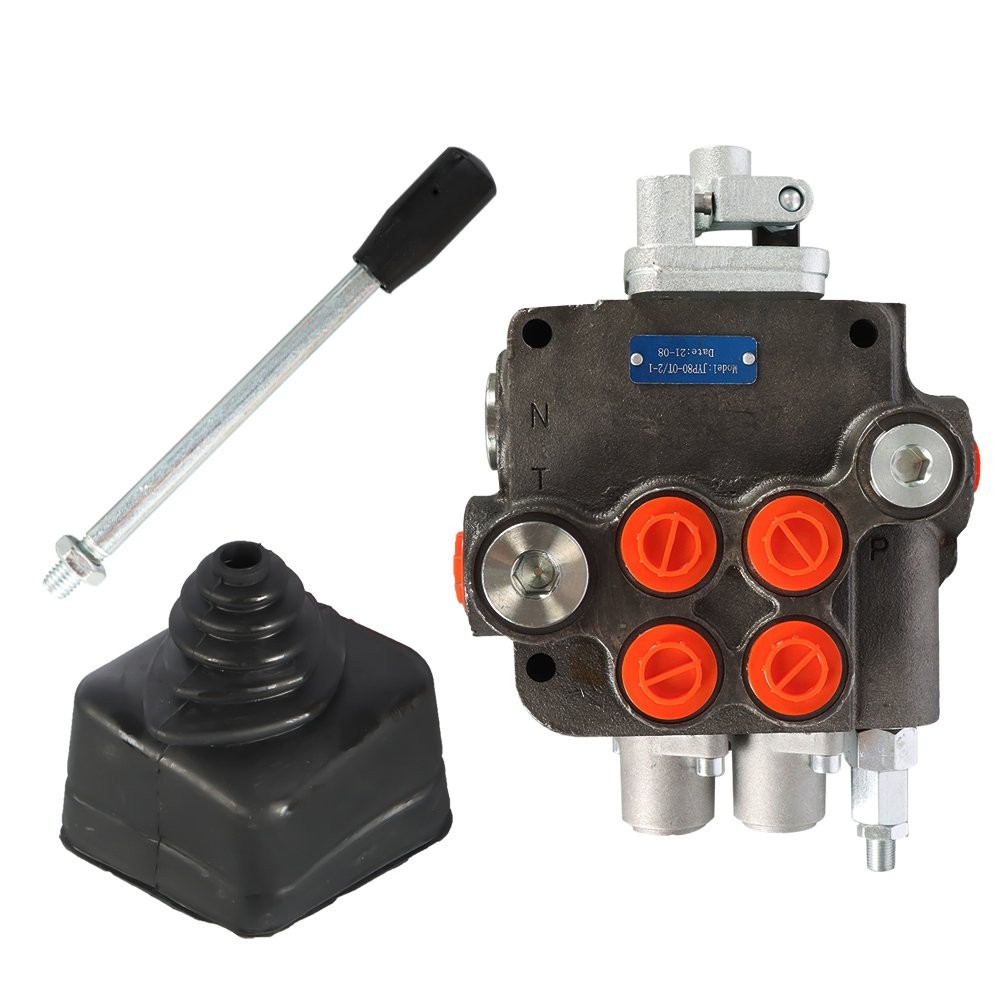

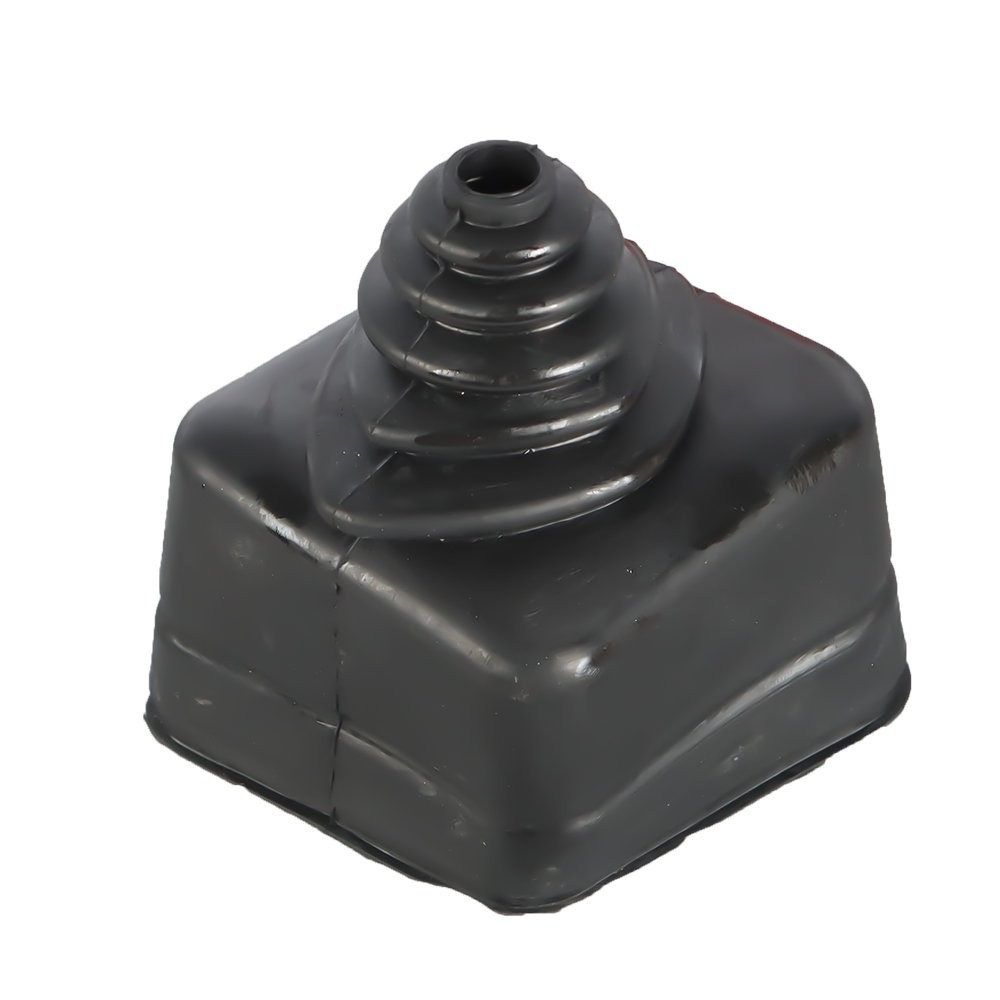

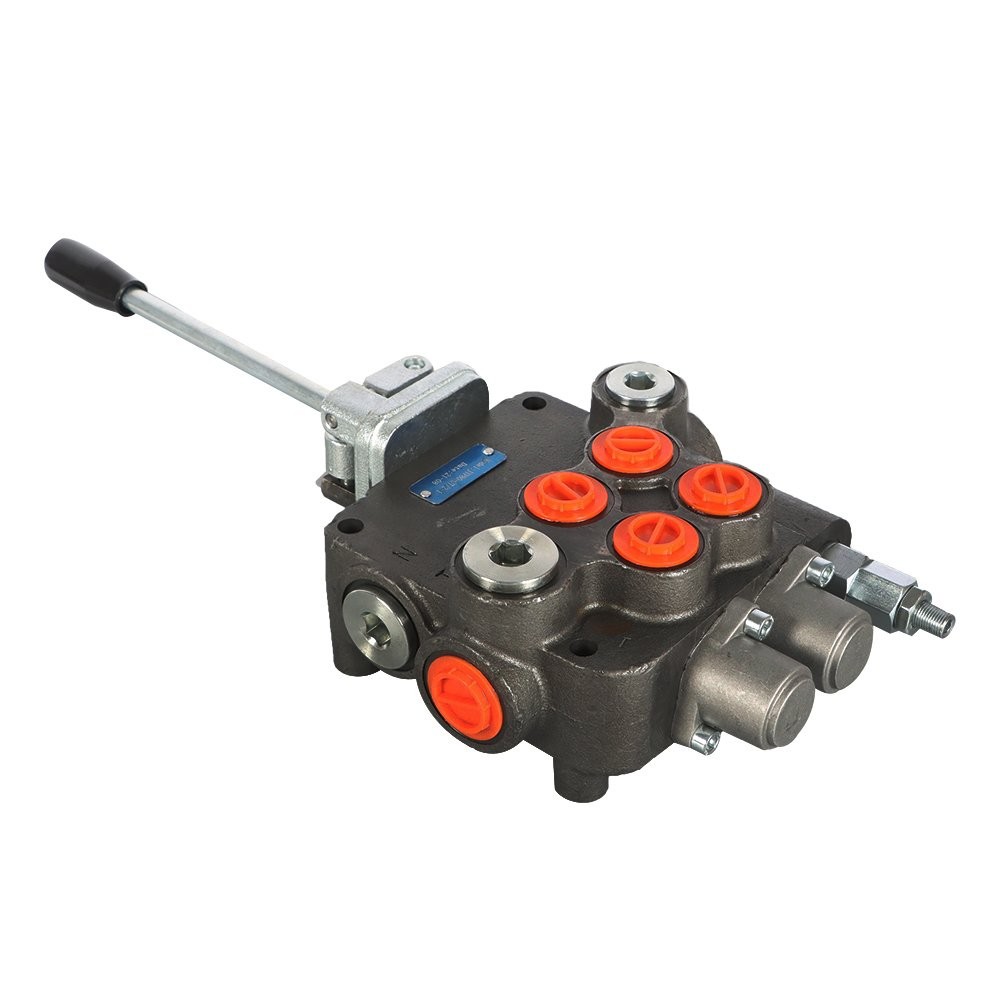

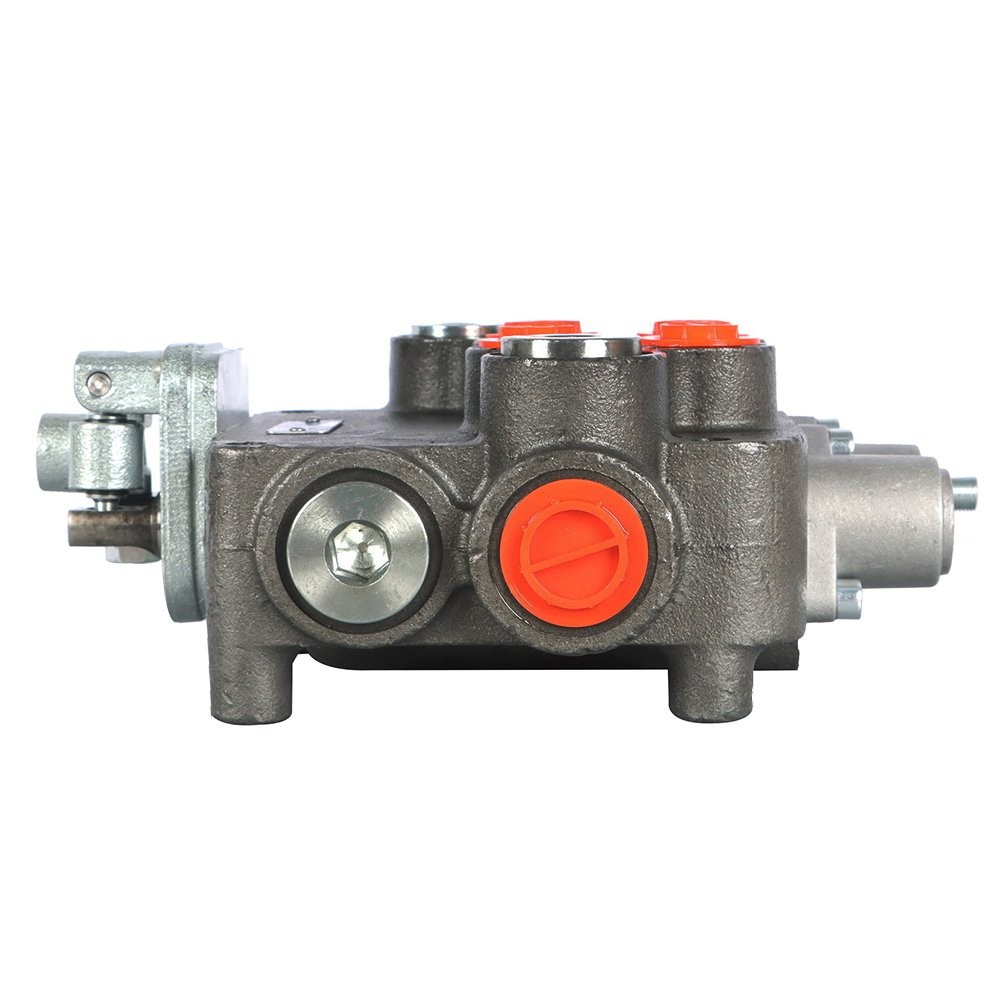

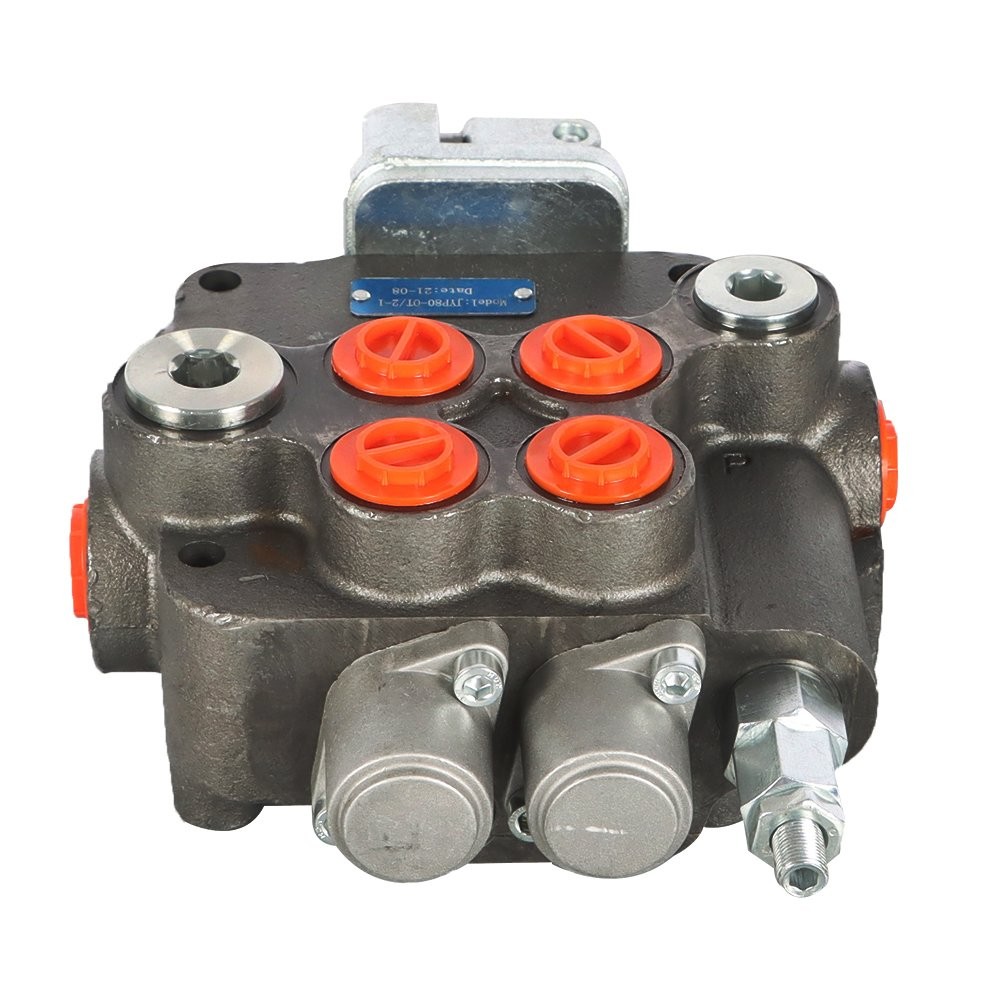

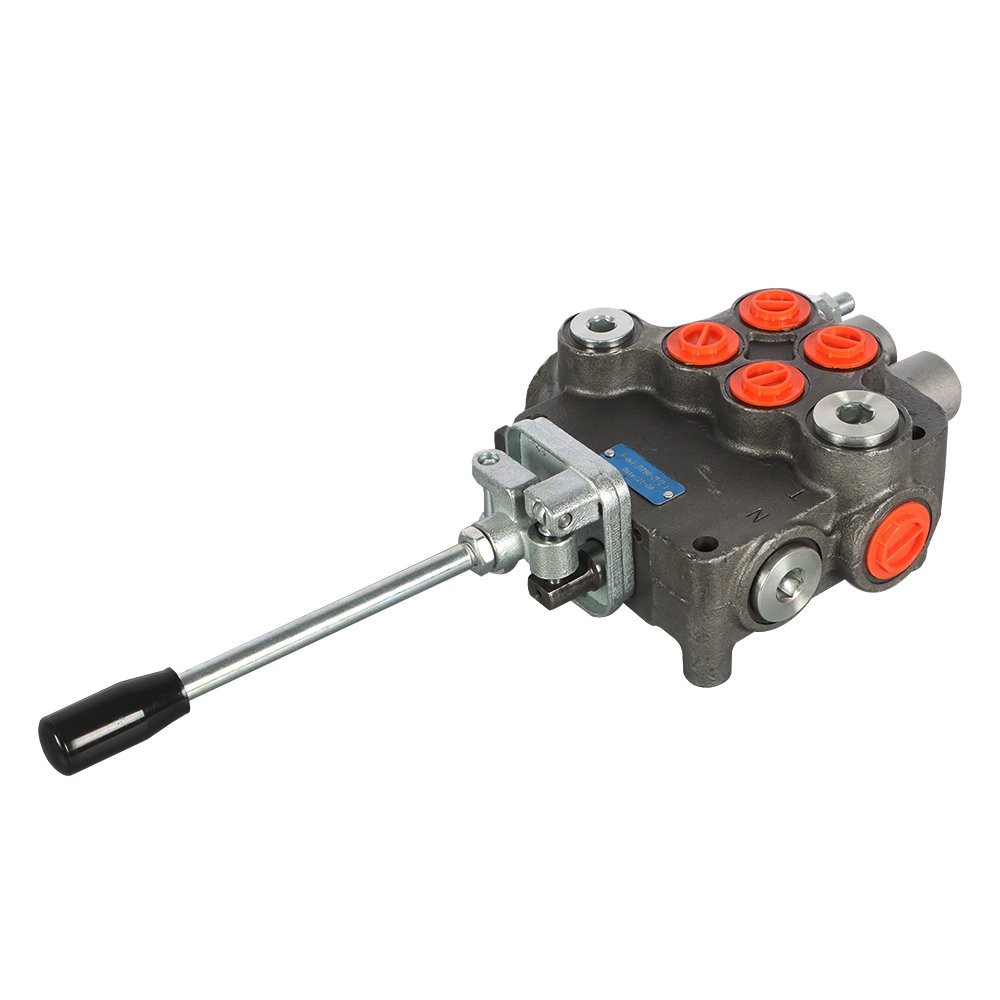

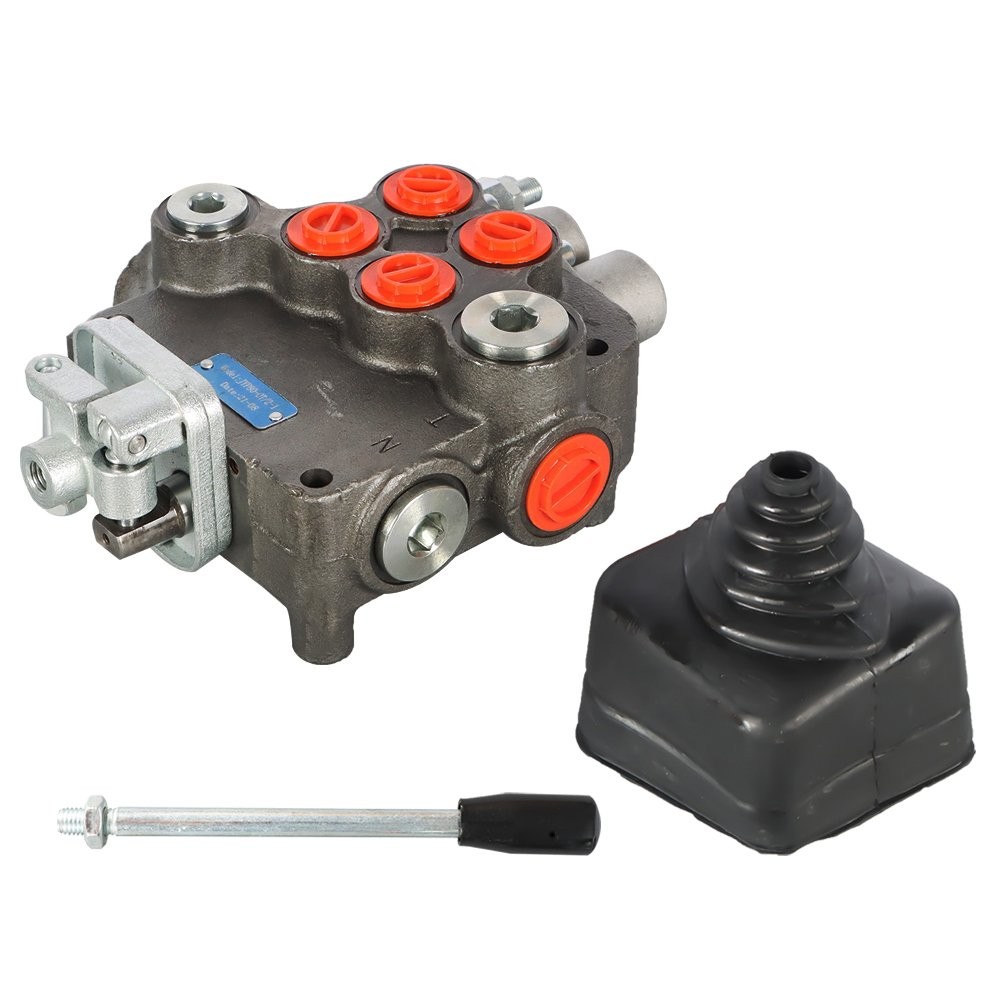

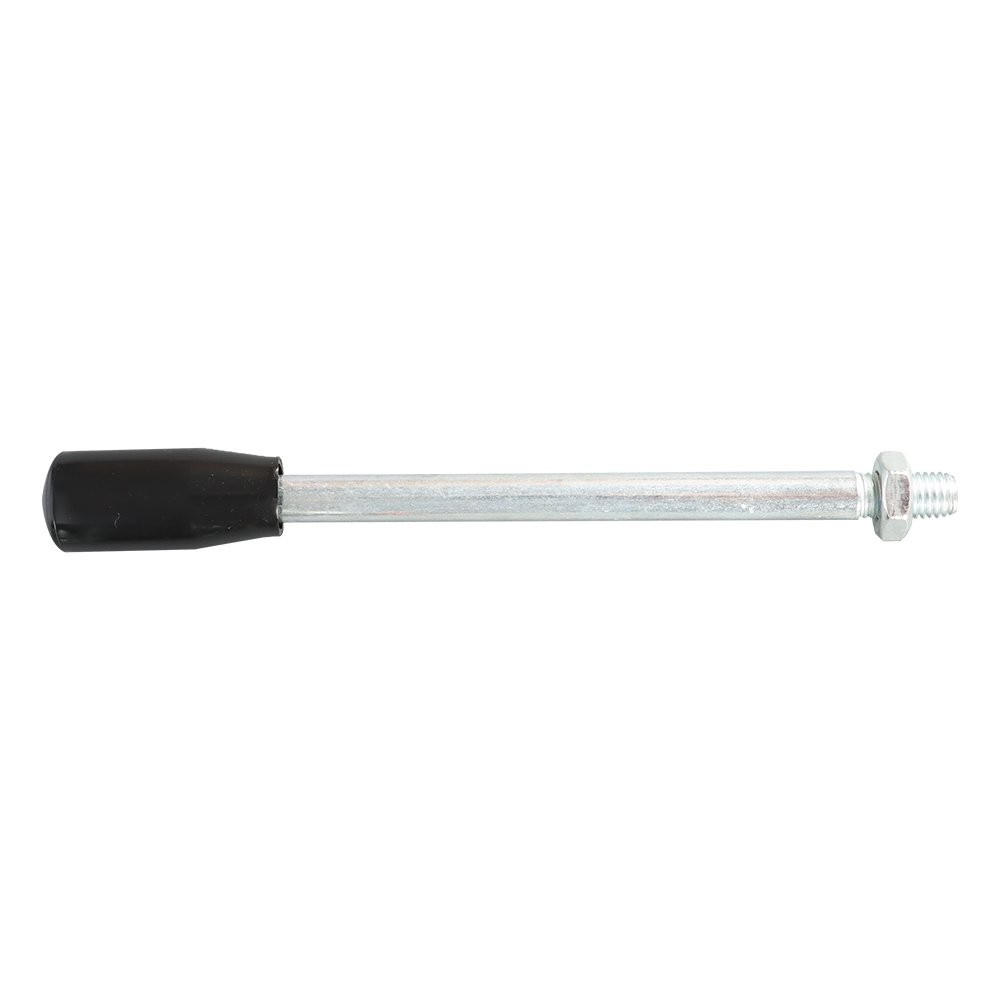

Check the listing for details. 2 Spool 21GPM Hydraulic Directional Control Valve w/Joystick For Tractor Loader. Condition: New. Listed at 92.47 USD. Features & Details： This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. 2 Spool valve with compact design allows for installations in tight areas All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders Used for open center systems (Pump to Tank Flow) Anti-drop load checks on each spool Precision ground and hard chrome-plated spools assure a long life High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages .
