| Engine Type | Oblique horizontal |
|---|---|
| Brand | Unbranded |
| Fuel Type | Diesel |
| Horsepower | 3 HP |
| Features | Air cooled |
| Application | Lawn Mower |
| Model | 4 Stroke Motor Engine |
| Product Line | Motor Engine 196cc Single Cylinder Vertical Engine |
| Engine Size | 196cc |
| Assembly Required | Yes |
| Tank Capacity | 3l |
| Shaft Type | Flat Key Shaft |
| Maximum Power | 2.2 kW |
| Ignition method | pull start |
| Speed (rpm) | 3000r/min |
| Injection pressure | 14±0.5 |
| Start mode | recoil type hand start |

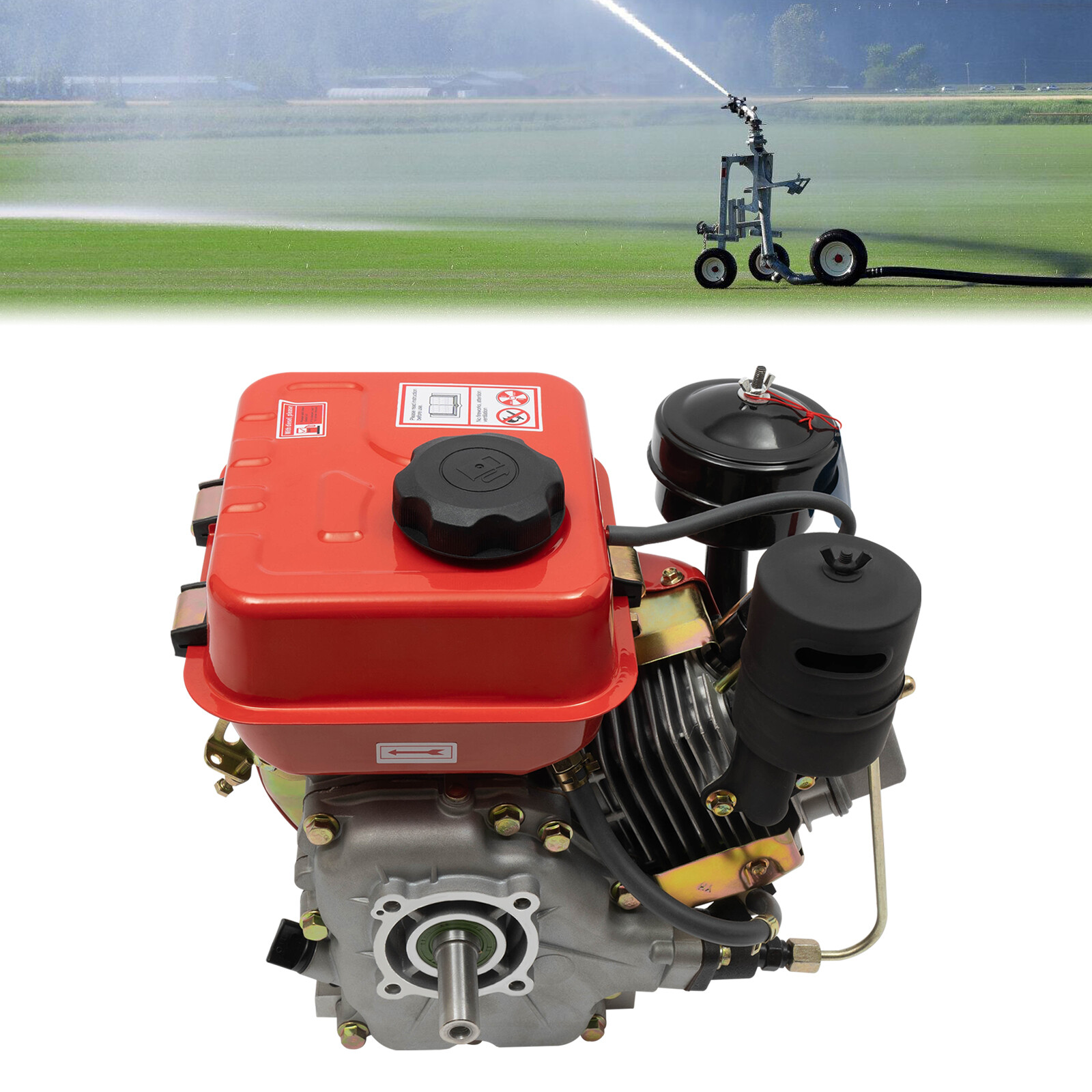

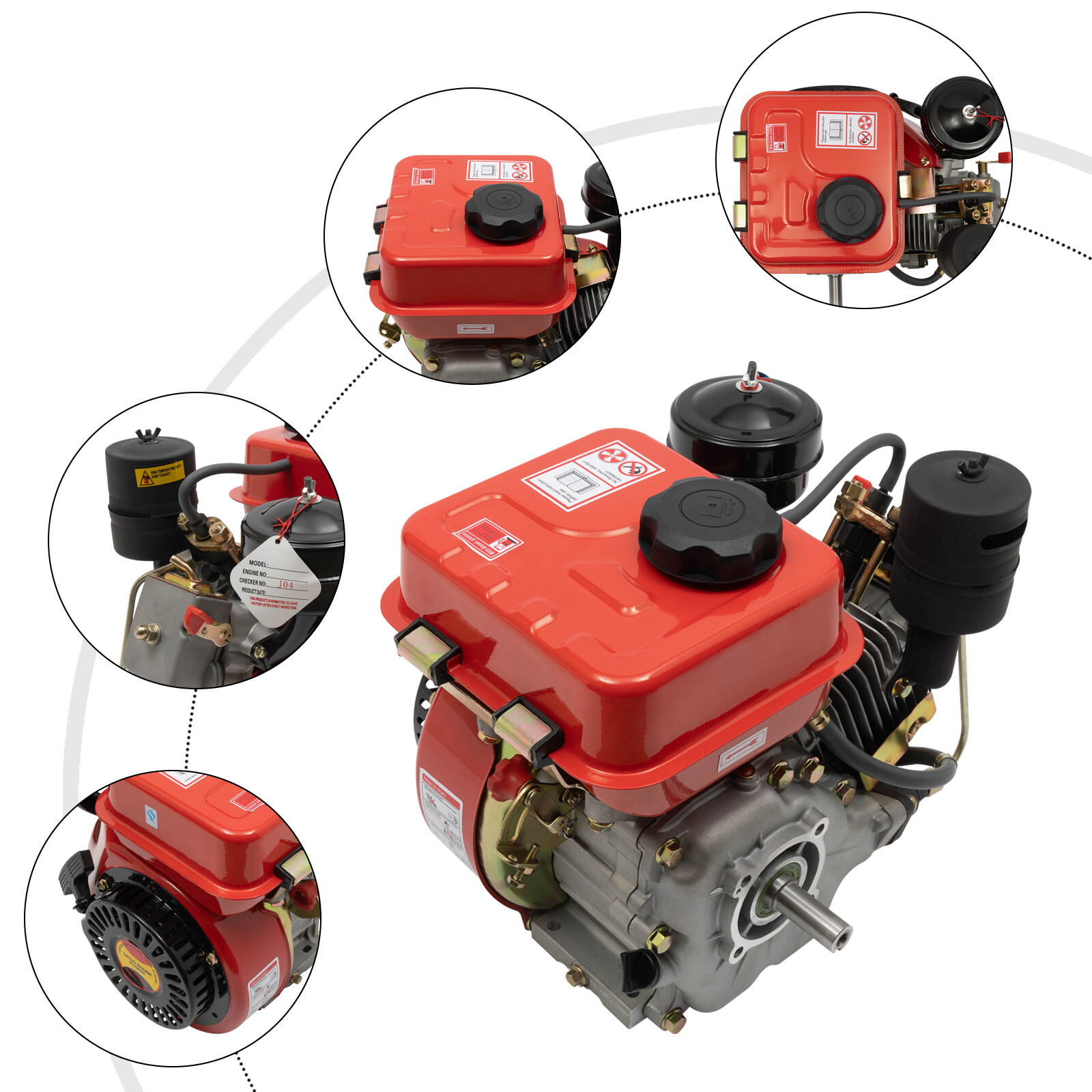

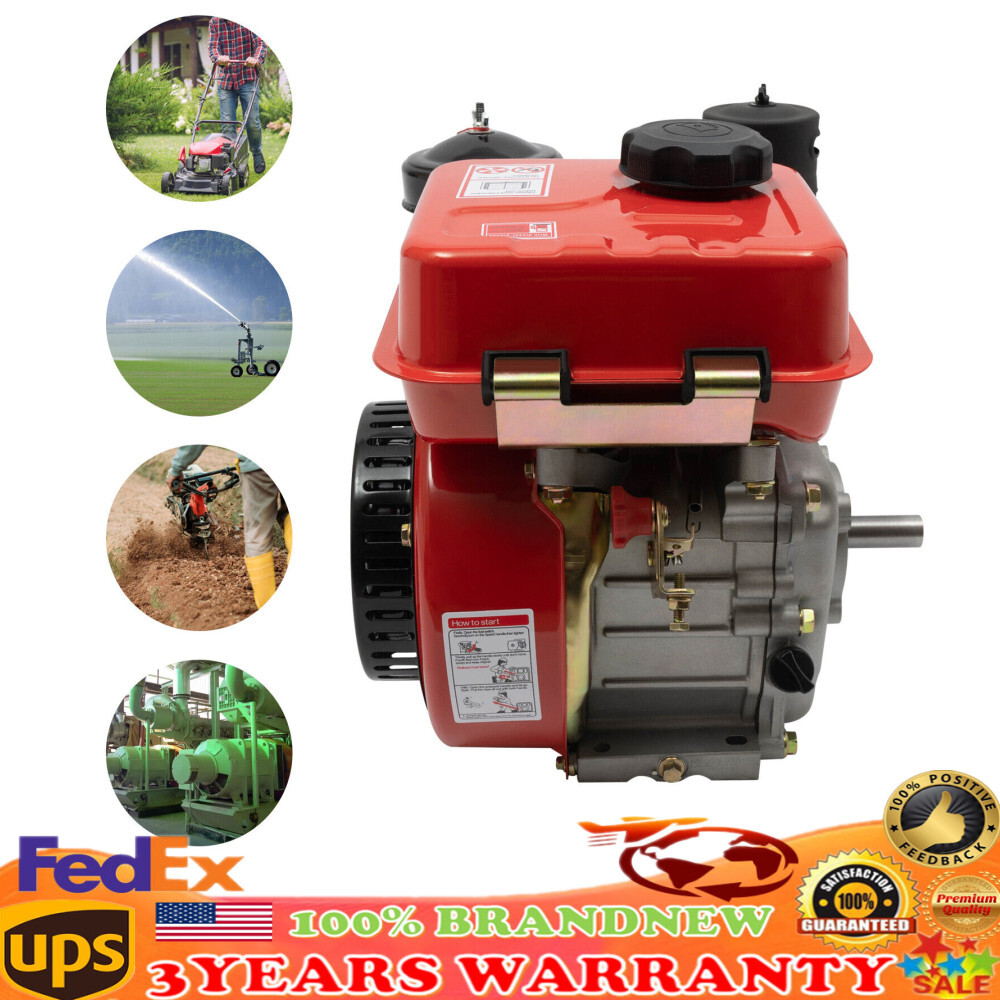

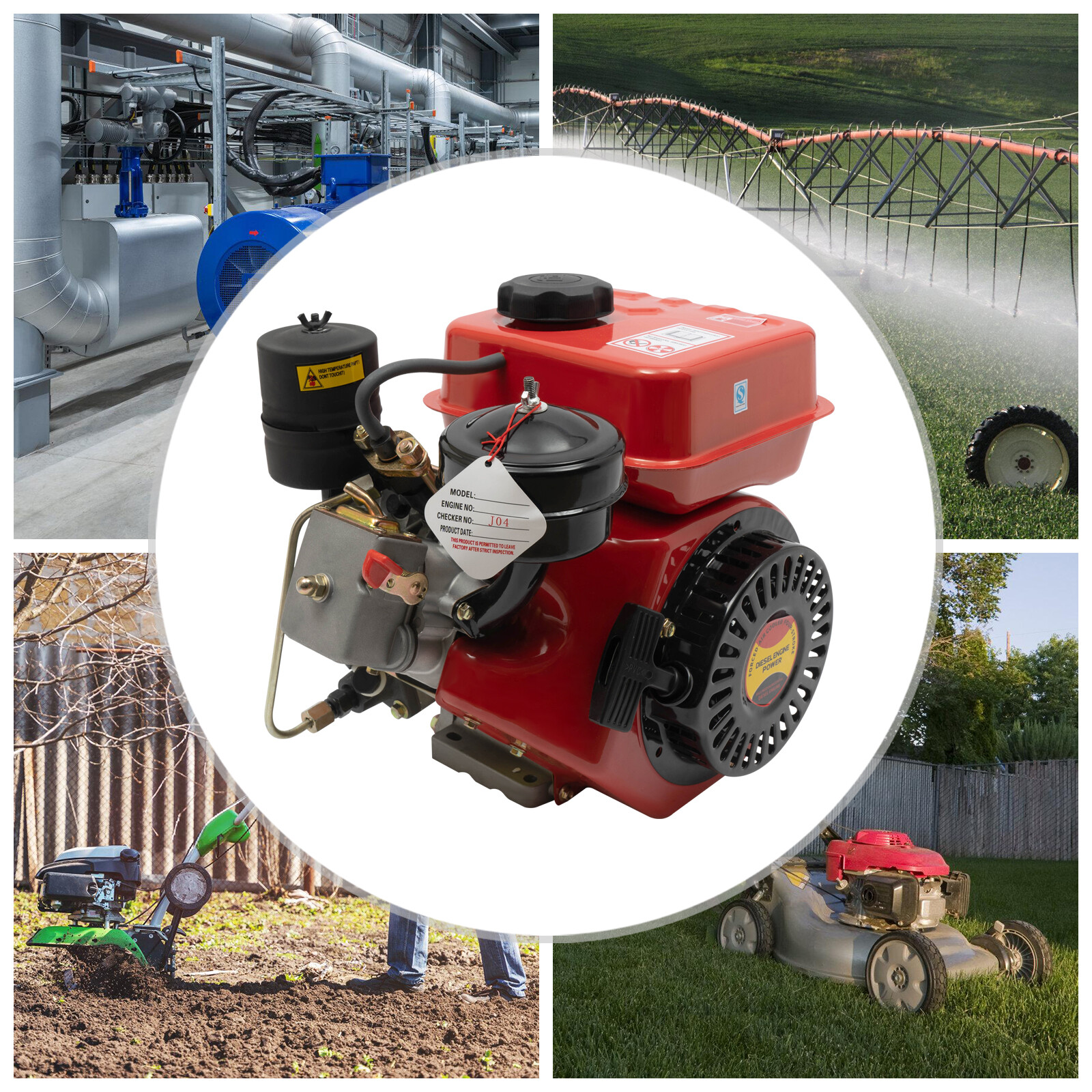

Check the listing for details. 4 Stroke Diesel Engine Motor Single Cylinder For Small Agricultural Machinery. Condition: New. Listed at 185.36 USD. Engine Single Cylinder 4-Stroke 3HP 196cc Shaft Length - 53mm US STOCK Product parameters: Size: 40*30*36cm (15.75*11.81 inches) Product weight: 20kg (44.09 pounds) Shell material: alloy Ignition method: pull start Engine displacement (CC): 196cc Speed (rpm): 3000r/min Maximum output power: 2.2KW Start mode: recoil type hand start Fuel volume: 3L Oil volume: 0.7L Piston displacement: 0.196CC Stroke: 54mm (2.13 inches) Bore diameter: 68mm (2.68 inches) Number of cylinders: single cylinder Injection pressure: 14±0.5 Hole size: 0.8mm (0.0315 inch) Fuel: 0#diesel 0# Fuel consumption rate: 0.5g/kw.h Shaft type: flat key shaft Shaft diameter: 20mm (0.787 inches) Shaft length: 53mm (2.09 inches) Shaft inner diameter thread size: 0.8mm (0.0315 inch) Oil system: vortex type.
