| Brand | Admiral |
|---|---|
| Model | 80B19 |
| Unit Quantity | 1 |
| Country of Origin | United States |

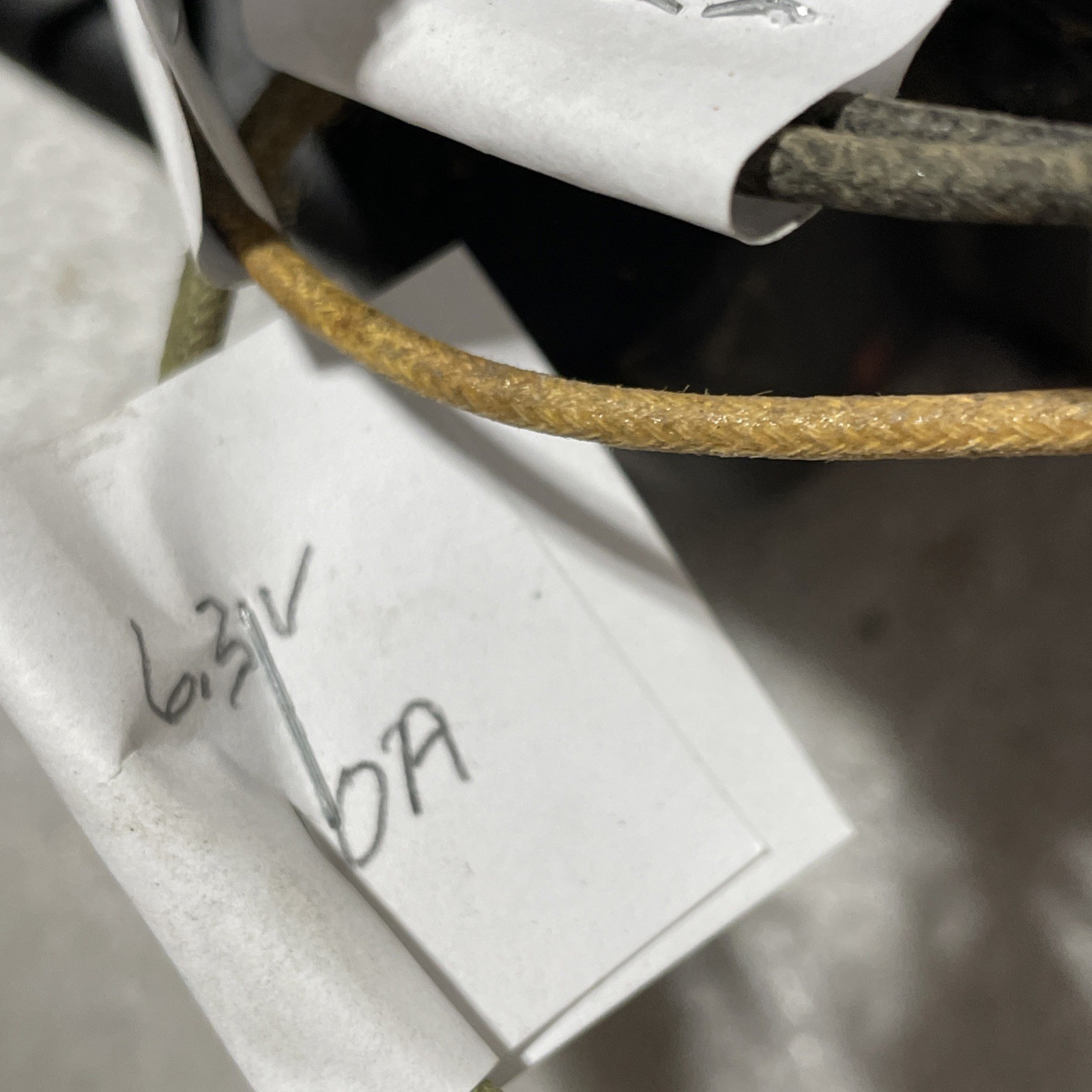

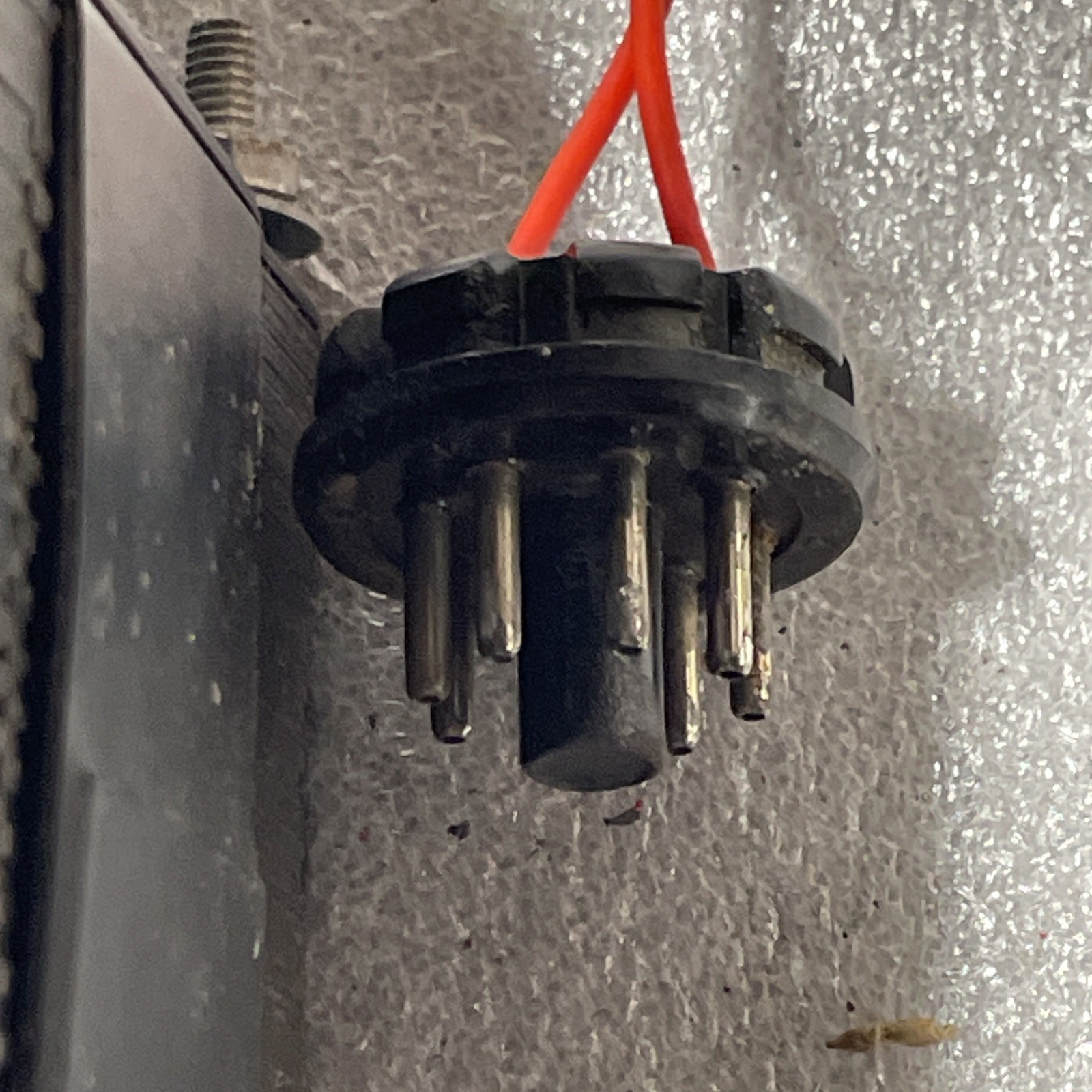

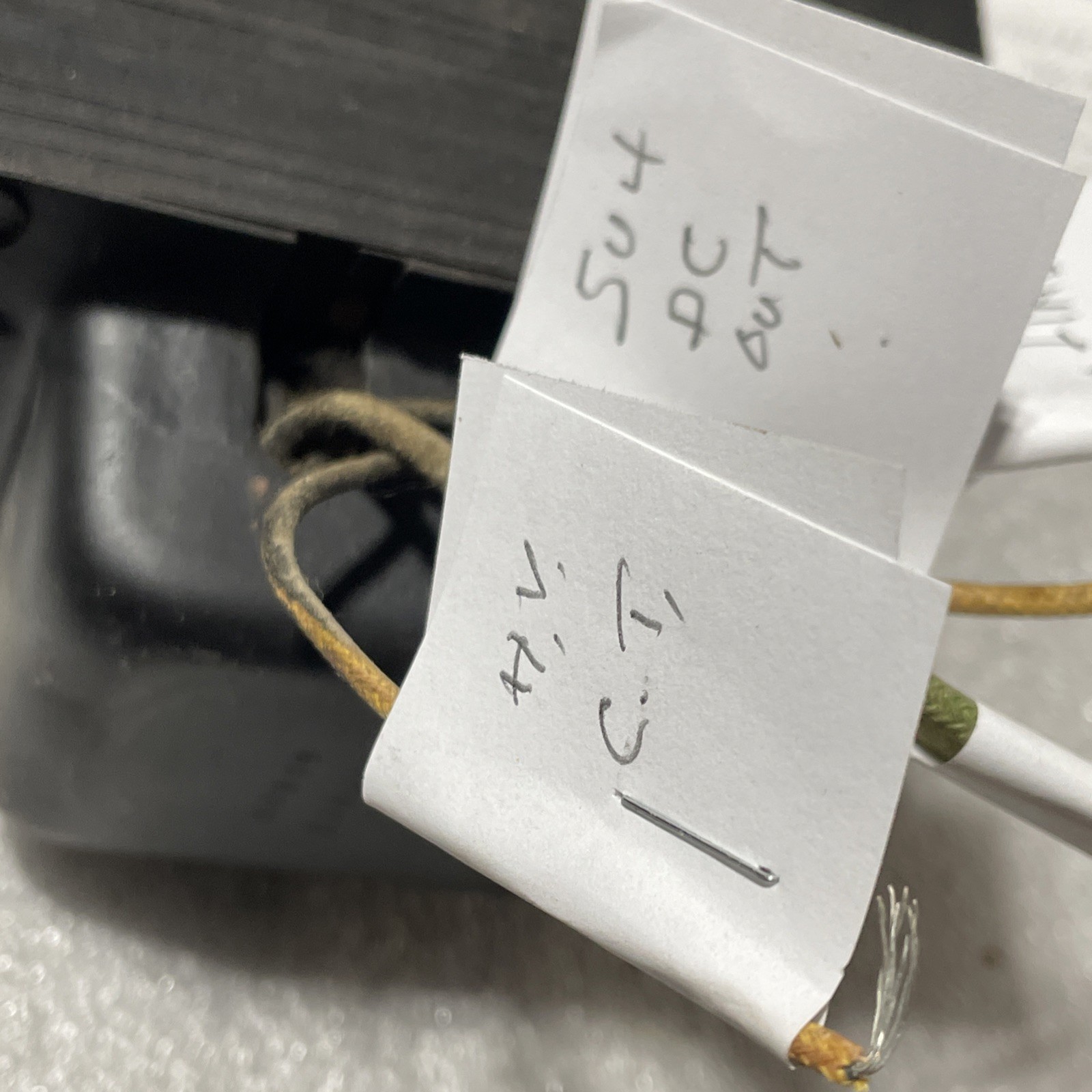

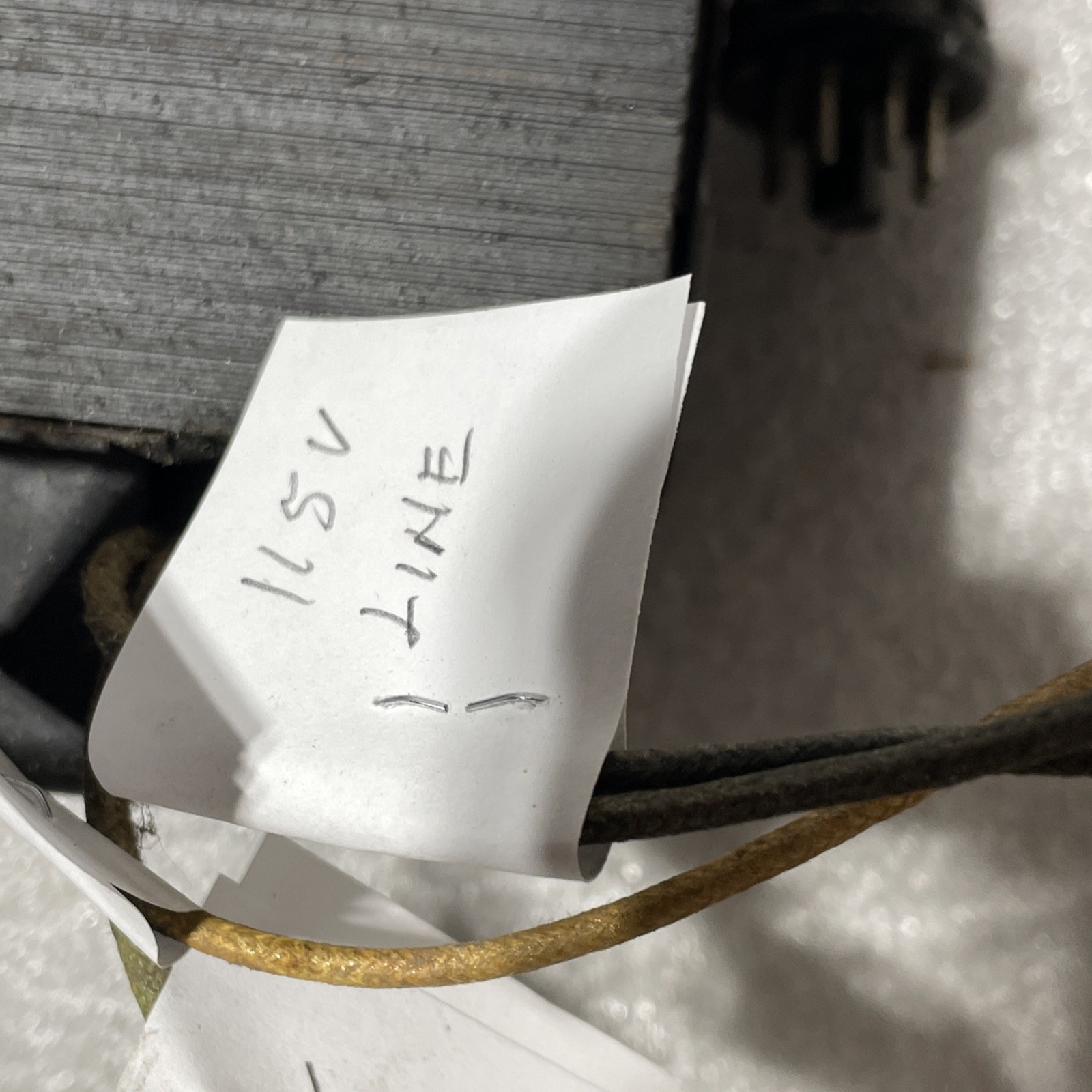

Check the listing for details. Admiral Power Transformer With 5R4Tube All Outputs Tested (see Description). Condition: Used, Made in United States. Listed at 50.00 USD. Tube rectifier included and tests at 300VDC @ 200 ma. Also tested with solid state diodes to measure load loss . The no load high voltage was about 770 (334-0-335) VAC that dropped about 10 volts at 200 made load and about 20 volts at 300 madc. .2x10=2 v/a internal loss and .3x 20 6v/a internal loss. I didn’t test the 5v but the tube lit up so I assume it is good. The filament winding measured 6.3 at about 10-11 amps ( meter pegs out at 10). I included a plug for access to high voltage wiring to be used with external solid state diodes for higher dcv output. Measures 4 1/4 x 3 1/2 x 5” tube base to bottom, about 9” tube top to xfor bottom. Mounting bolts 3 5/8 x 3”
