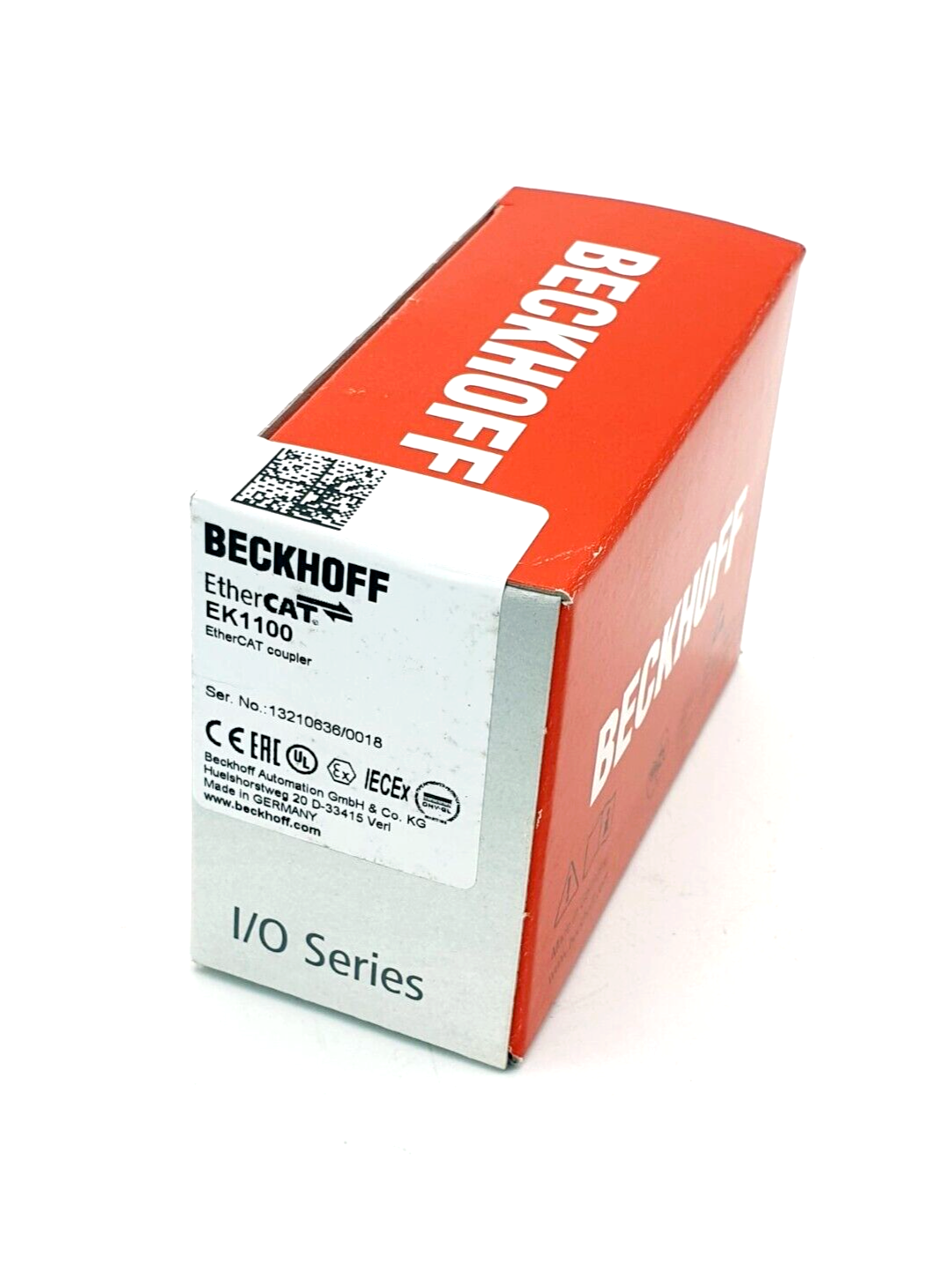

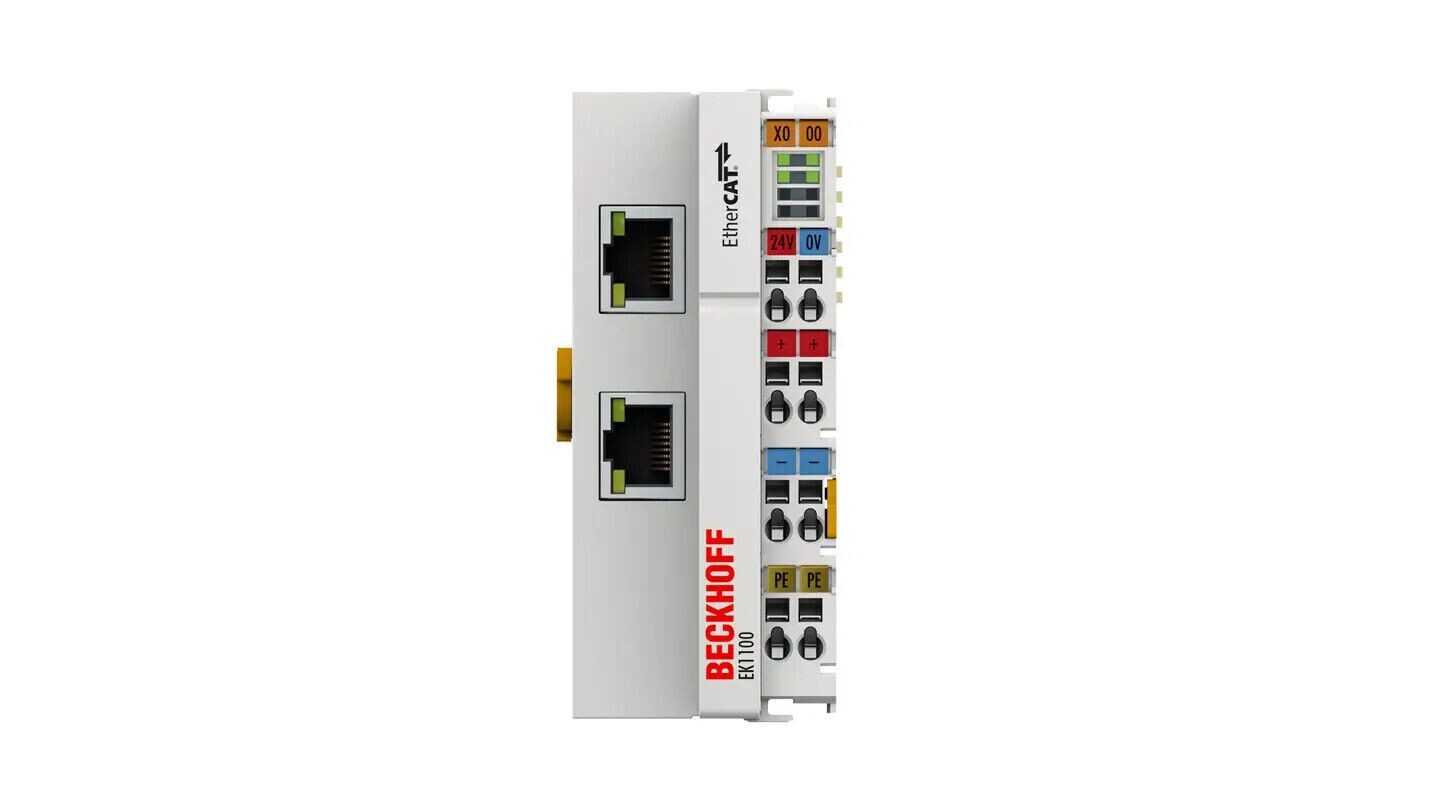

Check the listing for details. Beckhoff EK1100 EtherCat coupler Protocol terminals Ethernet 100BASE-TX to E-bus. Condition: New. Listed at 105.00 USD. The EK1100 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station consists of a coupler and any number of EtherCAT Terminals that are automatically detected and individually displayed in the process image.Special features:Connection technology: 2 x RJ45 socketConnection lengths: up to 100 mNumber of EtherCAT Terminals in the overall system: up to 65,535The EK1100 has two RJ45 sockets. The upper Ethernet interface is used to connect the coupler to the network; the lower socket serves for the optional connection of further EtherCAT devices in the same segment. In addition, an EtherCAT junction or an EtherCAT extension can be used for the extension or for setting up a line or star topology. The system and field supply, each 24 V DC, is provided directly at the coupler. The attached EtherCAT Terminals are supplied with the current required for communication from the supplied system voltage. The coupler can supply a maximum of 5 V and 2 A. If higher current is required, power feed terminals such as the EL9410 have to be integrated. The field supply is forwarded to the individual I/O components via the power contacts with up to 10 A. In the EtherCAT network, the EK1100 can be installed anywhere in the Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The EK9000 and EK1000 couplers are suitable for use at the switch. Technical dataEK1100Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networksData transfer mediumEthernet/EtherCAT cable (min. Cat.5), shieldedDistance between stationsmax. 100 m (100BASE-TX)Number of EtherCAT Terminalsup to 65,534ProtocolEtherCATDelayapprox. 1 µsData transfer rates100 Mbit/sBus interface2 x RJ45Power supply24 V DC (-15 %/+20 %)Current consumption from US70 mA + (∑ E-bus current/4)Current consumption from UPloadCurrent supply E-bus2000 mAPower contactsmax. 24 V DC/max. 10 AElectrical isolation500 V (power contact/supply voltage/Ethernet)Operating/storage temperature-25…+60 °C/-40…+85 °CEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Relative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/variableApprovals/markingsCE, UL, ATEX, IECEx, DNV GL, cFMusEx markingATEX: II 3 G Ex ec IIC T4 GcIECEx: Ex ec IIC T4 GccFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 GcTechnical dataHousing dataTo topHousing dataEK-44-8pinDesign formcompact terminal housing with signal LEDsMaterialpolycarbonateDimensions (W x H x D)44 mm x 100 mm x 68 mmInstallationon 35 mm DIN rail, conforming to EN 60715 with lockSide by side mounting by means ofdouble slot and key connectionMarkinglabeling of the BZxxx seriesWiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriverConnection cross-sections*: 0.08…2.5 mm²,st*: 0.08…2.5 mm²,f*: 0.14…1.5 mm²Connection cross-section AWGs*: AWG 28…14,st*: AWG 28…14,f*: AWG 26…16Stripping length8…9 mmCurrent load power contactsImax: 10 A
