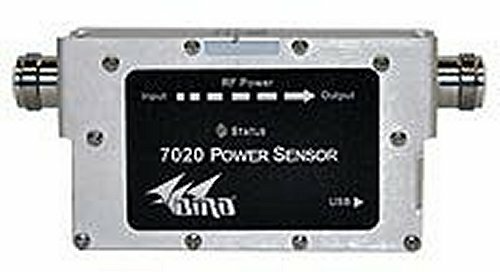

Check the listing for details. Bird 7020-1-030301 USB Broadband Digital RF Power Meter 25-1000 MHz. Condition: New. Listed at 1799.00 USD. The 7020 Series Wideband Power Sensor has a broadband frequency performance from 25 MHz to 1.0 GHz and measures power levels up to 150W. The 7020 Sensor was developed as the new thruline sensor that fills the gap between the directional power sensor and the wideband power sensor. It determines and reports Forward and Reflected True Average Power and VSWR.This is a USB device and can be used with most PCs, tablets, and SmartPhones with a USB input. 7020 Series, 25 MHz - 1 GHz, Basic Power Sensor is an economical, plug and play solution to your power measurement needs. The 7020 determines and reports Forward and Reflected True Average Power and VSWR over a wide frequency range of 25 MHz to 1.0 GHz. It also never requires field calibration, only requires factory calibration once per year and is traceable to National Institute of Standards and Technology (NIST).The 7020 Power Sensor Measures:Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25, Trunking, CDMA, TDMA, WCDMA, GSM, Transportation, Tactical Military, Radar, Avionics, Marine, LMR, Analog Broadcast, Digital Broadcast, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Paging, Project 25, Public Safety, Telematics, Utilities, WIMAX and WLAN. Standard Accessories include: Sealatch USB CableVPM3 VirtualPower Meter Software7020 Instruction ManualVPM3 Instruction Manual Item No7020Item NameWideband Power SensorFrequency Range7020-1-030301: 25 MHz - 1.0 GHzPower Measurement7020-1-030301: 0.5W to 500W - True Average PowerMeasurement Accuracy+/- 4% of reading (+ 0.05 W) - True Average Power(above 35 °C or below 15 °C add 3%)Min Forward Power for Reflected Measurement5.0 WPeak-Average Ratio12 dB, Max.Insertion Loss0.1 dB, Max.Insertion VSWR1.10 Max.Impedance50 (nominal)Response Time3 sec.VSWR Range1.15 to 99.9ConnectorsN (F)Directivity28 dB, Min.Calibration IntervalAnnually (Recommended)Power SupplySource: 5Vdc from USB hostCurrent Draw: 35 mAInterfaceProtocol: USB 2.0Connector: USB Type B with SeaLATCH locking USB connectorData Logging: with VPM3 SoftwareStandards ComplianceCE: European Standard EN 61326-1:2006 Electronic Equipment for Measurement, Control and Laboratory Use EMC Requirements in accordance with EMC Directive (2004/108/EC)RoHS: CompliantUpgradeableFirmware is Field-Upgradable via the USB PortDimensions4.8 x 2.6 x 1.3 [Nominal](122 x 66 x 32mm)Weight1.0 lbs (0.45 kg) [Nominal]Mechanical Shock and VibrationMIL-PRF-28800F class 3Operating Temperature-30 to +60 °C (-22 to +140 °F)Storage Temperature-40 to +80 °C (-40 to +176 °F)Humidity95% (non-condensing)Altitude4,572 m (15,000 ft.) Questions? Martin RF Supply 9-5 EST USA Free Shipping is not available for packages weighing 1 lb or more going to Alaska, Hawaii, and US Protectorates. Please contact us for shipping rates for these locations. International CustomersWe will not be responsible for any shipments to International Freight Forwarders.If you use a freight forwarder it will be at your own risk.
