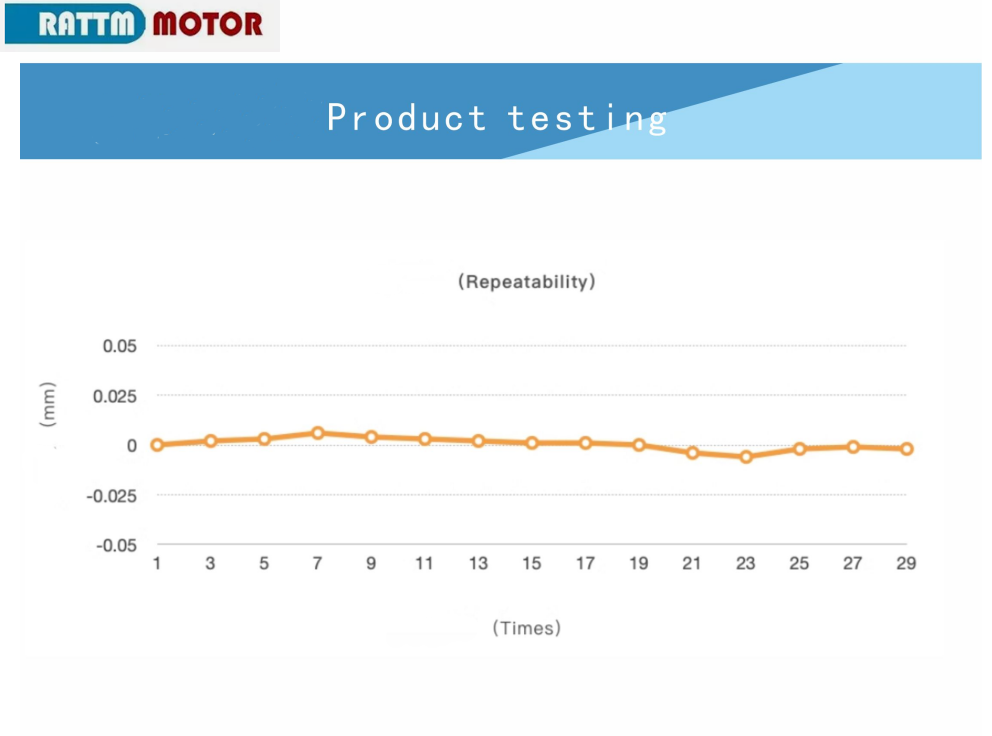

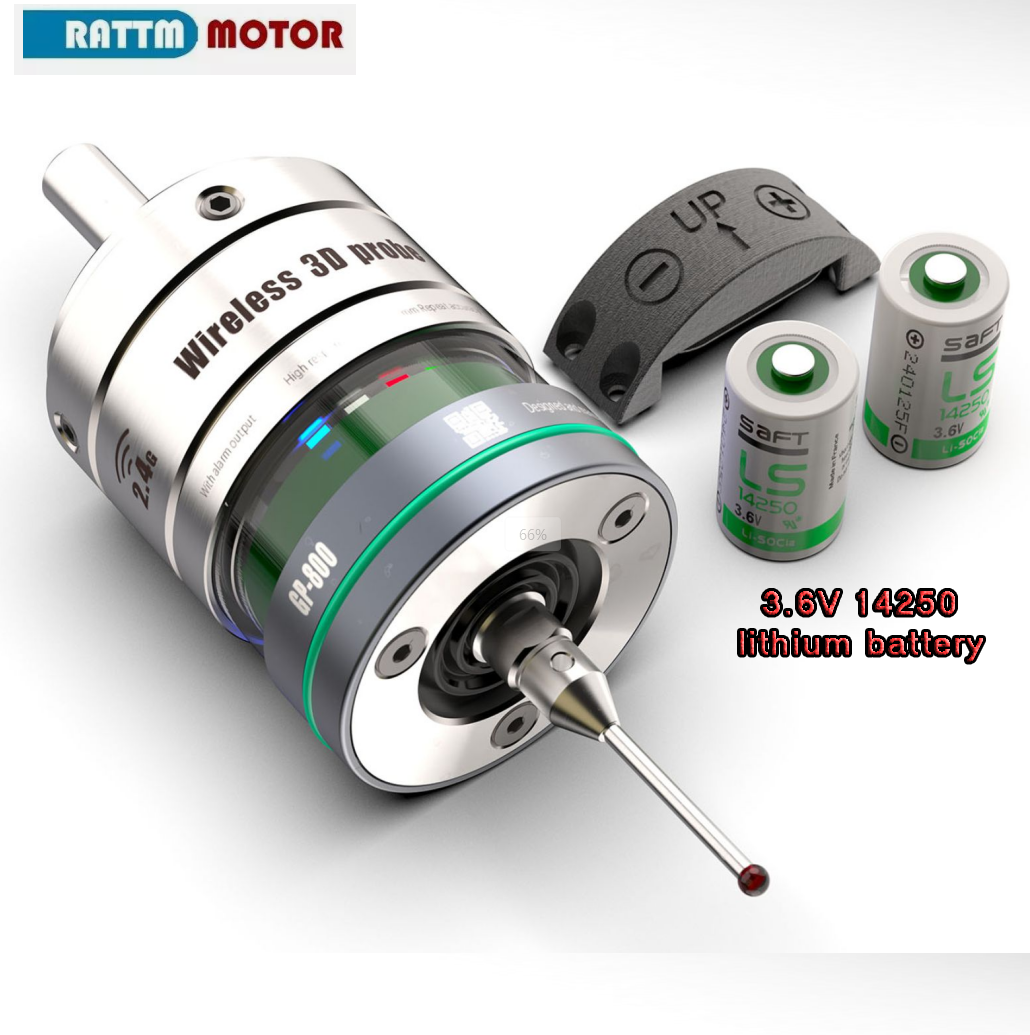

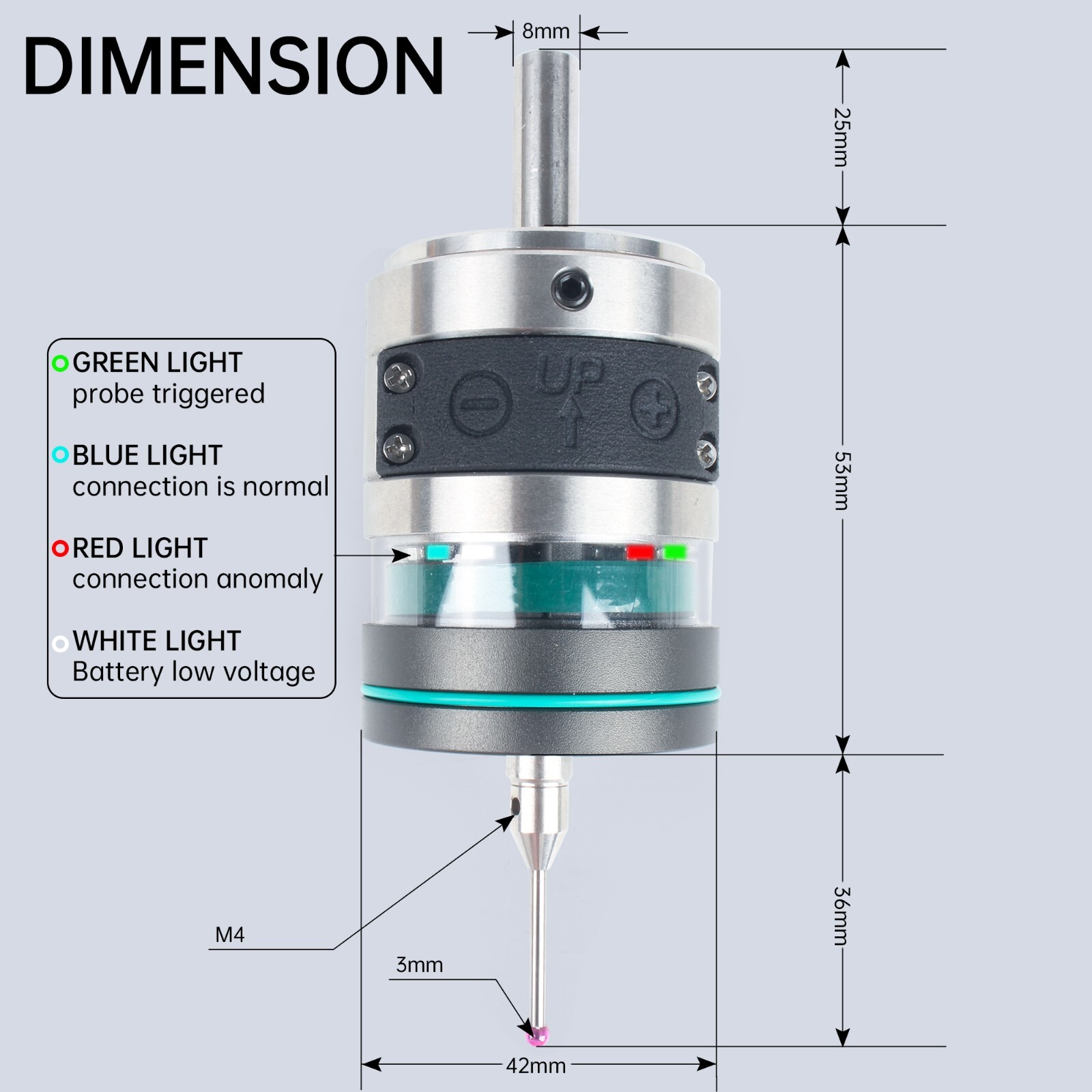

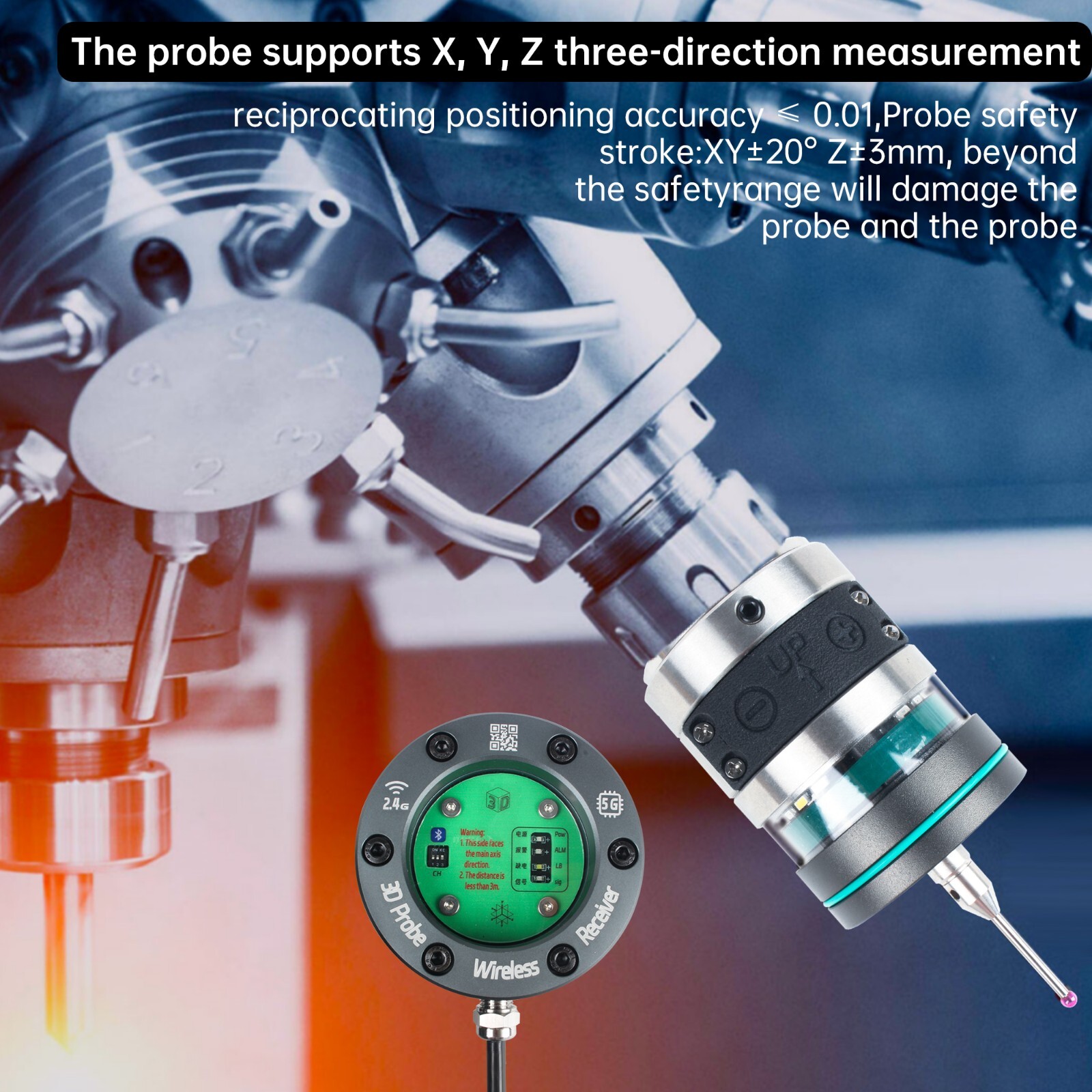

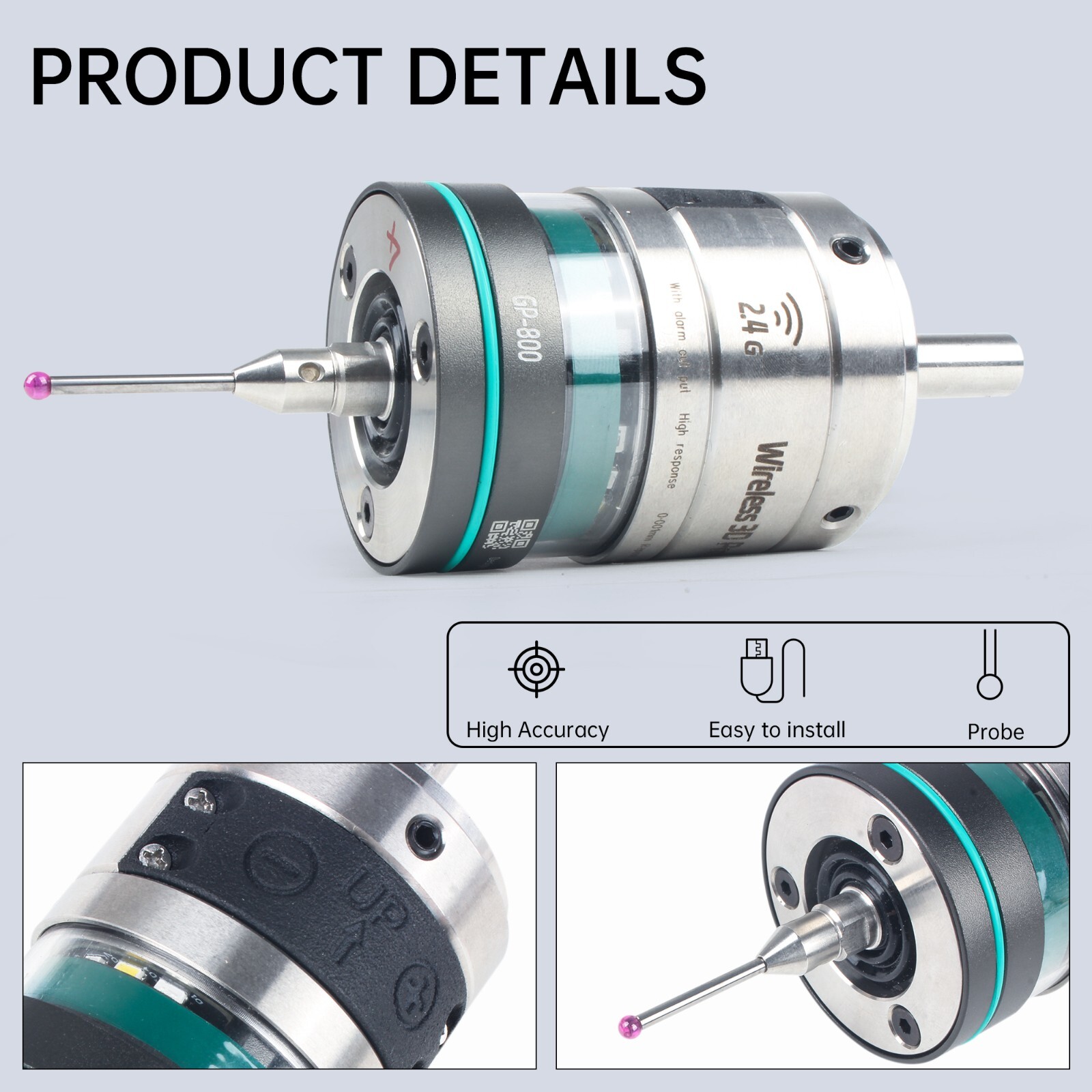

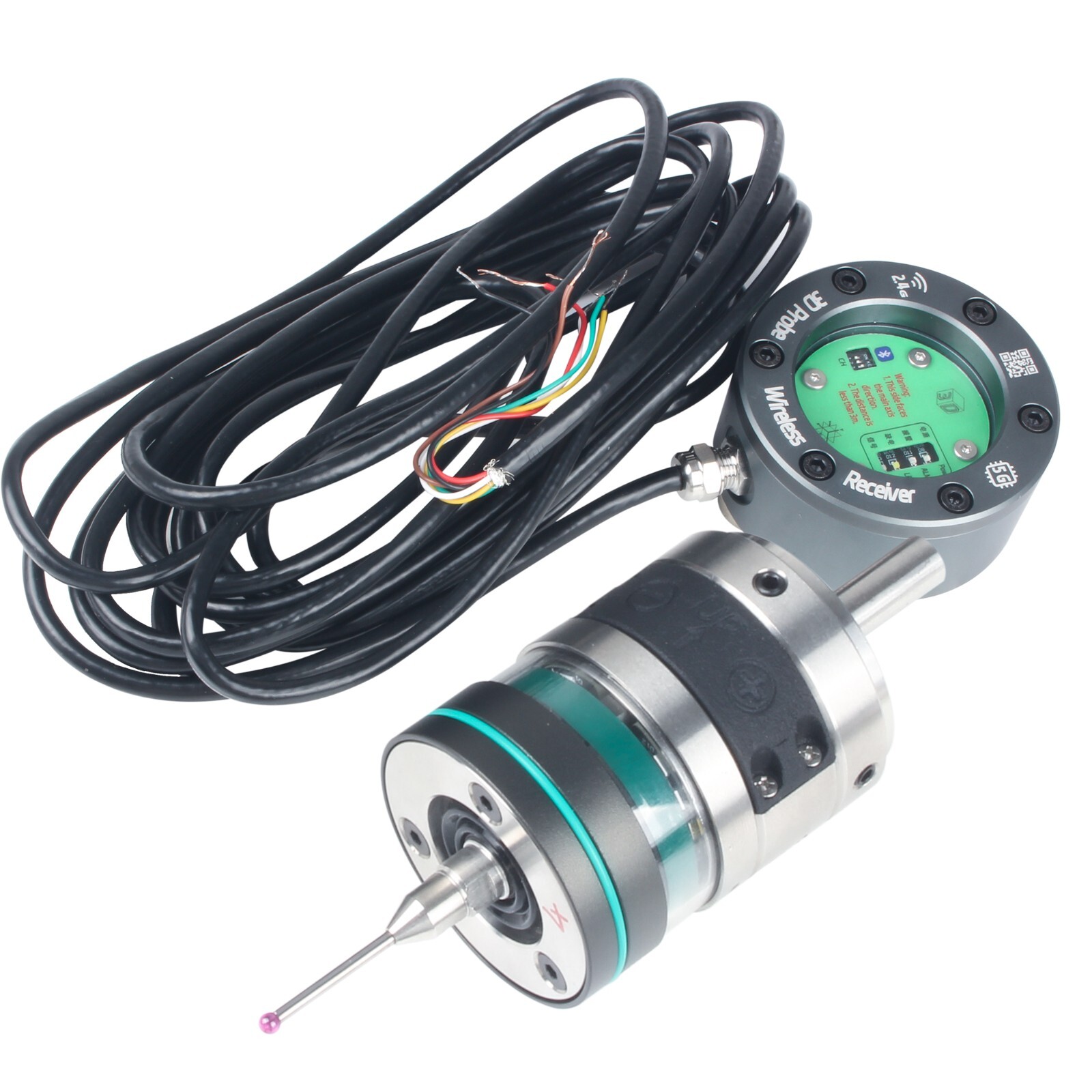

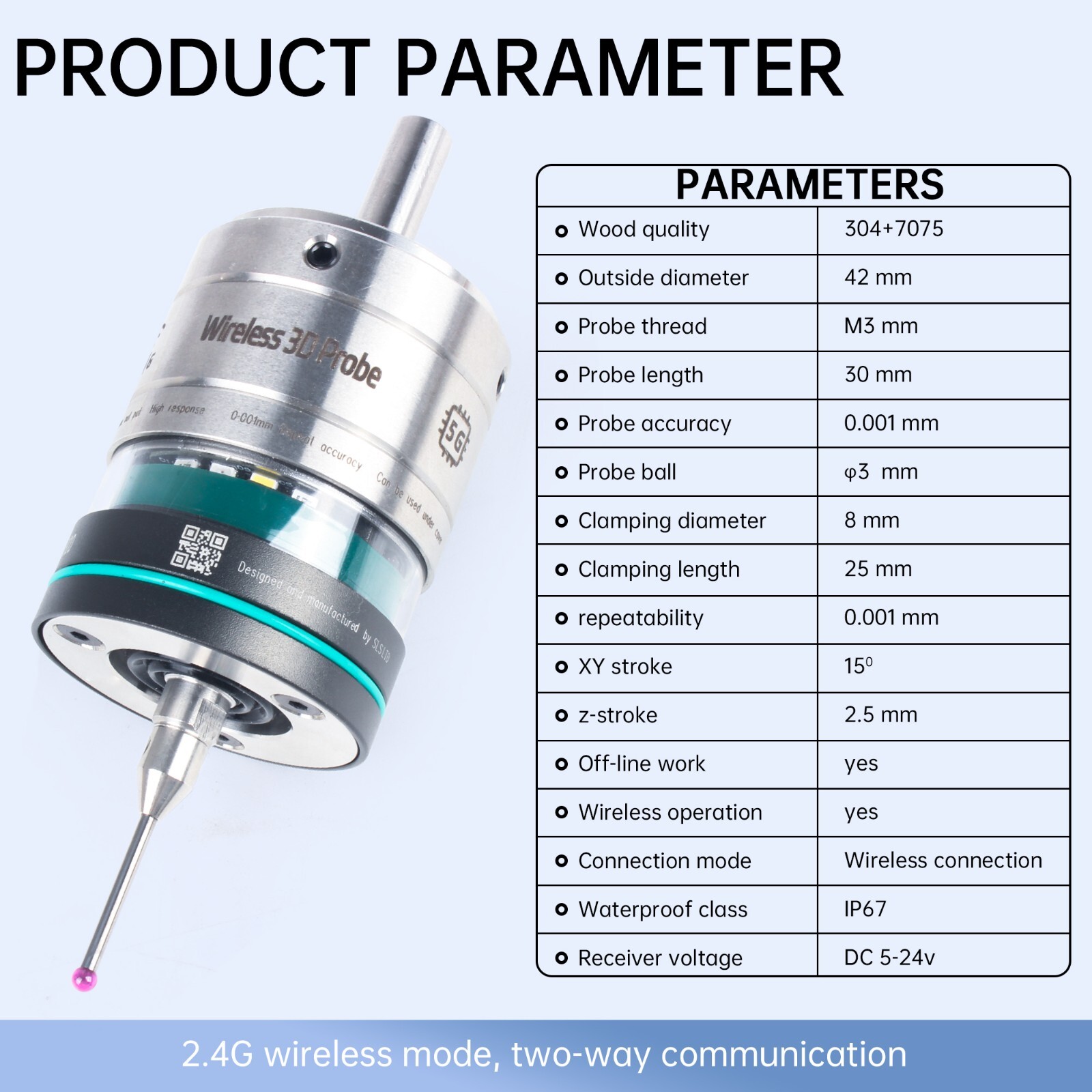

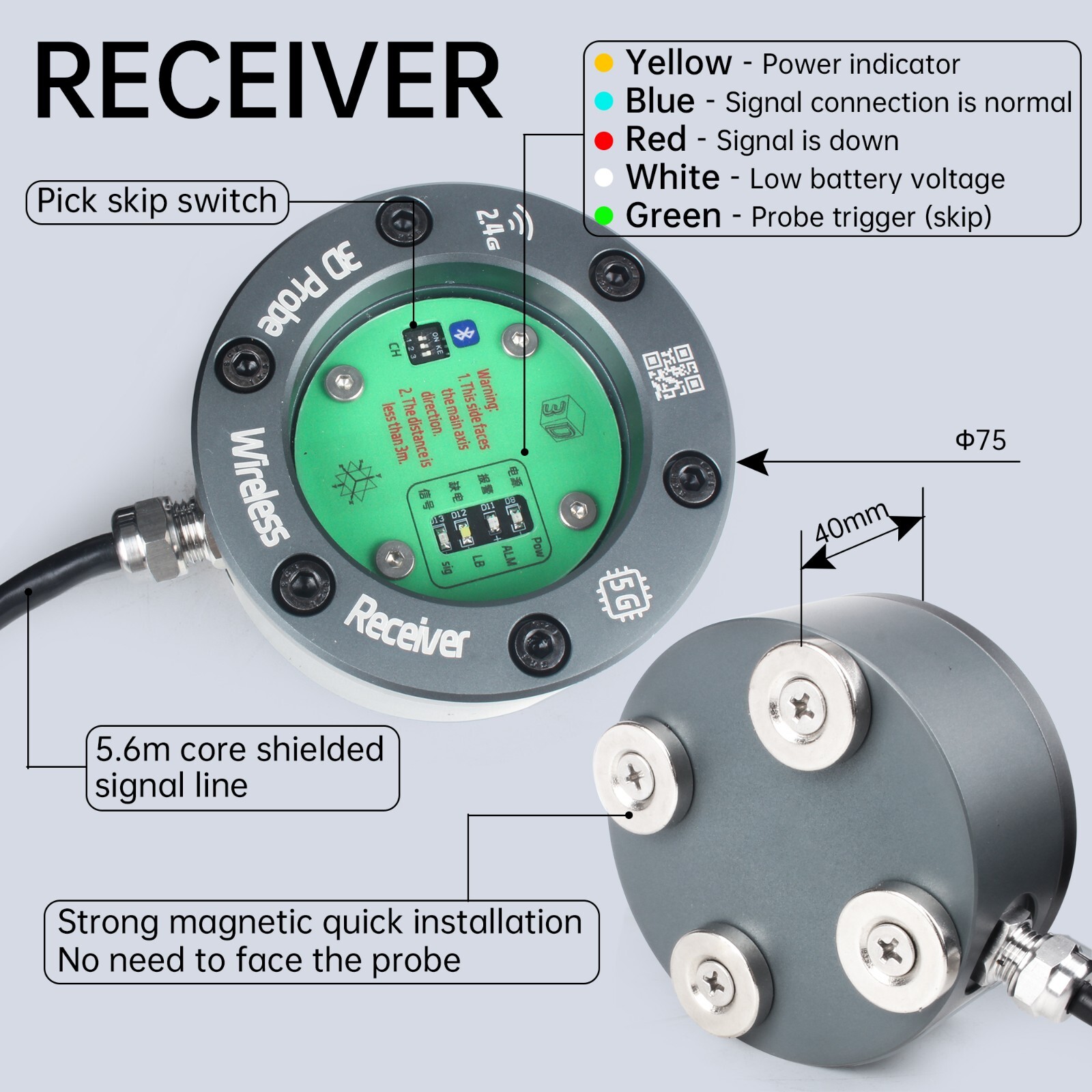

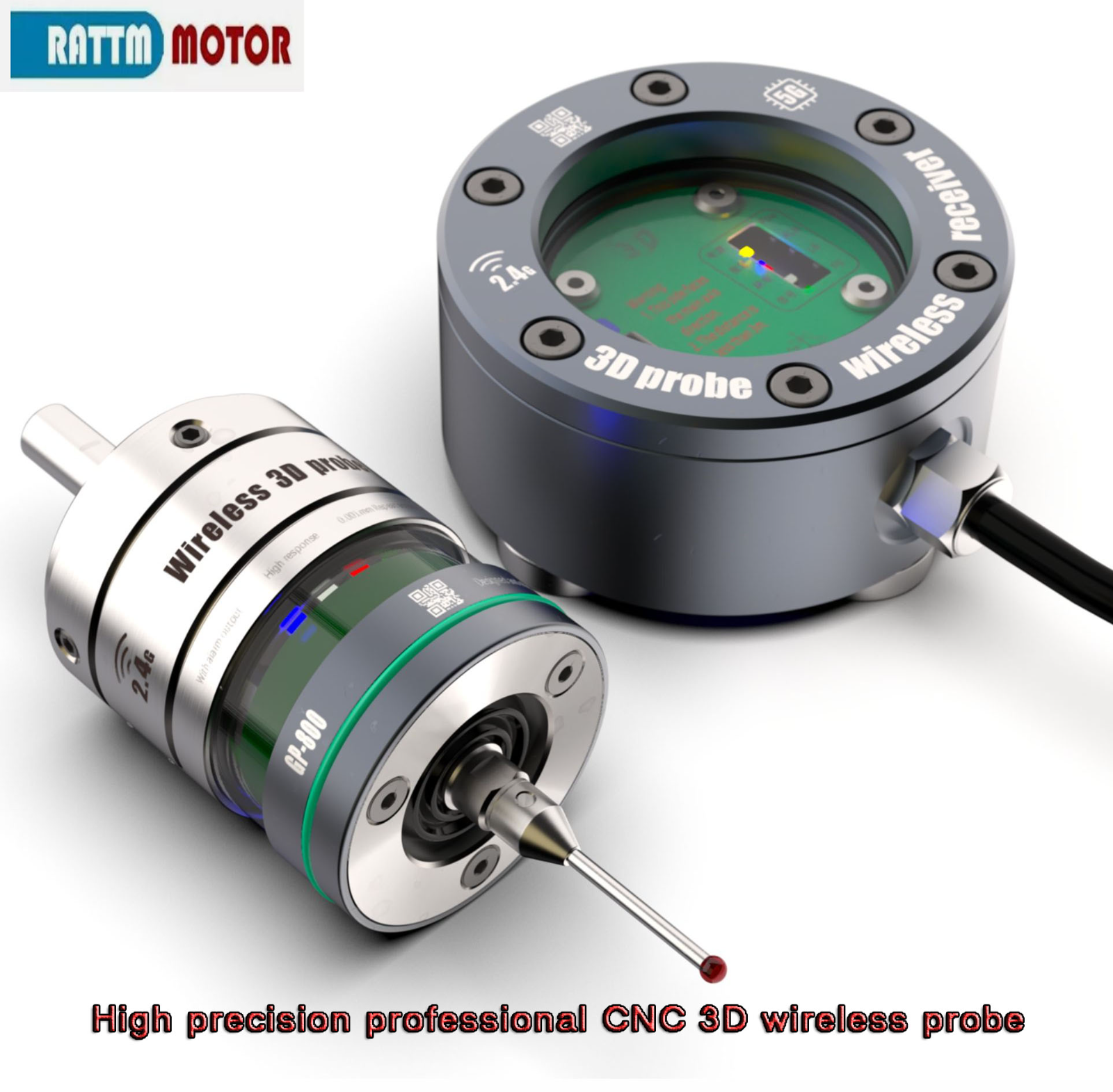

Check the listing for details. CNC IP67 0.001mm precision wireless 3D probe Infrared Trigger Probe Finder. Condition: New. Listed at 359.99 USD. 【Specification】Product Name: Wireless Probe GP-800;Probe thread: M4;Probe accuracy: 0.001mm;Probe ball head: Φ 3 ruby;Repetition accuracy: 0.001mm;XY travel: 15 °;Z stroke: 2.5mm;Wireless transmission method: 2.4G bidirectional communication (stable and occlusionable);Wireless transmission distance: 3m (expandable);Waterproof : IP67;Receiver voltage: DC 5-24V;【High Accuracy 】The CNC 3D finder delivers 0.001MM high accuracy in positioning and locating tasks, equipped with a responsive probe, whether detecting edges or center points, this tool provides and accurate measurements, enhancing the overall quality of machining operations【High brightness LED display】The wireless probe and receiver both have LED displays of various colors, and the status of the probe can be determined by the color of the LED lights.【Use to】The precision wireless 3D probe is an ideal choice for fast search, center search, and worktable shape measurement on CNC lathes. It provides multiple functions to simplify the machining process and save 90% of time【Package include】1pc wireless probe + 1pc ruby measuring needle (0.001 roundness) + 1pc signal receiver + PDF user manual Package List: 1 pc Finder + 1 pc Wrench + 1 pc Connecting Cable + PDF user manual (if needed, Leave your email address, we will send it to your email)SpecificationsProduct NameWireless ProbeMaterial304+7075 Tungsten Steel, Aluminum AlloyProbe threadM4Probe accuracy0.001mmProbe ball headΦ 3 rubyRepetition accuracy0.001mmProbe safety strokeXY±15° Z±2.5mmWireless transmission method2.4G bidirectional communication (stable and occlusionable)Wireless transmission distance3m (expandable)Offline work/Wired workALL YESWireless operationcapableConnection methodWireless connectionWaterproof ratingIP67Receiver voltageDC 5-24VAlarm outputYesWeight0.95KGDimensionsNOTE:Do not open the main shaft speed when measuring to ensure the accuracy of the middle measurement. Be sure to use clamps AAA level for accurate measurement. Pay attention to the use and storage of the probe and keep it away from water to prevent humidity.PROBE BALL HEADProbe ball head ：φ3 rubyProbe length：standard configuration 30mmProbe thread：M4WATERPROOF DESIGN[Waterproof & Dustproof Design] - to maximize the life of the probe.With the characteristics of ruggedness and durability and Longer service life.REPEATABILITY[High Precision] - Unidirectional Repeatable Positioning Accuracy less than 0.01MM.RECEIVER WIRINGPay attention to the high and low levels of system requirements. The following wiring has not been considered, only the locationZero the probeRotate the spindle and adjust the 4 hexagon socket screws to ensure that the concentricity of the measuring needle ball head is less than 0.005mmInstallation of measuring needleDuring the tightening process, use the provided wrench to clamp the needle holder to avoid damaging the internal structureCalculation method of Probe Deflection value1 )Place a gauge or rectangular workpiece on the table2 )Use the probe to measure the value of each surface in the X-direction3 )Deflection value = (X2-X1-Workpiece length-Diameter of Ball head )/2Is it zeroed？1. Do not adjust the zero first. Tighten the zero adjustment screw of the measuring head and refer to the video on the homepage to measure the repeatability accuracy. The repeatability value obtained by installing on the machine tool - machine tool repeatability=probe repeatability. (Used to determine if the probe is functioning properly. Before completing this step, there is no need to continue with the next steps. Due to the price of the probe, you will be trapped in endless doubts about its accuracy, wasting time.)2. When used without connecting wires for rotation, the measuring head can be adjusted without zeroing.1). Divide the edges into sections: a. Rotating probe with speed less than 600; b. Measure the values of x1 and x2 on the opposite side; c. (x1+x2)/2=center of workpiece2) Unilateral measurement, due to reasons such as zero adjustment/deflection/fixture, the actual rotation radius of the ball head is different from the ball head radius. Intuitively, it can be seen that the dynamic radius of the ball head needs to be measured: a. Prepare square blocks of known size (which can be workpieces of known size) and place them parallel to the XY axis.; b. Rotating probe with speed less than 600; c. Probe ball head, with the indicator block - X surface light on, the system's processing coordinates are reset to zero;d. Probe ball head, with the reference block and X-face light on, record the machining coordinates.e. (x value in 2.4- length of block in X direction)/2=dynamic radius value of ball headThis value includes the deflection value of the probe, which is not an integer. It is recommended to store this value in the system for future call. (Assuming it is A);f. Measuring workpieces: Measure the system coordinate values of the workpiece surface when the light is on with a measuring head. Based on the actual direction+- A, the precise coordinate values of the workpiece surface can be measured3). When using the probe without rotation, it must be zeroed first. After zeroing, repeat the above steps.3. Connected use (involving a lot of content and knowledge, different systems are different, and cannot be explained in detail), a brief reminder is as follows, self research based on the system.a. The probe must be zeroed first.; b. requires circular or square markers for calibration. (Used to obtain initial standard values); c. Connect the wires according to the system manual, usually in parallel with the tool setter. (Wp-500 red 0 black signal NPN long open):d. For high precision requirements, the measurement needs to be oriented with the main axis. e. System macro program writing, the principle is to store/read and calculate the data obtained from measurement/coordinate axis offset/rotation. Shipping======================================================================Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately.We ship to worldwide,but if your country’s custom is strict, please contact us before you bid to check detail and confirmed. Payment======================================================================Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.Payment must be made within 48hours of the auction end time.We accept paypal payment,all payment must be confirmed(shipping and billing address must match and correct) Problem & Feedback======================================================================Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it.We are a new member in ebay now,and need understand both of sides.Pls email us before you want to leave any negative feedback. Refund======================================================================Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos. Contact us======================================================================Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.Customer’s satisfaction is very important to us.
