| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money back or replacement (buyer's choice) |
| Number in Pack | 1 |
| Switch Action | Momentary |
| Number of Positions | 12 |
| Model | ACZ11BR1E-15FD1-12C |
| Coil Voltage | 5 V |
| Operation Method | On/Off |
| Brand | CUI Devices |
| Fuse Type | Switch |
| Mounting Style | Panel |
| Termination Type | PC Pin |
| Switch Style | Push Button |
| Type | PCB Quadrature Encoder |

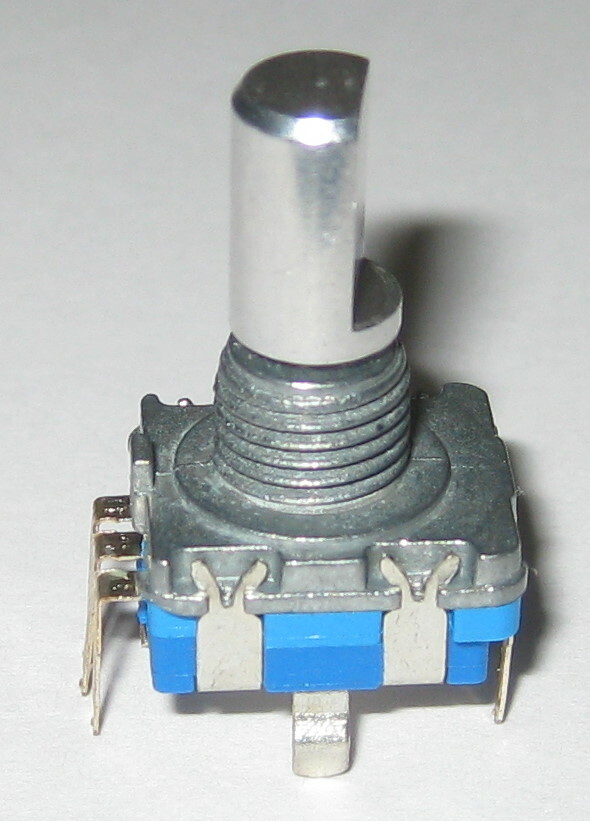

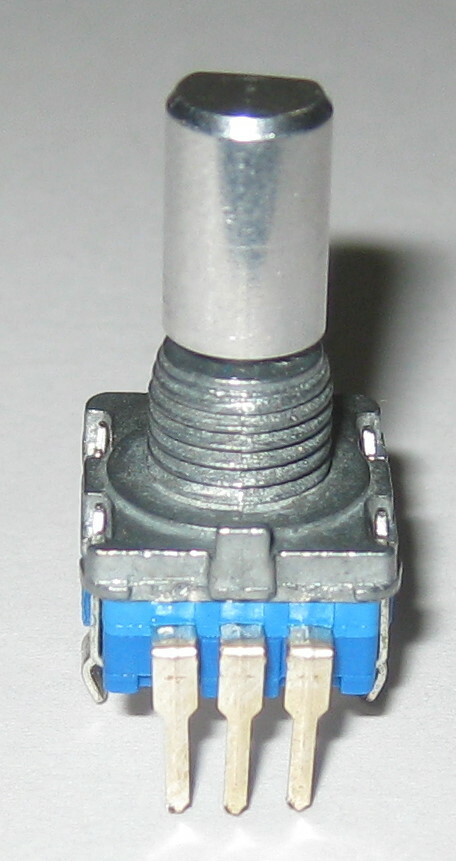

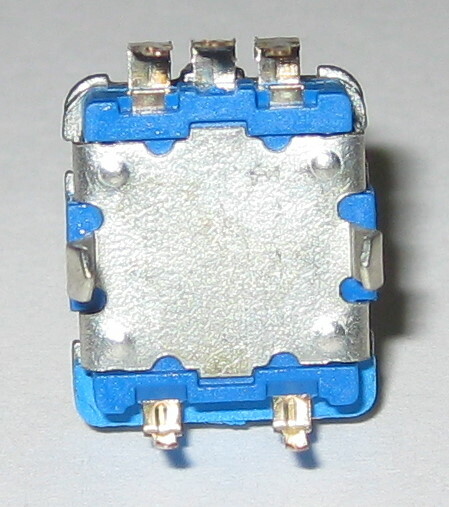

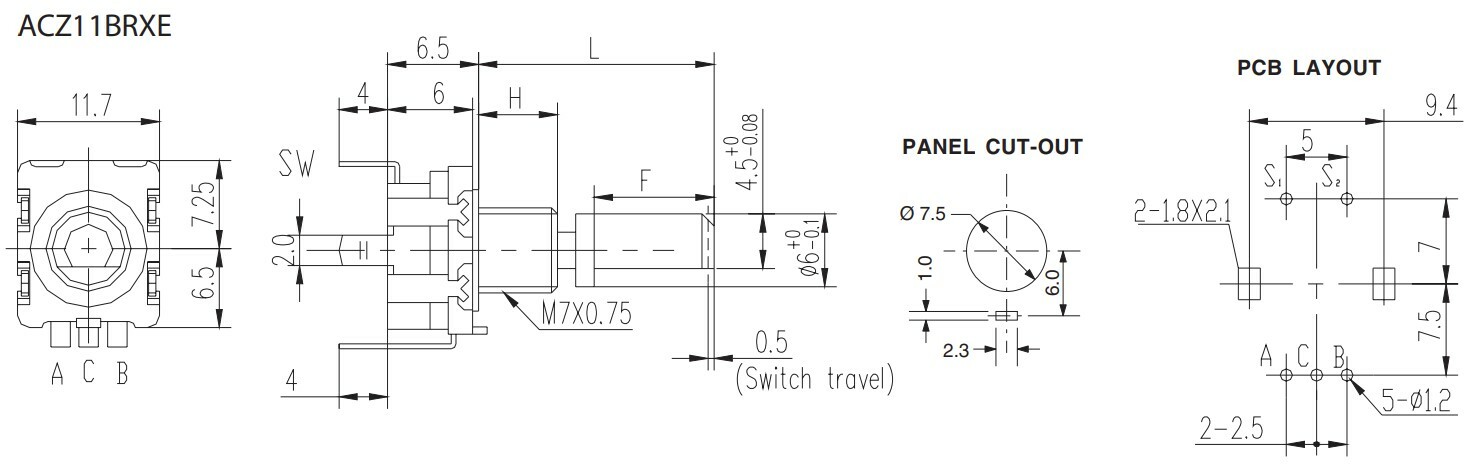

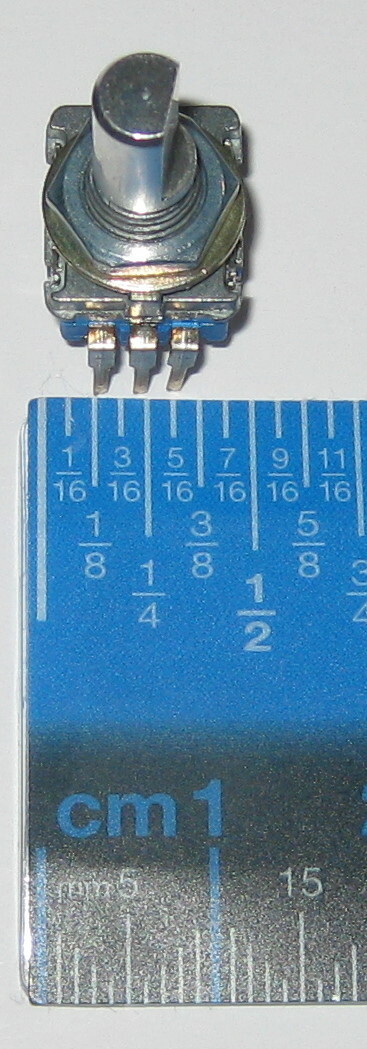

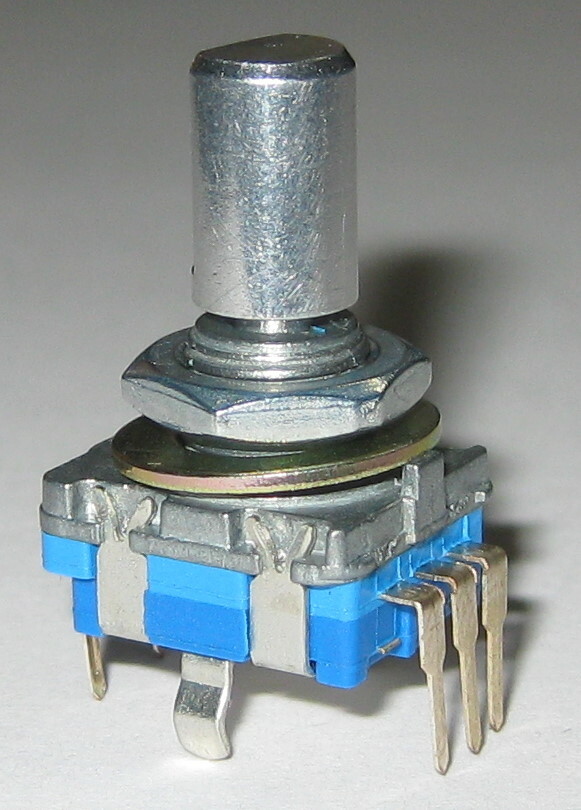

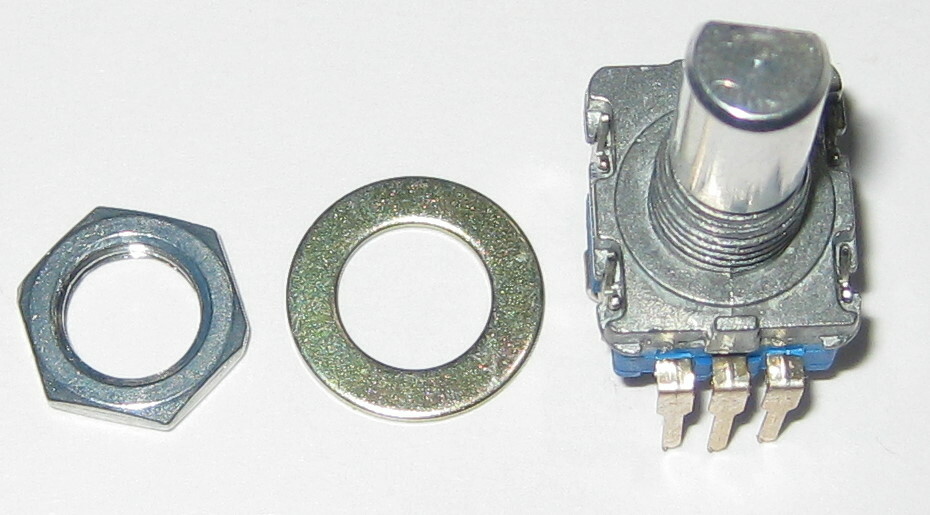

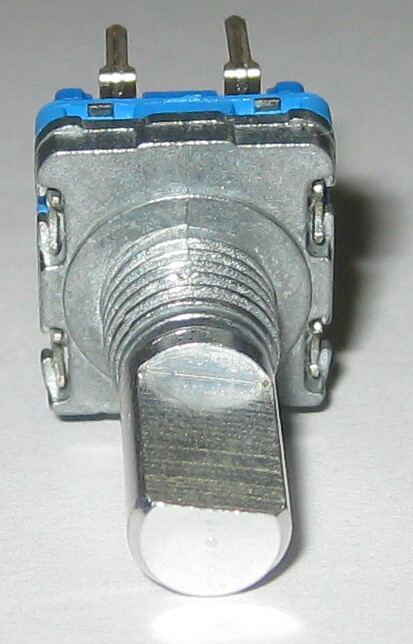

Check the listing for details. CUI Rotary Encoder with Momentary Switch - 12 Detents - 360 Degree - PCB Mount. Condition: New. Listed at 6.95 USD. CUI Rotary Encoder with Momentary Switch - 12 Detents - 360 Degree Movement - PC Board Mount Rotary quadrature (incremental) encoder with built-in momentary push switch Manufacturer: CUI Devices Model: ACZ11BR1E-15FD1-12C 360 degree shaft movement (endless rotation) 12 detent points - 12 PPR 5 V supply voltage Square wave 2 channel output Base dimensions: 12 mm x 14 mm x 7 mm (WxLxH) 7 mm diameter, 5 mm long bushing 6 mm diameter, 10 mm long D-shaft 5 PC leads for connection (3 for encoder, 2 for switch Comes with panel mount washer and nutMounts in 7.5 mm panel thru holeCUI Rotary Encoder with Momentary Switch - 12 Detents - 360 Degree Movement - PC Board Mount Rotary quadrature (incremental) encoder with built-in momentary push switch Manufacturer: CUI Devices Model: ACZ11BR1E-15FD1-12C 360 degree shaft movement (endless rotation) 12 detent points - 12 PPR 5 V supply voltage Square wave 2 channel output Base dimensions: 12 mm x 14 mm x 7 mm (WxLxH) 7 mm diameter, 5 mm long bushing 6 mm diameter, 10 mm long D-shaft 5 PC leads for connection (3 for encoder, 2 for switch Comes with panel mount washer and nutMounts in 7.5 mm panel thru hole
