| Brand | Unbranded |
|---|---|
| Type | Electric Wheelchair Joystick Controller |
| Item Type | Electric Wheelchair Controller |
| Color | Black |
| Material | Aluminum, ABS |

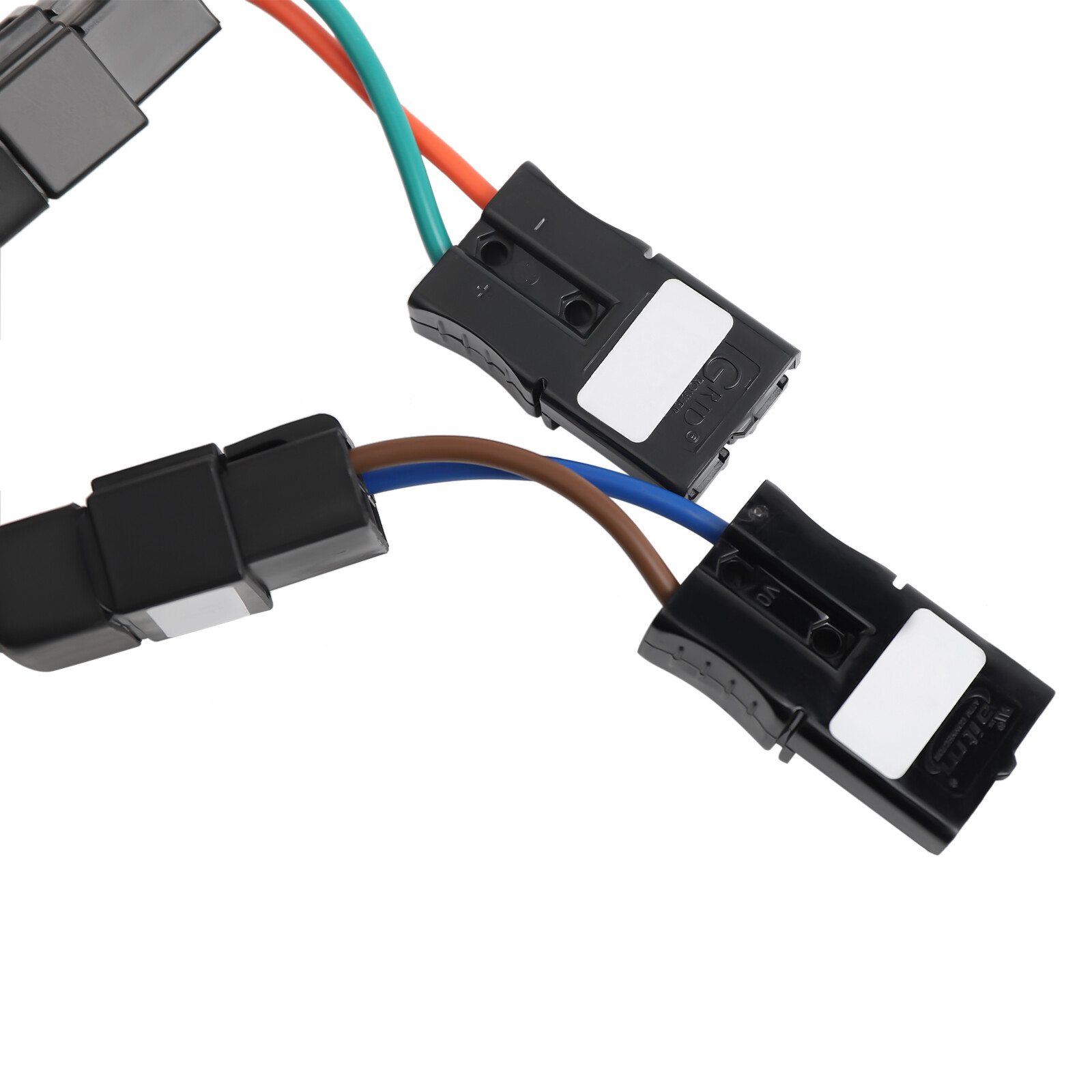

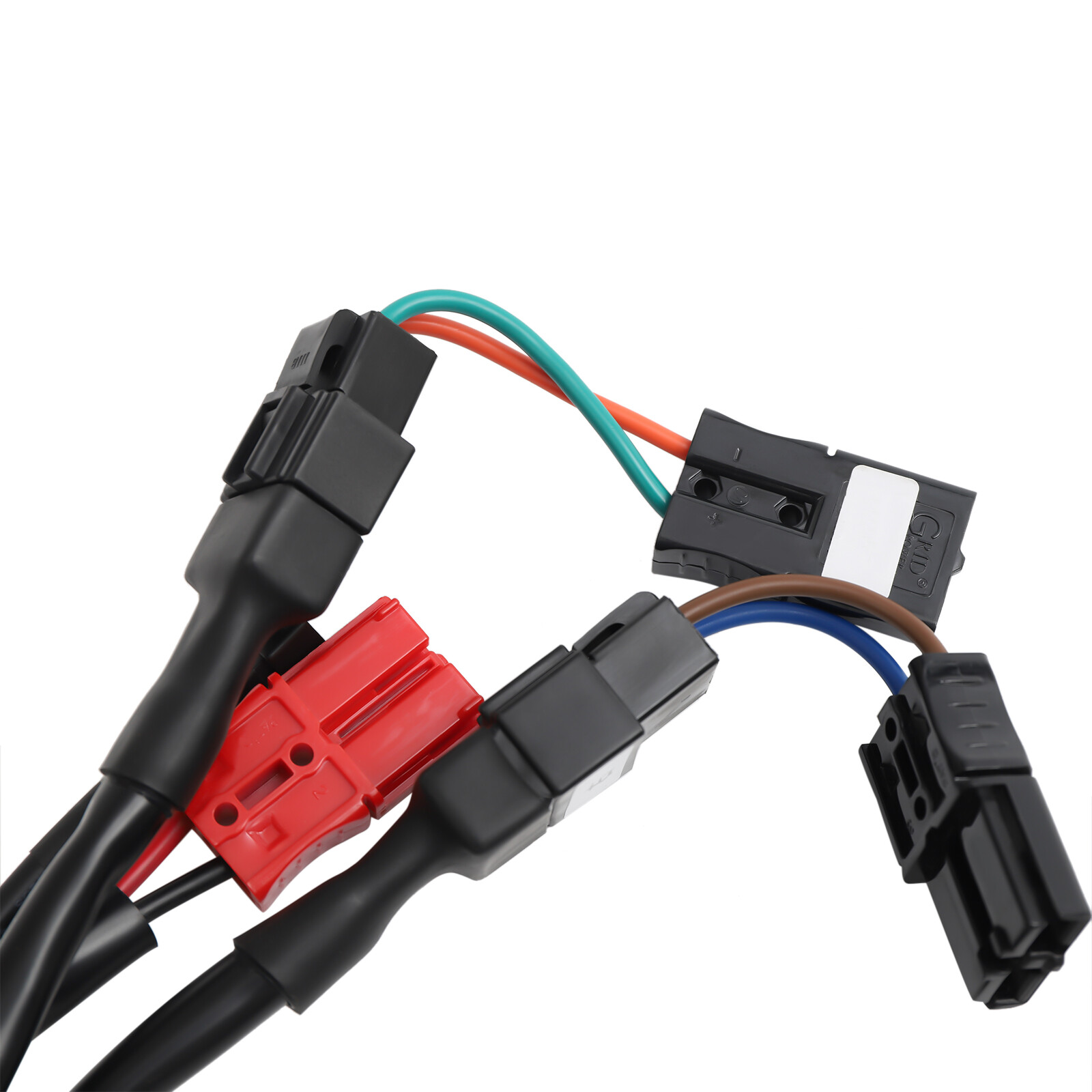

| Connection Mode | ML2P+ Adapter Cable |
| Supply Voltage | DC 24V |
| Operating Voltage | DC19-32V |
| Peak Voltage | DC 35V |
| Output Current | 50A |
| Brake Voltage | DC24V |
| Brake Current | 3A Max. For Single Circuit |
| Battery Charging Current | Maximum 6A(Through the Controller Charging) |
| Standby Current(Stationary) | ≤ 50mA |
| Standby Current(Power Off) | 0.1 ± 0.05mA |
| Operating Temperature | -25~60°C/-13~140℉ |
| Storage Temperature | -45~ 80°C/-49~176℉ |
| Applicable Drive Motor | 24V DC Brush Motor |
| Mounting Hole Distance | 40mm/1.57in |
| Drive Mode | PWM Duty Cycle Adjustment, Soft Start, Electrical Differential |
| Adjustable Speed | 5 Gears |
| Waterproof Level | IPX3 |
| Line Length | 1.2 m/3.93ft |

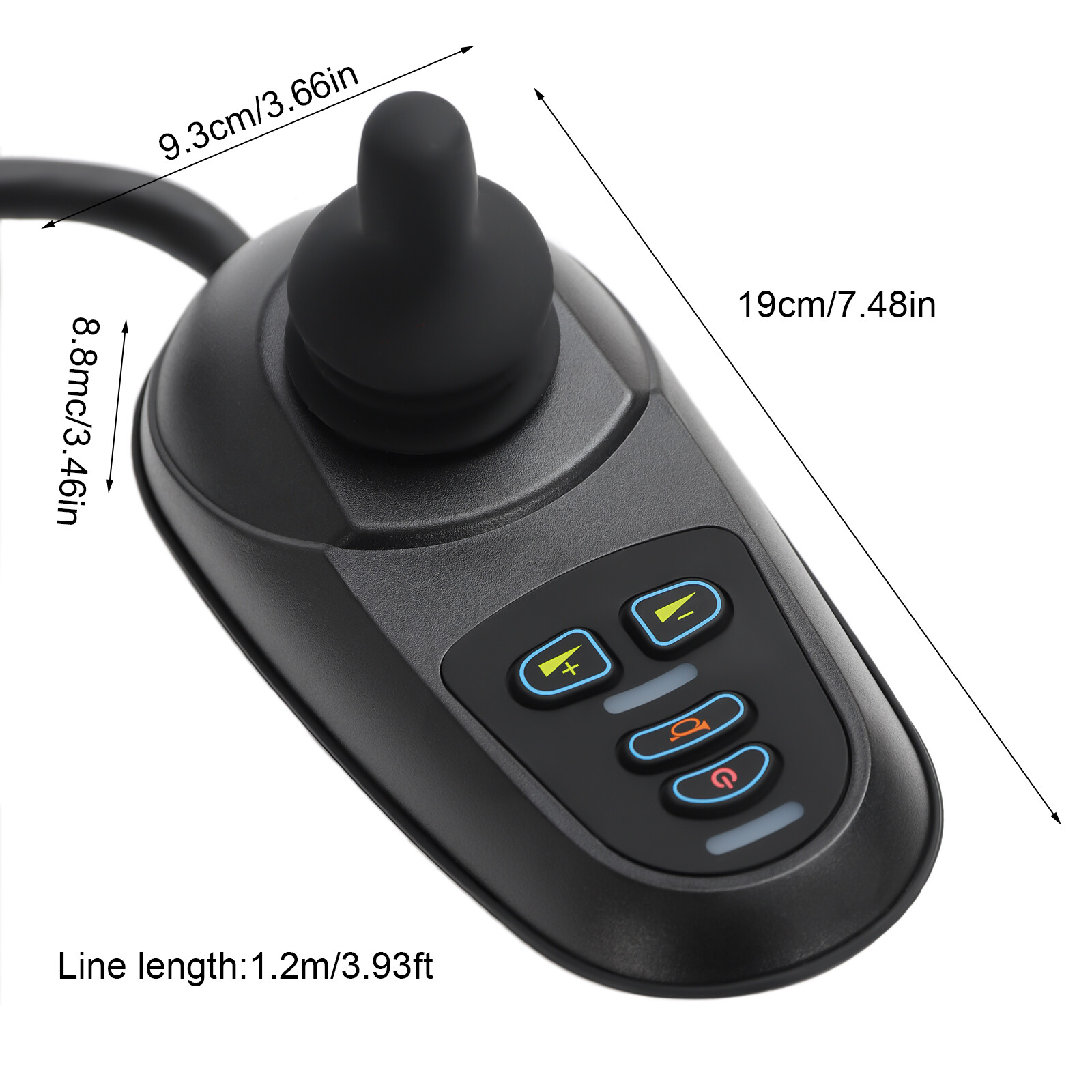

| Product Size | 19*9.3*8.8cm/7.48*3.66*3.46in |
| Package Size | 23*13*16cm/9.06*5.12*6.3in |
| Gross Weight | 1.3kg/2.87 lbs |
| Net Weight | 1.24kg/2.73 lbs |

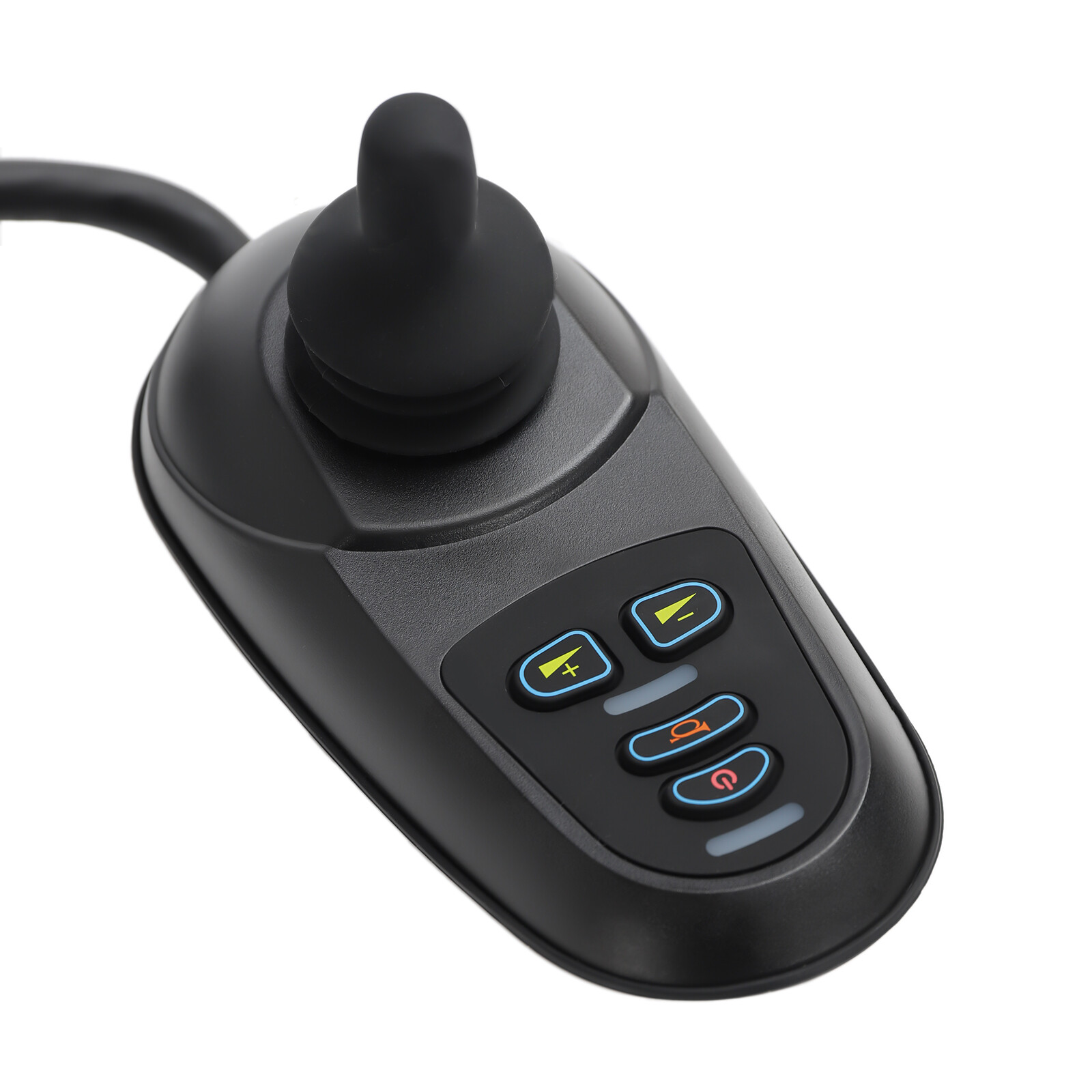

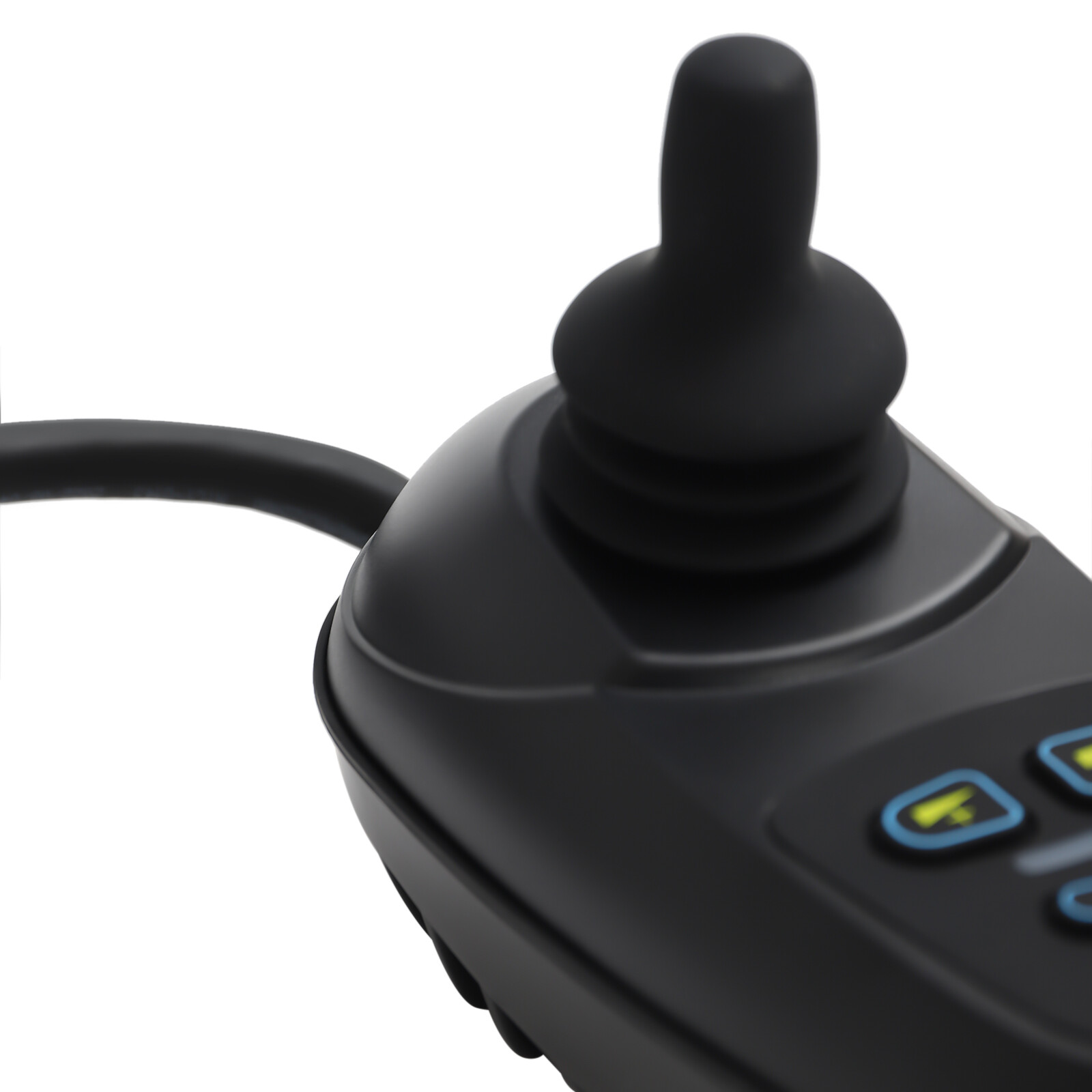

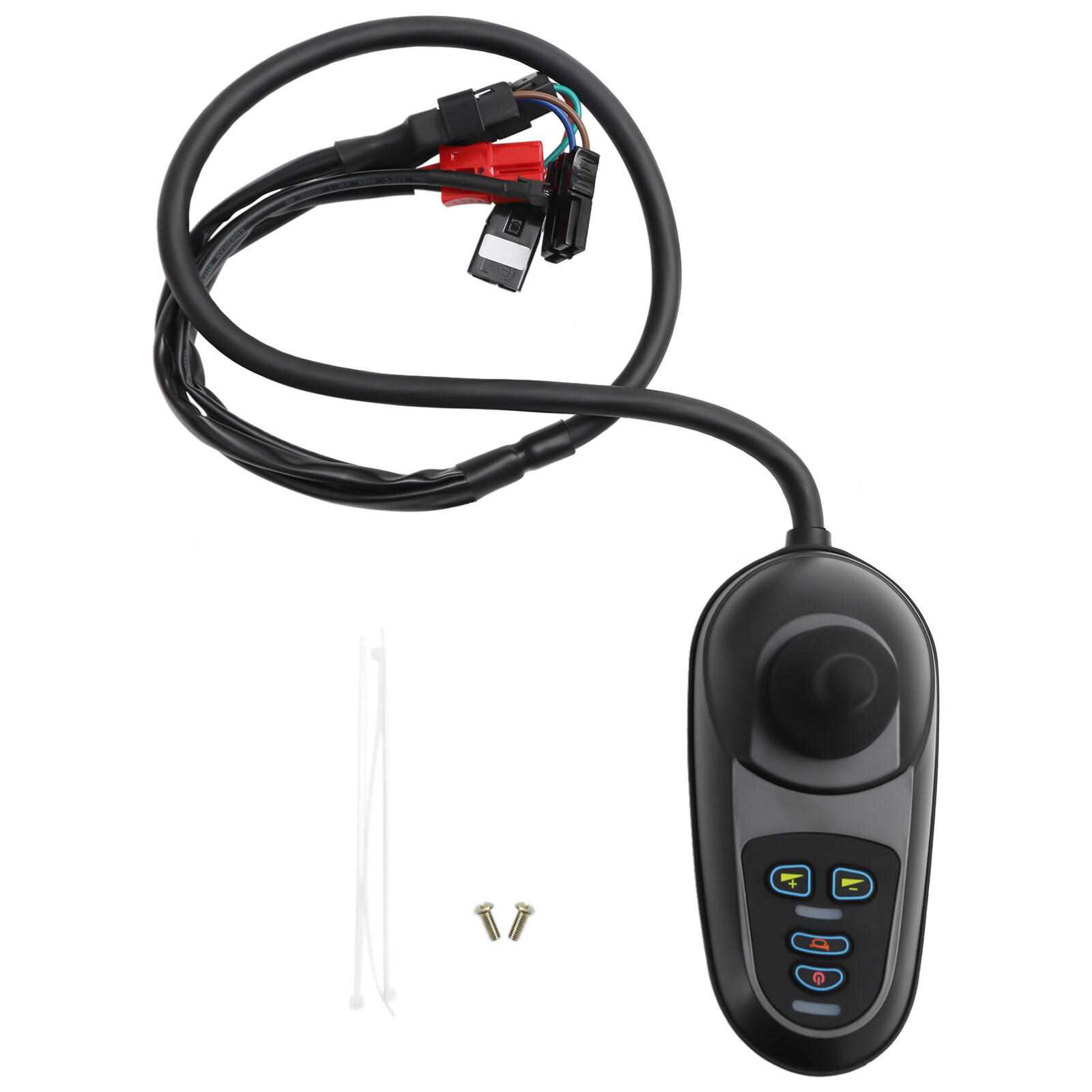

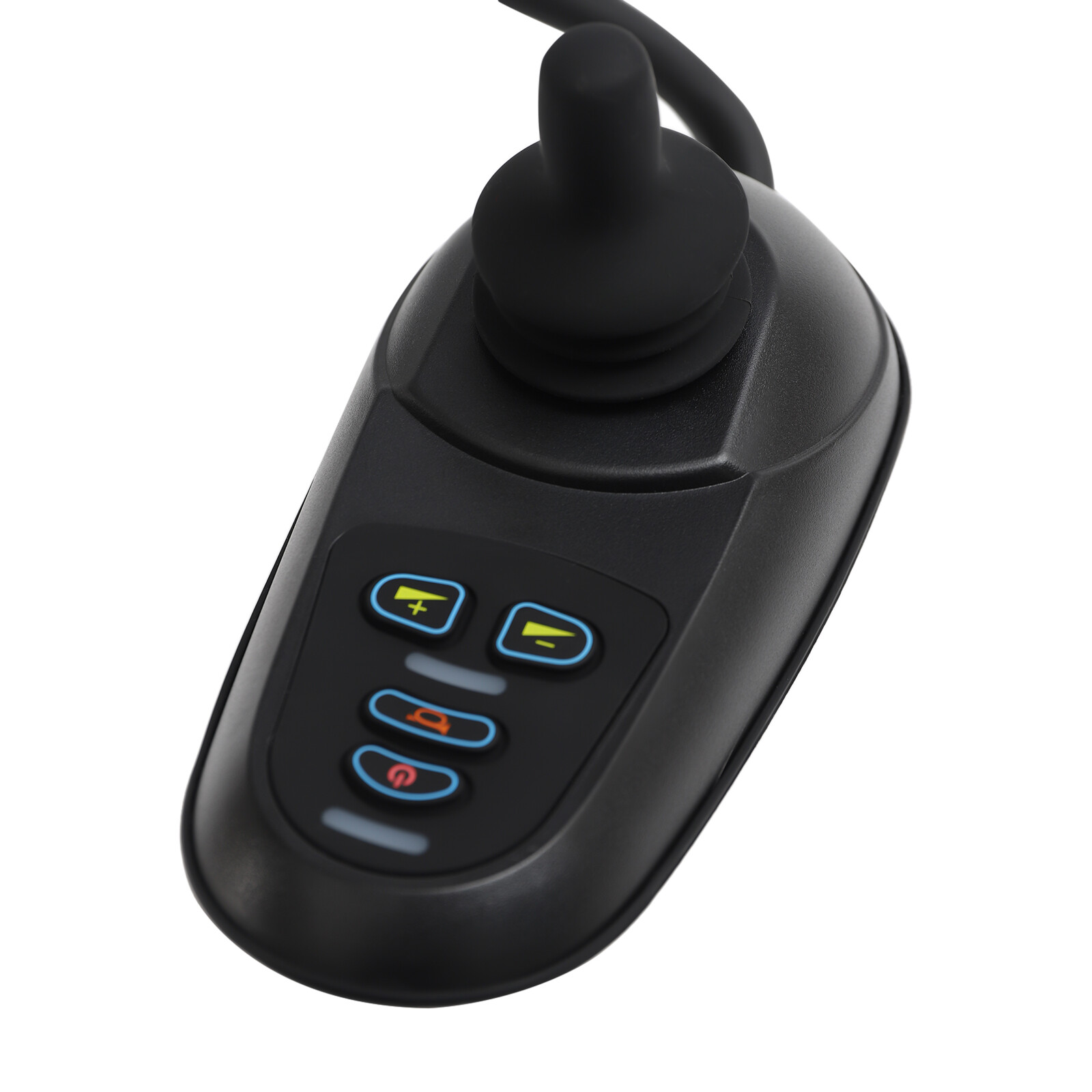

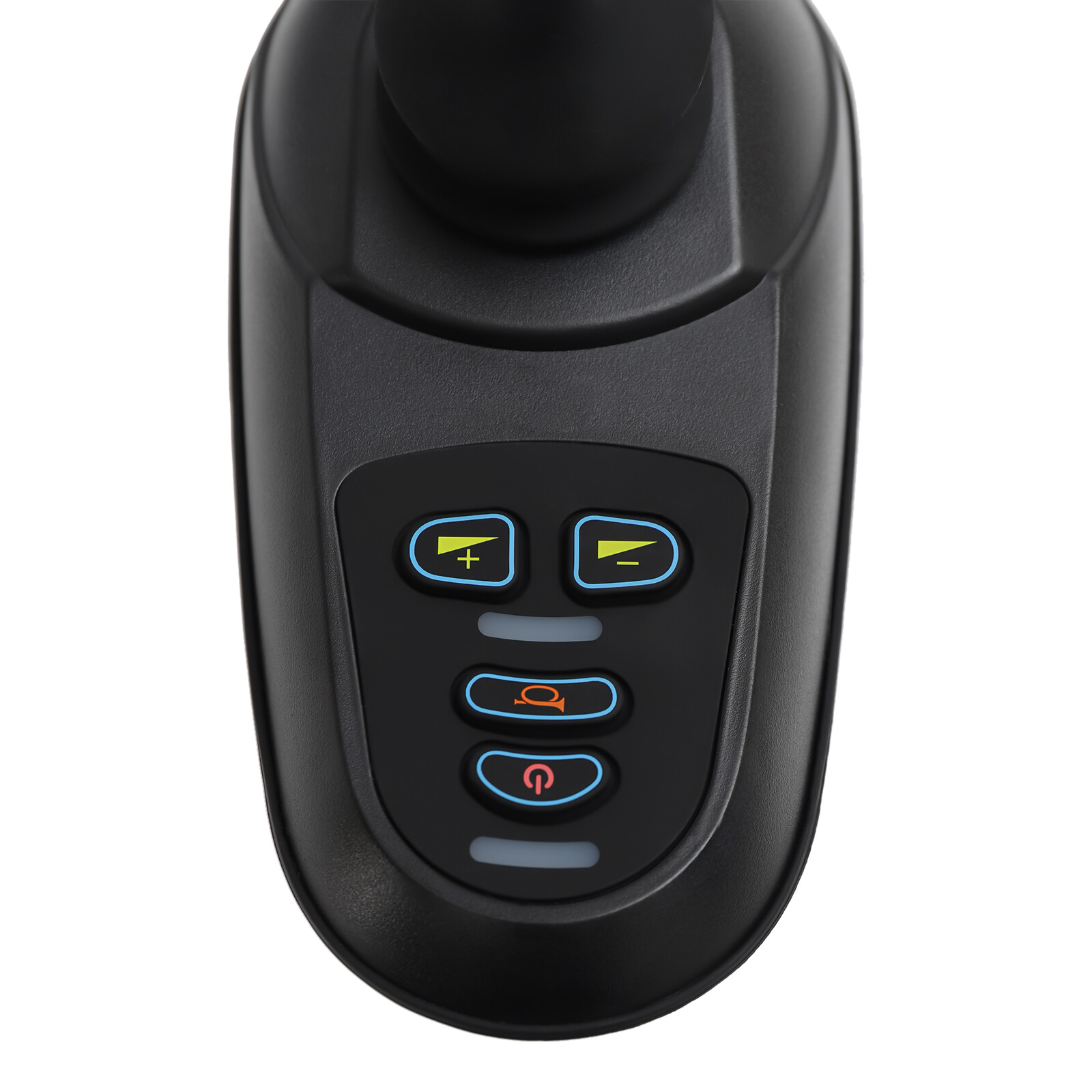

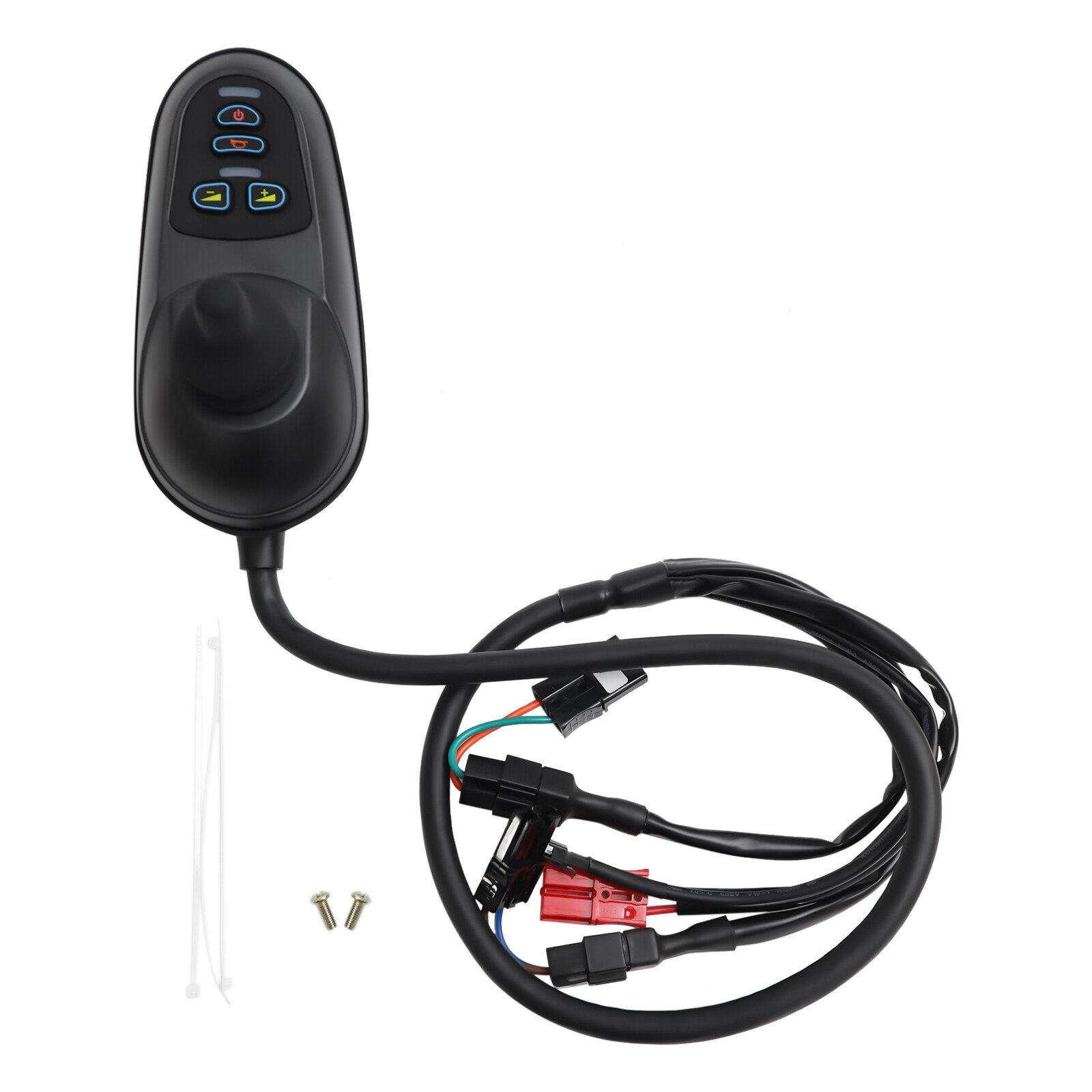

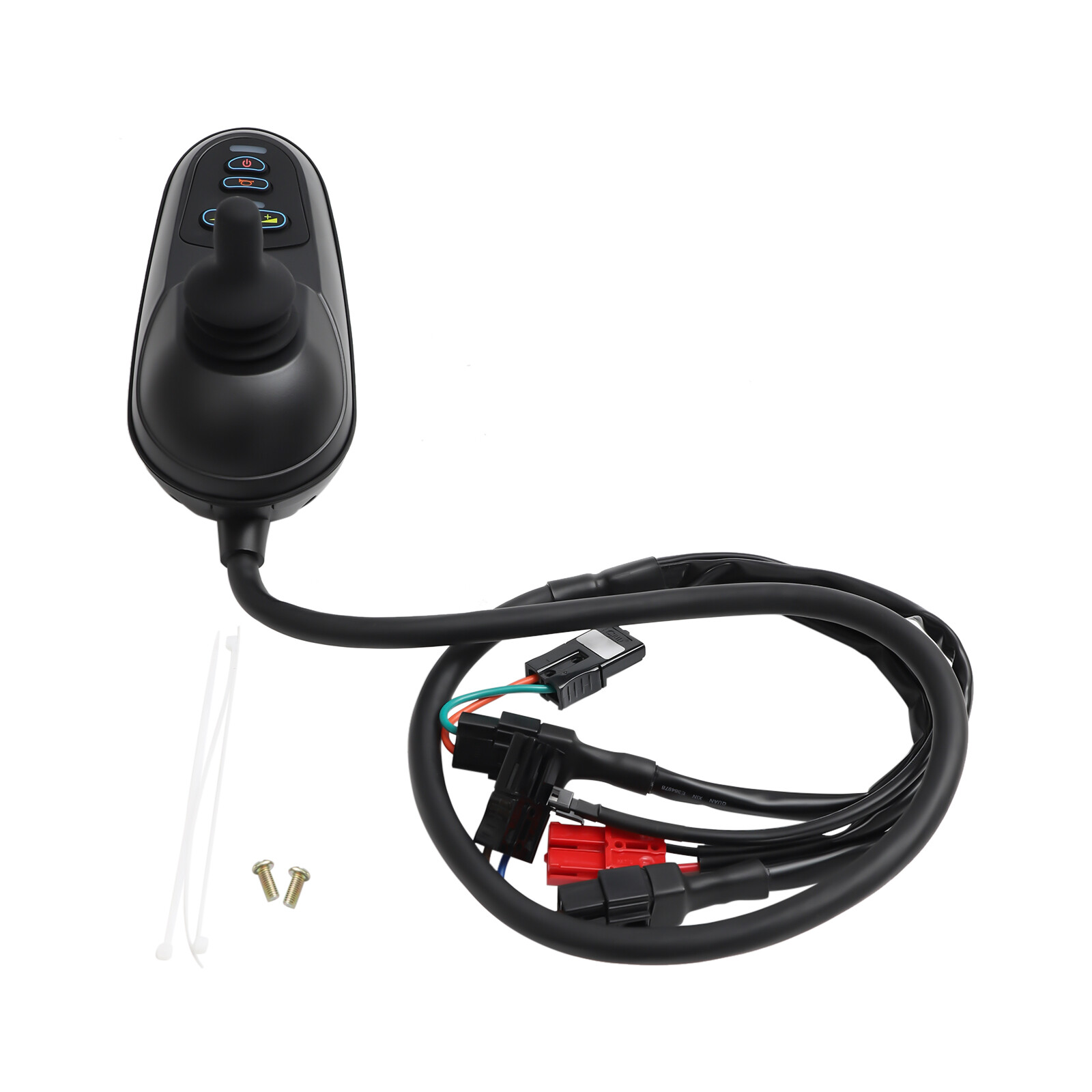

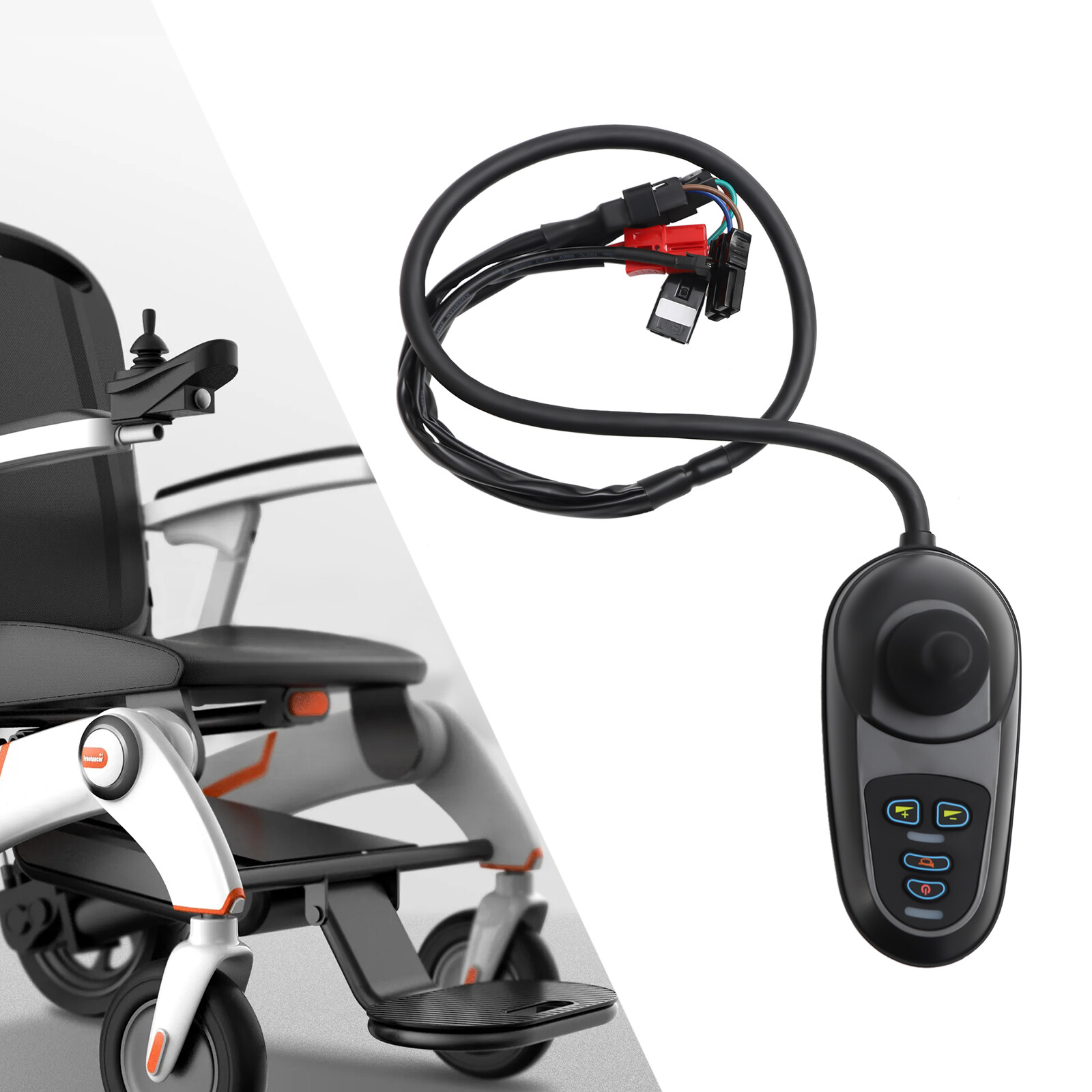

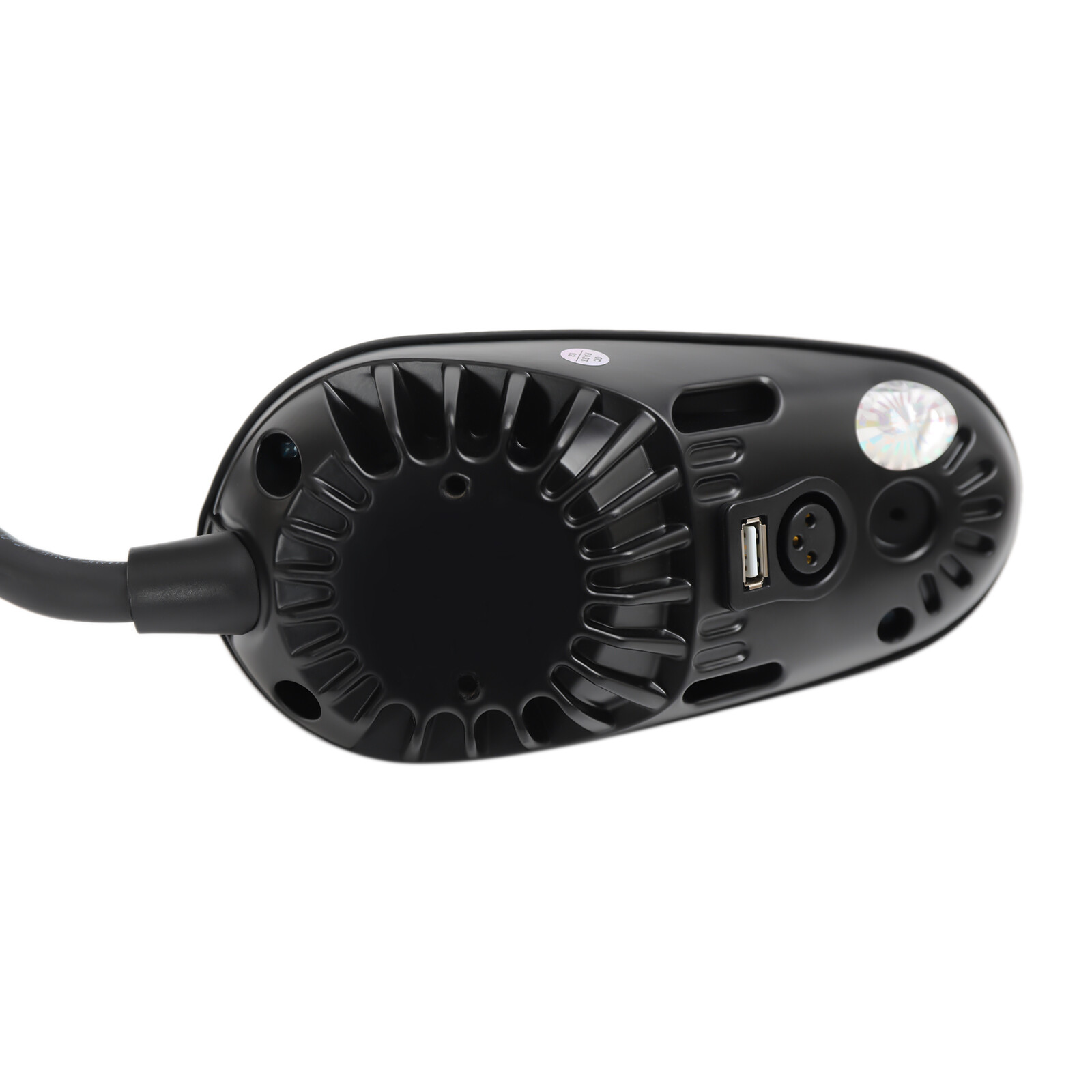

Check the listing for details. DC 24V Universal Electric Wheelchair Joystick Controller 4 Key 5 Gears IPX3. Color: Black, Condition: New. Listed at 83.19 USD. Package Included 1* Electric Wheelchair Joystick Controller 2* Cable Ties 2* Screws.Package Included 1* Electric Wheelchair Joystick Controller 2* Cable Ties 2* Screws.
You may also like
$37.99
Pair Universal Elevating Leg Foot Rest Legrest Manual Wheelchair Wheel Chair New
$199

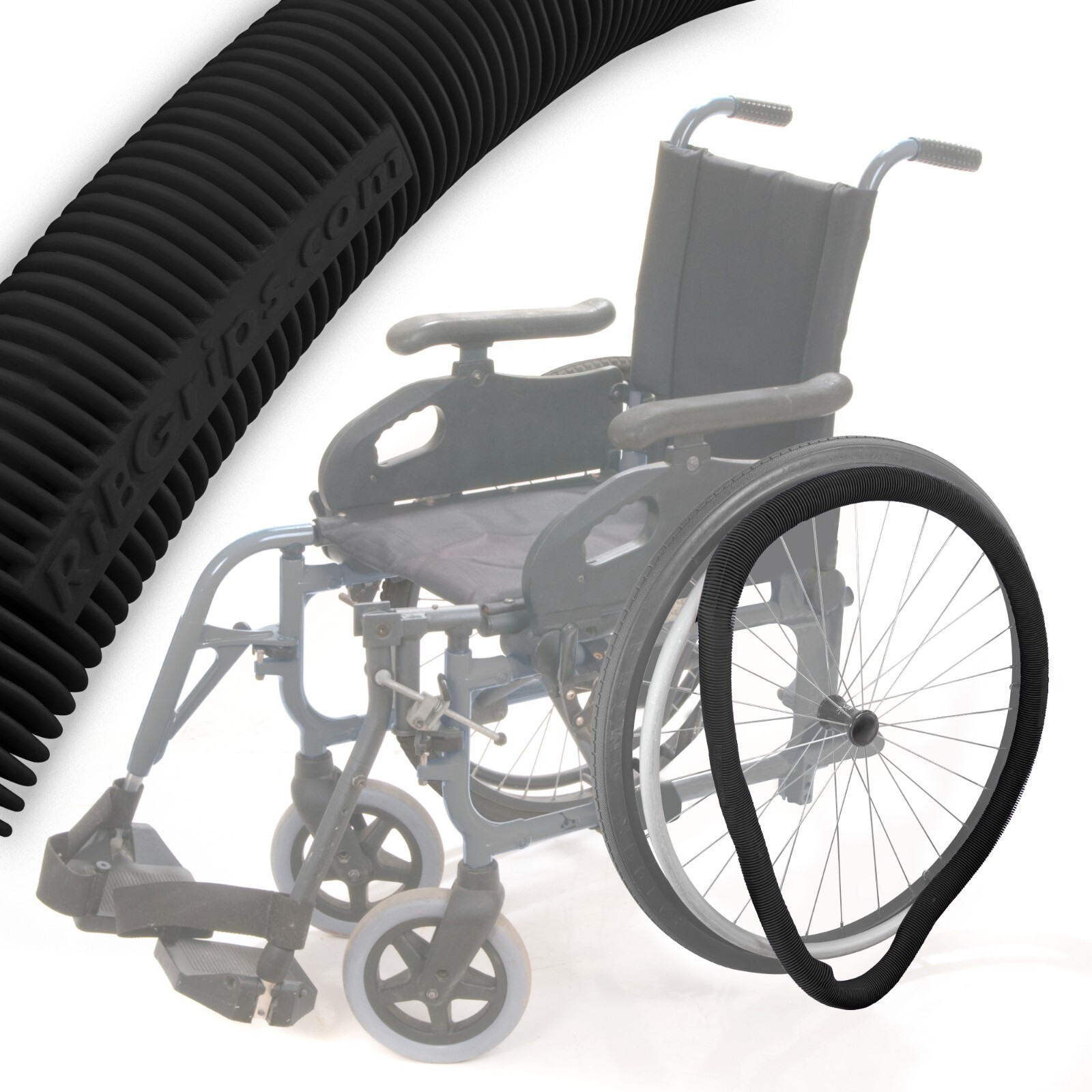

Ribgrips Wheelchair Handrim Covers
$38.95

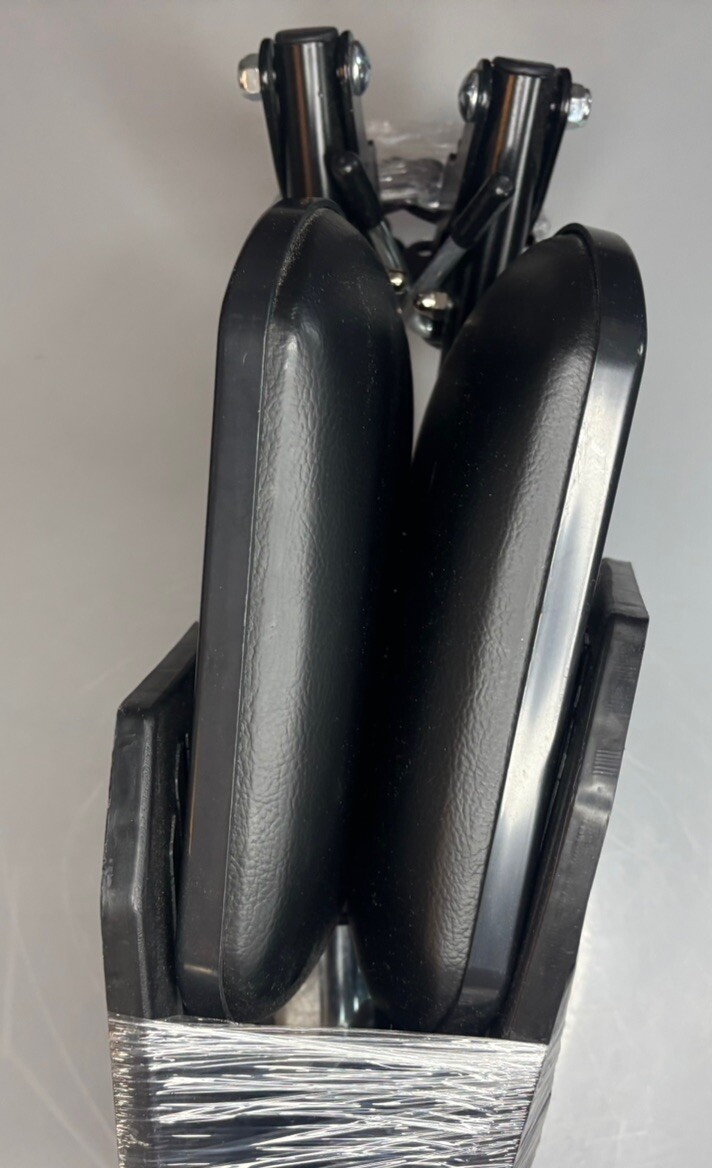

Wheelchair Elevating Leg Rest Padded Calf Support Composite Footplates Universal
$23.5

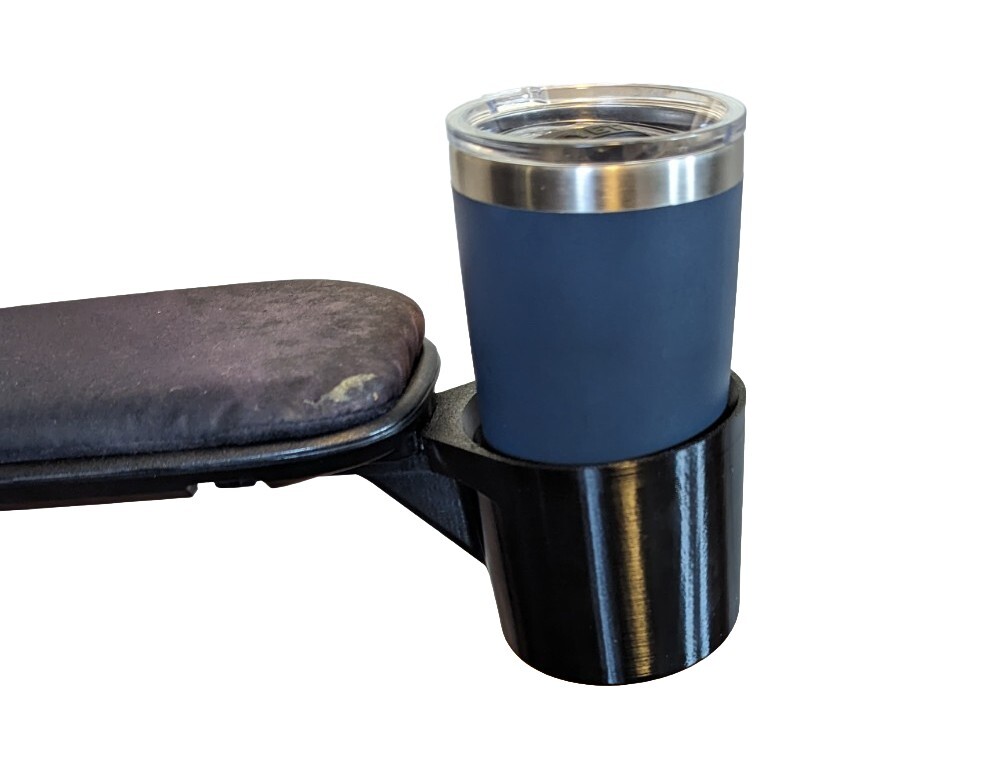

Cup Holder for Permobil Power Wheelchairs. READ DESCRIPTION
$25

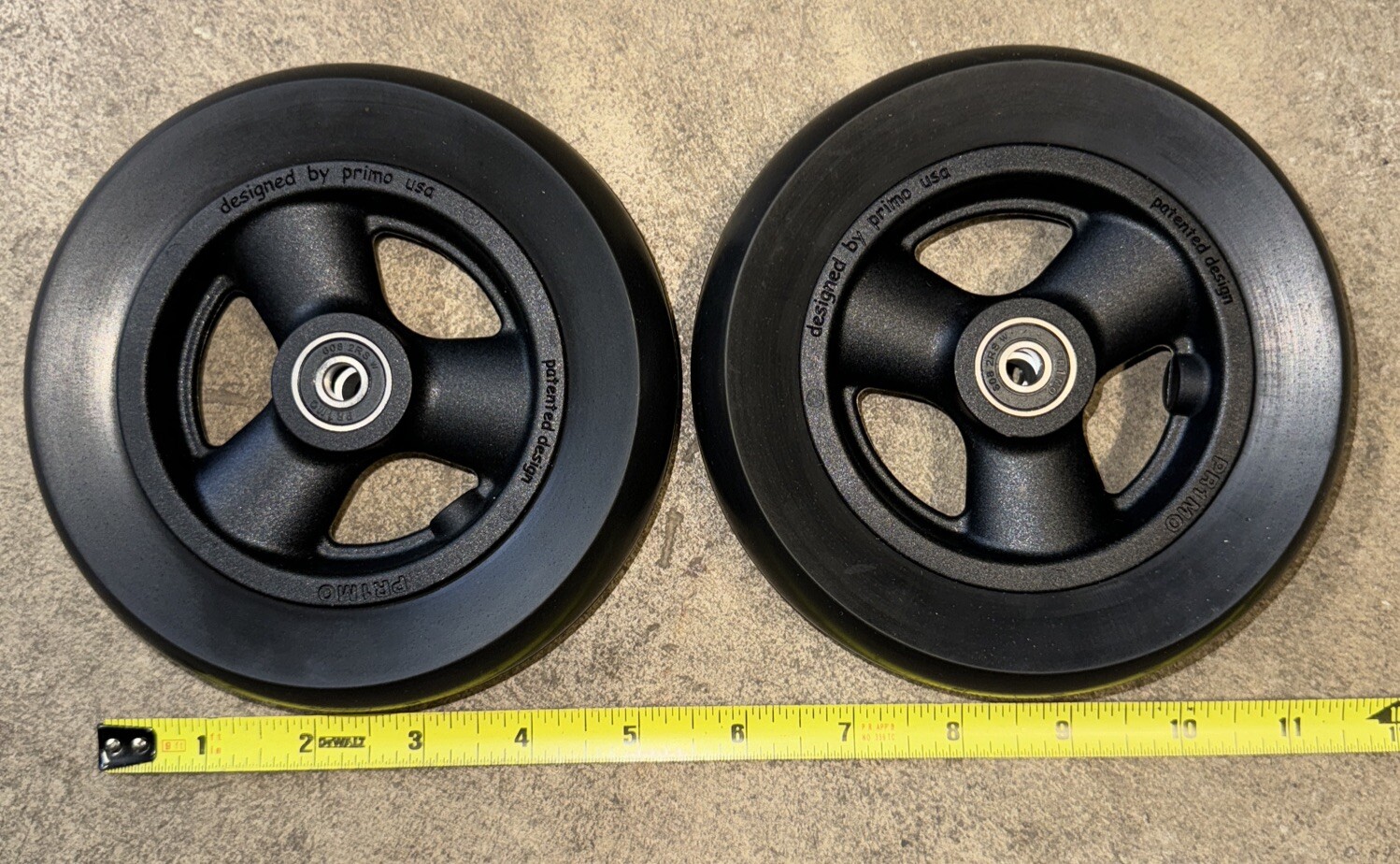

TWO 6" x 1.5" Quickie Wide PRIMO TIRES Ki Wheelchair Front Wheel Caster 5/16" ID
