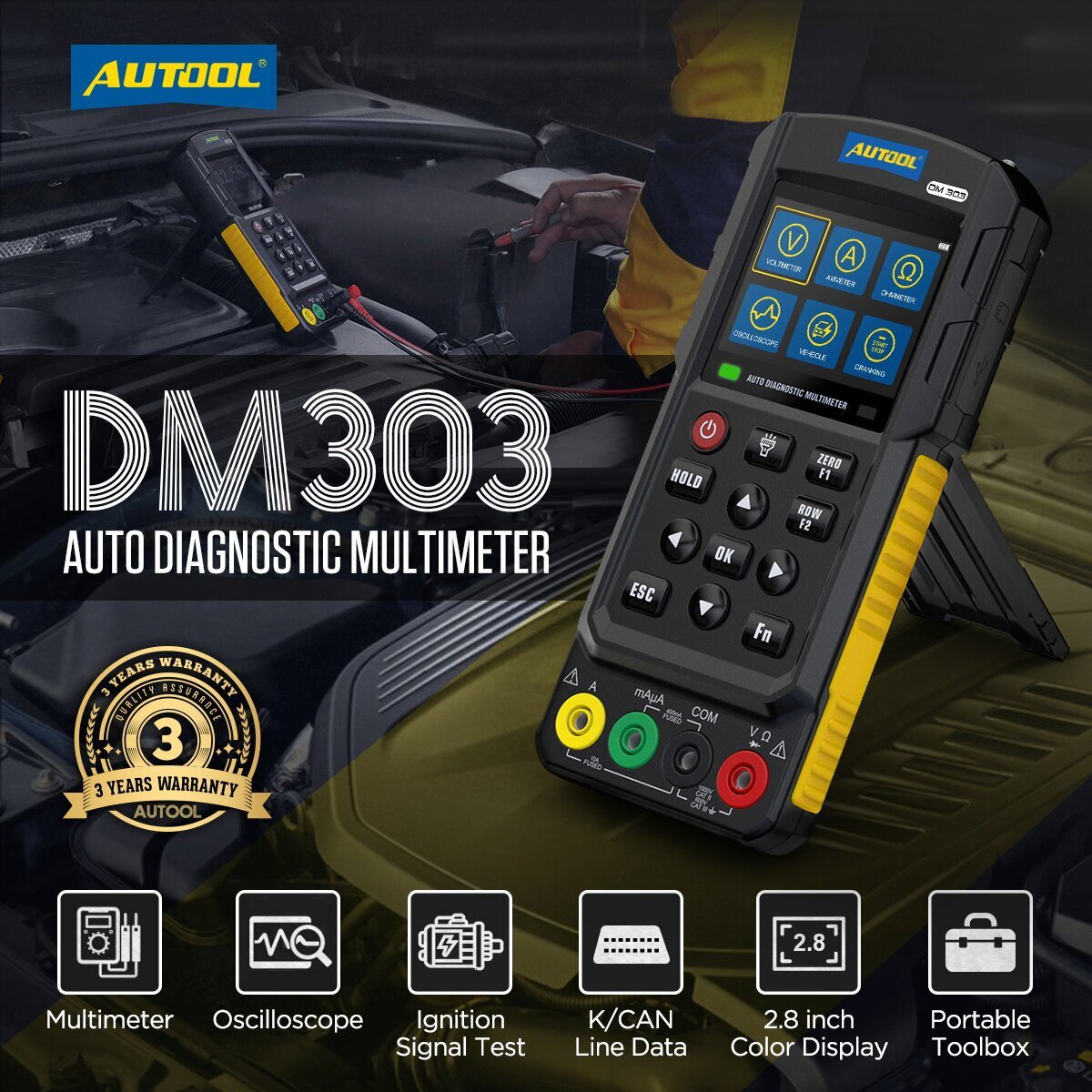

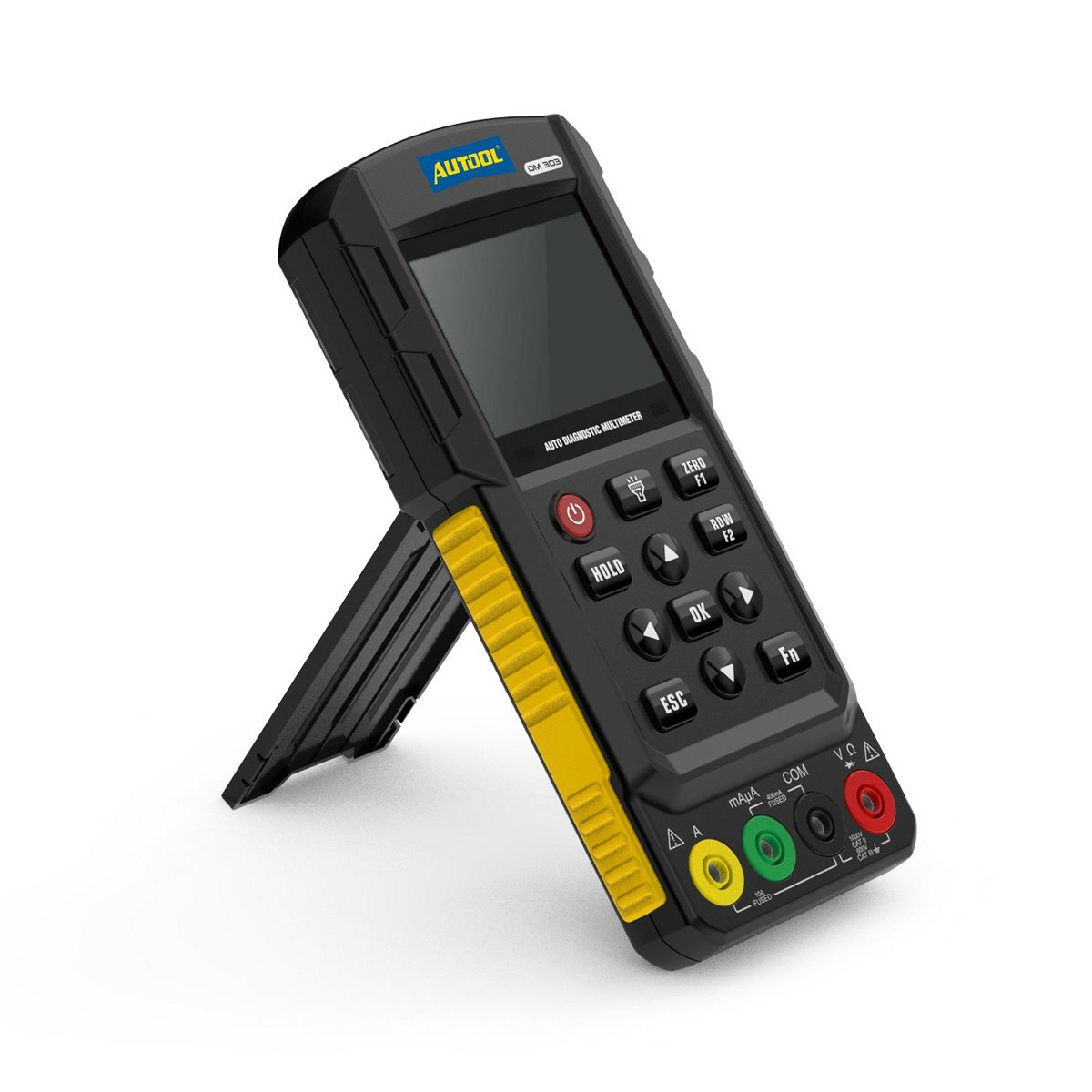

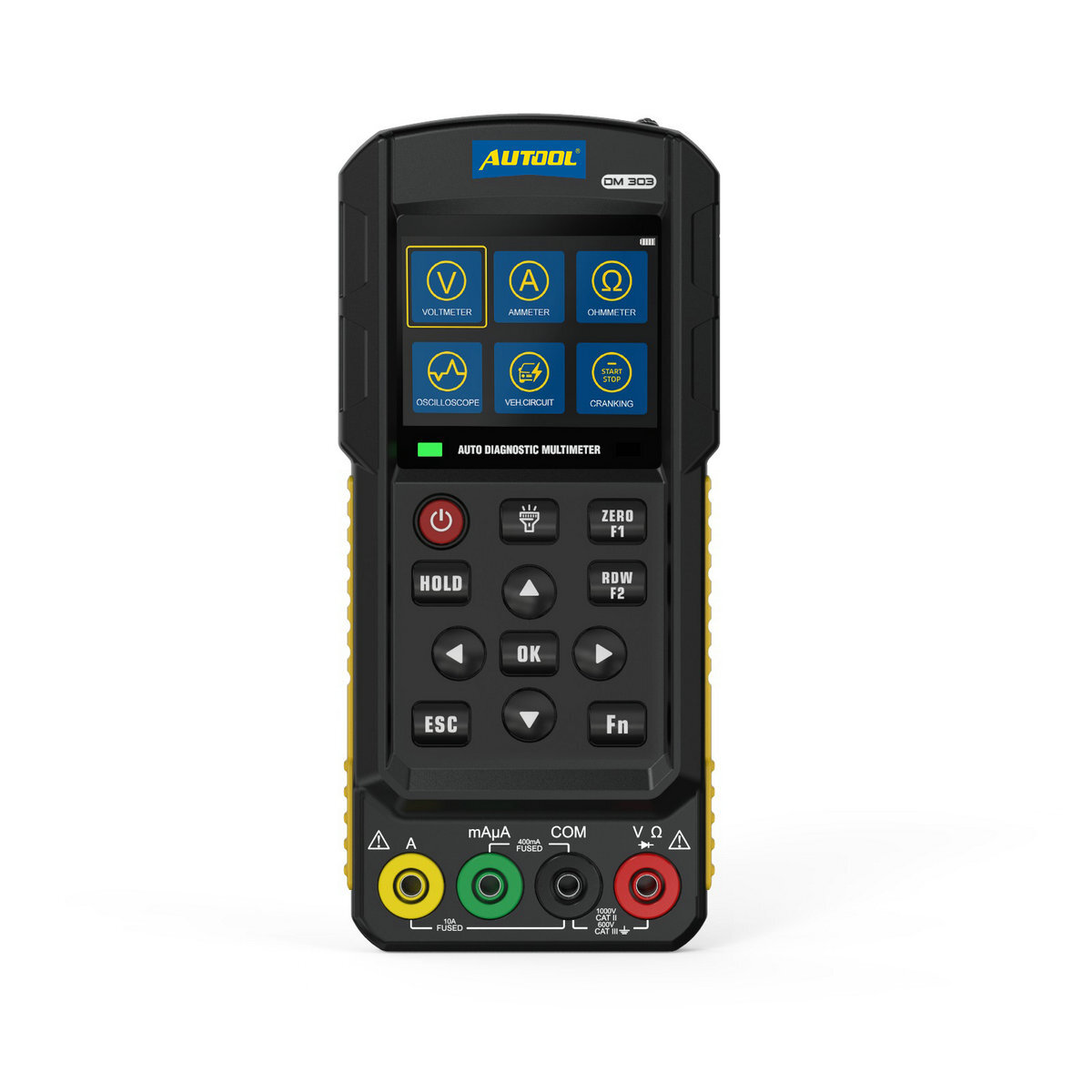

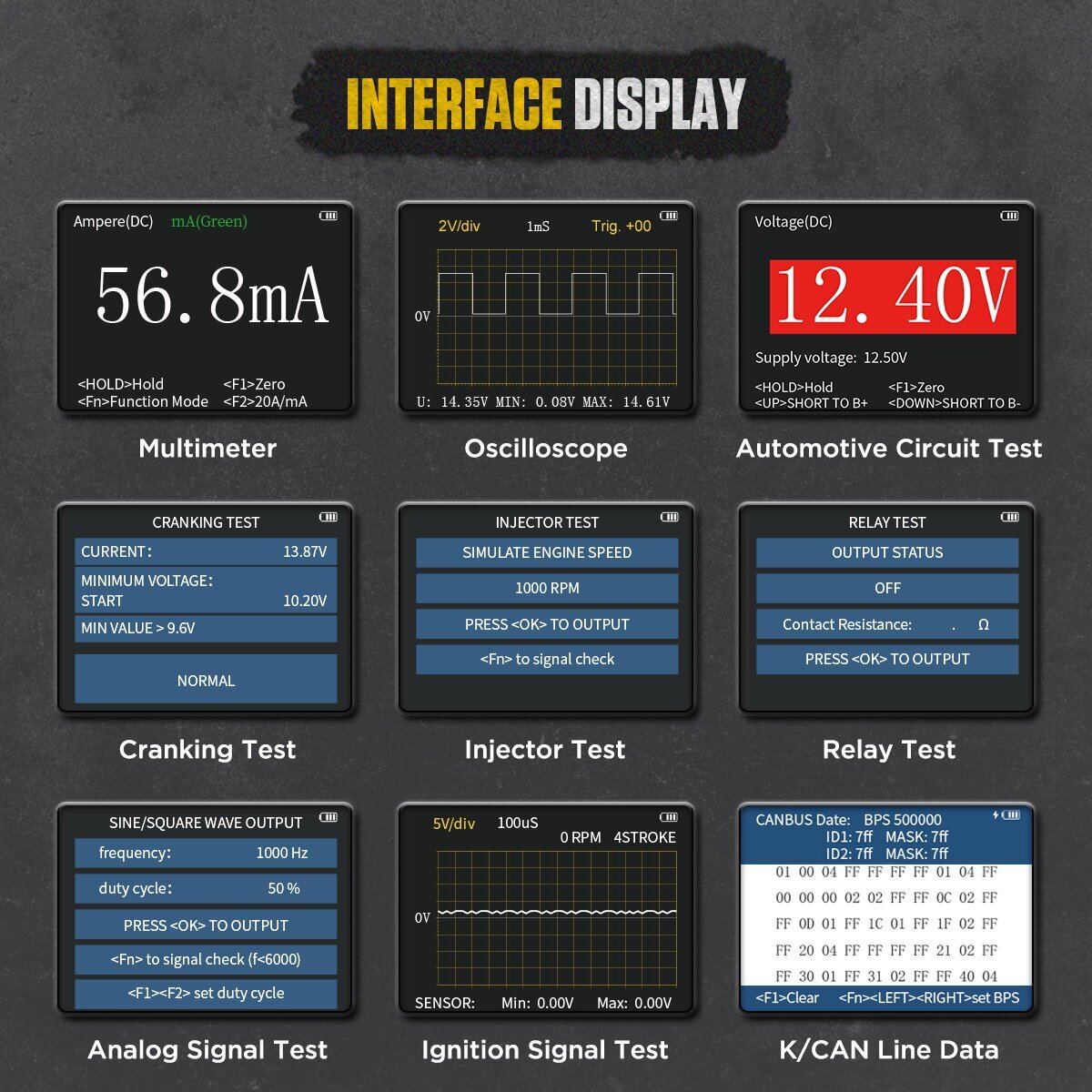

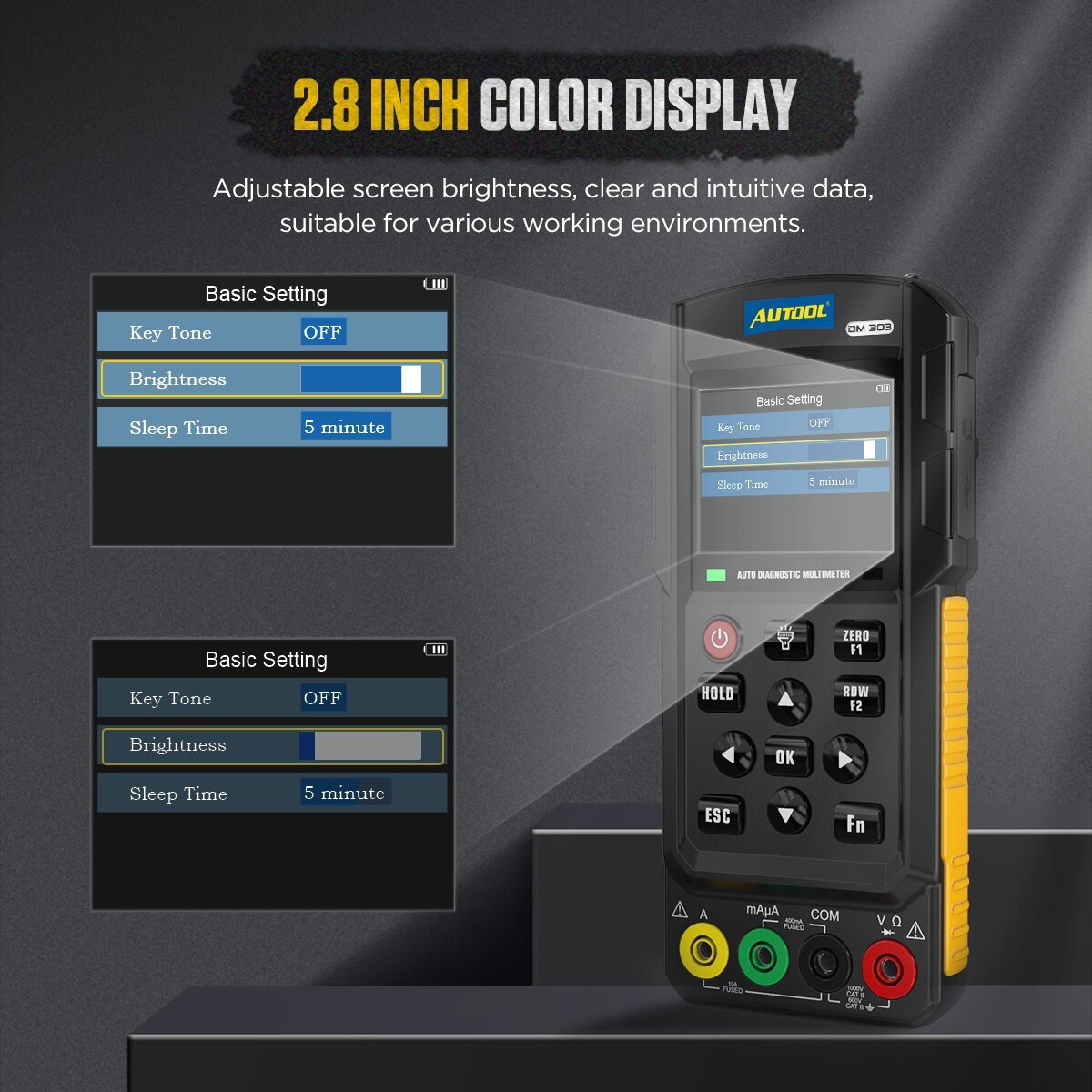

Check the listing for details. Diagnostic Multimeter Car Circuit Tester Oscilloscope Relay Injector Test K/CAN. Condition: New. Listed at 143.10 USD. The multimeter function and the oscilloscope function areintegrated together on the instrument. When measuring thevoltage signal using a probe, switch to the oscilloscope function with [Fn] key to facilitate the use and observation of signal waveform.12 TEST FUCTIONVoltage measurement, Oscilloscope, Current measurement,Resistance test, Automotive circuit test, Car start-up test,Injector test, Automobile relay test, Analog signal test,Ignition pulse signal test, K line data, CAN bus data, Frequency measurement. INTERFACE DISPLAY Oscilloscope mode is a complete itelligent measurement system，which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured. It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on.ParameterLCD is a 2.8-inch color screen, with a resolution of 320*240;Input impedance for the voltage measurement: it is 2~3MΩwhen the voltage is lower than 160V; it is 10MΩ when thevoltage is higher than 160V. The maximum input voltage is 1000Vpp; The analog bandwidth is 500KHz; The voltage range is converted automatically;The 10A terminal fuse for current measurement is 15A self-recovery fuse, and the maximum measurable current is 20A; Thecurrent measurement mA/uA terminal fuse is 0.5A self-recovery fuse, and the maximum measurable current is 200mA;Working temperature: 0~40°C(32~104°F) Humidity: ≤75%;Storage temperature: 10~50°C(14~122°F) Humidity: ≤70%;Altitude: 2000m.Multi-functional detection line C01 - 1 DC connector, connected to the battery clip line C01 - 2 Terminals for injector test and Automobile relay test C01 - K K line signal line C01 - CAN+ CAN+ signal line C01 - CAN- CAN- signal line C01 - GND Ground wire C01 - SIN Sine wave signal line C01 - S1 5V signal line C01 - S2 Square signal line C02 - Battery clip line C03 - Ignition pulse signal detection line C04 - 1 DC connector, connected to the battery clip line C04 - 2 Probe terminal C05 - Jumper(Black) C06 - Jumper(Green) C07 - Jumper(Yellow)Caution:Safe operation guidelinesBefore use, check that the insulation layer of the probe is intact without damage or breakage. If any obvious damage to insulation of probe or instrument shell, or you believe that the instrument cannot work normally, please do not use the instrument any more.While using a probe, put your fingers behind its finger protection ring.Do not apply voltage above 1000Vrms between instrument terminal and grounding terminal to prevent electric shock and instrument damage.In case of measured voltage higher than DC60V and 42Vrms, be careful to prevent electric shock.Before covering up the rear cover of the instrument, it is strictly forbidden to use the instrument; otherwise there will be risks of electric shock.Measured signals are not allowed to exceed the regulated limit value to prevent electric shock and instrument damage.It is not allowed to use current to test terminals or voltage at current gear.A self-recovery fuse is used inside the instrument. Do not change the internal wiring of the instrument to avoid damaging the instrument and endangering safety.When the battery symbol is shown in red on the LCD, the battery should be replaced timely to ensure the measurement accuracy.Do not operate the instrument in the high temperature, high humidity environment. Especially, do not store the instrument in the wet environment, as the instrument performance may deteriorate if being wetted.Clean the instrument enclosure with a wet cloth and a gentle detergent, and do not use abrasive agents or solvents.Package include1 x DM303 Multimeter1 x Multifunctional functional detection line1 x Automotive circuit detection line1 x Ignition signal detection line1 x Battery clip line1 x Jumper(Yellow)1 x Jumper(Green)1 x Jumper(Black)1 x Probe1 x Suitcase1 x Instruction manualVISIT OUR STOREMORE PRODUCTSMORE PRODUCTS 3 WARRANTY&SERVICEDelivery DetailsVISIT OUR STORE MORE PRODUCTS MORE PRODUCTS 3 WARRANTY&SERVICE Delivery Details1.We will ship according to your EBAY address but sorry that we can not accept P.O.BOX address. Please make sure it’s correct . This will help your product to be received safely and quickly! 2.International Buyers Please Note: 1) Please check with your country customs office to determine what these additional Import tariffs costs will be prior to bidding / buying. 2) It's the buyer's responsibility to complete clearance when parcel reached your Customs. We are Not responsible for buyers's local taxes, please consult local Customs for Tax Details. Customs rates vary from country to country, please understand. 3. Any further queries, please don't hesitate to email us. Thank you
