| Brand | Ferrofish |
|---|---|
| MPN | FEPULSE8AE |
| Model | Ferrofish PULSE 8 AE |
| Form Factor | Desktop (Rack-Mountable with Optional Hardware) |
| Converter Type | AD/DA Converter |
| Number of Channels | 8x A/D 8x D/A |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | 8x 1/4 TRS Balanced Line Input 8x 1/4 TRS Balanced Line Output |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input (S/MUX4 Support) 2x TOSLINK Optical |
| Conversion Formats | ADAT |
| Display | 1x 3 Color TFT |
| Gain/Trim Range | Line Inputs: 0 dB to +28 dB (in 1 dB Steps) Line Outputs: 0 dB to |
| Phantom Power | No |
| Host Connection | No |
| USB (Non-Host) | 1x USB-C (MIDI I/O, Remote) |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output |
| Network I/O | No |
| MIDI I/O | 1x 1/8 / 3.5 mm TRS Input 1x 1/8 / 3.5 mm TRS Output |
| Expansion Slots | 1x Internal DSP Slot |
| Wireless | No |
| Maximum Input Level | +20 dBu |
| Maximum Output Level | +20 dBu |
| SNR | Line Inputs: 112 dB Line Outputs: 120 dB |
| THD+N | Line Inputs: -108 dB (1 kHz, 48 kHz SR, A-weighted, Typ.) Line Outputs: -115 dB (1 kHz, A |
| Sample Rates | Up to 192 kHz |
| Bit Depths | 32-Bit |
| Latency | 3 Samples |
| Sync Sources | ADAT, Internal, Word Clock |
| Clocking | Word Clock: Accuracy: ±1.5 ppm |
| OS Compatibility | No |
| Mobile Device Compatibility | No |
| Power Requirements | AC/DC Power Adapter (Included) |
| DC Input Power | 12 VDC at 3A |
| Power Consumption | 12 VA (Typical) 1 VA (Standby) |
| Rackmount Size | 1 RU (1/2-Rack) |
| Operating Conditions | 41 to 113°F / 5 to 45°C at 0 to 75% Humidity |
| Dimensions | 8.7 x 5.3 x 1.7 / 22 x 13.5 x 4.4 cm |
| Weight | 2.2 lb / 1.0 kg |
| UPC | 4313042884351 |

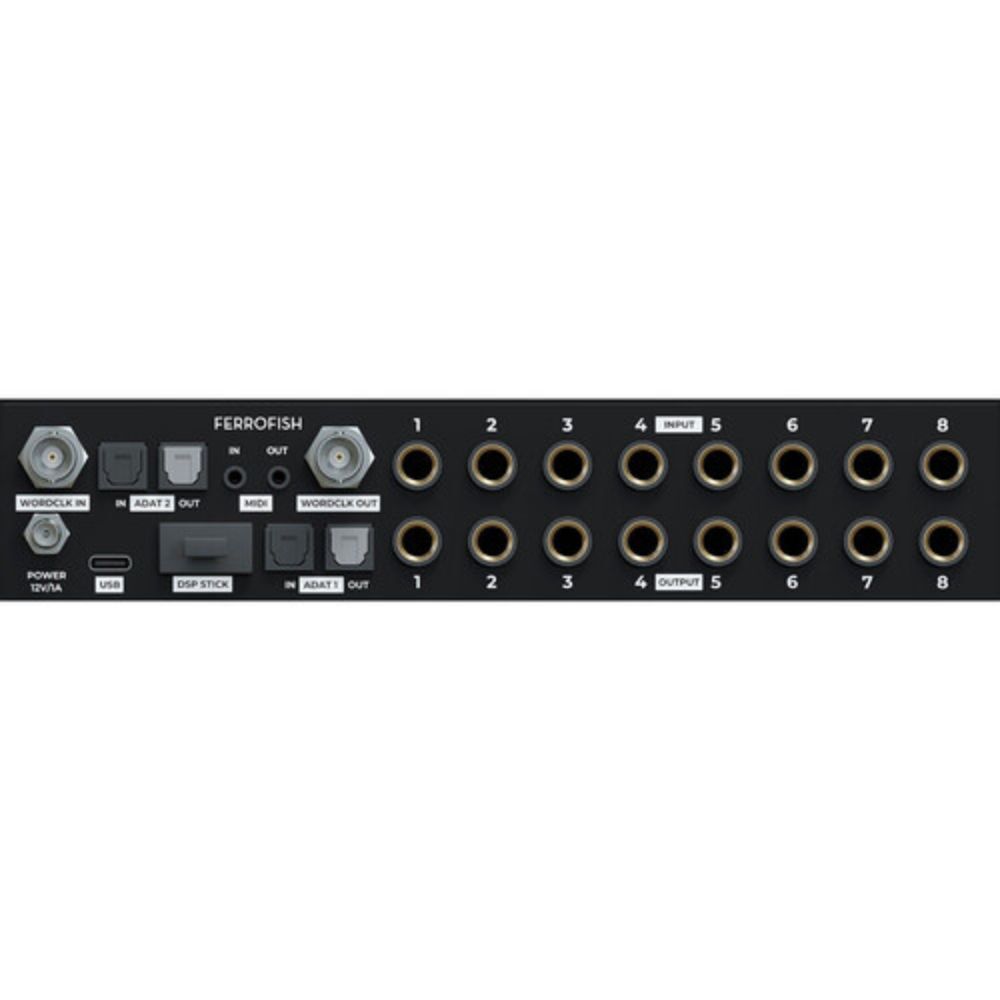

Check the listing for details. Ferrofish Pulse8 AE 8x8 AD/DA Converter with ADAT. Condition: New. Listed at 699.00 USD. Built on the premium 32-bit / 192 kHz ESS conversion technology found in its larger sibling, it ensures exceptional signal clarity and precision. The Pulse8 AE features 8 high-quality balanced analog inputs and outputs, along with comprehensive ADAT connectivity up to 192 kHz (with SMUX support).
