| Type | Antenna |
| MPN | AN_GPS_A003MCX |
| Brand | Maswell |
| Features | GPS,Waterproof,Screw and 3M Adhesive |
| Model | Universal,Auto,Car,Truck,lorry,RV,Motorhome,Vehicle |
| Connectivity | GPS |
| Frequency Bands | 1575.42 ±3 MHz |
| GPS Antenna For | Universal,Auto,Car,Truck,lorry,RV,Motorhome,Vehicle .etc |
| Country/Region of Manufacture | China |
| Manufacturer Warranty | 1 Year |
| Product Name | GPS Navigation Antenna |
| VSWR | <1.5 |
| Impedance | 50 Ohm |
| Polarization | RHCP |
| Cable type | RG174 |
| Cable length | 3 m (9.8 ft) |
| Connector type | MCX |
| Max Gain | 2 dBi (Antenna) |
| Gain | 26 -30 dBi (LAN) |
| Weight | 0.5 kg (1.1 Pound) |
| Operation Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Vibration | 10 to 55 Hz with 1.5 mm amplitude 2 hours |
| lInstalled Options (Mounting Method) | Screw and 3 M Adhesive |
| Waterproof | IP67 |
| Environmentally Friendly | ROHS Compliant |
| UV Stabilized | Yes |
| Supply Voltage | 2.2~5V DC |
| Band Width | CF ±5 MHz |
| Material | ABS - UV Resistant,Stainless Steel |
| Relative Humidity | Up to 95% |
| Manufacturer Part Number | AN_GPS_A003MCX |
| Filter Insertion Loss | ＜3dB |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
| Current Consumption | 5~15 mA |

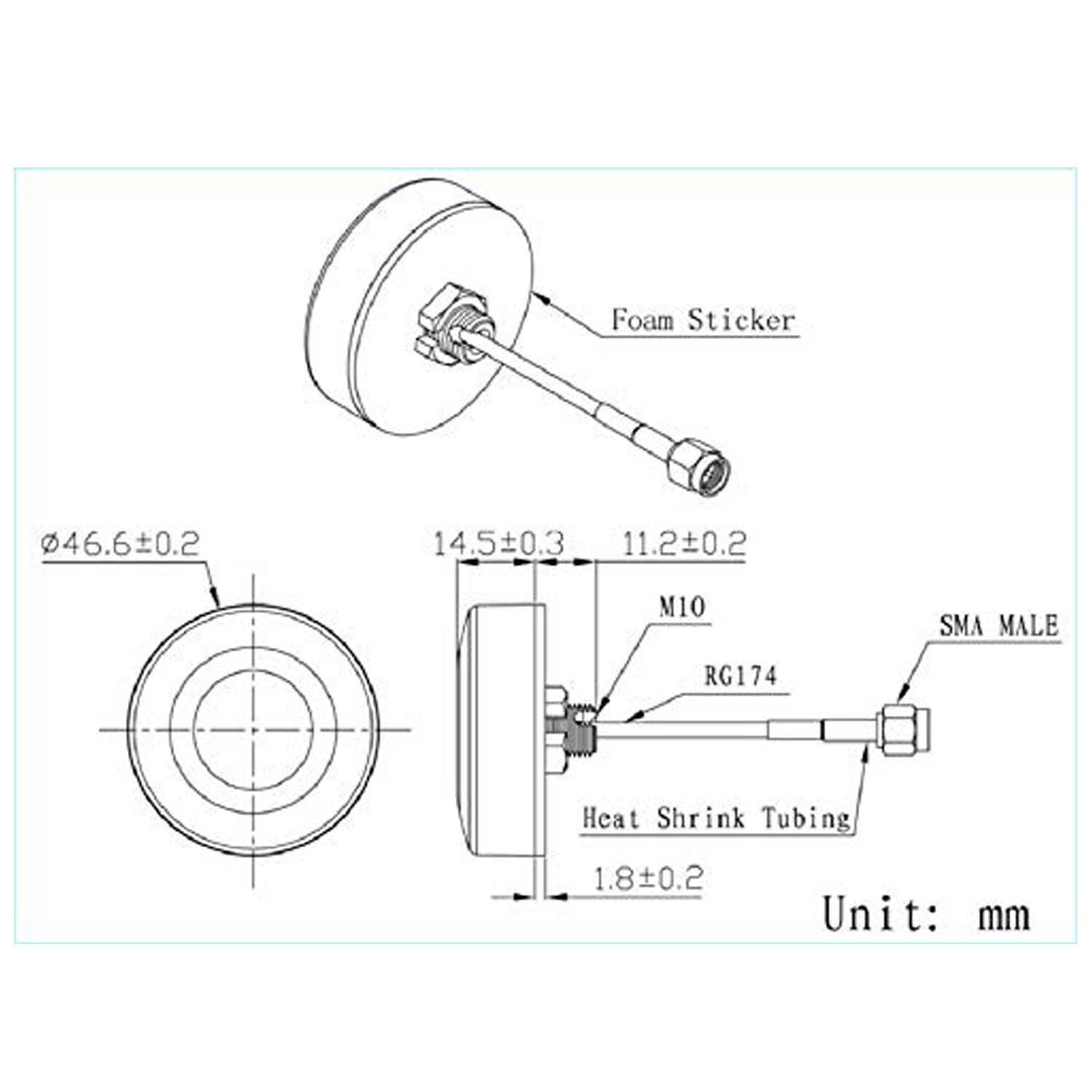

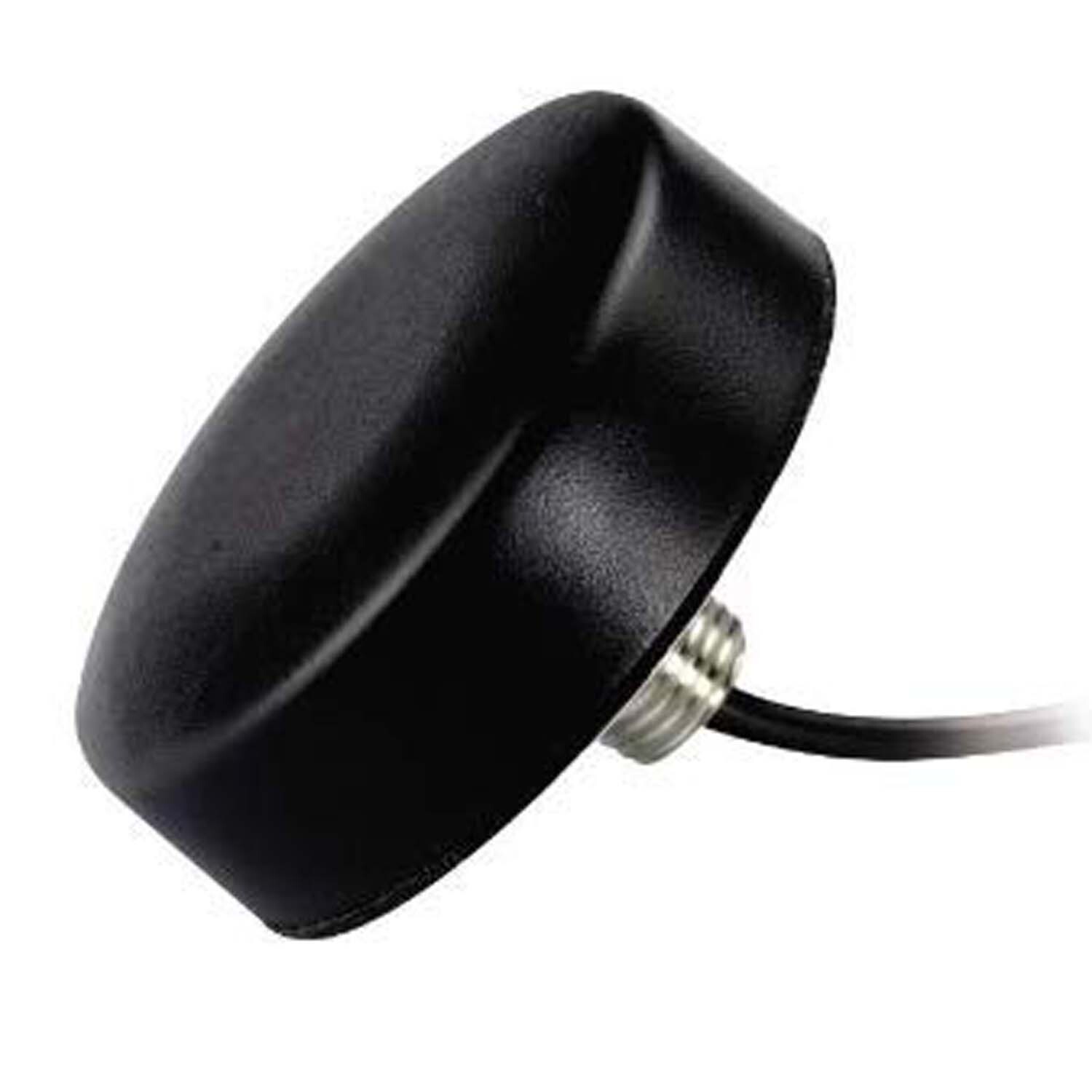

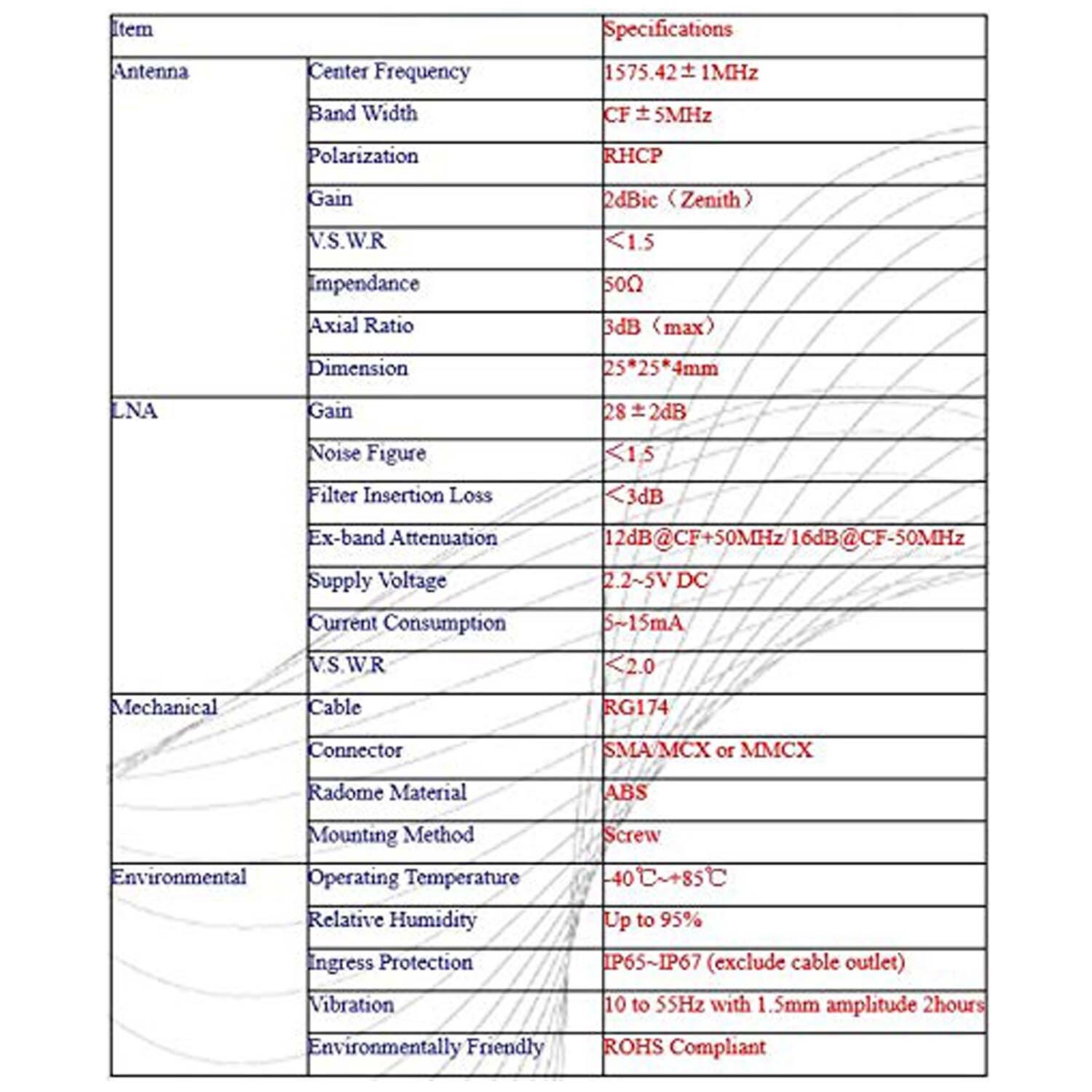

Check the listing for details. GPS Puck Antenna MCX Outdoor Waterproof Adhesive Screw Mount for Car Navigation. Condition: New. Listed at 15.99 USD. antennaCenter frequency: 1575.42±1MHz Bandwidth:CF±5MHz Polarization:RHCPGain:2dBic（Zenith）V.S.W.R:＜1.5Impedance: 50Ω Axial Ratio:3dB（max）Dimension:D46.6*14.5mm LNA Gain:28±2dBNoise figure:＜1.5 Filter insertion loss:＜3dBEx-band attenuation: 12dB@CF+50MHz/16dB@CF-50MHz Supply voltage: 2.2~5V DCPower consumption: 5~15mA V.S.W.R:＜2.0 MechanicallyCable:RG174 Plug:MCX Radome material:ABS Mounting method: screw Vicinity Operating temperature: -40℃~+85℃ Relative Humidity:Up to 95%Protection class:IP65~IP67 (without cable outlet) Vibration: 10 to 55Hz with 1.5mm amplitude for 2 hours Environmentally friendly: ROHS compliant Ideal for GPS signal boosting of GPS devices and other CPE devices!
