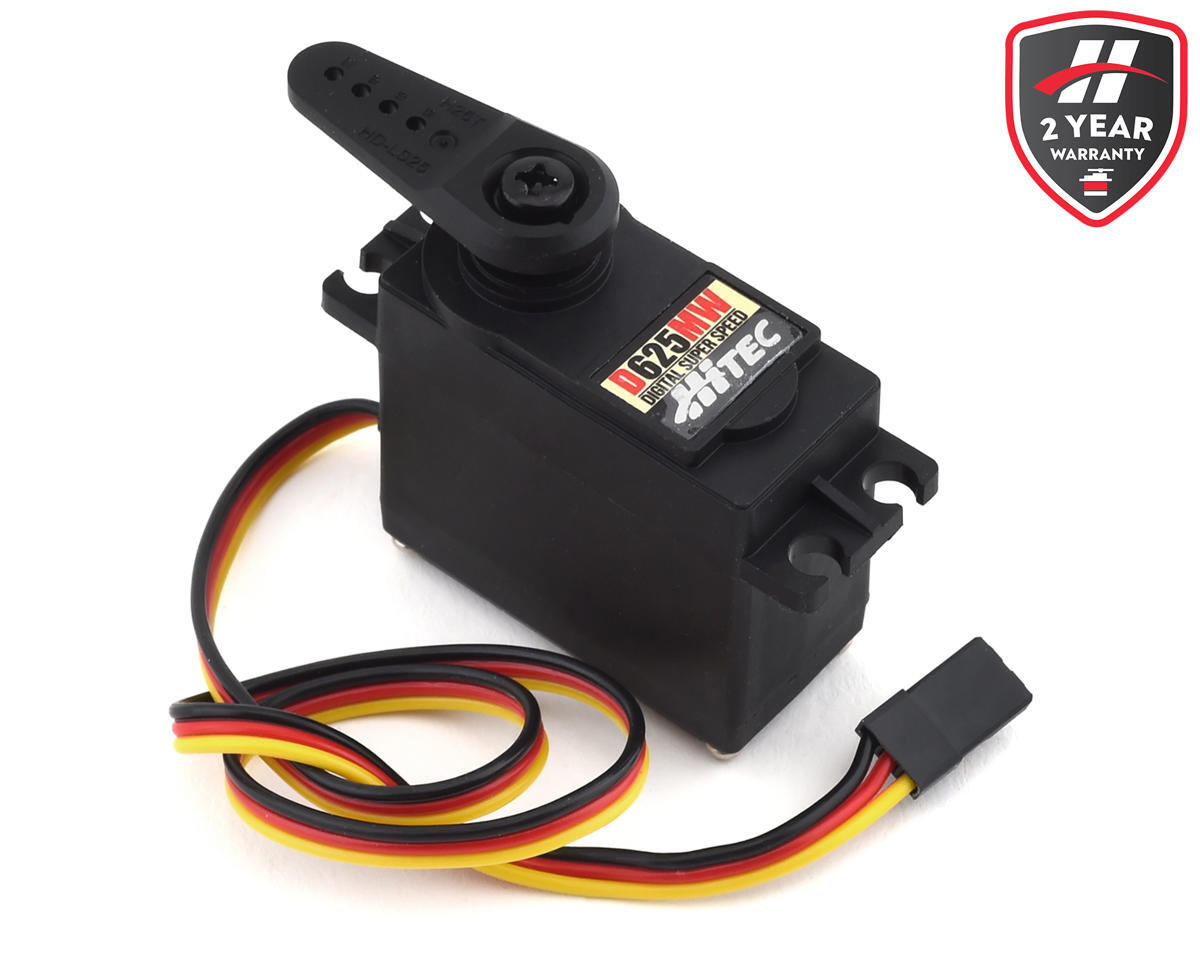

Check the listing for details. Hitec D625MW High Speed Metal Gear Servo (High Voltage) [HRC36625]. Condition: New. Listed at 39.99 USD. This is the Hitec High Votage D625MW High Speed Metal Gear Servo. The metal D-625MW is part of Hitecs D-Series servo line. All Hitec D-Series servos have been designed using Hitecs redesigned, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market. Features: Programmable PWM Digital Amplifier 32-Bit MCU with 12-Bit ADC Circuitry 4096 Resolution 1M Cycle Long Life Potentiometer Wide Operating Voltage (4.8 ~ 8.4 Volts DC) Dual Ball Bearing Supported Output Shaft 25-Tooth Output Spline Programmable Functions: End Point Adjustments Direction Fail Safe Dead Band Speed (Slower) Soft Start Rate Overload Protection Data Save / Load Program Reset Specifications: Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V Speed (Second @ 60°): 0.20 ~ 0.15 ~ 0.13 Maximum Torque Range oz./in.: 87 ~ 122 ~ 139 Maximum Torque Range kg./cm.: 6.3 ~ 8.8 ~ 10.0 Current Draw at Idle: 30 mA No Load Operating Current Draw: 500 mA Stall Current Draw: 2,650 mA Dead Band Width: 2 µs Dimensions (Inches): 1.59 x 0.77 x 1.48 Dimensions (Metric): 40.6 x 19.8 x 37.8 Weight (Ounces): 2.11 Weight (Gram): 57.0 Circuit Type: 32bit Programable Digital Motor Type: 3 Pole Metal Brush Ferrite Gear Material: Metal Bearing Type: Dual Ball Bearing Output Shaft (type / Ømm): H25T Case Material: Plastic Dust/Water Resistance: N/A Connector Gauge (AWG)/Strand Count: 22/60 Includes: Metal Gears Set Metal/Plastic 1st Gear Set Plastic Case Set Applicable Horns Limited Warranty: Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product. About Us | View Store
