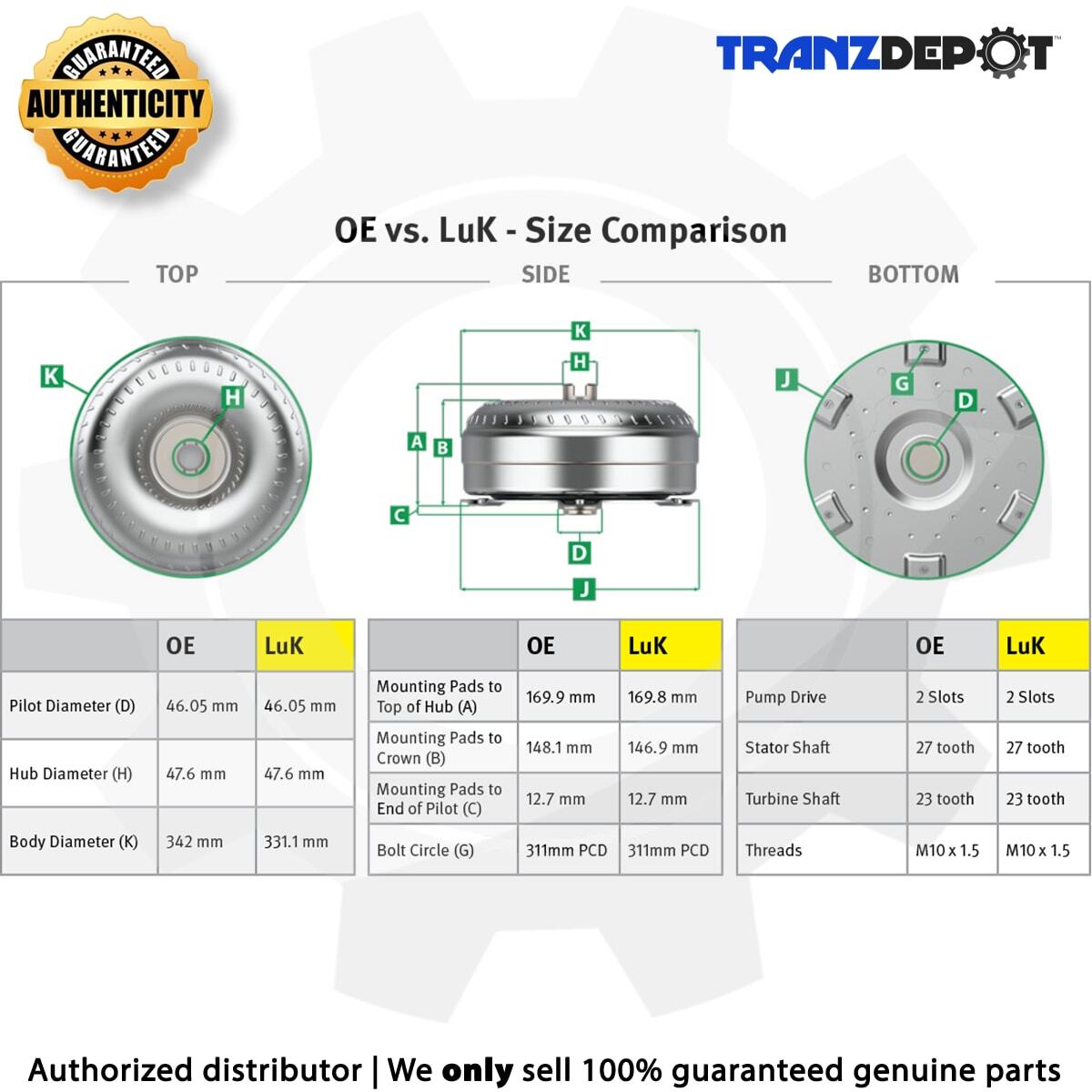

| Turbine Shaft | 23 tooth |
|---|---|
| Hub Diameter | 47.6 mm |
| Pilot Diameter | 46.05 mm |
| Stator Shaft | 27 tooth |
| Manufacturer Part Number | TC0012 |
| Mounting Pads to Top of Hub | 169.8 mm |
| Brand | LuK |
| Pump Drive | 2 Slots |
| Threads | M10 x 1.5 |
| Bolt Circle | 311mm PCD |
| OE/OEM Part Number | 52108868AE, 52118506AD |
| Body Diameter | 331.1 mm |
| Mounting Pads to End of Pilot | 12.7 mm |
| Country/Region of Manufacture | United States |
| Mounting Pads to Crown | 146.9 mm |

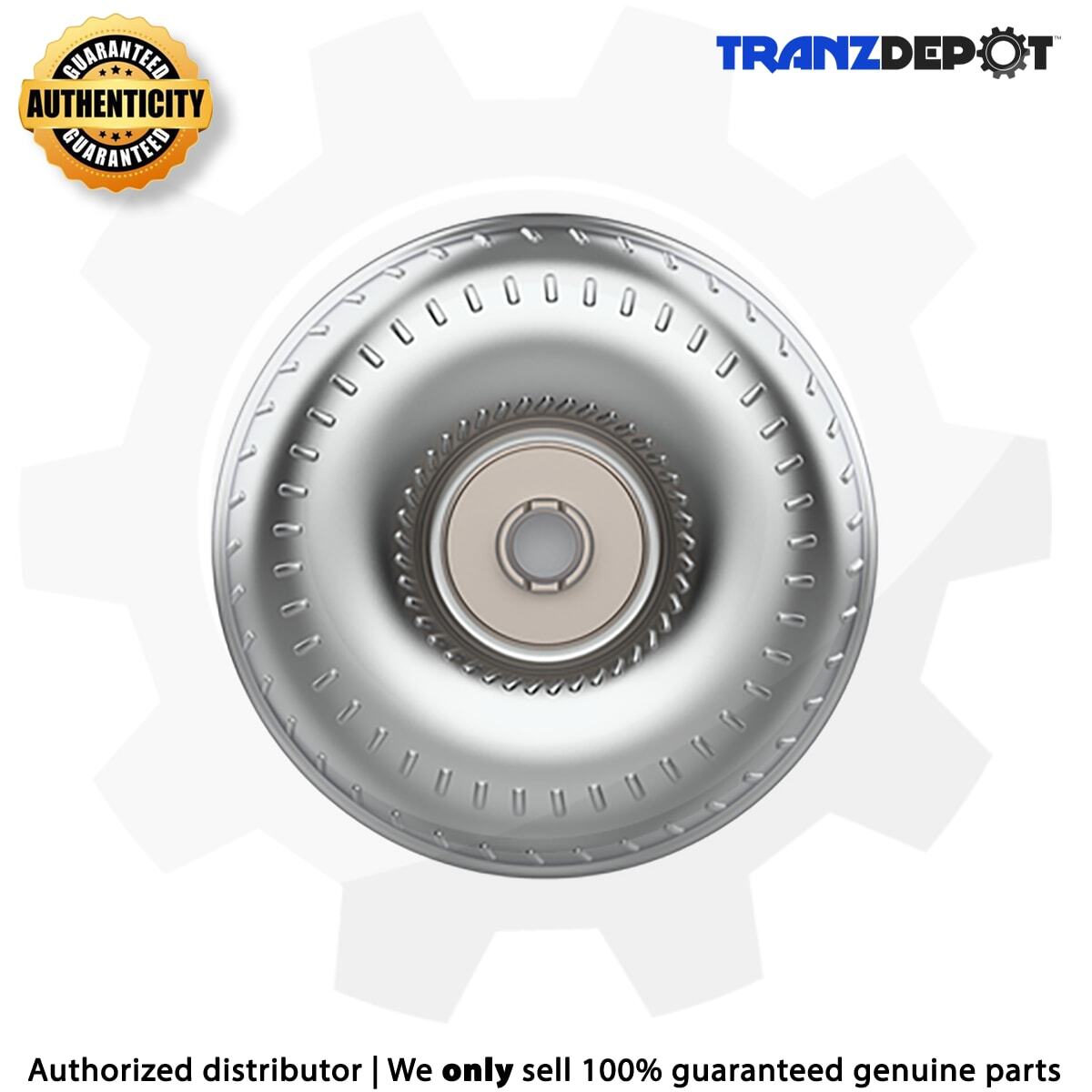

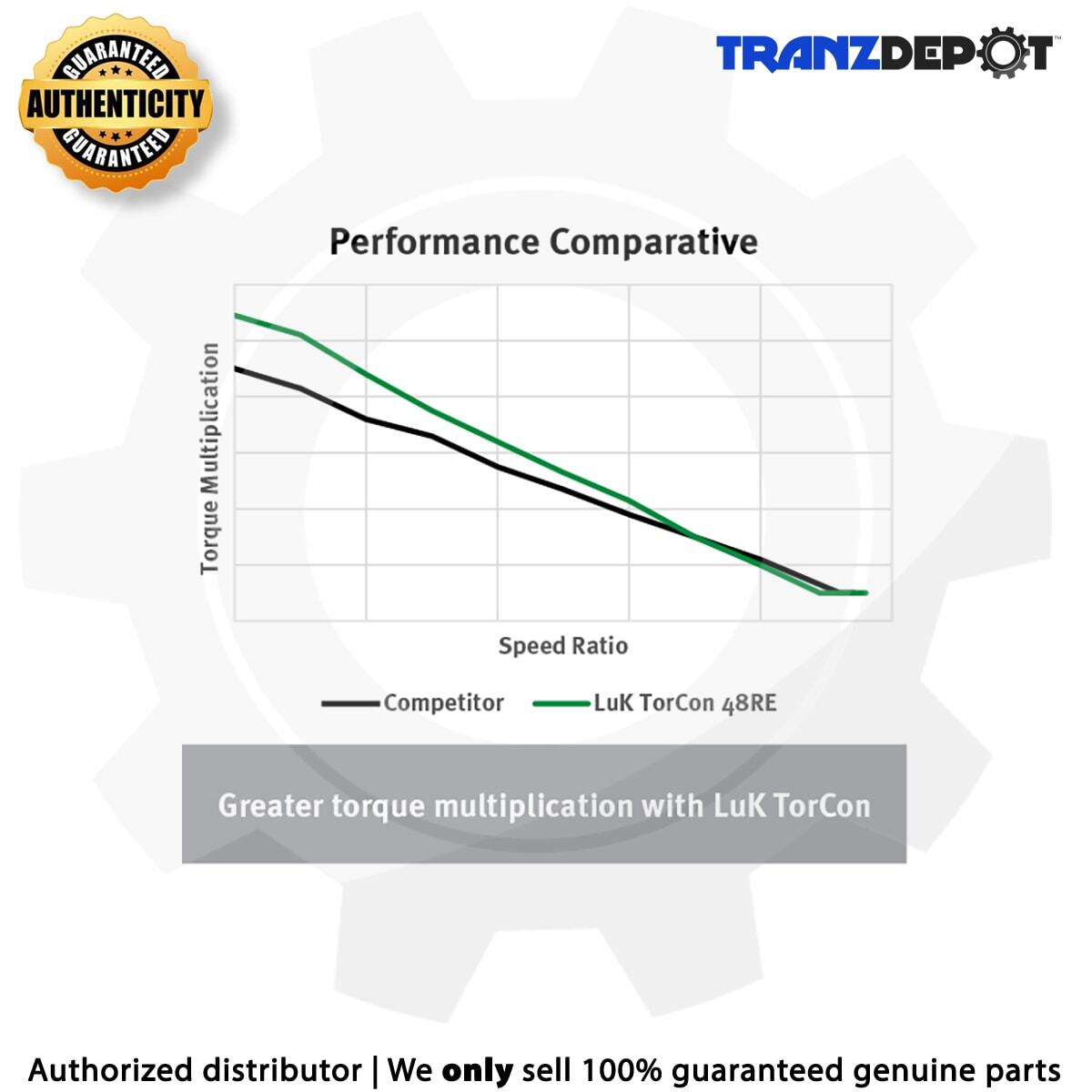

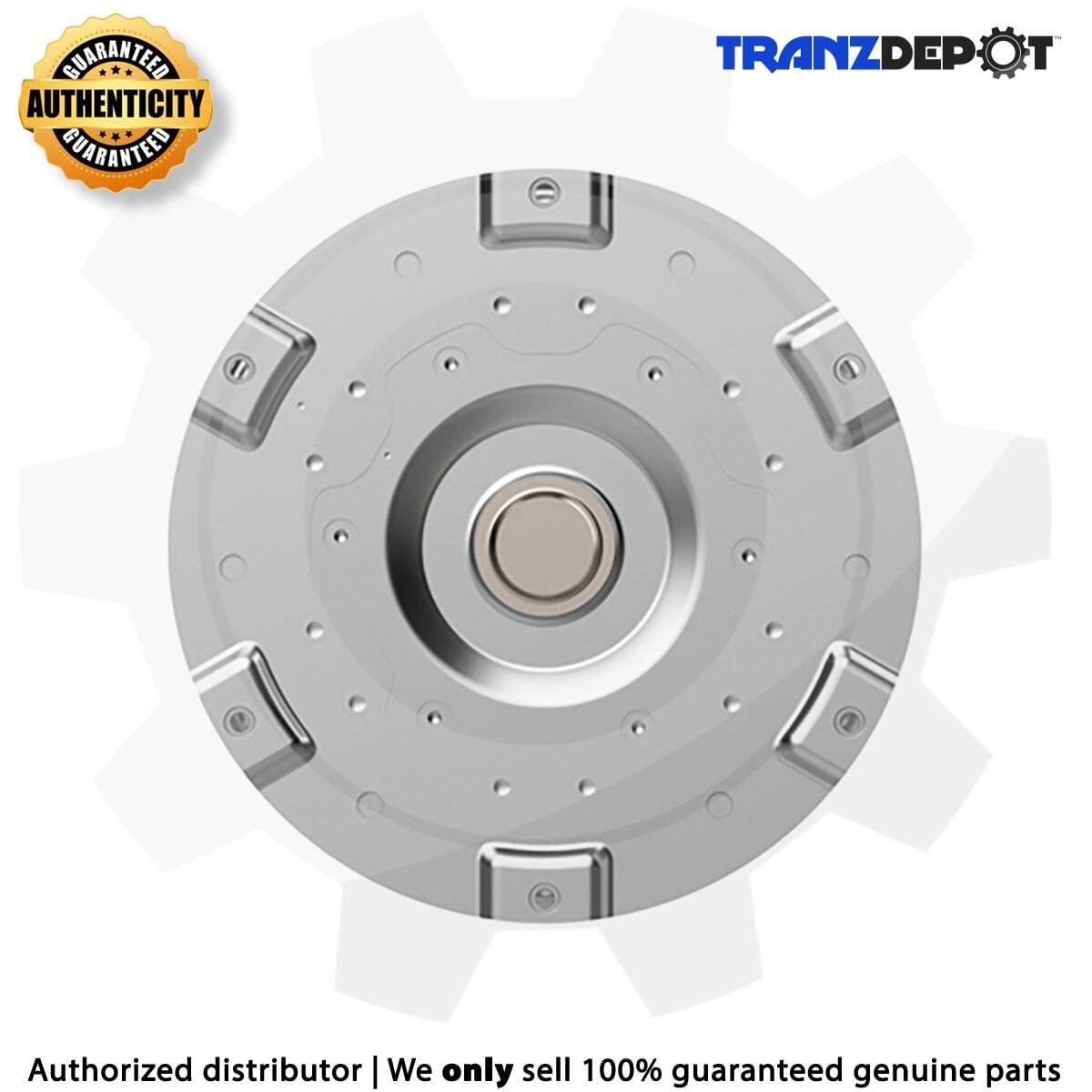

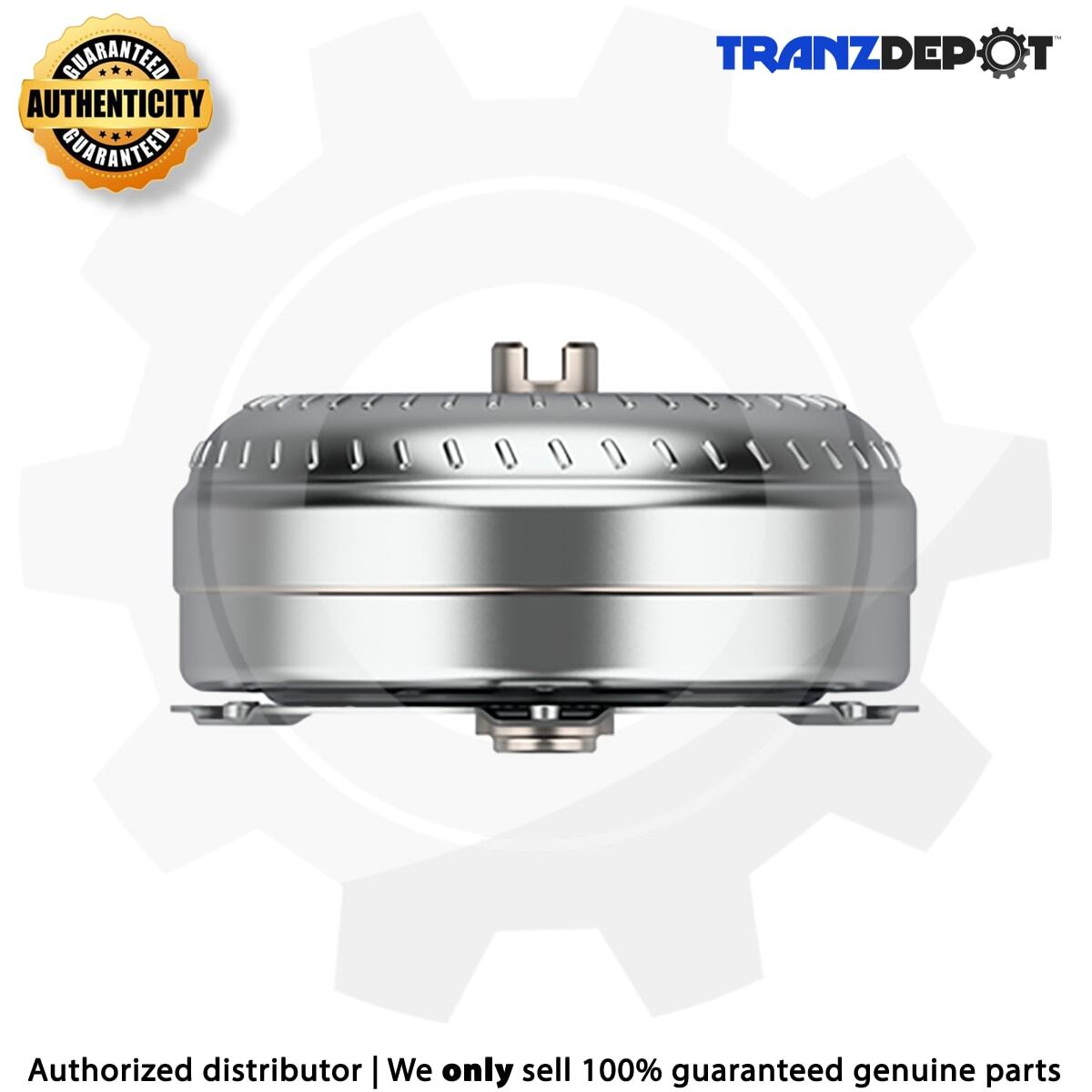

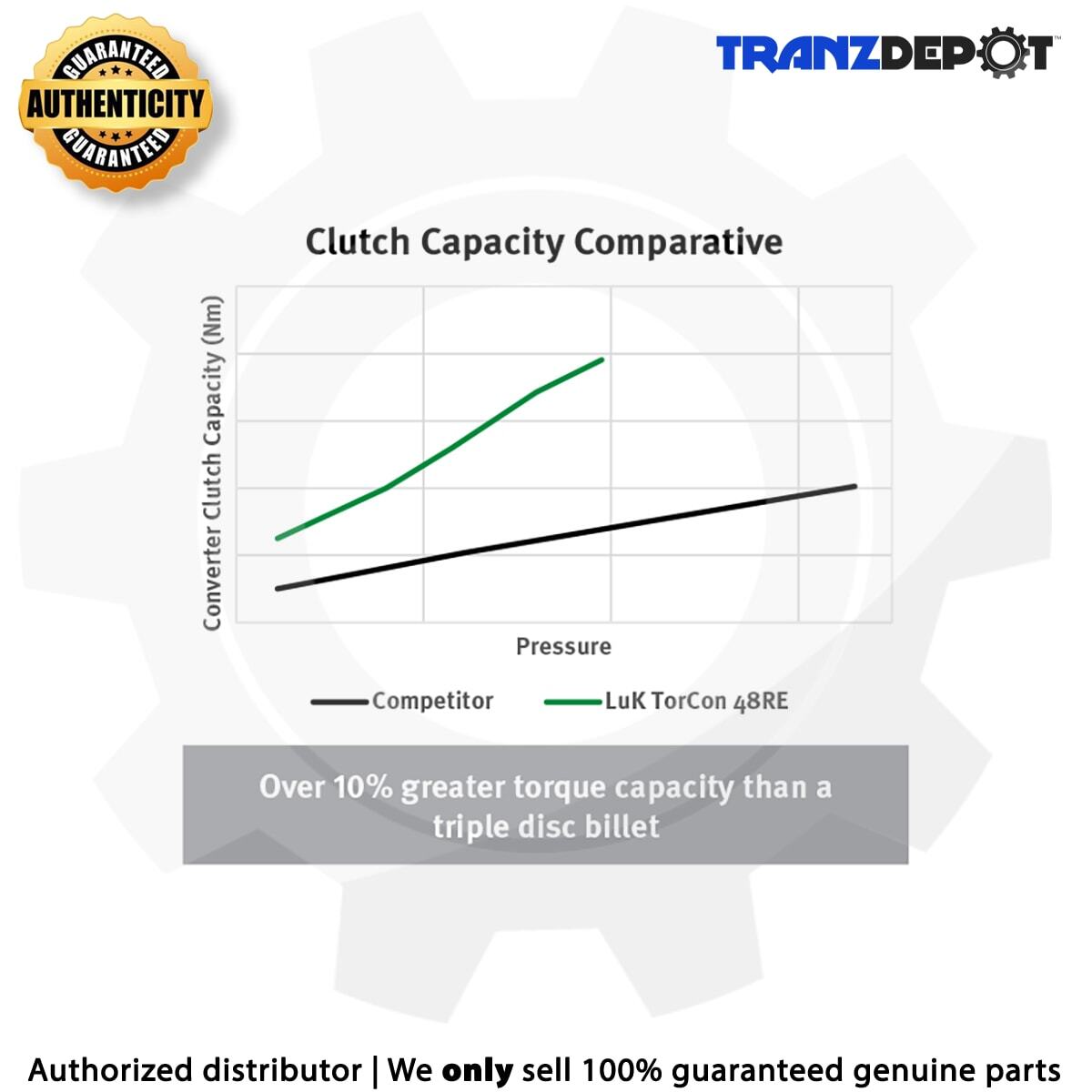

Check the listing for details. LuK TorCon 48RE (New! NOT remanufactured) Torque Converter (#TC0012). Condition: New. Listed at 977.50 USD. Engineered to seamlessly succeed its predecessor while preserving a comparable size profile, the LuK TC0012 is specifically designed for the diesel variant of the 48RE transmission. Inside, the TC0012 is equipped with industry-leading LuK friction material and best-in-class INA thrust bearings for smooth operation and long-lasting reliability.
You may also like
$189.99

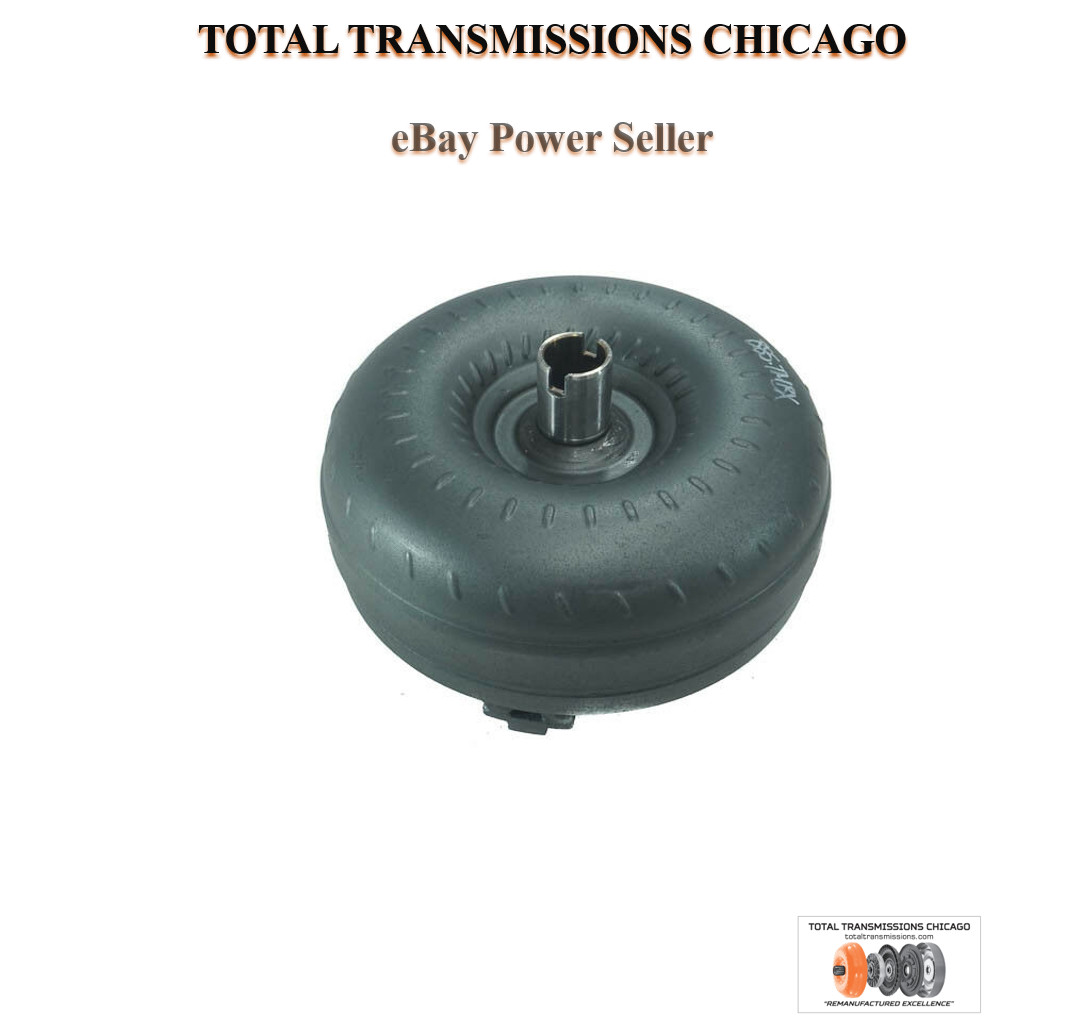

GM92SS1-4L60E 4L65E TMBX LS1 TORQUE CONVERTER TRANSMISSION 5.7L 4.8L 5.3L 6.0L
$292.59
1998 up 4L60E 4L65E LS1 LS2 2500 - 2800 HIGH STALL HEAVY DUTY Torque Converter
$165
AOD FORD CONVERTER 12.75 DIA. 11.44 BOLT CIRCLE 1800-2200 stall
$495
2800-3200 Stall 4L80e 9.5" Lock-Up Torque Converter
$349
A904 Non-Lockup - 27 SPLINES - STOCK stall - Heavy Duty torque converter - NO RG
$214.99
4L60E 4L60 700R4 700R - 2000-2200 stall torque converter - LOCKUP 1985-1997
$525.85
Genuine OE GM 2014-2022 Tahoe Silverado Suburban 6L80 Torque Converter, 19435460
$224.99

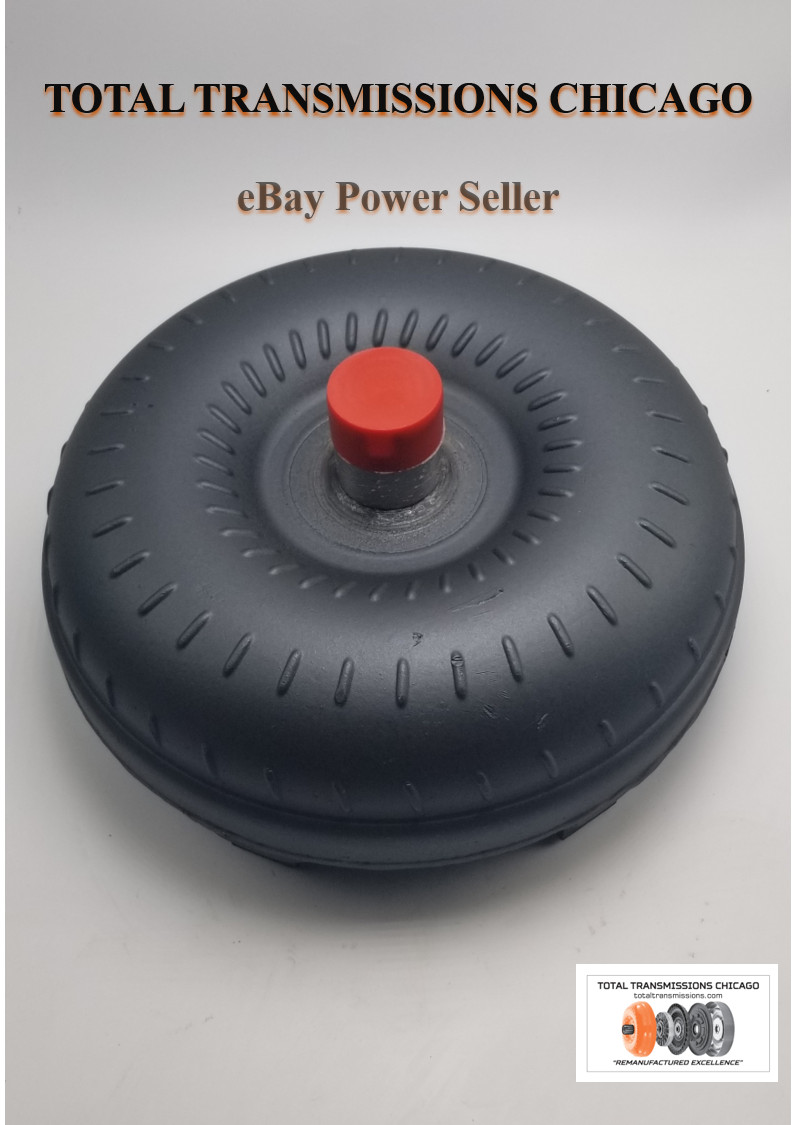

GM6SS2-TH400 2200-2600 HIGH STALL TORQUE CONVERTER CHEVY TRANSMISSION GMC
$297.45

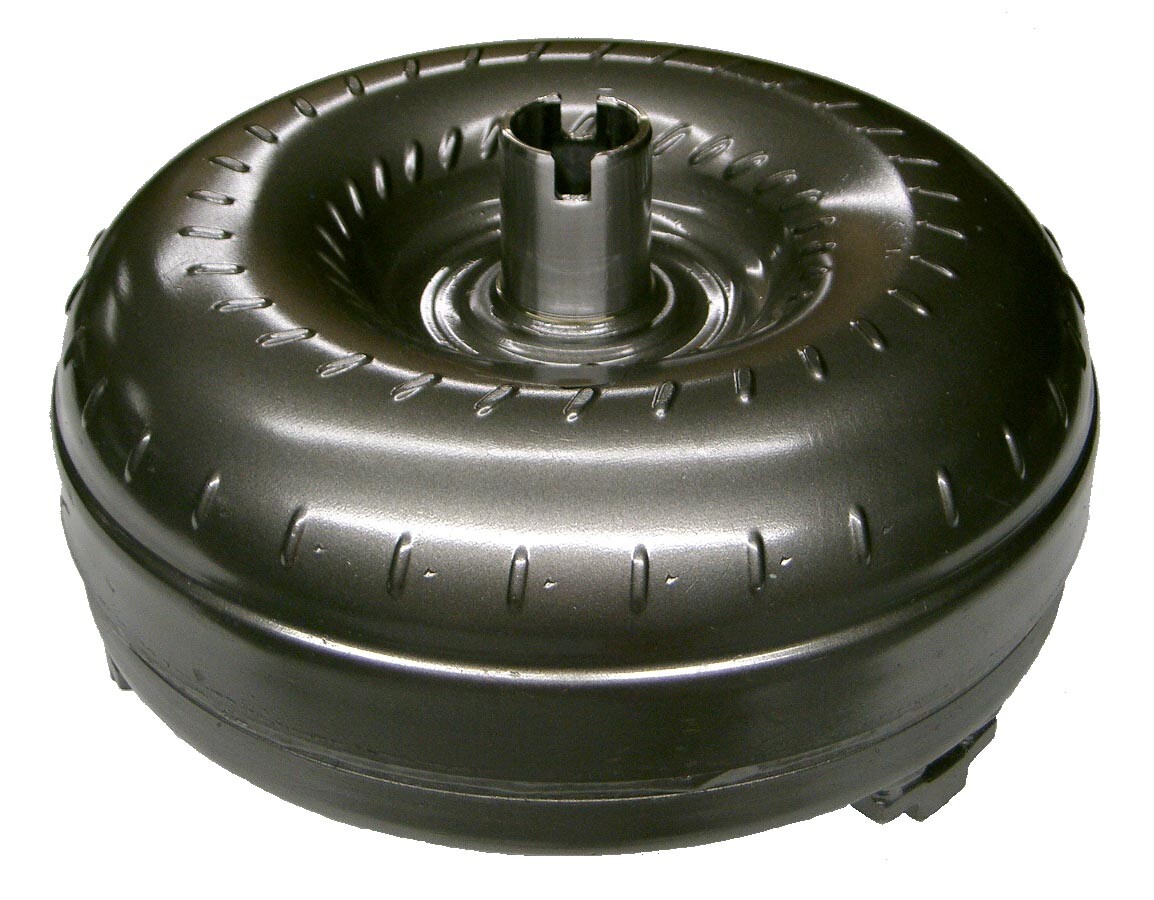

GM90S 2400-2800 HIGH STALL 1999-up - 4L60E 4L65E 300mm Lockup Torque Converter
$389.99
4L80E Diameter : 13.75" 2700 - 3000 Stall HEAVY DUTY Torque Converter
$389.99
OEM Genuine For Toyota U760E 6 Speed Automatic Transmission Torque Converter Kit
$230.99

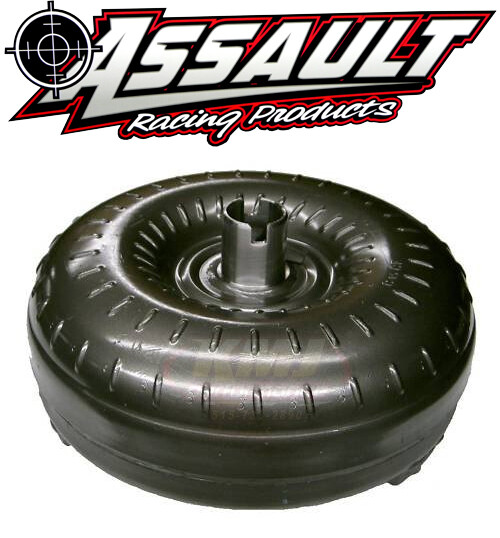

2000 2200 Stall Torque Converter Turbo 350 Trans TH350 Buick Chevy Pontiac Olds
