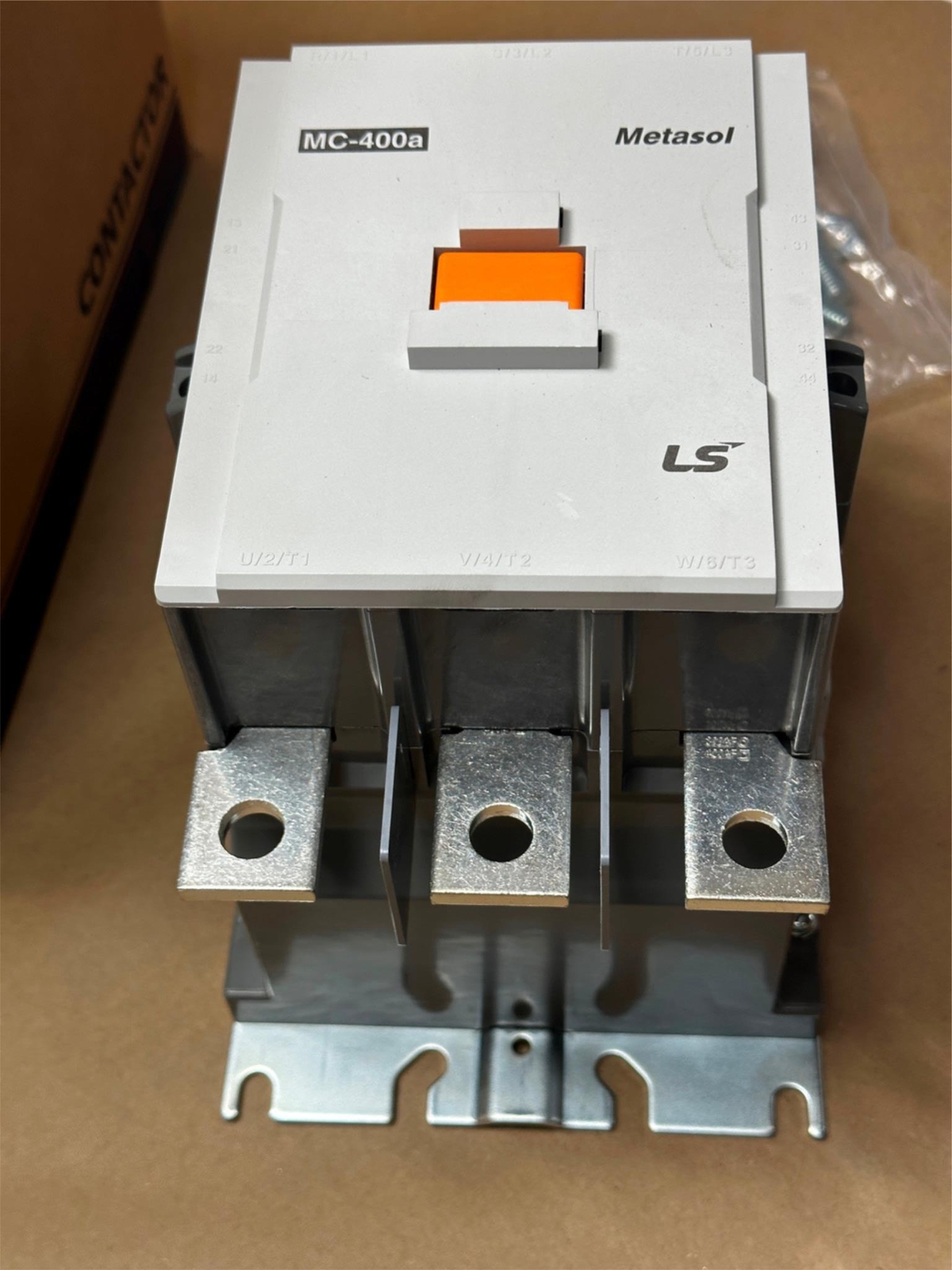

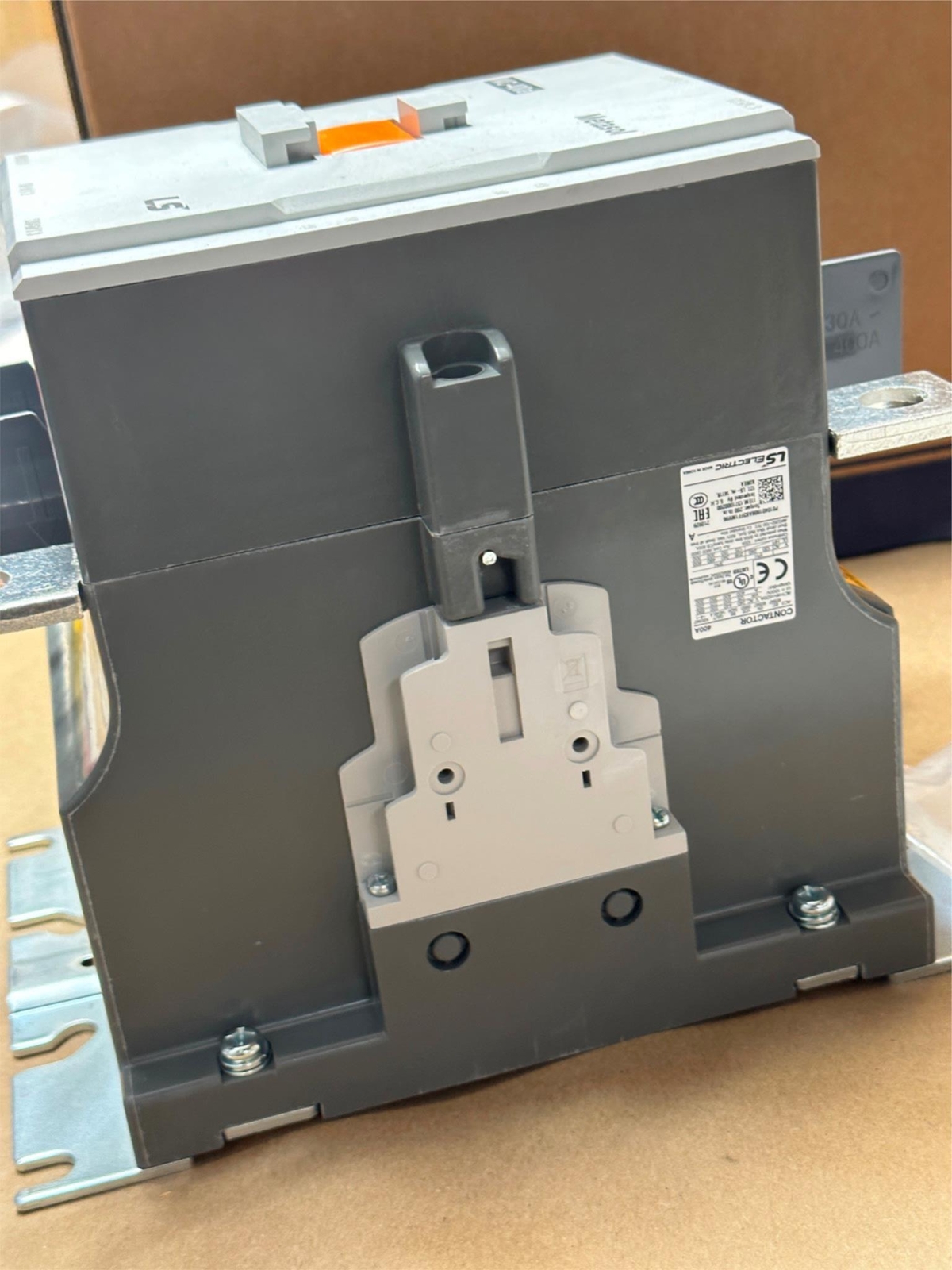

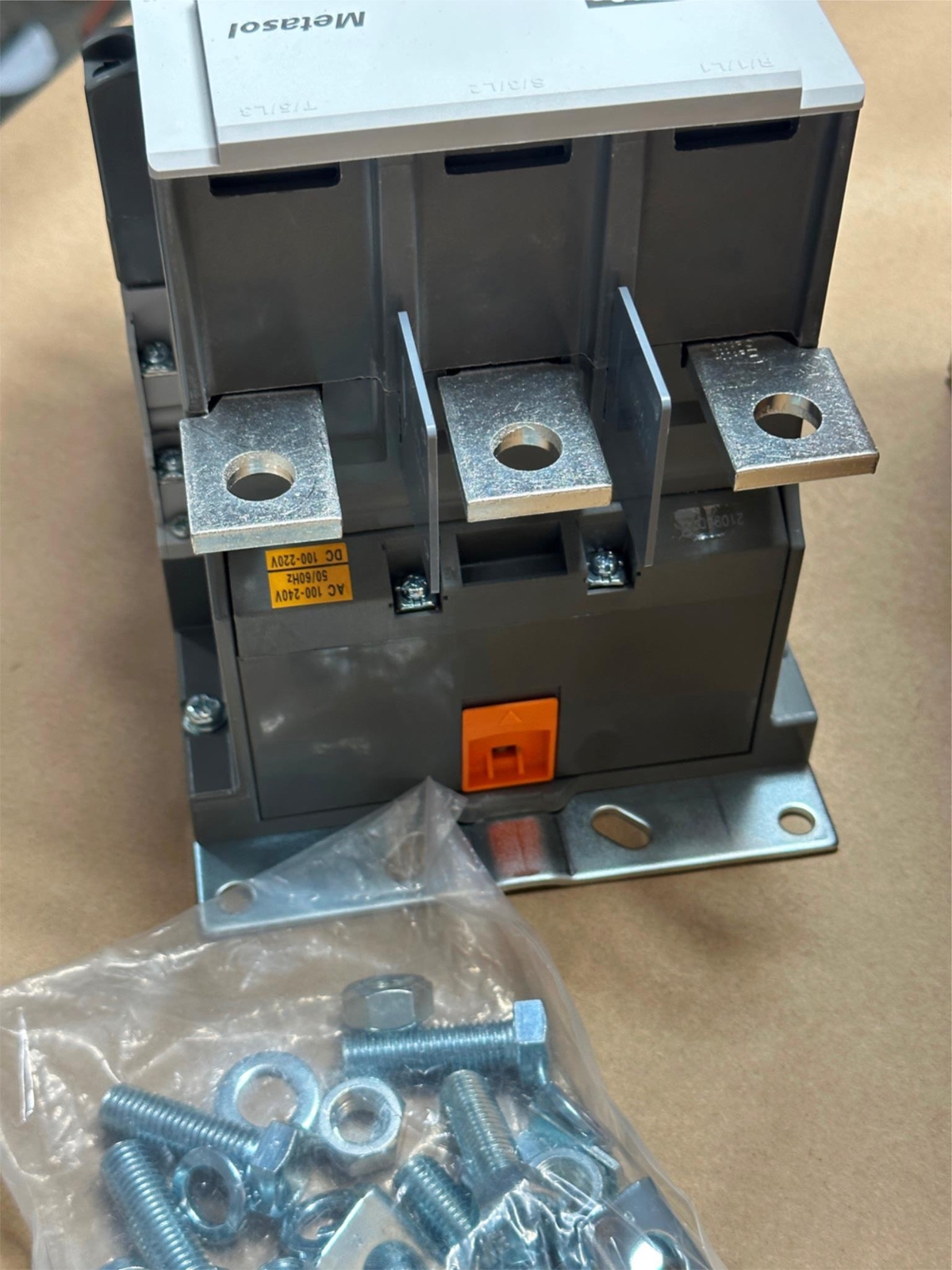

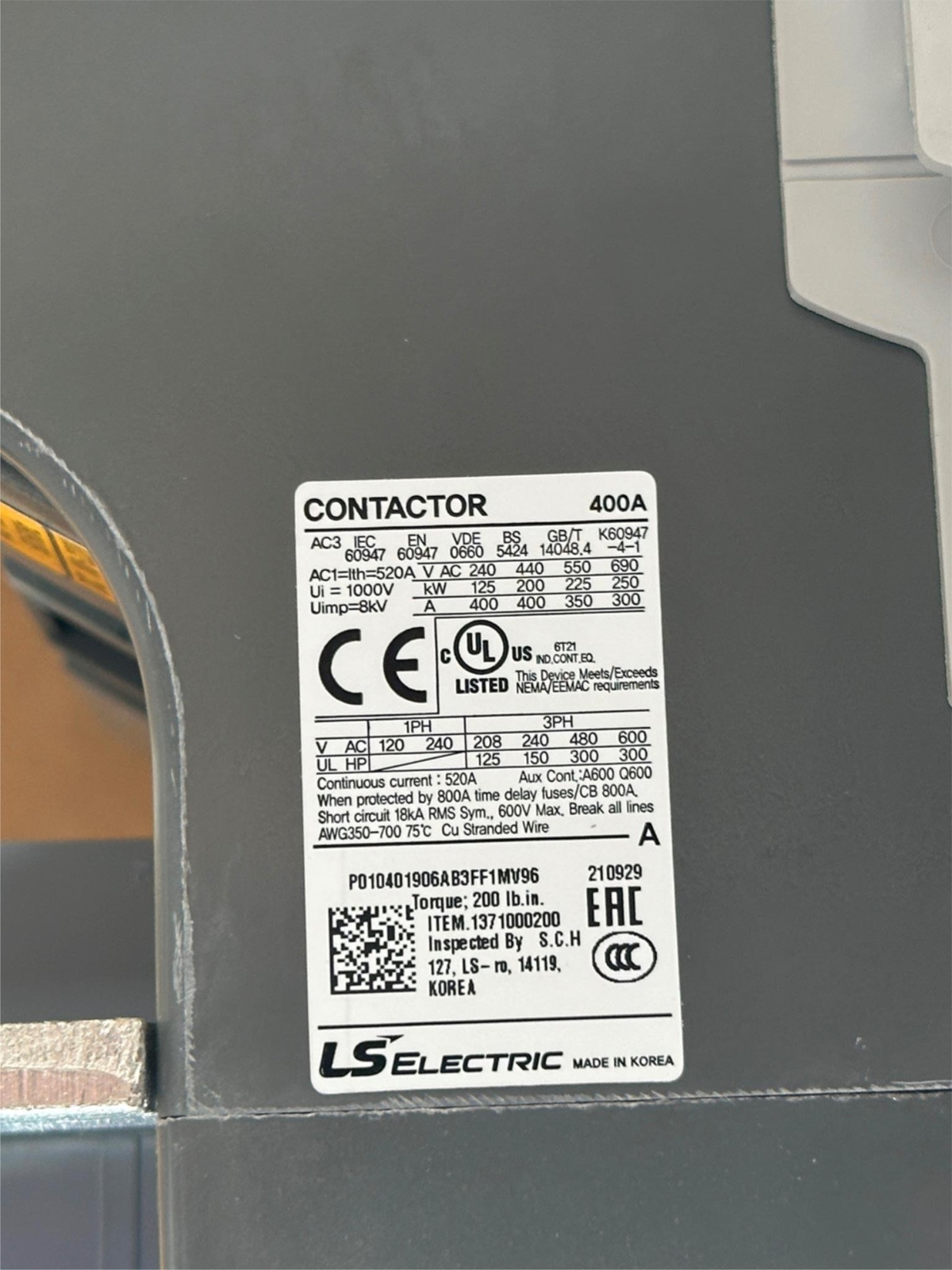

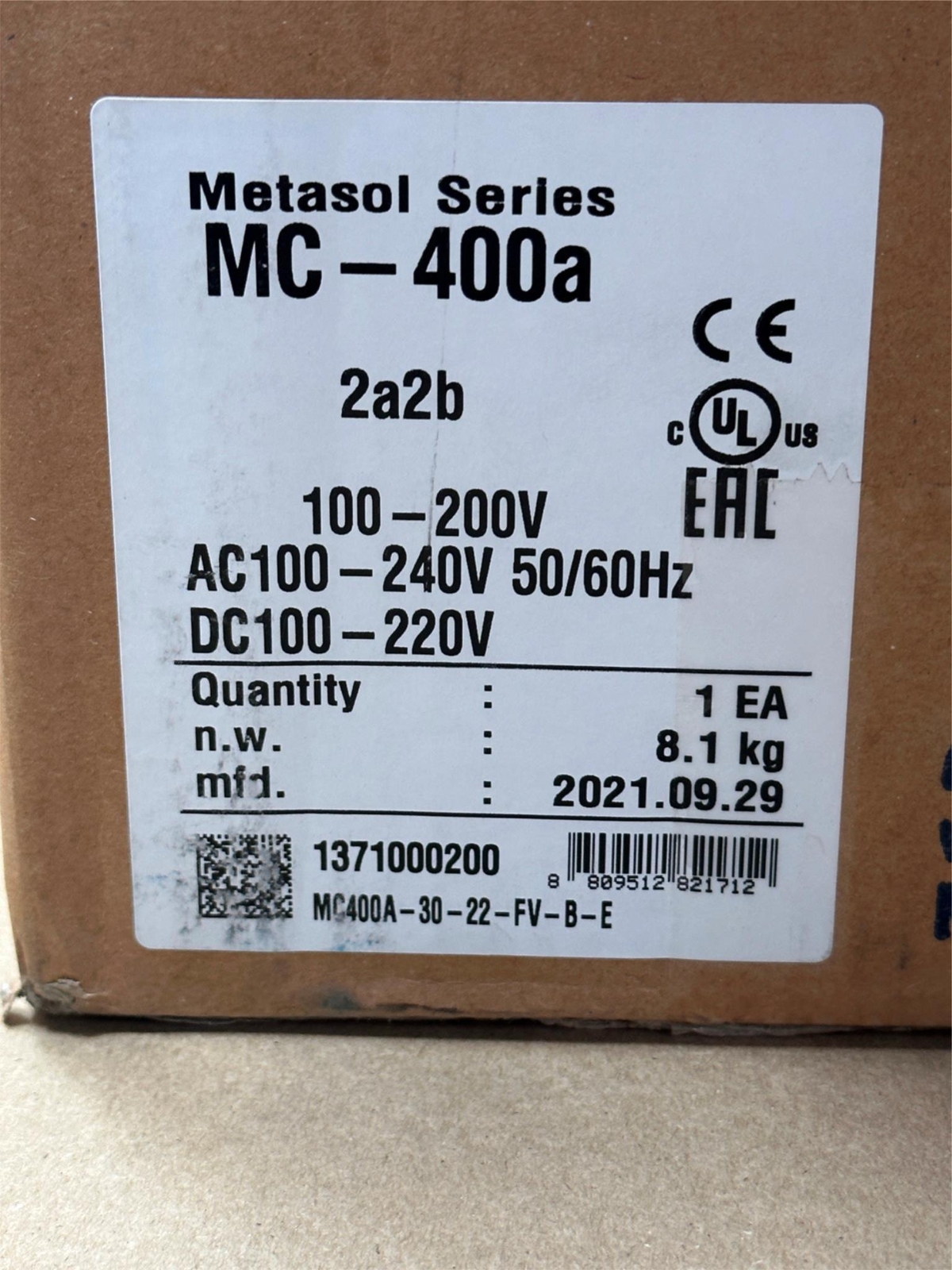

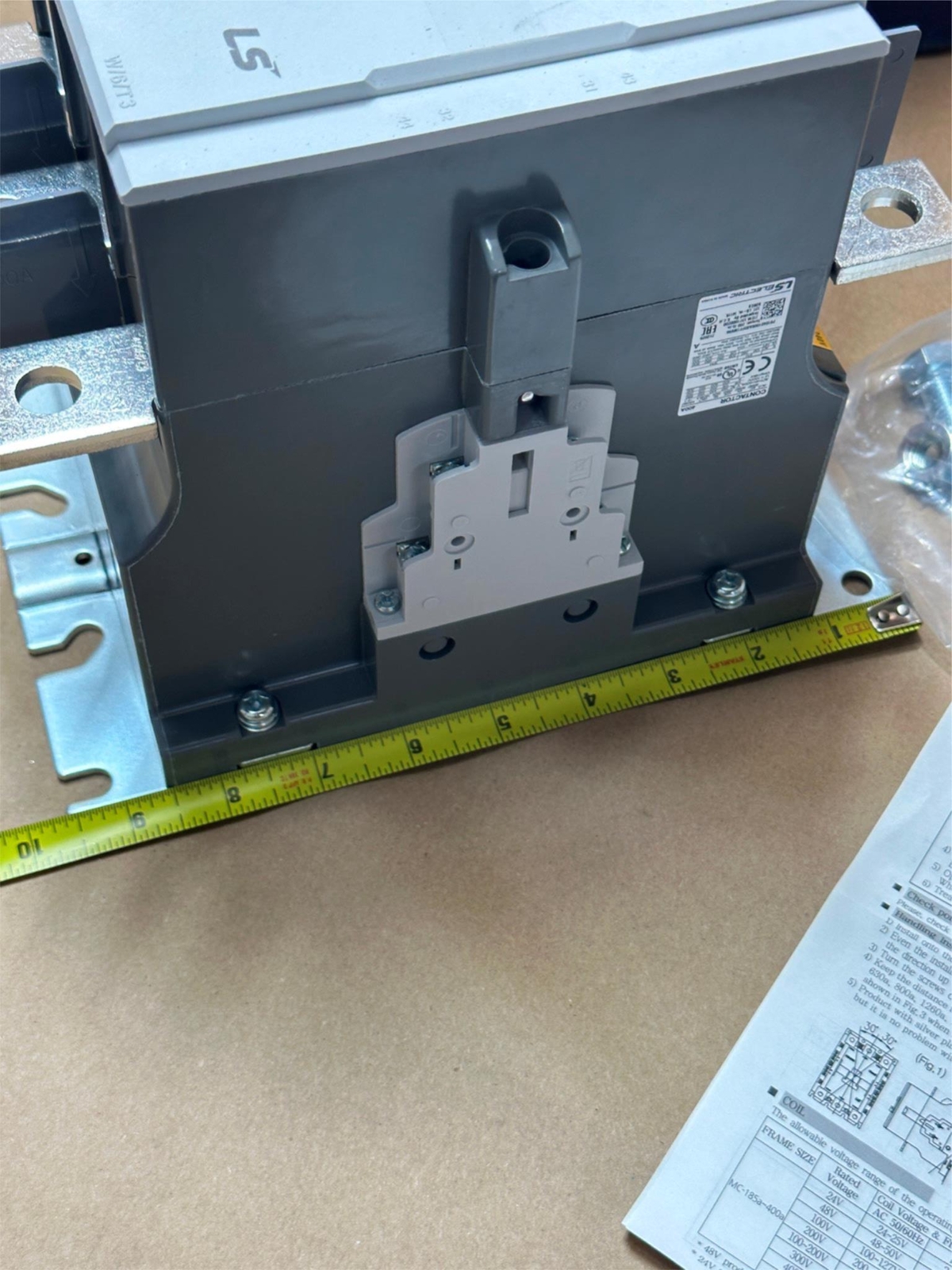

Check the listing for details. Metasol MC-400A 400A AC Contactor 3P Screw Type 100-240VAC 100-220VDC 2A2B. Condition: New. Listed at 837.99 USD. Metasol MC-400A 400A AC Contactor 3P Screw Type 100-240VAC 100-220VDC 2A2B LS Electric Metasol MC-400A Contactor MPN: MC400A-30-22-FV-B-E General Product code 1371000200 Product description MC-400a AC100-240V 50/60Hz, DC100-220V 2a2b (Metasol) EXP (MC400A-30-22-FV-B-E) Main contact 3NO Auxiliary contact 2NO 2NC Control voltage AC100-240V 50/60Hz, DC100-220V Type of terminal Screw Local/Export Export Standards IEC 60947-4-1, IEC 60947-5-1, UL508 Certificates CE, UL, CCC KR, LR, BV, DNV, ABS, NK, RINA Characteristics Number of poles 3P Rated operational voltage [Ue] 1000V Rated insulation voltage [Ui] 1000V Rated withstand voltage [Uimp] 8kV Rated frequency [Hz] 50/60Hz Maximum operating rate in operating cycles per hour(AC3) 1200 Mechanical durability (mil. operations) 2.5 Electrical durability (mil. operations) 0.5 Rated operational current (AC-1) 520A Power (AC-1) - - - - Current (AC-1) - - - - Motor power (AC-3) 125kW at 200/240V 200kW at 380/440V 225kW at 500/550V 250kW at 690V 147kW at 1000V Motor power (AC-4) 75kW at 200/240V 150kW at 380/440V Rated operational current (AC-3) 400A at 200/240V 400A at 380/440V 350A at 500/550V 300A at 690V 105A at 690V Rated operational current (AC-4) 300A at 200/240V 300A at 380/440V Type 2 Coordination See the Type 2 Coordination Table in the catalog Motor power (UL/CSA) - - 125hp at 200~208V for 3 phase motors 150hp at 220~240V for 3 phase motors 300hp at 440~480V for 3 phase motors 300hp at 550~600V for 3 phase motors NEMA size - Rated Short-time withstand current 4600A at 1s 4400A at 10s 2974A at 30s 1846A at 1min 1313A at 3min 760A at 10min 699A at =15min Conductor size (AWG) 350~700 Conductor size (mm2) 185~370 The max. number of conductor 2 Conductor type Stranded Conductor charateristic 75 Cu stranded wire Main terminal size M12 Crimp terminal (mm) 30 Torque (lb-in) 200 Torque (Nm) 22.6 Torque (kgf.cm) 230 Environment Degree of protection IP00 Ambient air temperature -30℃ ~ +65℃ at storage -5℃ ~ +55℃ at operation (AC type) Operating altitude 3000m(8900ft) Shock resistance (1/2 sin wave=11ms) 8G at opened 10G at closed Vibration resistance (Conforming to IEC68-2-6) (5~300Hz) 2G at opened 4G at closed Flame resistance V0 at conforming to UL94 960℃ at conforming to IEC695-2-1 REACH Yes RoHS Yes WEEE Yes Dimensions Weight 17.86lbs / 8.1kg Size width 6.42inch / 163mm Size height 9.57inch / 243mm Size depth 8.05inch / 204.4mm Control coil Control voltage AC100-240V 50/60Hz, DC100-220V Control voltage limit [Uc] 85~110% Consumption at 20℃ 571VA at inrush 14VA at holding Heat dissipation 5W at holding Operating time 55ms at closing 55ms at opening If there's something you're not sure about or have a question about anything, just send us a message by clicking "Ask a question" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply). ,
