| Brand | marddpair |
|---|---|
| MPN | AMZ1893161 |
| Fixture Style | Spin Index Fixture |
| Unit Weight | 13 LBS |
| Collet Series Compatibility | 5C |
| Warranty | 1 Year |
| Spindle thread | 2-1/4 -8 TPI |
| Spindle accuracy | .0004" TIR |
| Dividing spindle concentricity | .0004" |
| Cylindrical center bore (per 1") concentricity | :.0008" |
| Quantity | 1 |
| Lateral offset of center slot of dividing spindle | .0008" |
| Center slot to dividing spindle concentricity | .0008" |
| Spindle center line parallelism | .0008" |
| Base to face Squareness | .0008" |

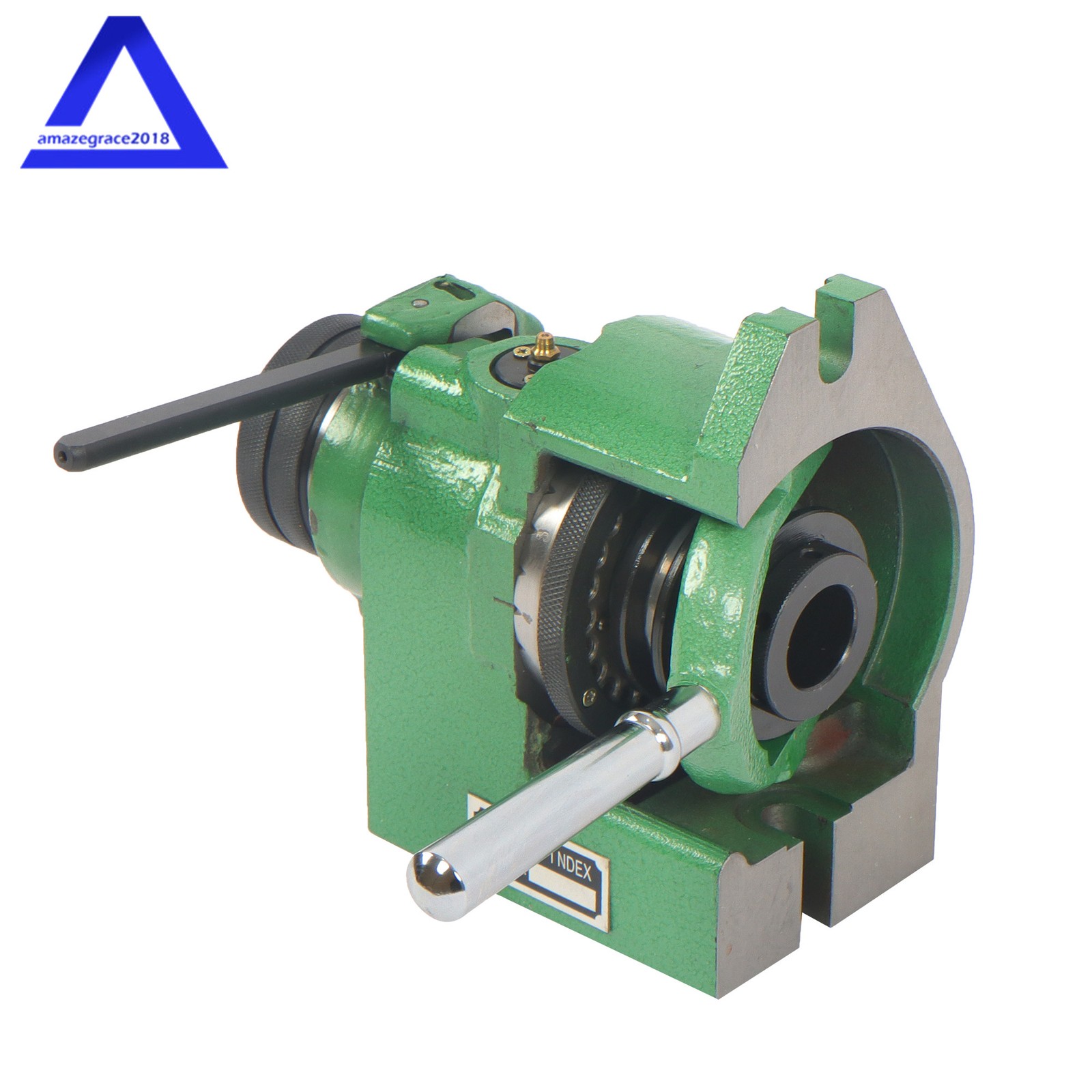

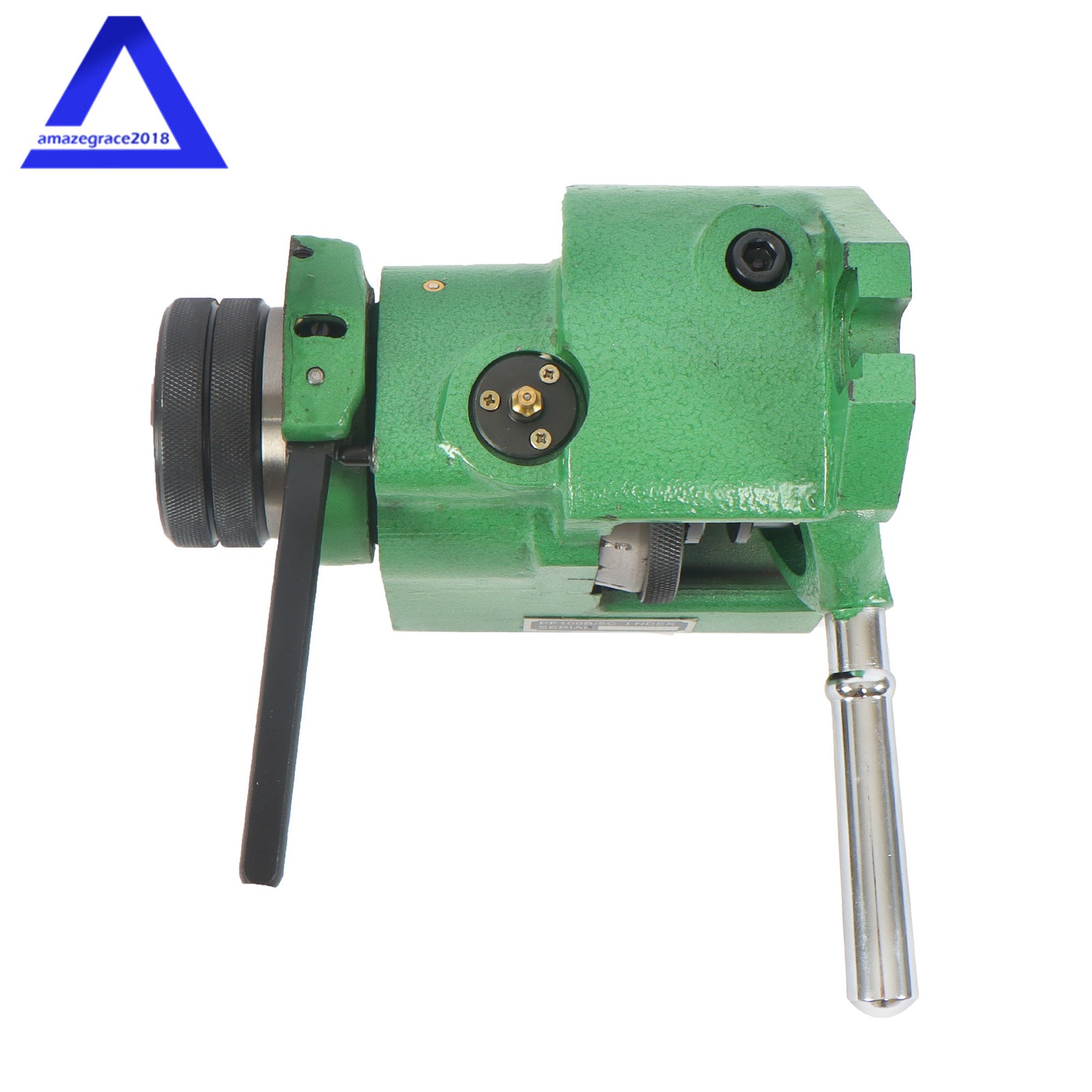

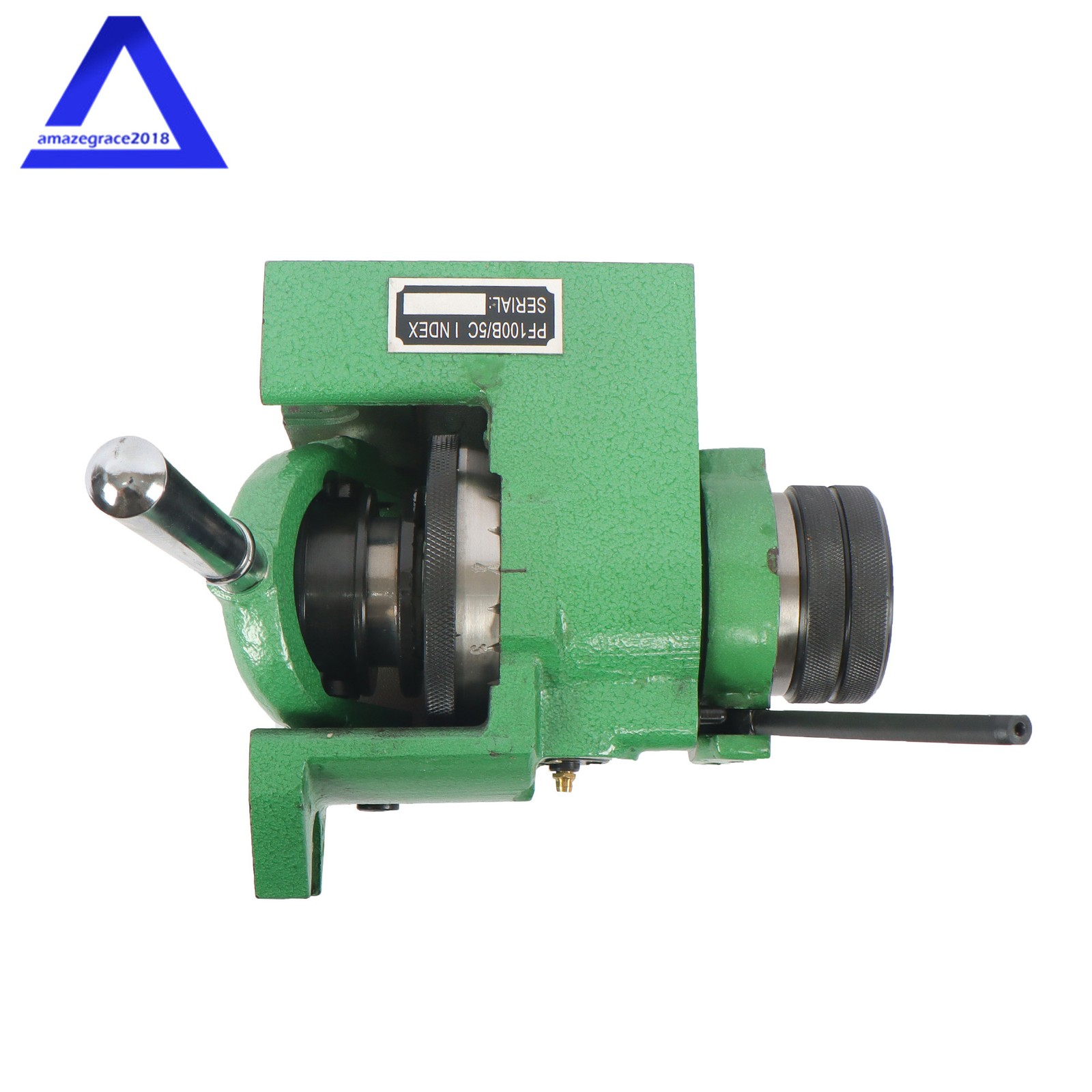

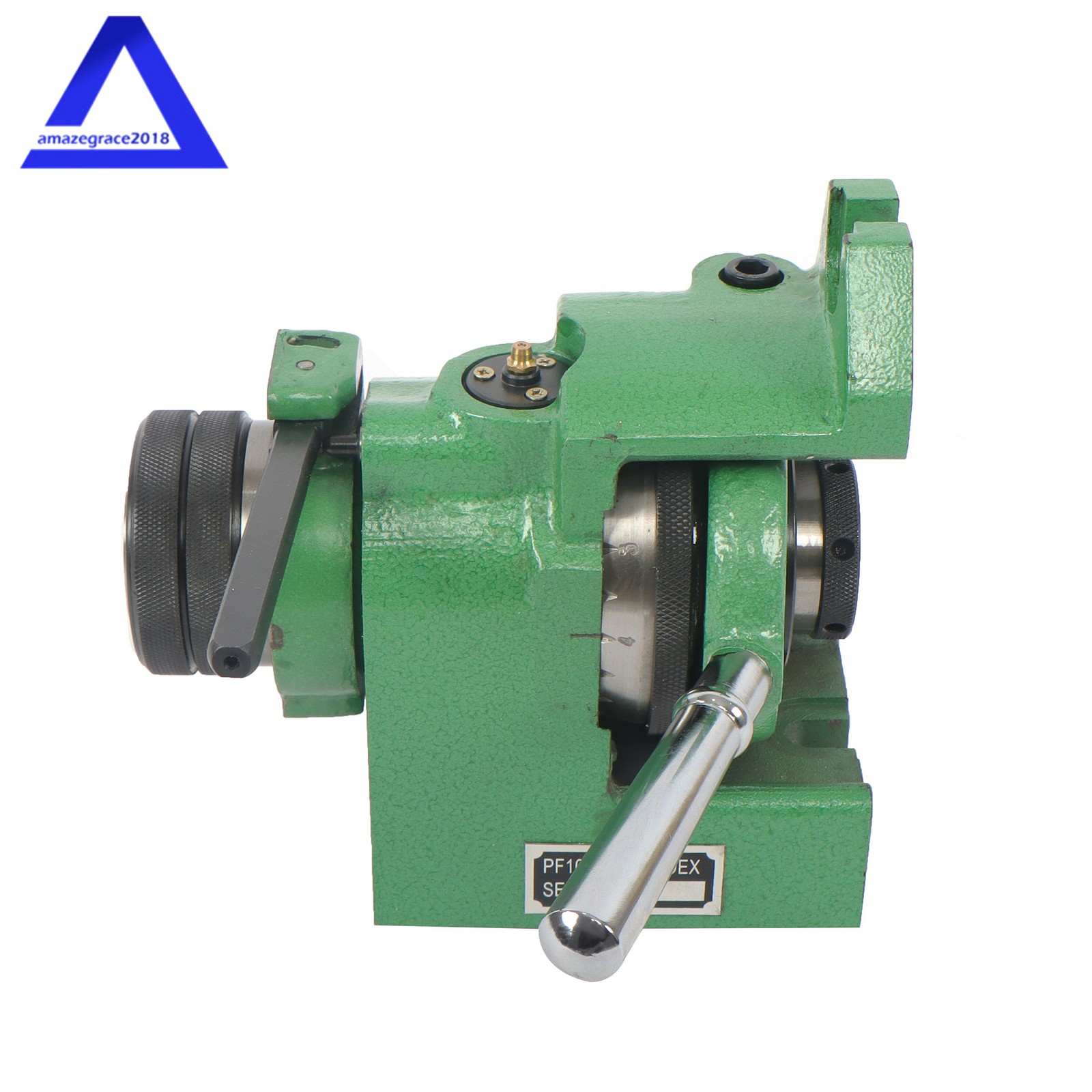

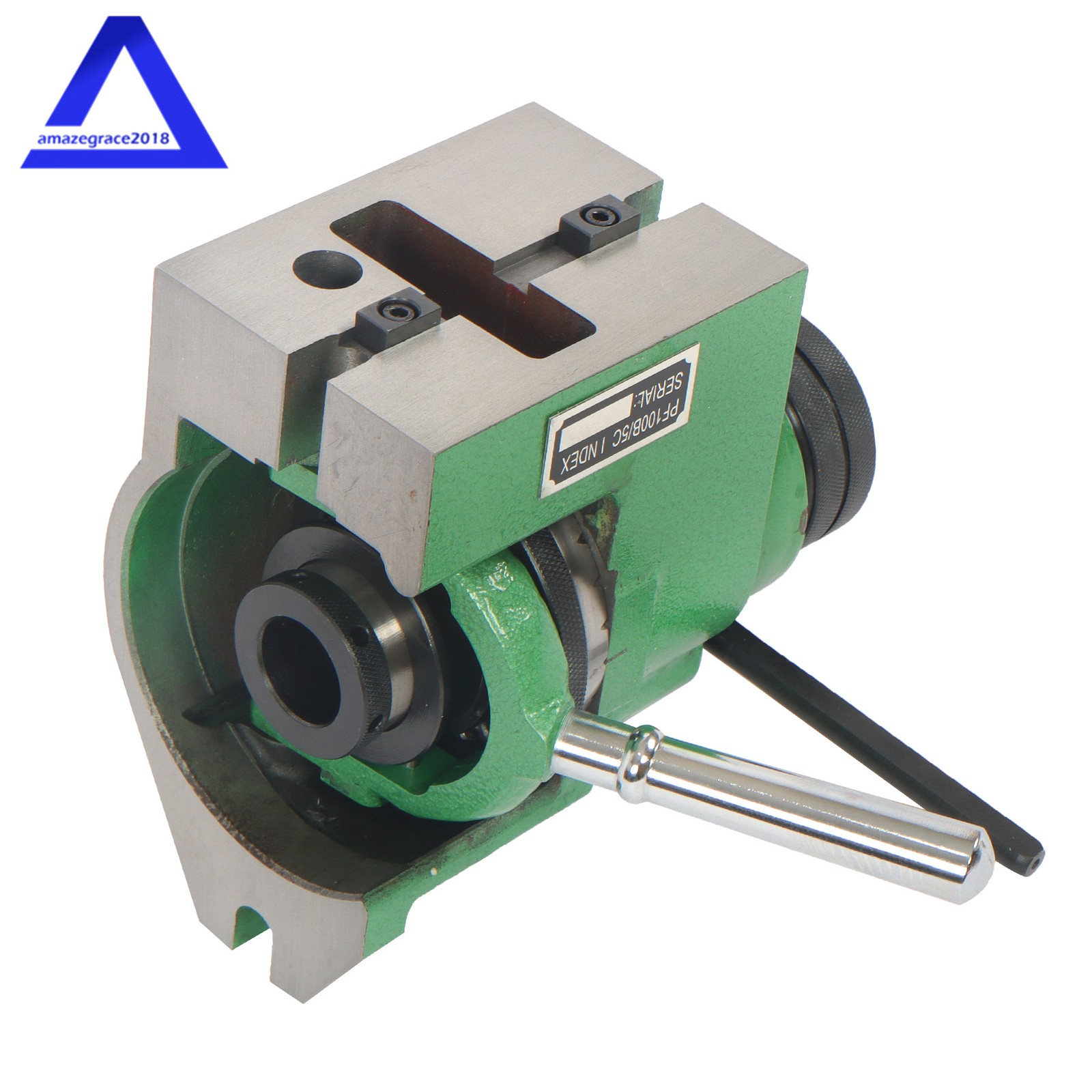

Check the listing for details. New VERTICAL and HORIZONTAL 5C COLLET SPIN INDEX FIXTURE. Condition: New. Listed at 232.54 USD. Description: Convenient ratchet mounted on front of spindle provides rapid indexing. Thread spindle is hardened and ground. Utilizes 5C Collets. Single lever action activates the indexing mechanism. Precision ground index plate has 24 indexing locations in 15. Rapid opening and closing is performed with a lever collet closer with a leverage ratio of 100 to 1. Feature: High performance,reliable quality. We work with every effort to provide quality products and professional service. .
