| Country of Origin | Mexico |
|---|---|
| Brand | Musical Power Supplies Inc |
| Type | Transformers |
| Custom Bundle | No |
| Model | OT10SE VC87 |
| Country of Manufacture | Mexico |
| Featured Refinements | Vintage Output Transformer |
| MPN | OT10SE VC87 |
| Modified Item | No |

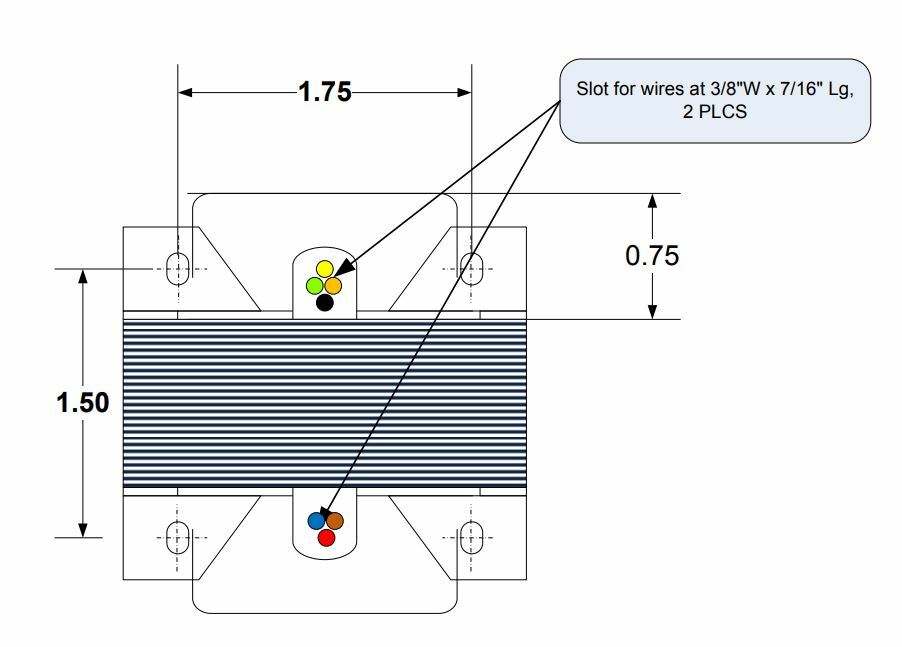

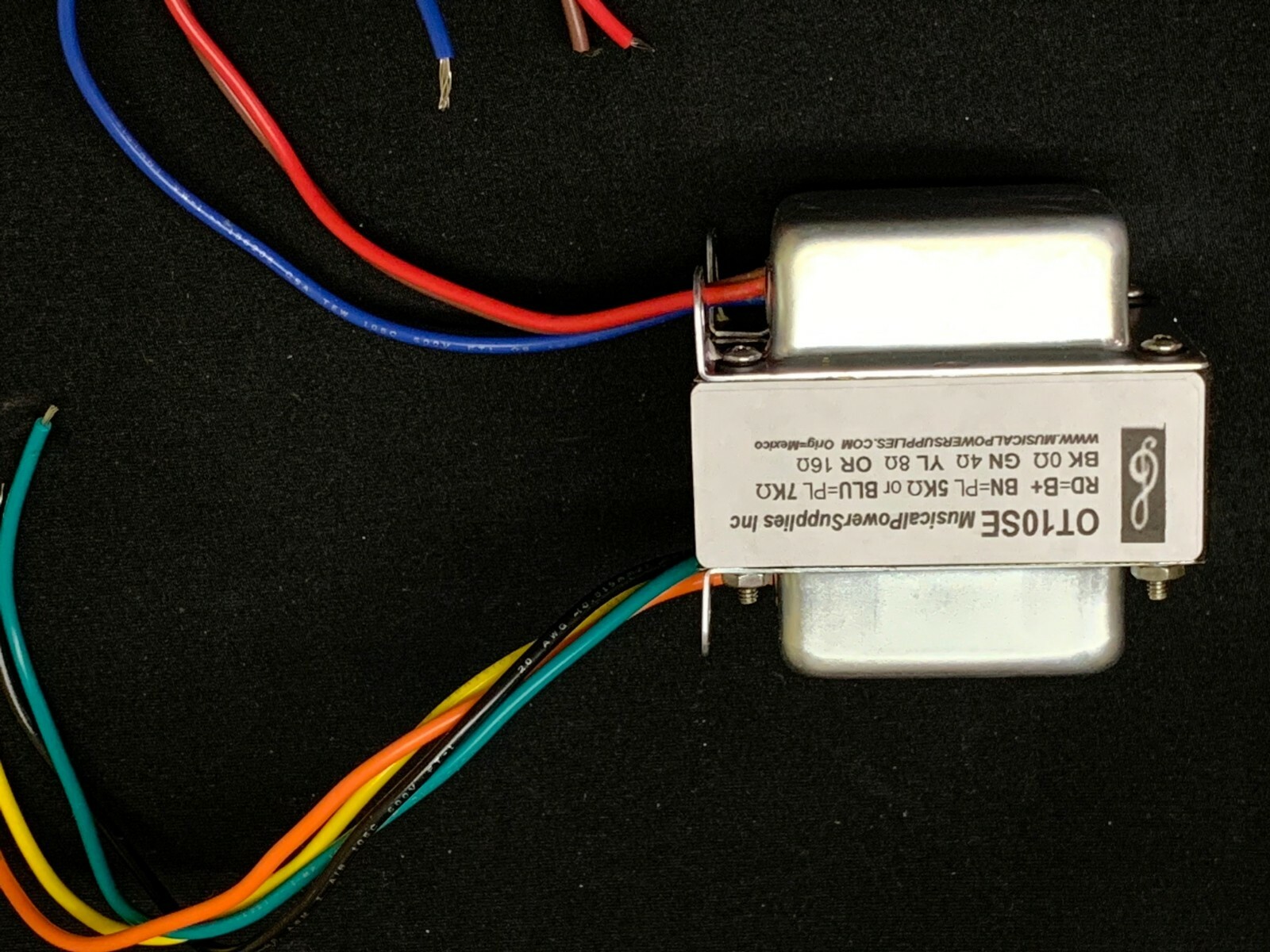

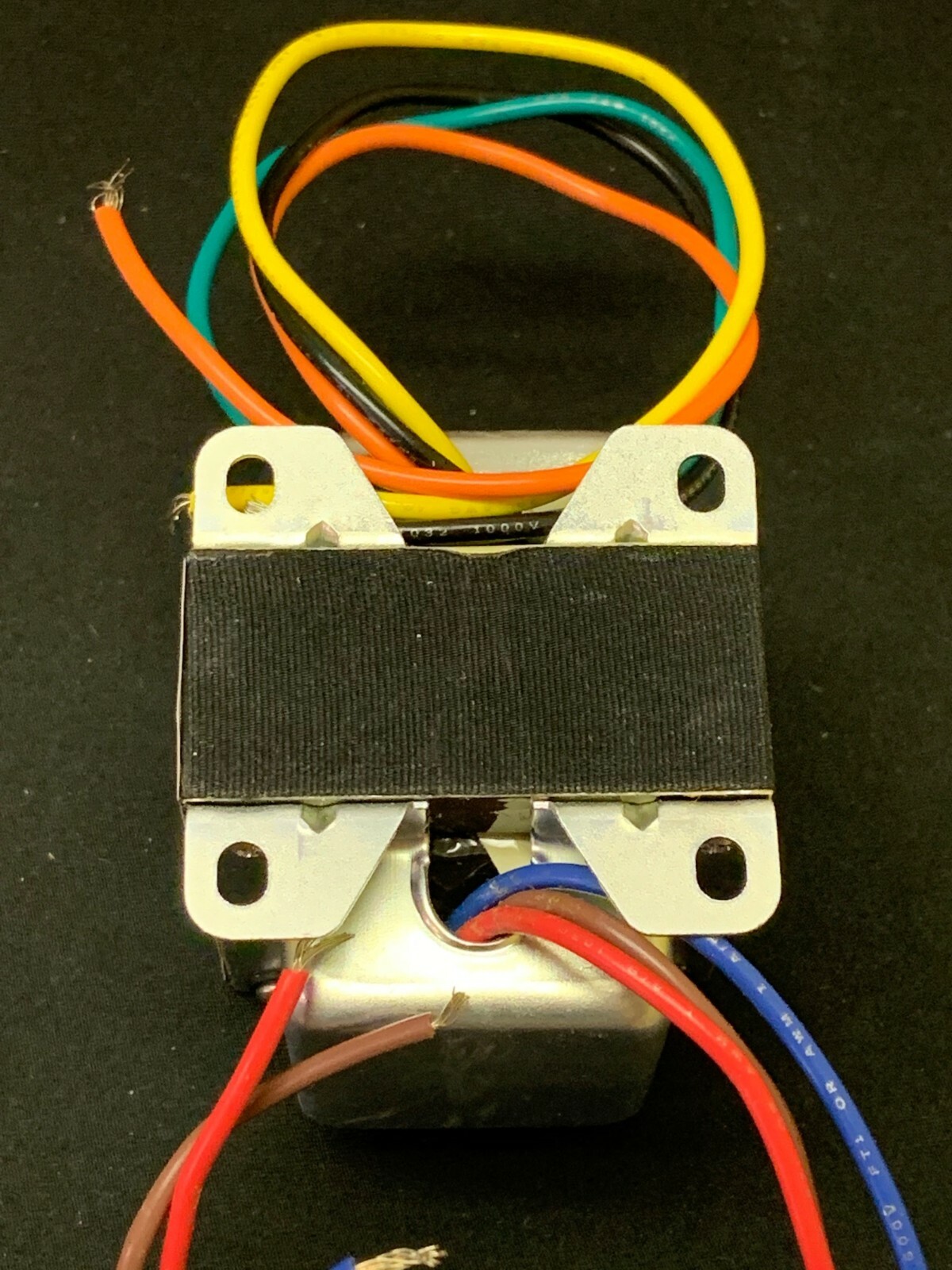

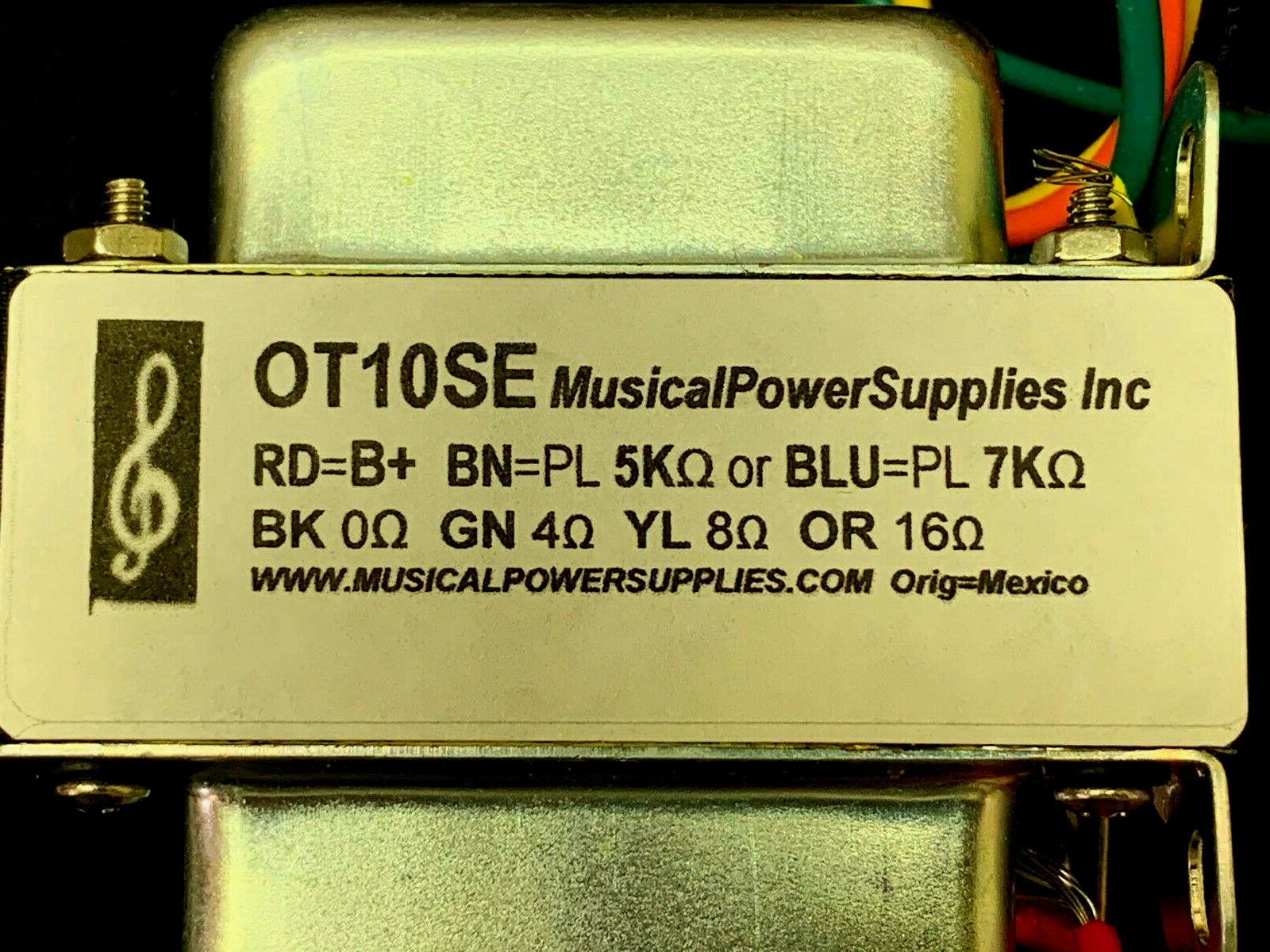

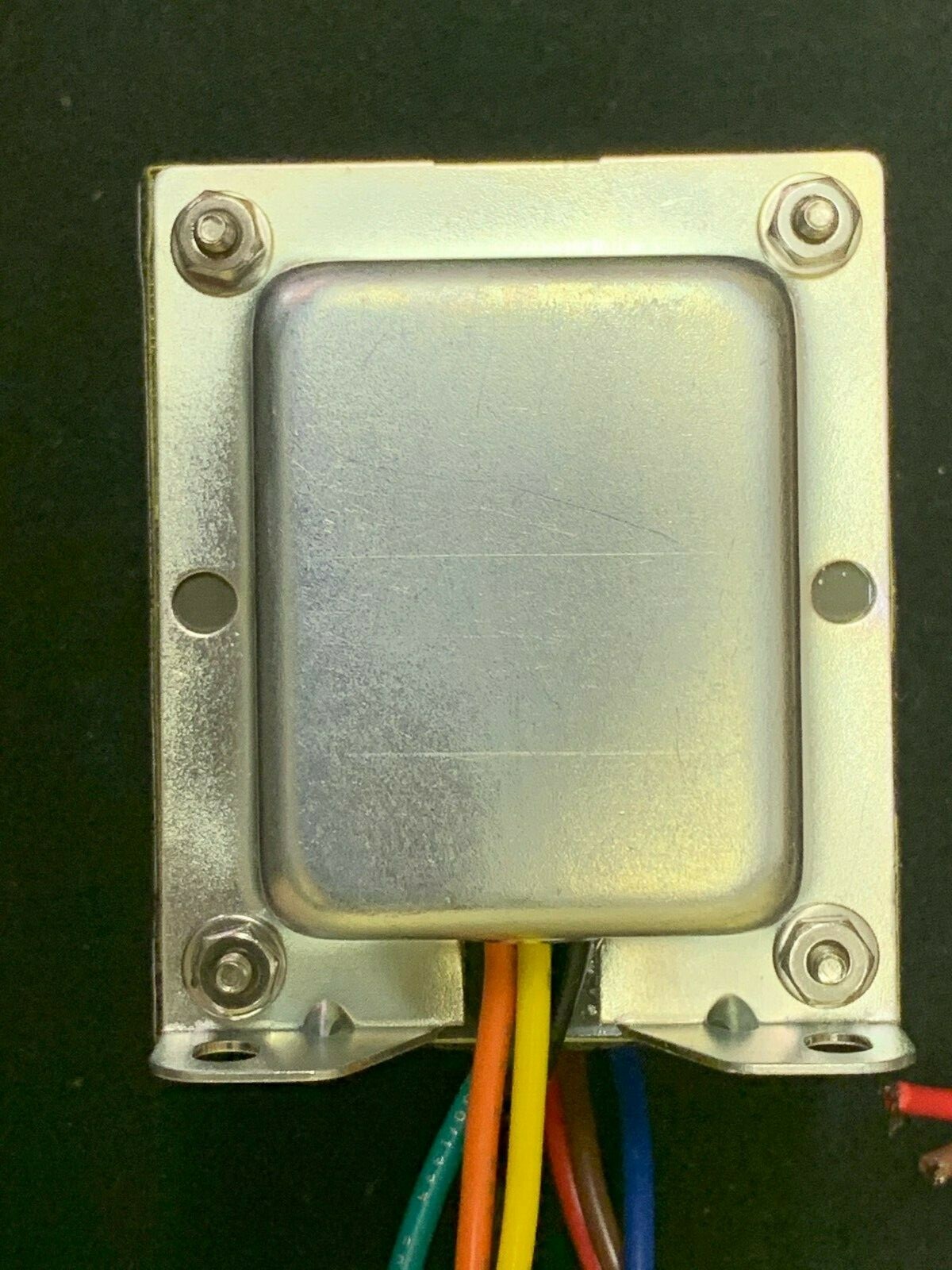

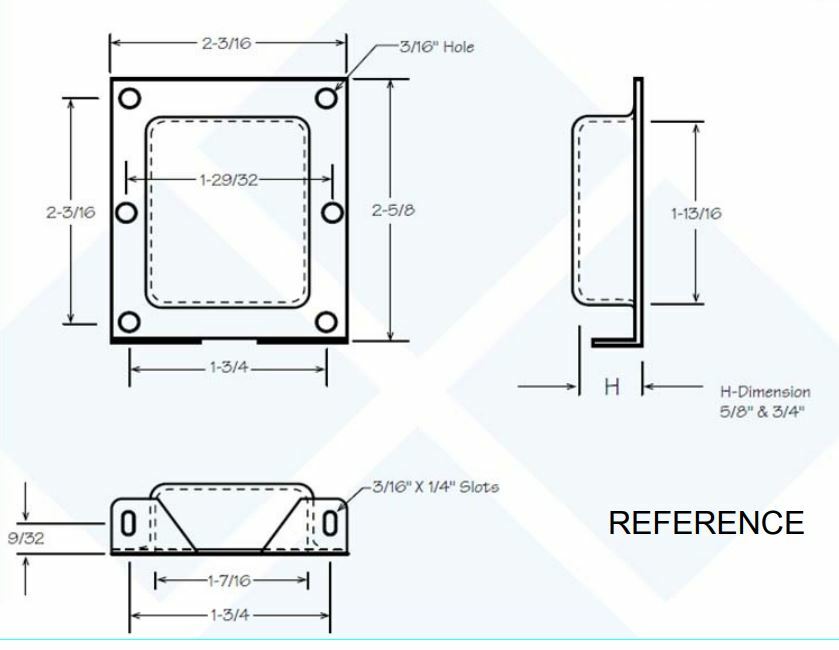

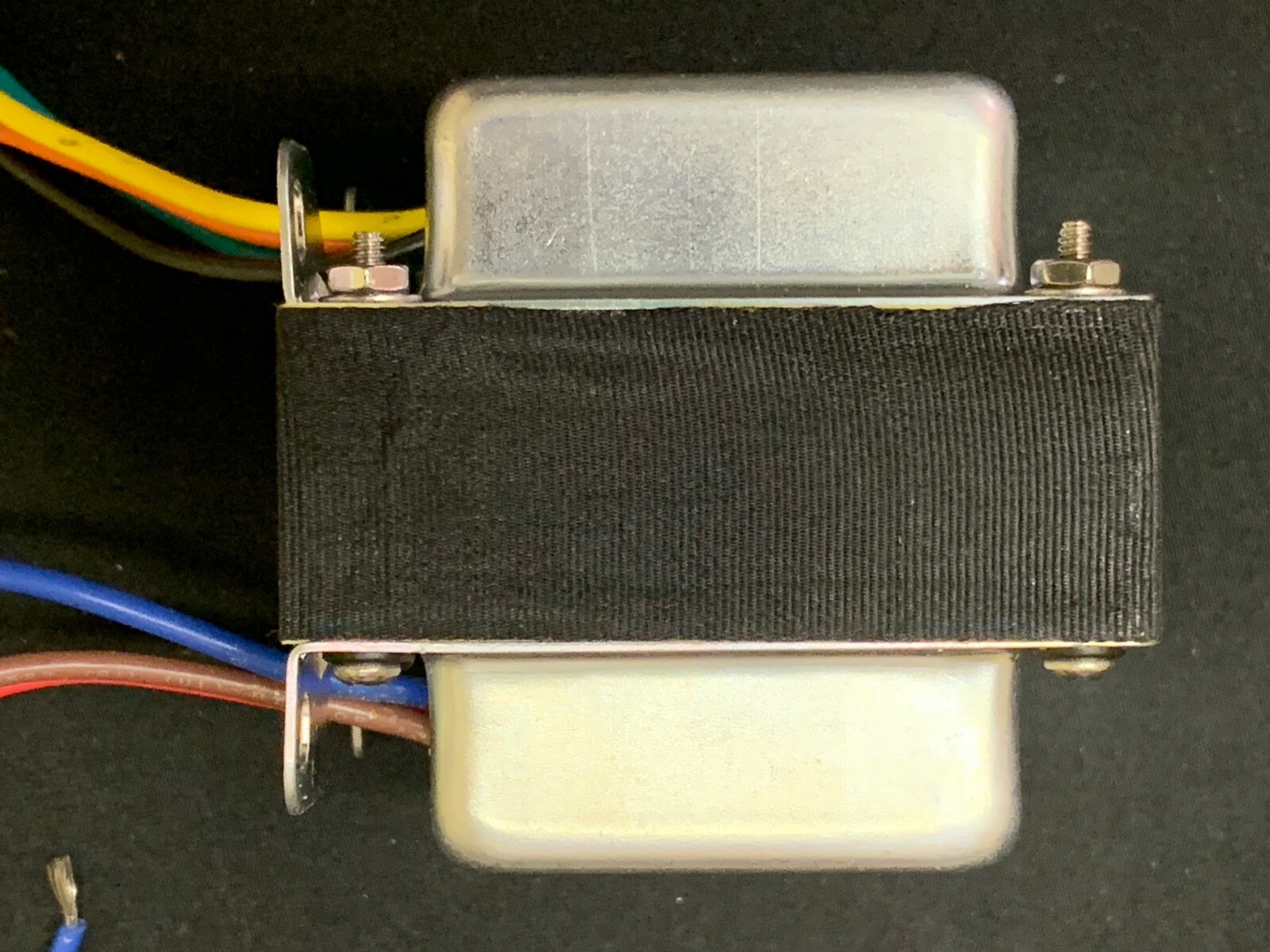

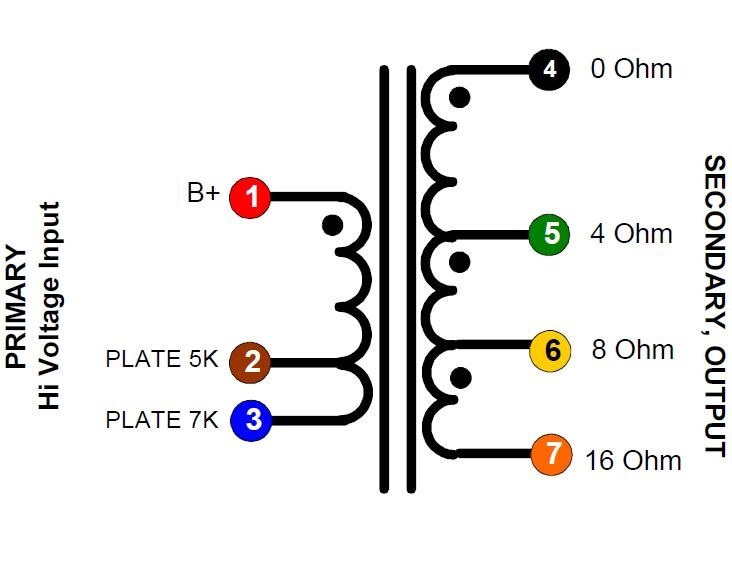

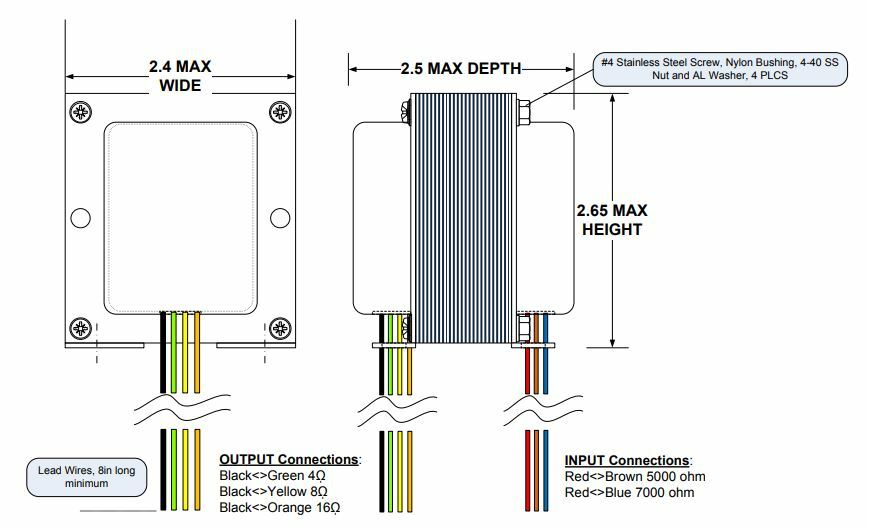

Check the listing for details. OT10SE-VC87 Single Ended Output Transformer 12VA 5K,7Kohm:4/8/16 60mA. Condition: New, Made in Mexico. Listed at 39.95 USD. I'm using an oversized gapped stack of audio grade 29M6 laminations and bobbin wound construction. It's a 2x1 interleaved winding with two input impedances and three output impedances. It surface mounts by four screws on a 1.75in wide x 1.75in deep pattern.
You may also like
$25
New And Used IF RF Transformers Antenna Coil Lot
$45
Loewe Opta Output Transformers Pair for EL84 SE Tube Amp Vintage german
$149
Vintage 1951 Western Electric 600-C Input Audio Transformer ! ! !
$449
2 Vintage Daven Western Electric SPEC CP-350-T / 100K / 2db Step Pot Attenuator
$34.99
Halldorson FB411 Horizontal Sweep/HV Flyback Autoformer NOS Clean1 Orig. Carton!
$25
New And Used IF Transformer Coil Miller TV
$15
Triad F-45X Filament Transformer Untested
$34
Vintage Filter trasnformer FR4PX22YY ~ UTC JF-487 ~ A-4547-1 ~ .15 KC TO .30KC
$99.95
PT330Mi-TUBE AUDIO POWER TRANSFORMER for TUBE AUDIO (660Vct) x 130mA
$65
DON McGOHAN MC-2 MICROPHONE PHONO STEP UP TRANSFORMER (AS ALTEC 4722)
$15

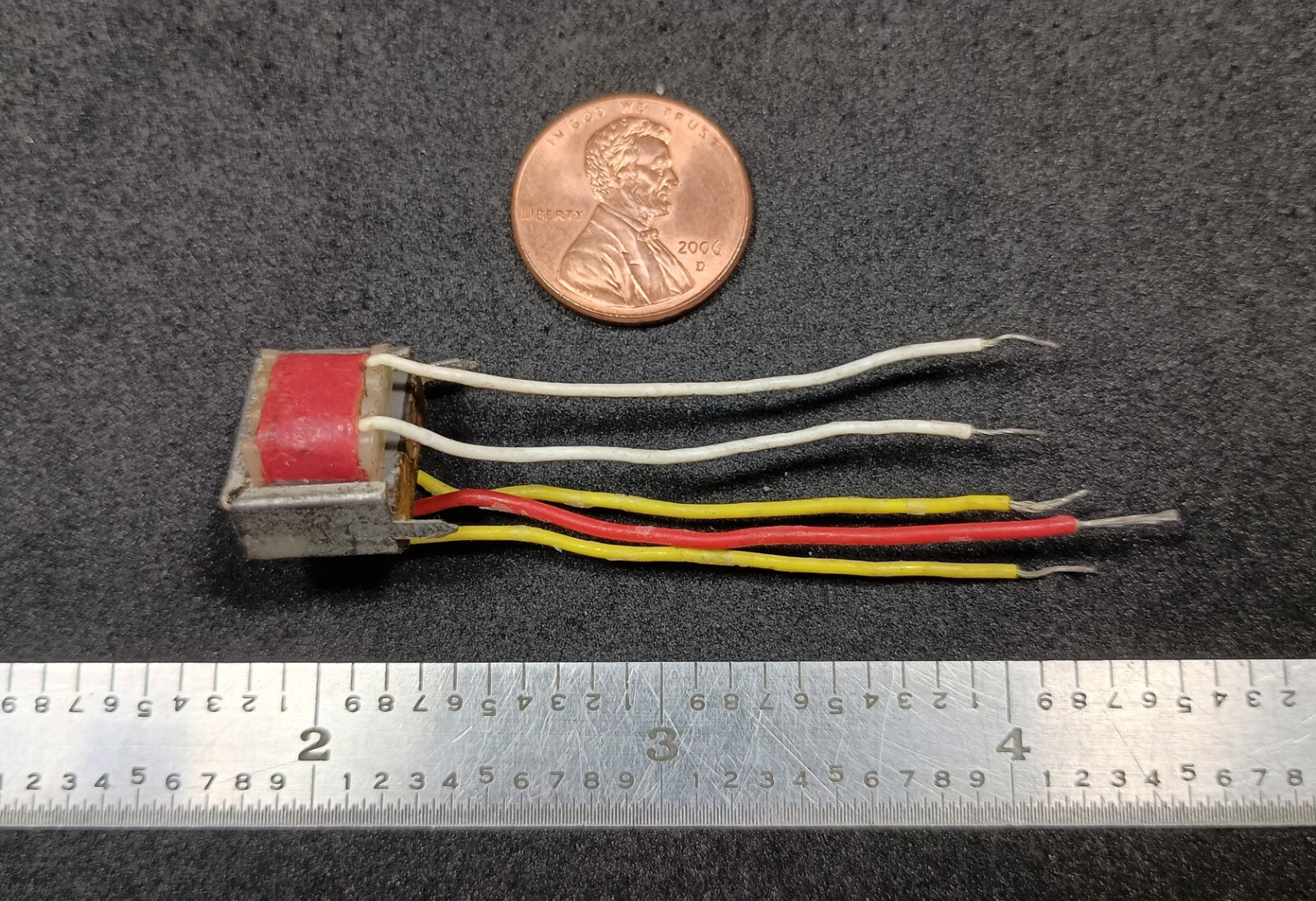

Qty 1: Miniature “Transistor-Type” Audio Output Transformer (Read Description)
