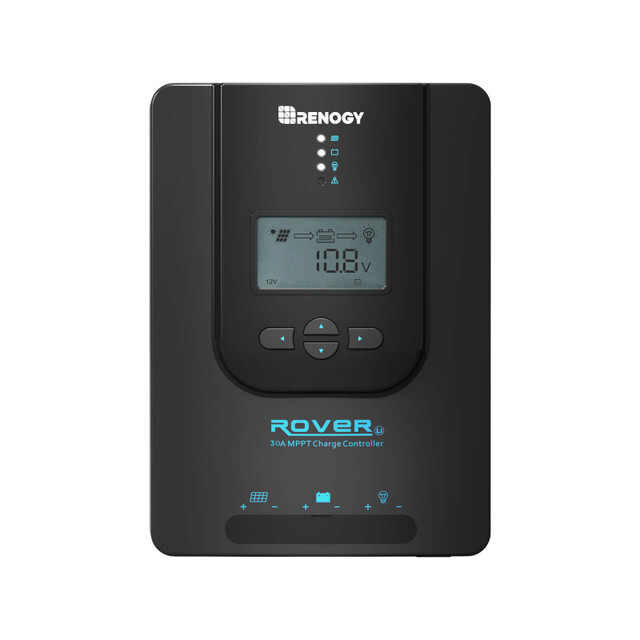

Renogy Rover 30A 12V/24V MPPT Solar Charge Controller LCD Regulator w/Bluetooth

Name: Renogy Rover 30A 12V/24V MPPT Solar Charge Controller LCD Regulator w/Bluetooth
SKU: 286184629638
Price: 116.99 USD
Availability: InStock

$58.50

$116.99 -50%

Condition New

Item ID 286184629638

Return shipping will be paid by	Buyer
All returns accepted	Returns Accepted
Item must be returned within	30 Days
Refund will be given as	Money Back
Protection Level	IP32
Current Output	30A
Nominal System Voltage	12/24V (Auto-Detect for Non-Lithium Batteries)
System Configuration	Off-Grid
Power Source	Solar
Ground Type	Negative
MPN	RNG-CTRL-RVR30-BT-US
Operating / Storage Humidity	≤ 90%, No Condensation
Current Type	DC
Temperature Compensation	-3mV/°C/2V
Storage Temperature Range	-35°C to 75°C; -31°F to 167°F
Features	Bluetooth Module
Max Battery Voltage	32V
Max. Terminals Size	8 AWG 10mm2
Protection Properties	Overcharge Protection
Maximum Input Power	12V/400W, 24V/800W
Maximum Input Voltage	95 VDC
Operating Temperature Range	-35°C to 45°C; -31°F to 113°F
Current Rating	30A
Dimensions	238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight	4.4 lbs / 2.0 kg
Brand	Renogy
Type	Solar Charge Controller
Model	MPPT
Recommended Environment	Outdoor
Power Consumption	＜100mA/12V; ＜58mA/24V
Charging Mode	MPPT (Maximum Power Point Tracking)
Application	Back-up Power
Product Line	Renogy Rover

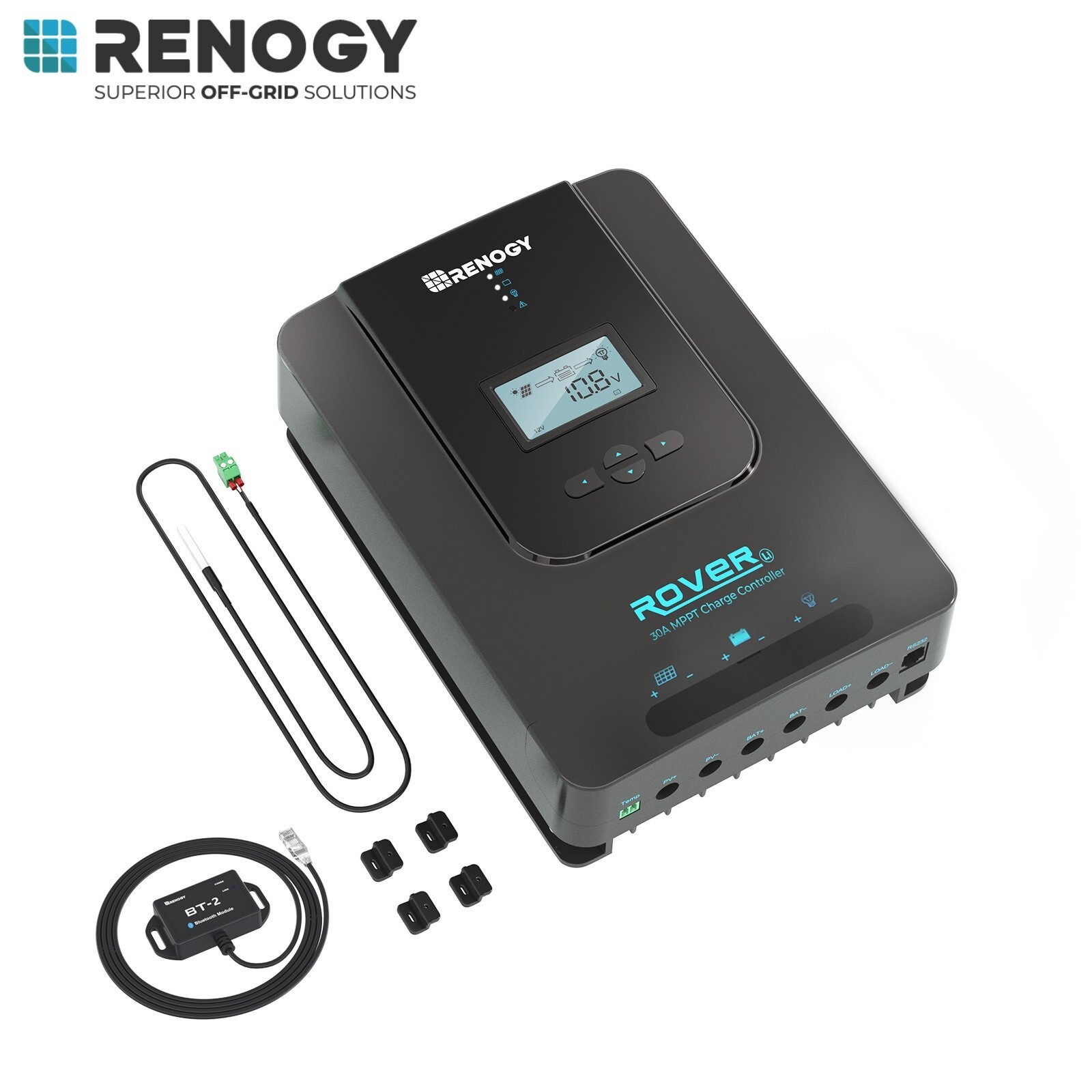

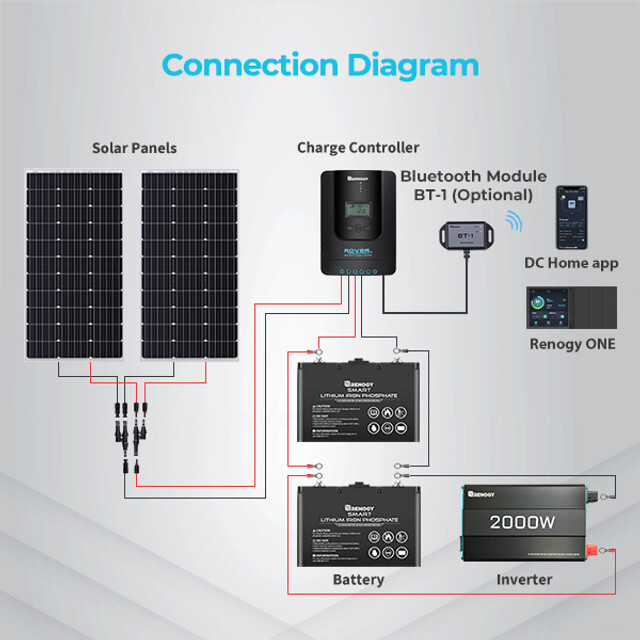

Check the listing for details. Renogy Rover 30A 12V/24V MPPT Solar Charge Controller LCD Regulator w/Bluetooth. Condition: New. Listed at 116.99 USD. What's in the box Wiring Steps Do not insert the wires into the space below the socket/hatch, which will damage terminals because of loose connections. Step 1. Loosen the screws above the terminals to make the socket/hatch descend. Step 2. Insert the wires into the socket/hatch. The terminals on the Rover 30A can accept up to 8AWG of wires. Step 3. Tighten the screws to elevate the socket/hatch to complete the wiring.
