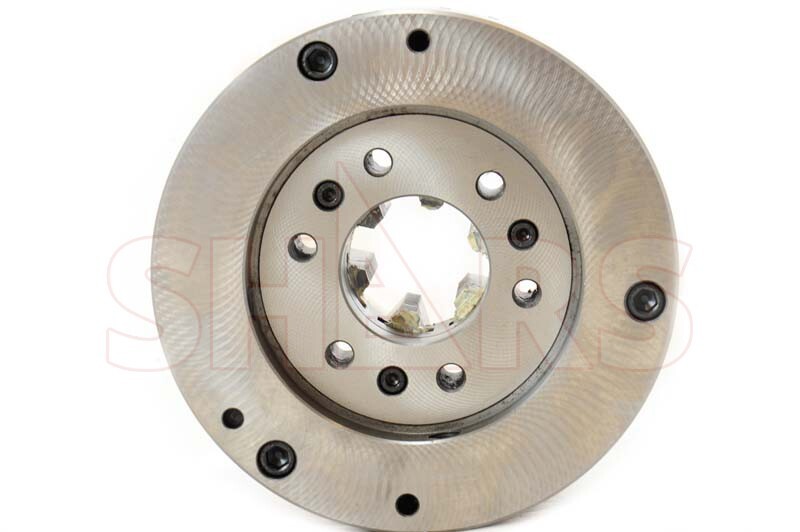

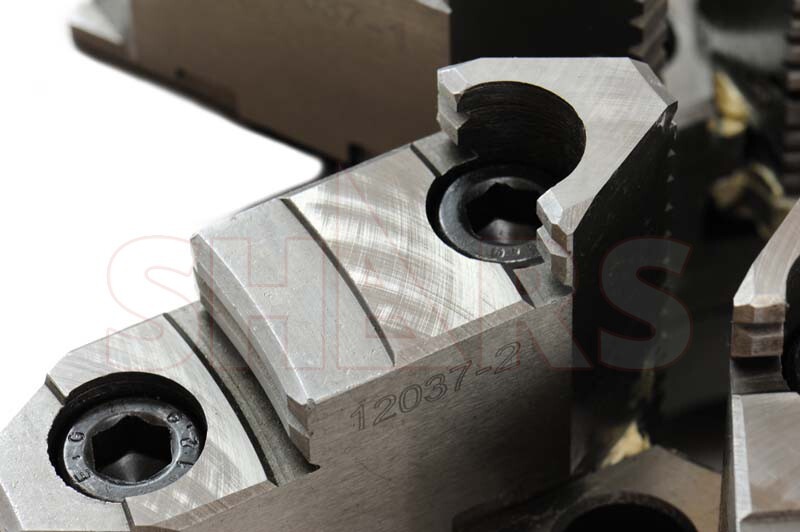

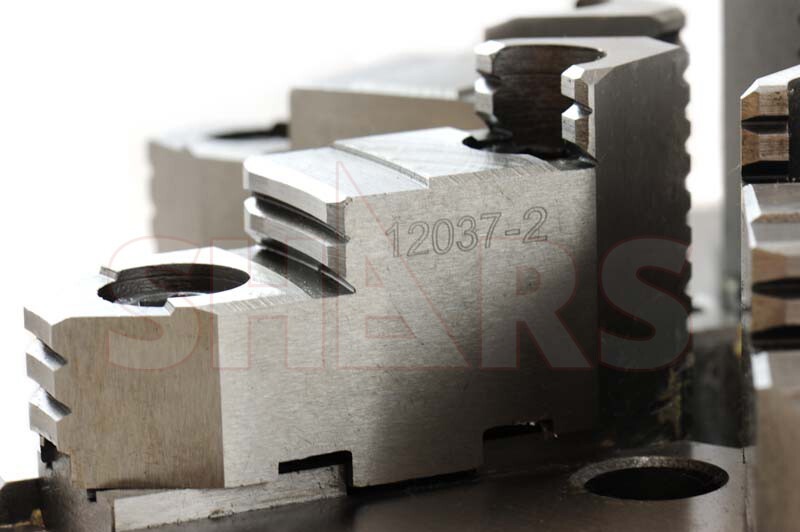

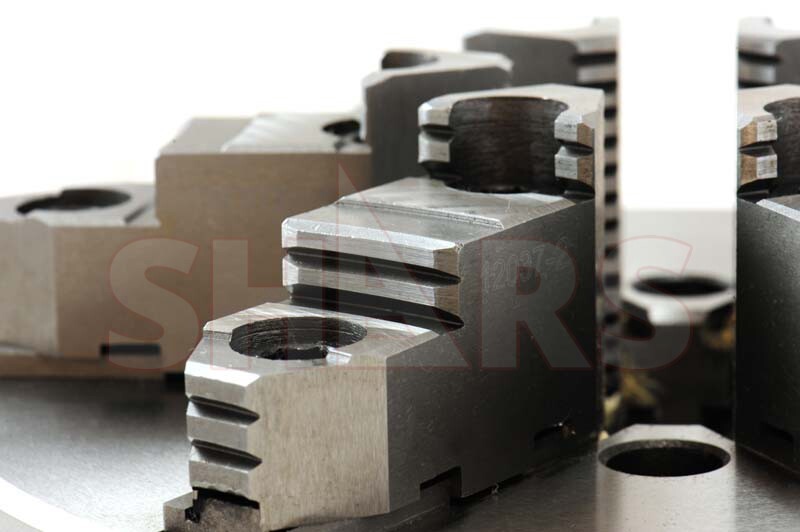

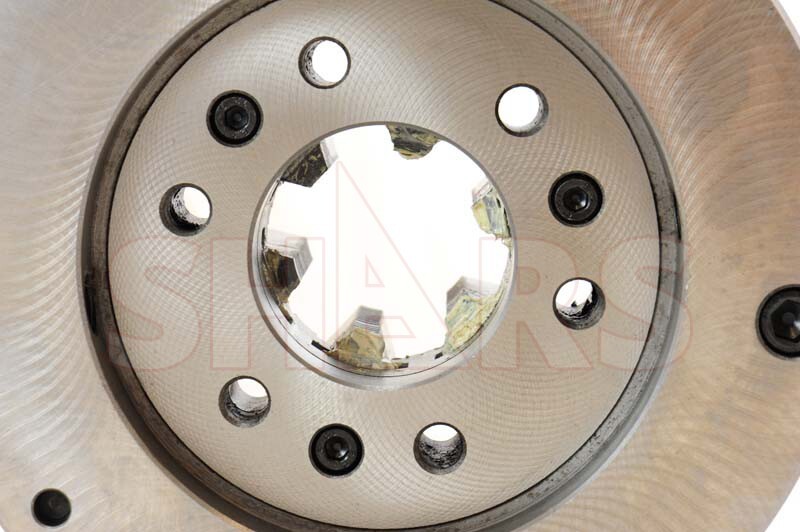

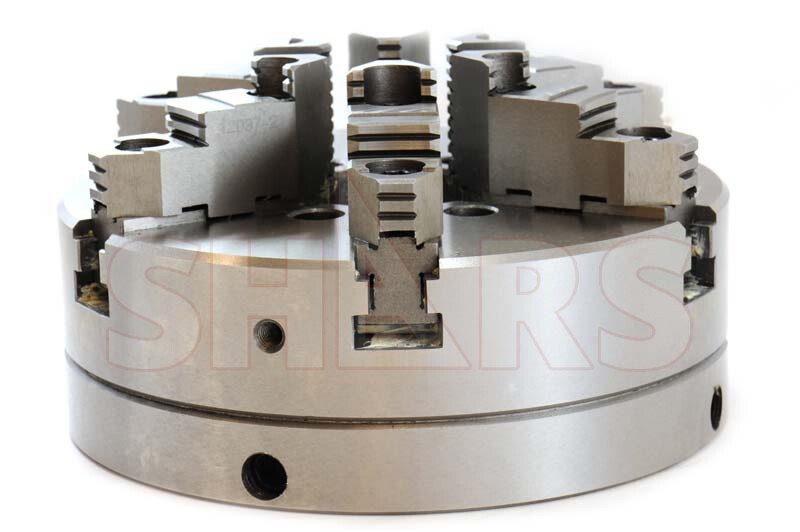

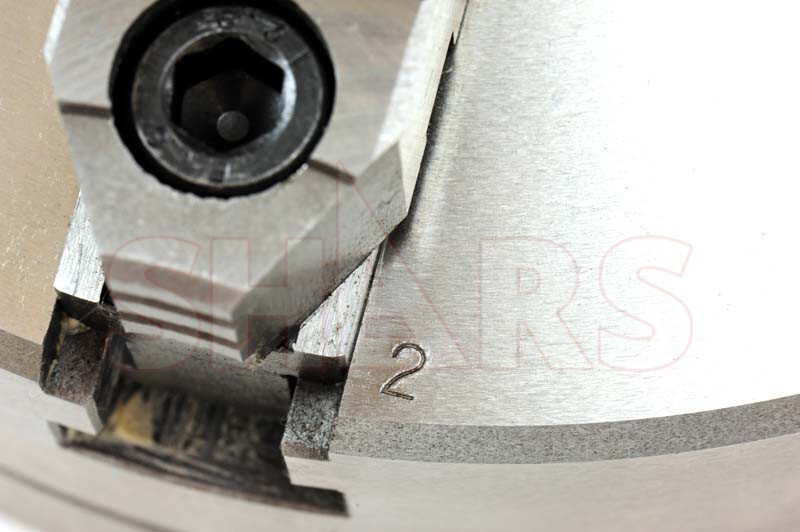

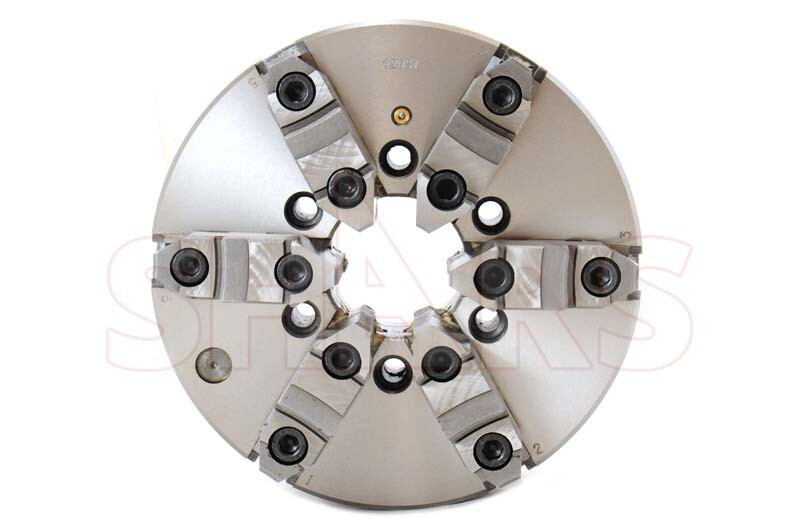

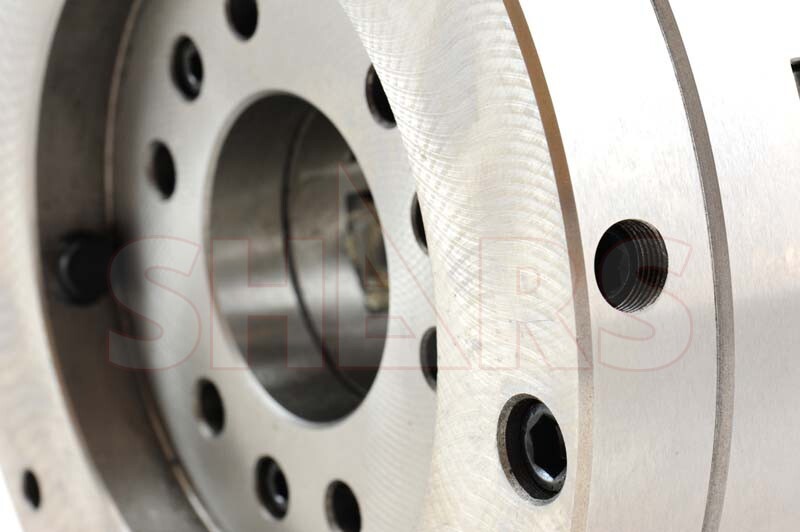

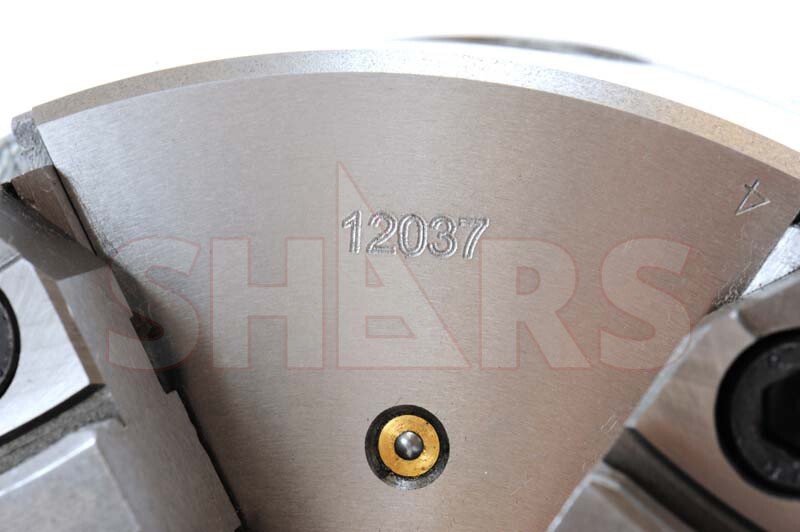

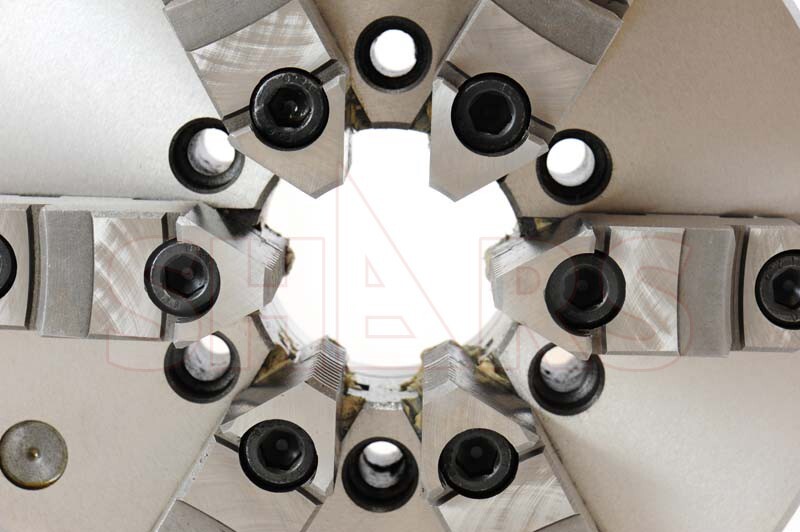

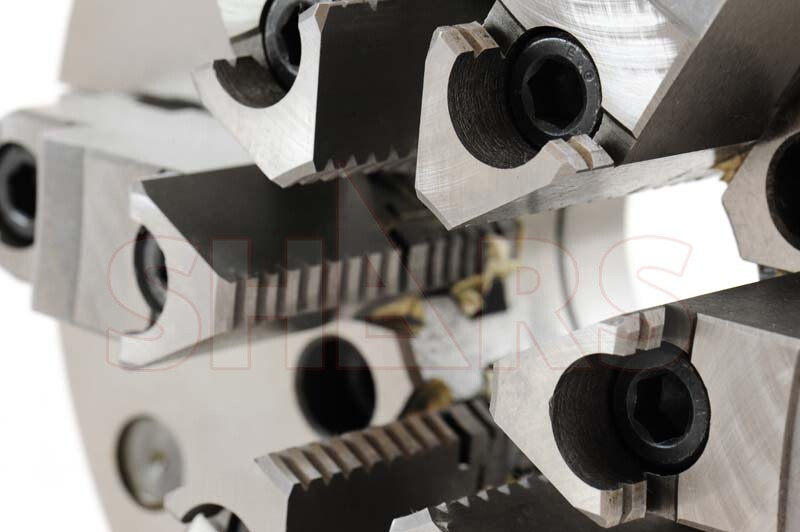

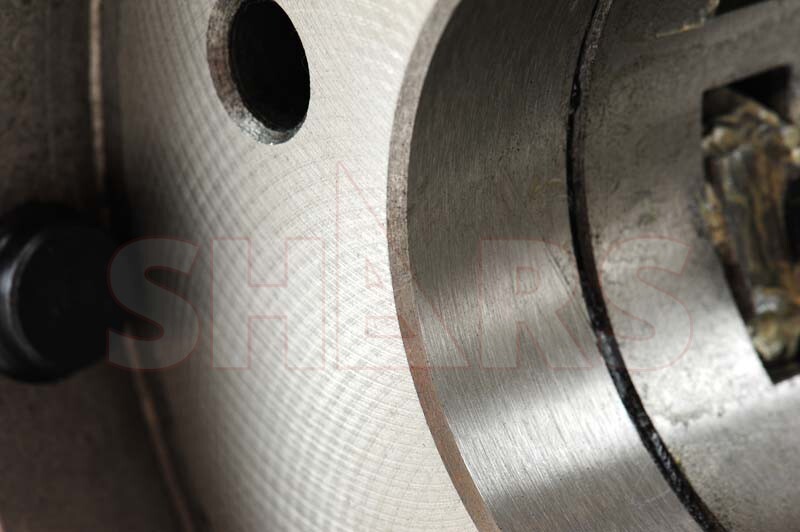

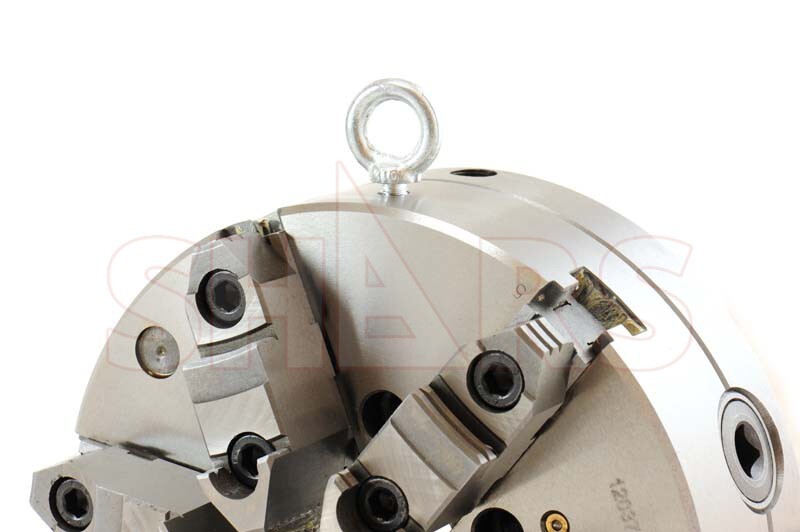

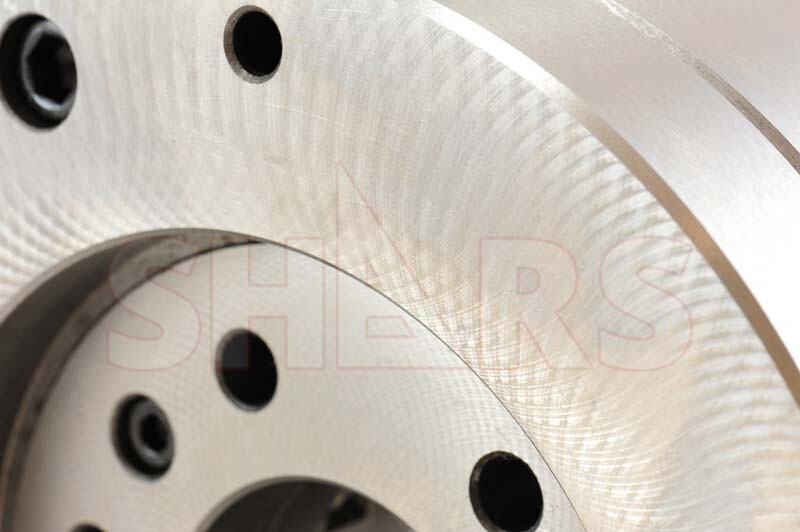

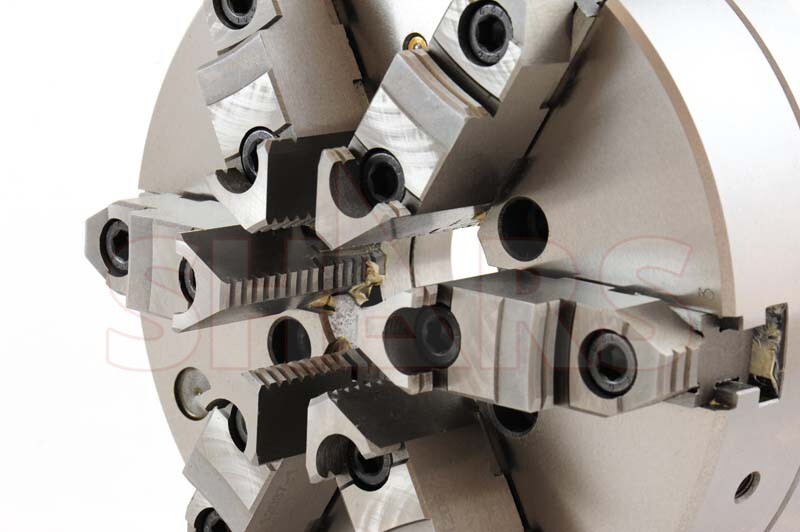

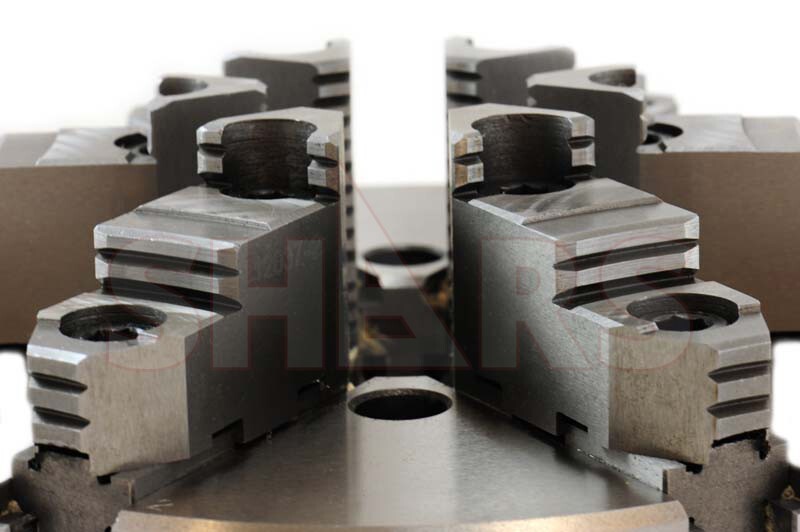

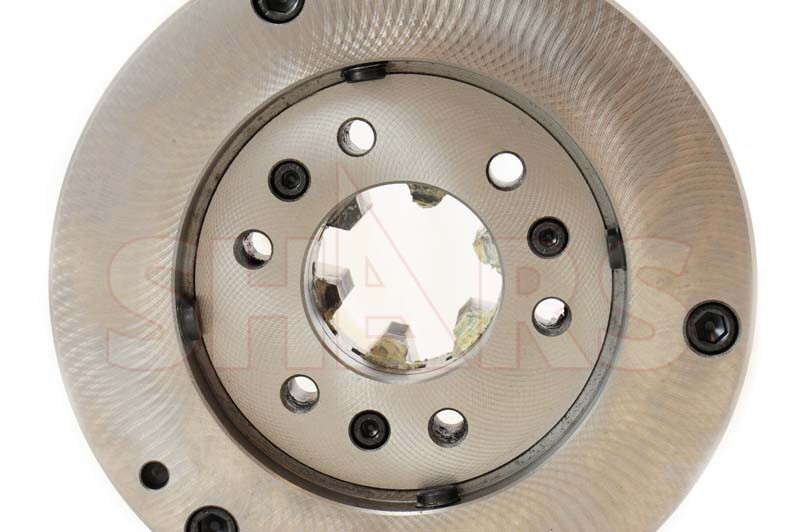

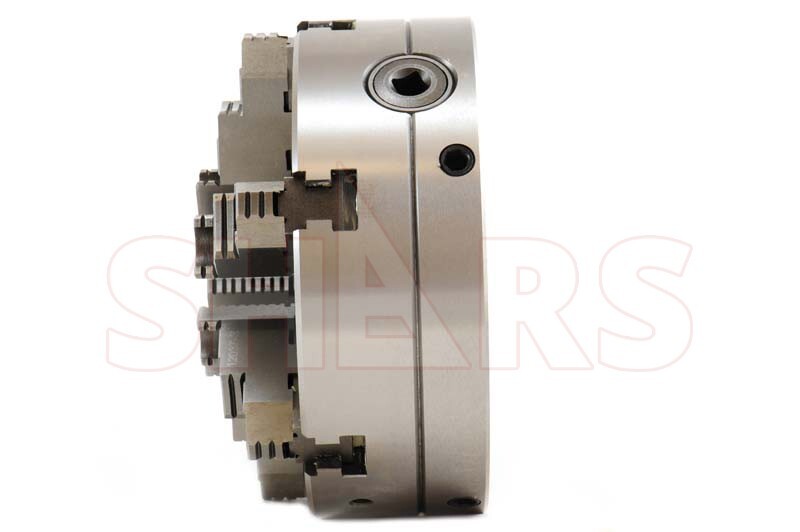

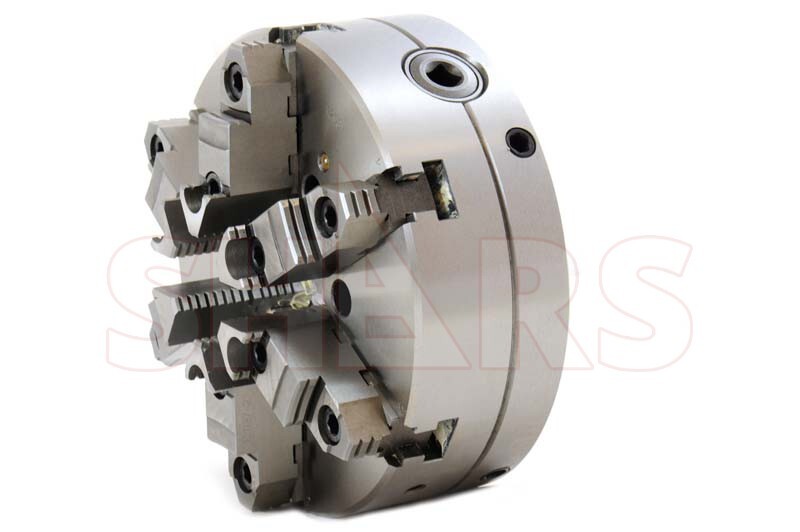

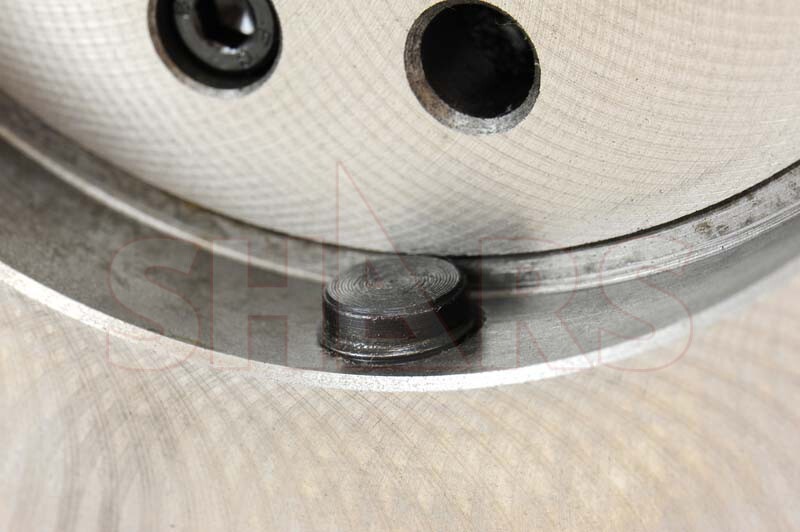

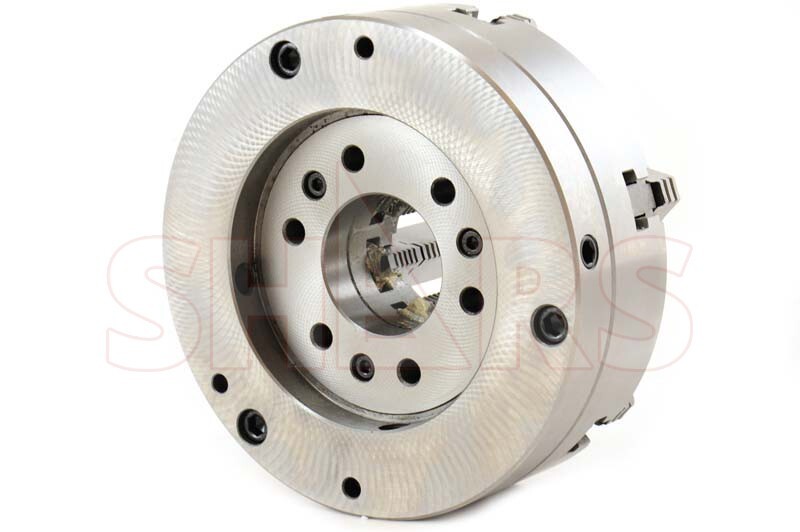

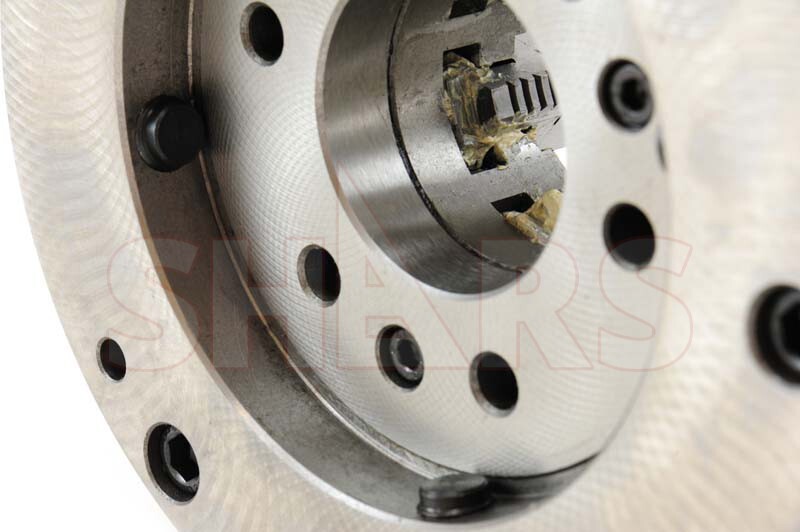

Check the listing for details. Shars 10" 6 Jaw Adjustable Universal Lathe Chuck .0005" TIR + Certificate R[. Condition: New. Listed at 940.95 USD. Shars 10" 6 Jaw Adjustable Universal Lathe Chuck .0005" TIR + Certificate NEW Founded in 1978, Shars Tool Company has been serving the industrial community and machine shops in the USA for over 30 years. We carry high quality live centers, with individual certificate in each product. Product Code 202-5469 Product description SKU 202-5469 MFG SKU # 202-5469 LATHE CHUCK CATEGORY Adjustable Lathe Chucks BRAND Shars Tool CHUCK DIAMETER 10 THRU HOLE SIZE 2.836 MOUNTING Plain Back BOLT CIRCLE DIAMETER 4.375 CHUCK THICKNESS 3.492 TIR (INCH) 0.0005 NUMBER OF JAWS 6 MAXIMUM RPM 1600 Product features To achieve the .0005" radial runout and repeatability, it's required to use the 4 micro adjustment set screws to true the designated ground bar stock, not the chuck body. Do not attempt to put the indicator on the outside diameter of the chuck body to dial it to zero first as this would create more runout on the bar stock. The adjustable chuck is intended to give high repeatability clamping on a particular bar stock size after the set screw adjustment. After the adjustment is made on a particular bar stock rod, for example 1/2", it's required to true the bar stock again when clamping a different size diameter, for example 1". Please refer to the back plate machine guide pdf file for more mounting instructions. Semi-steel chuck body made from high quality cast iron 1 pinion design with each pinion ground and hardened to HRC 43 Two piece jaw design with a master jaw and a top reversible jaw in American Standard tongue and groove specification Both side of jaw teeth and guides are ground and hardened to HRC 58-62 Each set of jaws are serialized in their own set A serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracy Before assembling the jaw to its designated chuck body, the jaw's finish machining are performed on a closed tolerance state of the art CNC machine from Japan Scroll plate's thread flank are ground on both side to achieve a tighter contact with the master jaw Each chuck has gone through rigorous accuracy and repeatability inspection with clamping and jamming multiple random testing rods or rings Chuck Diameter 5" min-max 6" min-max 8" min-max 10" min-max 12" min-max 15" min-max A1 .1395-1.6292 .3150-2.5197 .3150-3.5433 .5118-4.9457 .5118-5.1575 .6299-7.9528 A2 1.2992-2.7559 1.8110-3.8189 2.4409-5.3150 3.0315-6.8504 3.3465-7.1654 4.4882-11.0236 A3 2.9921-4.6850 3.6620-5.7480 4.5276-7.6772 5.7087-10.0787 6.6929-11.0236 7.6772-14.9606 A4 1.9685-3.4252 2.5984-4.7683 2.6772-5.9055 3.3465-7.4016 3.7008-8.8976 4.3307-11.4961 A5 3.7008-4.9213 4.6457-6.2992 5.0394-7.8740 6.1024-9.8425 7.2047-12.4016 7.6772-14.9606 Product includes 1 set of reversible jaws for inside and outside 6 piece of mounting screws for the lathe chuck back plate 1 hexagon wrench Each high quality chuck comes with a manufacturer certification. Related Products SKU: 202-6138 SKU: 202-2030 Lathe Chuck Adapter Plate 10" D1-6 Finished Machined for 10" Zero-Set Lathe Chuck 5/16" Self- Ejecting Lathe Chuck Key SKU: 202-6257 SKU: 202-6139 10" x 1.259" HT American Standard Tongue & Groove Soft Steel Chuck Jaw Set Lathe Chuck Adapter Plate 10" D1-8 Finished Machined for 10" Zero-Set Lathe Chuck We have other chucks & back plates available at My Ebay Store : SHIPPING: UPS Ground Buyer pays ACTUAL UPS shipping & insurance, and a $3.00 handling fee for this item to be shipped to all states within the continental United States. Hawaii, Alaska & and other United States Territories will ship via UPS BLUE. Canada will pay actual shipping costs plus duty fees via UPS. We can combine other auctions or store items to save on shipping. You may ask for freight cost before buying tools. Shipment will be made the same day as your payment is received and an UPS tracking number will be email to you. If your order is being shipped to an address outside of the United States, local consumer tax and/or customs duty , brokerage charges may apply and the package's recipient may need to pay these to clear customs. PAYMENT: We accept VISA, MasterCard and E-Check on PayPal.com Illinois resident adds 8% sales tax. RETURNS: If the item stated as brand new is found defective on arrival or incorrect item was shipped, buyer understands that the product will be repaired or replaced at seller's discretion, and be given a reasonable amount of time. Buyer is responsible for return shipping costs and insurance. Warranties are offered by the manufacturer and will be honored by the manufacturer. All shipping and handling fees will not be returned in any case. Any questions regarding our tools, feel free to email us at our eBay Message Box
