| Cable Type | Sidestream Module |
|---|---|
| Custom Bundle | Yes |
| MPN | 1022054 |
| Respiration Rate (RR) Range | 0-150 bpm |
| CO2 Resolution | 0.1mmHg |
| Unit Type | Unit |
| Technology | infrared |

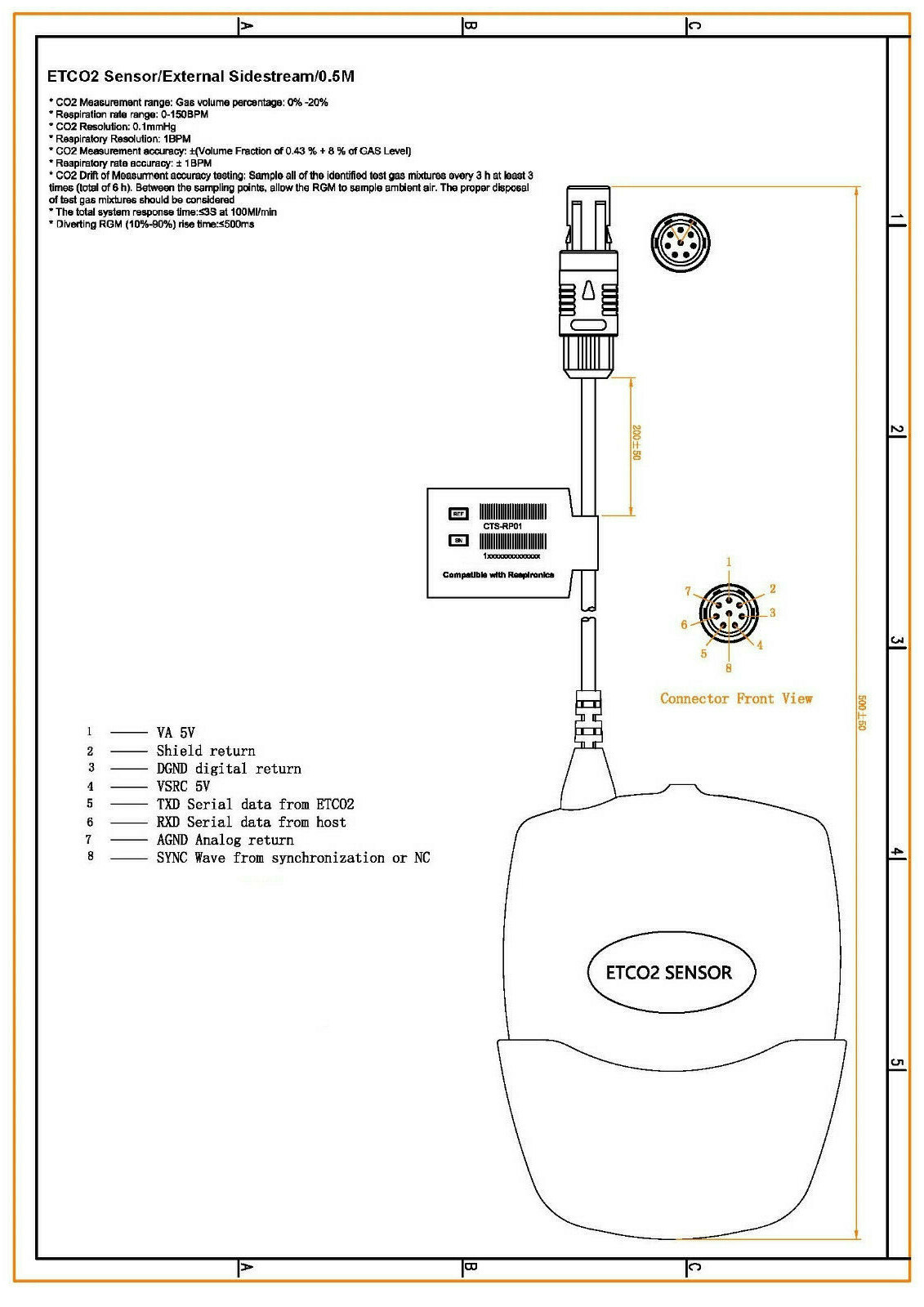

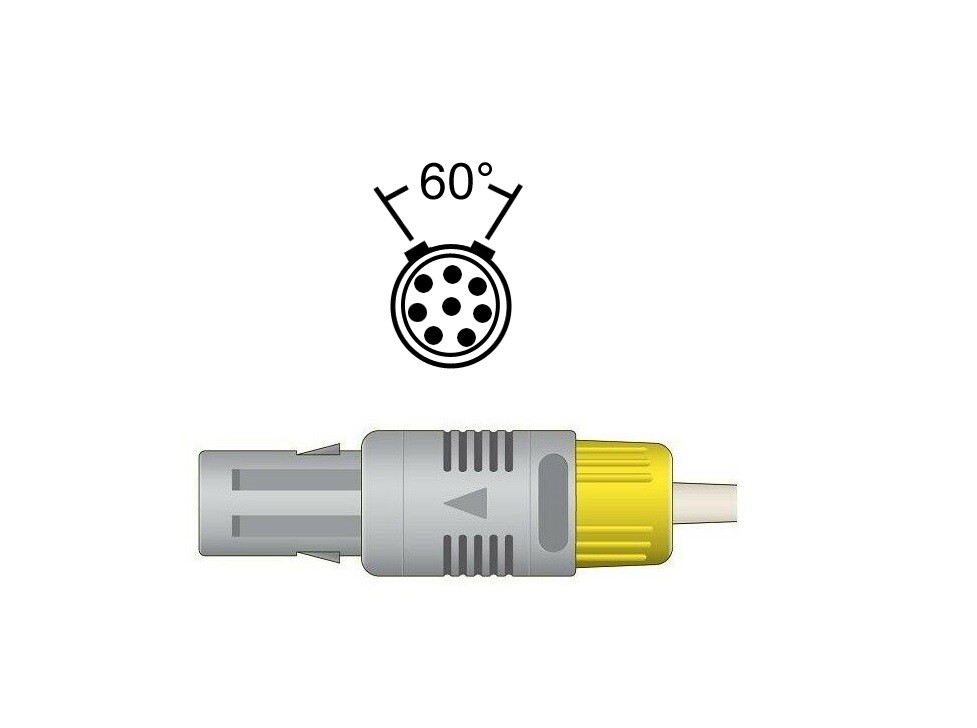

| Number of Pins | 8-Pin LEMO |
| Sampling Rate | 50ml/min (loflo) |
| Calculation Method | Body Temperature Pressure Saturation (BTPS) |
| Unit Quantity | 1 |
| Respiratory Rate Accuracy | +/- 1BPM |
| Respiratory Resolution | 1BPM |
| Measurement Range | 0-114mmHg |
| Warranty | 1 Year |
| Water Resistance | IPX4 |
| Bundle Description | EtCO2 kit (cannula, reusable filter, sample line) |
| Parameters Measured | FiCO2 EtCO2 (in mmHg and waveform) RR |
| Modified Item | No |
| Intended Use/Discipline | Anesthesiology, Cardiology, Dentistry, Emergency Medicine, Family Medicine, General Surgery, Medical Laboratory, Neonatal-Perinatal Medicine, Ophthalmology, Pediatrics, Physical Medicine & Rehabilitation, Plastic Surgery, Thoracic Surgery, Veterinary Medicine |
| Brand | Medical Cable Supply |
| Model | Respirionics LoFlo Compatible |
| User Calibration | not required |
| Country/Region of Manufacture | Germany |
| Total System Response Time | +/- 3s at 100ml/min. |
| UPC | 850054599773 |

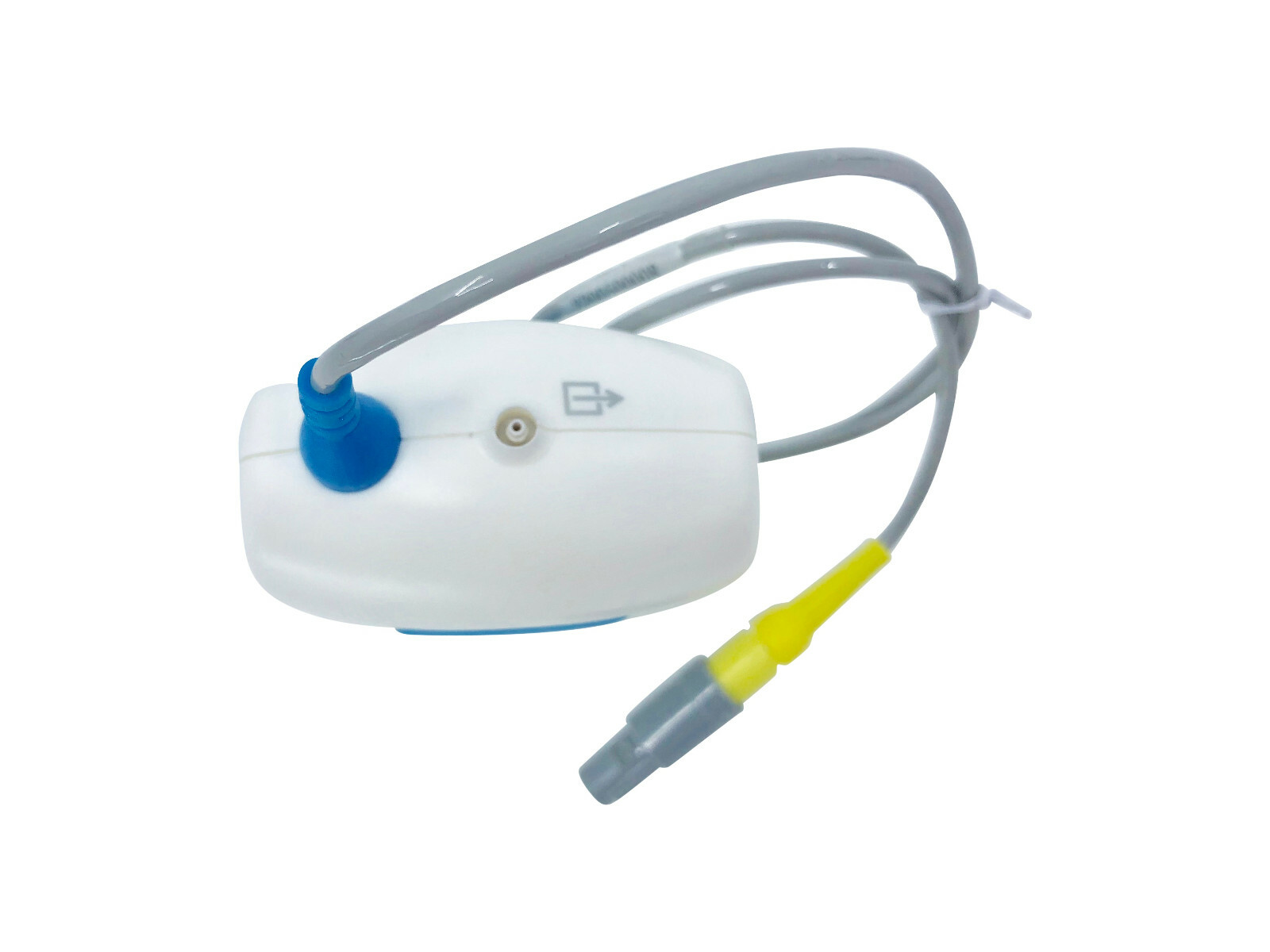

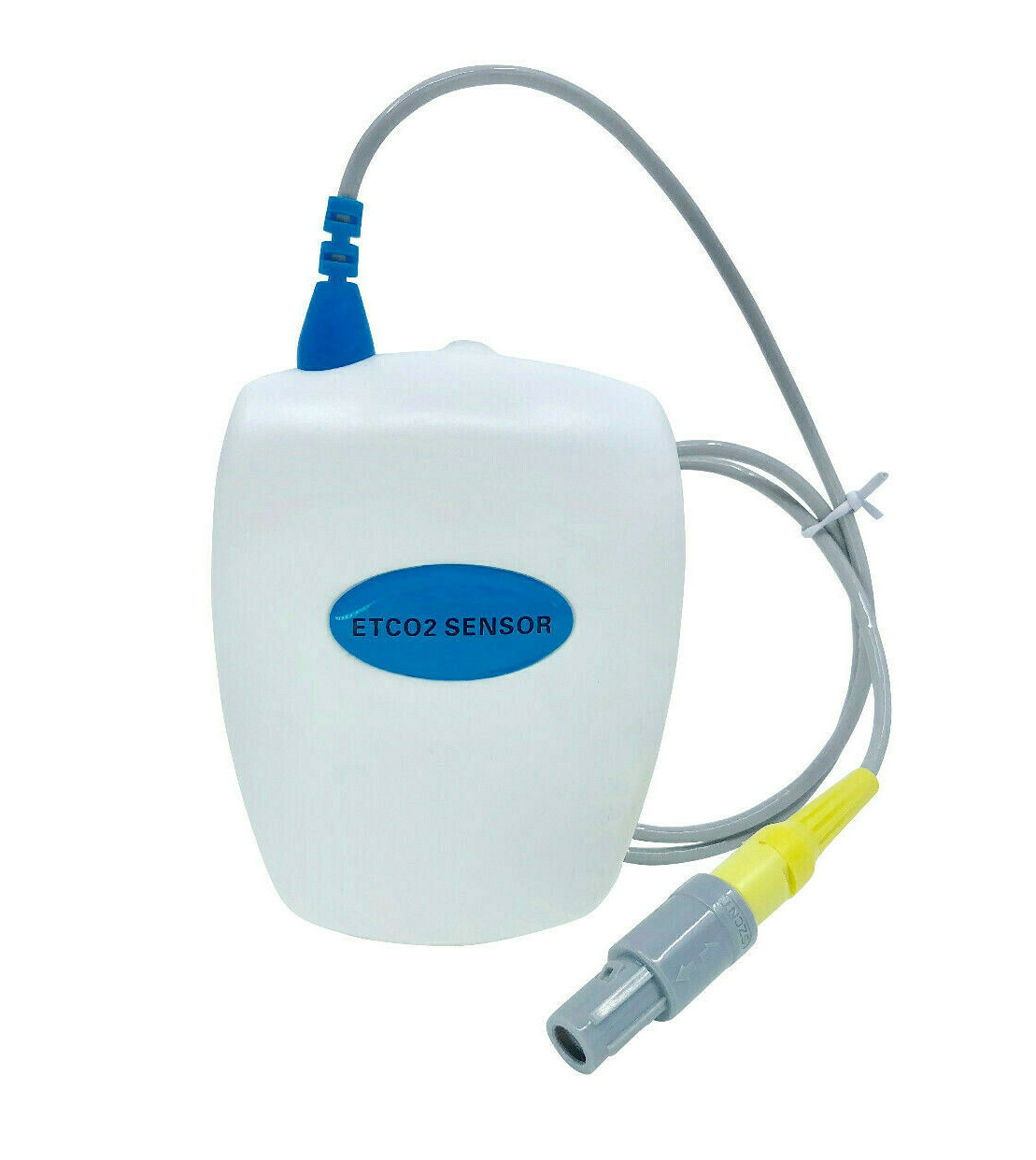

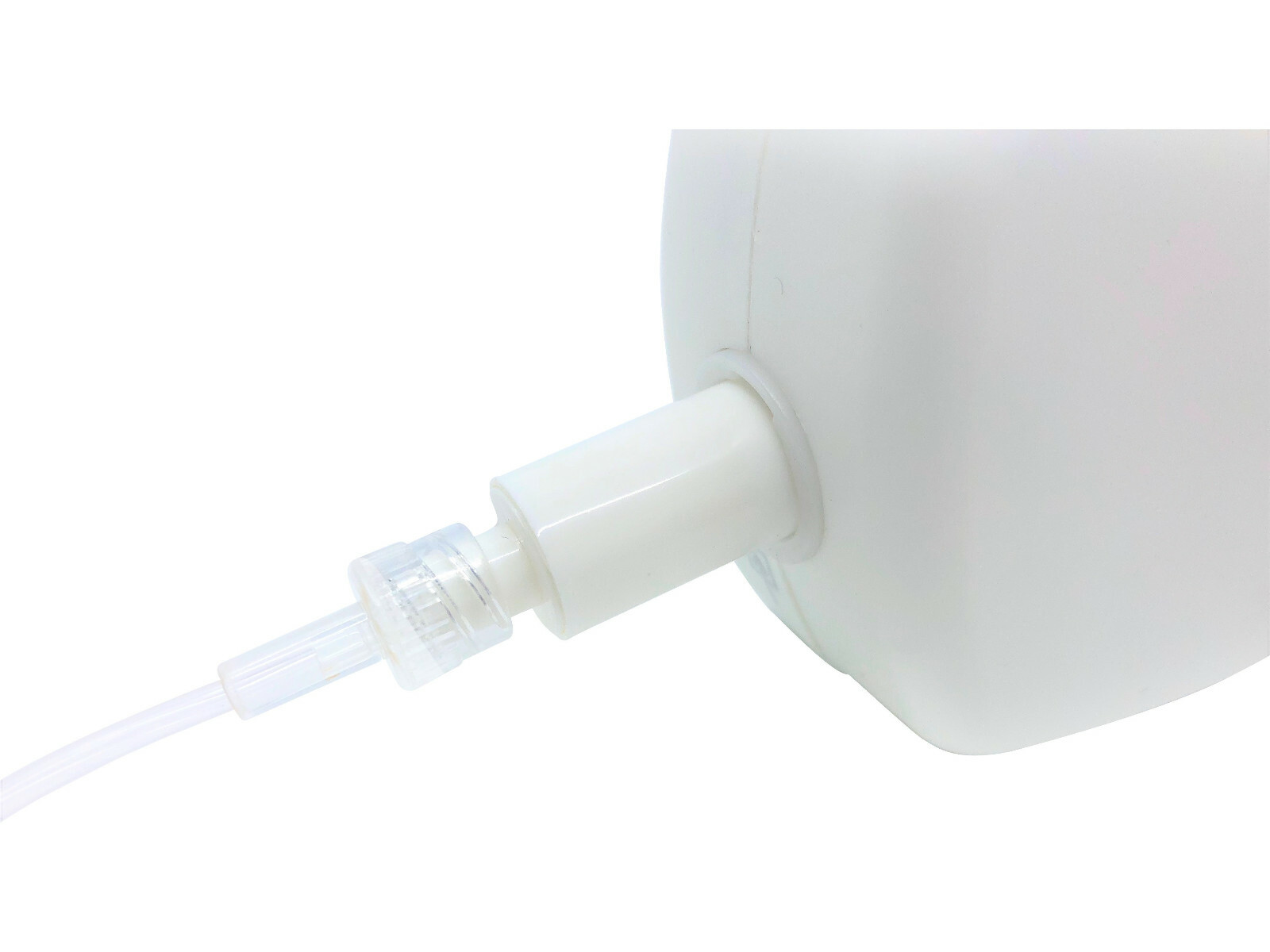

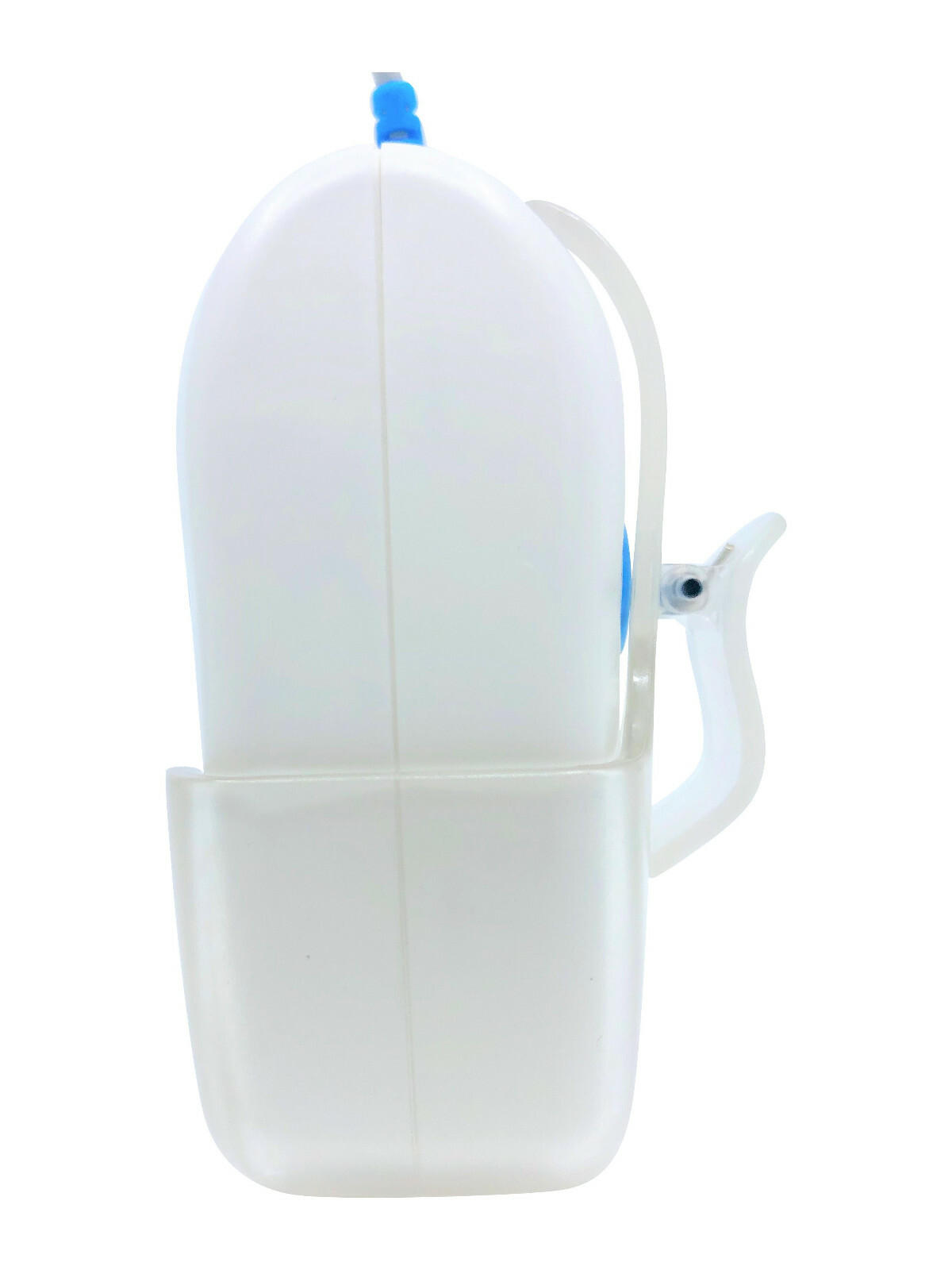

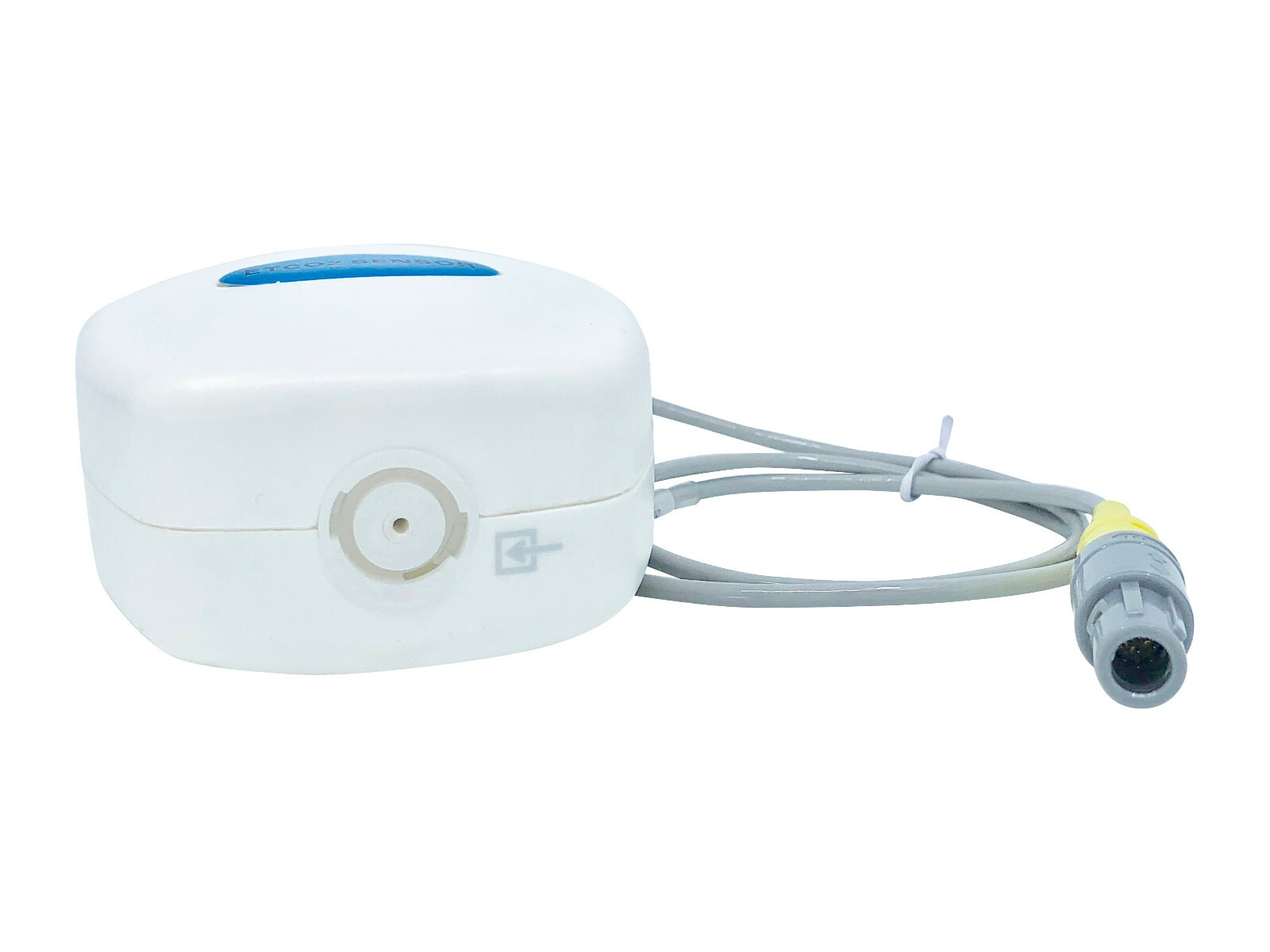

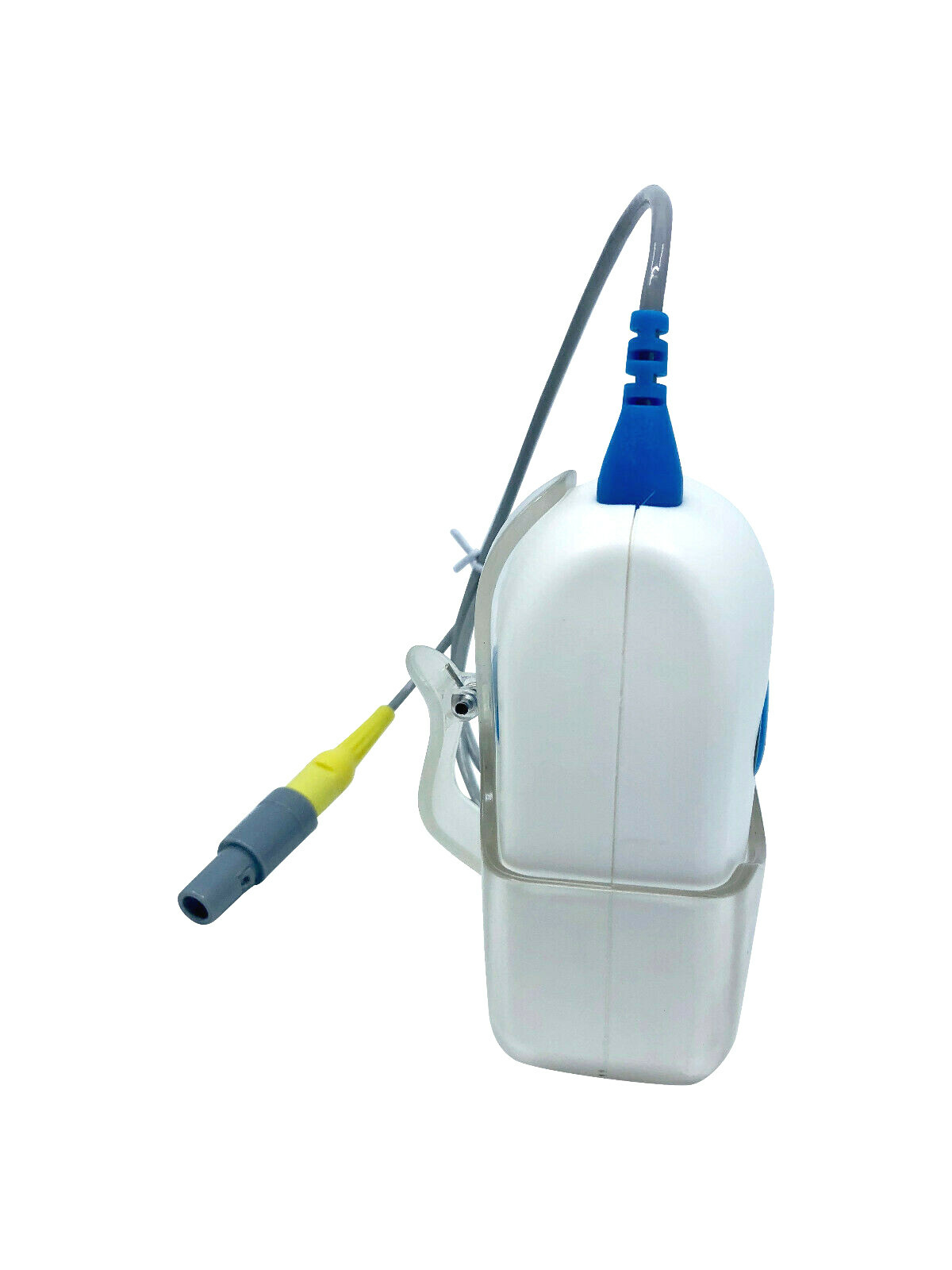

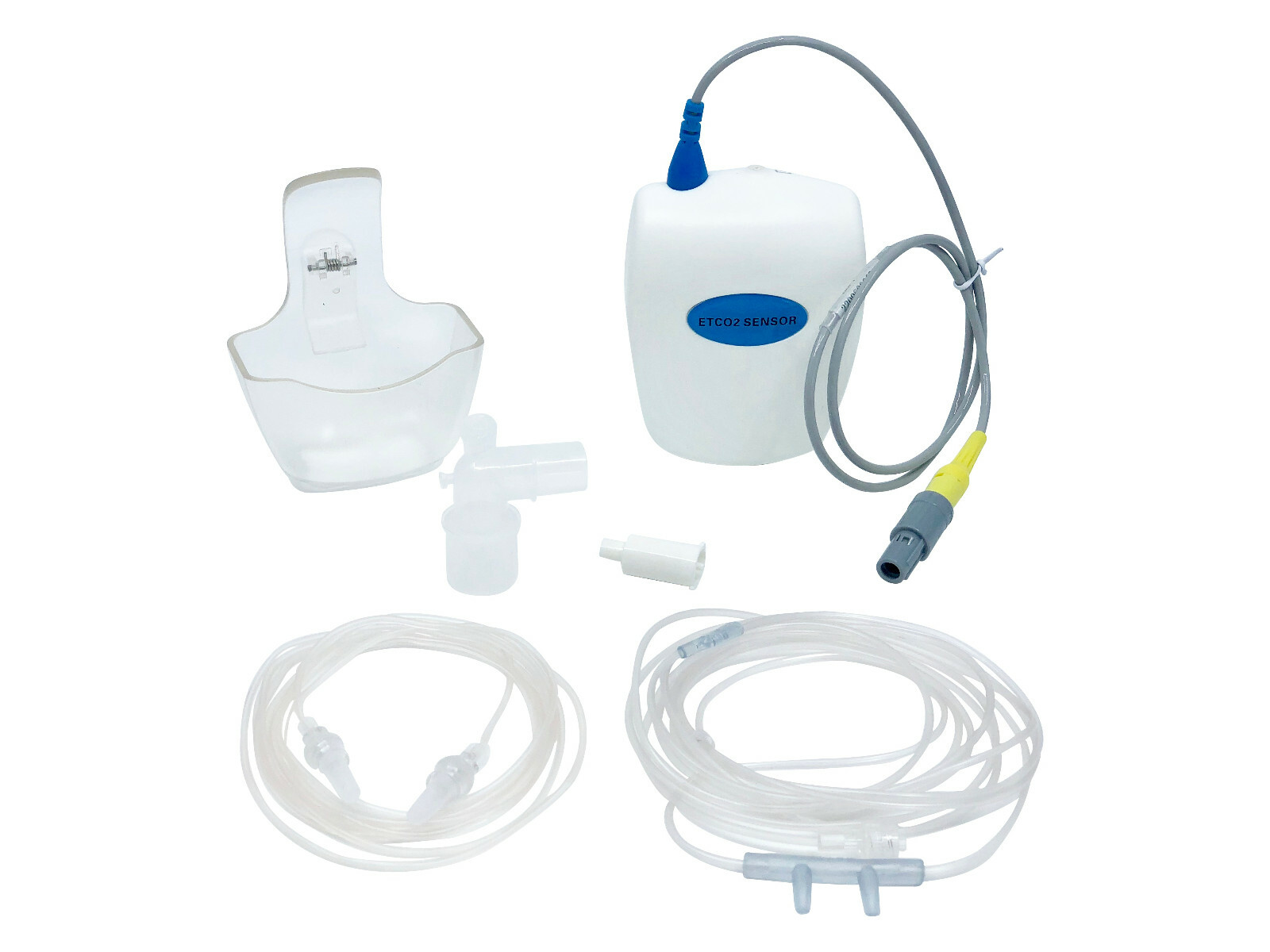

Check the listing for details. Sidestream EtCO2 Loflo Module End Tidal CO2 for Respironics Capnograph Monitor. Condition: New. Listed at 882.84 USD. Sidestream Capnography Module Respironics Loflo (REF 1022054) Compatible The item in this listing is factory new in packaging from an ISO certified facility. THIS LISTING INCLUDES Capnography Kit: nasal cannula reusable bullet filter sample line (male) clip case 1 Year Warranty PRODUCT INFORMATION Our sidestream module offers a field upgradeable "plug-and-play" option that measures real-time CO2 gas concentration (mmHg), End-tidal CO2 (EtCO2), Inspired CO2 (FiCO2), and Respiratory Rate (RR). This module uses a sampling rate method (50ml/min) that allows for both intubated and non-intubated applications. A reusable filter connects directly into the sample line to protect the internal components of the module from moisture and contamination. Low Cost.
