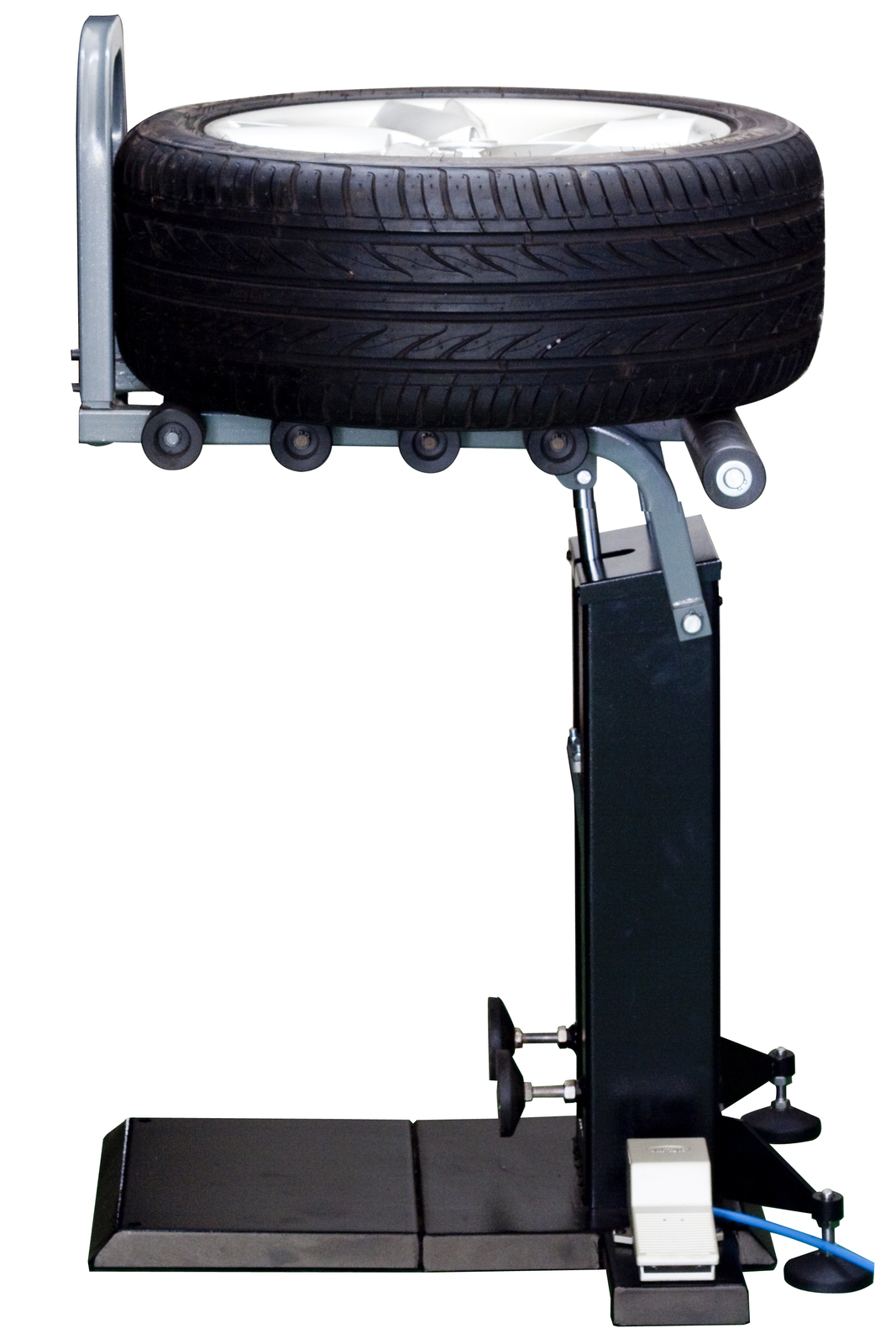

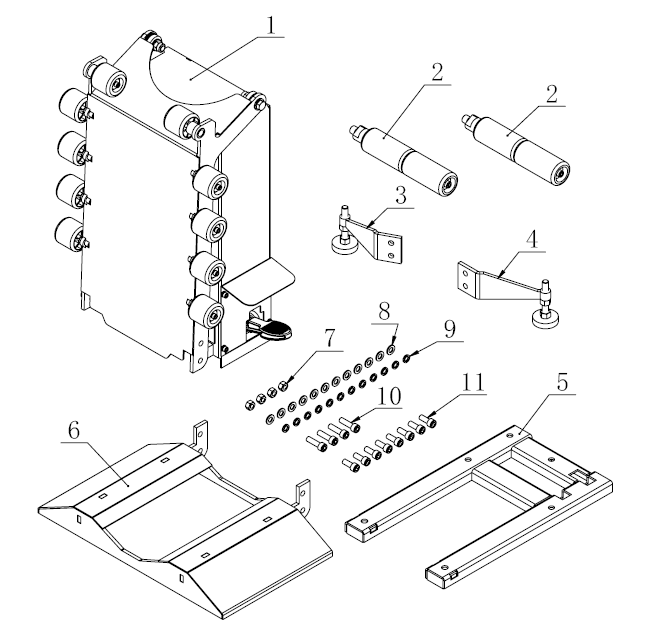

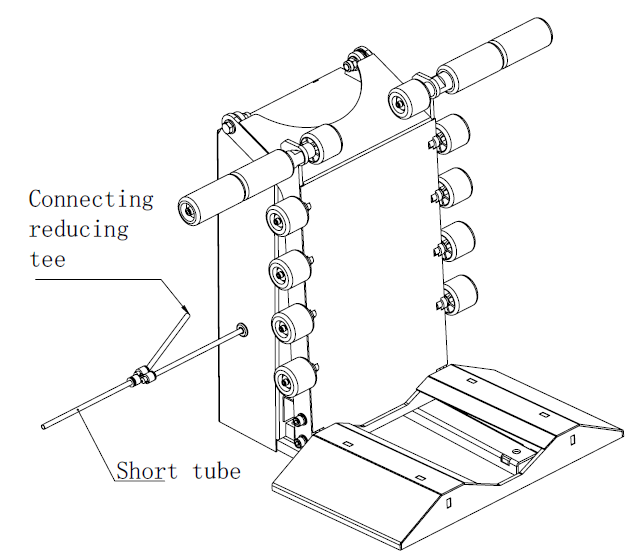

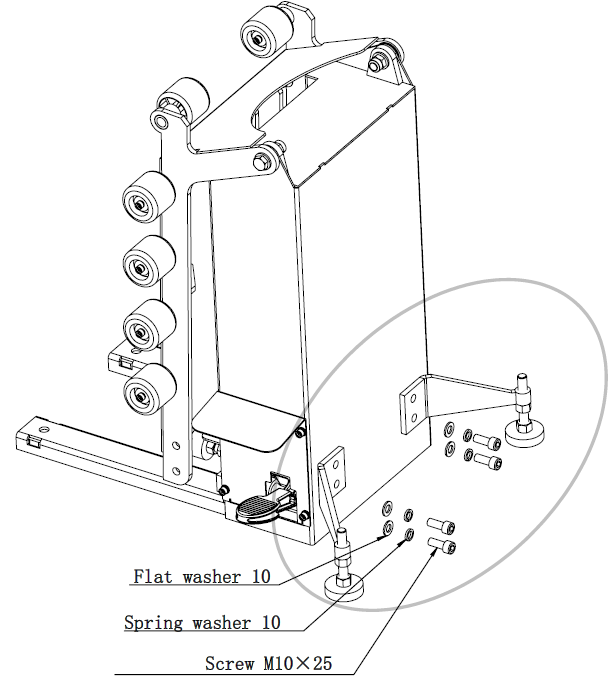

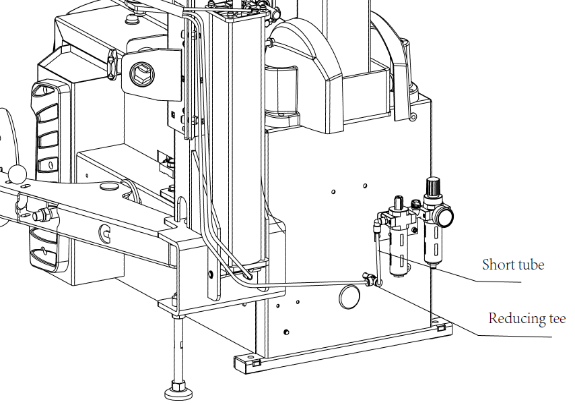

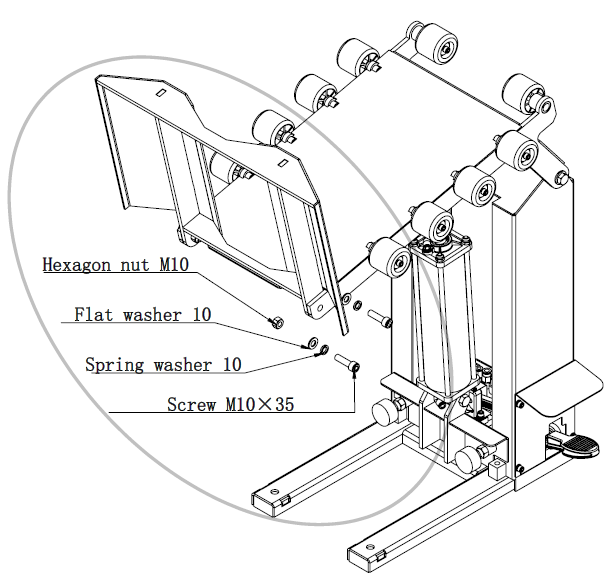

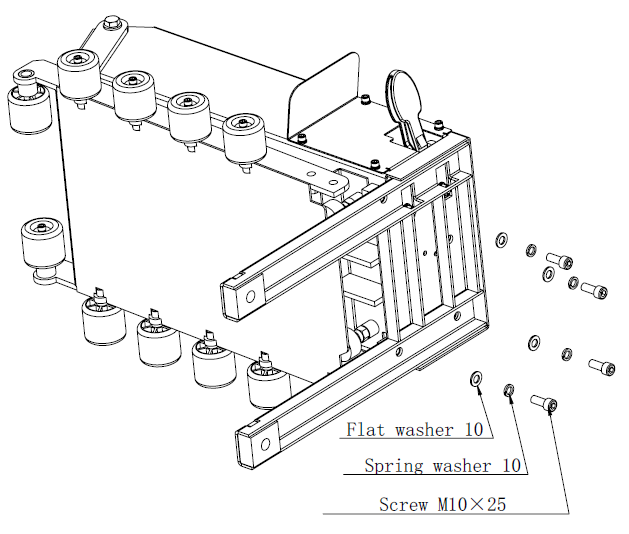

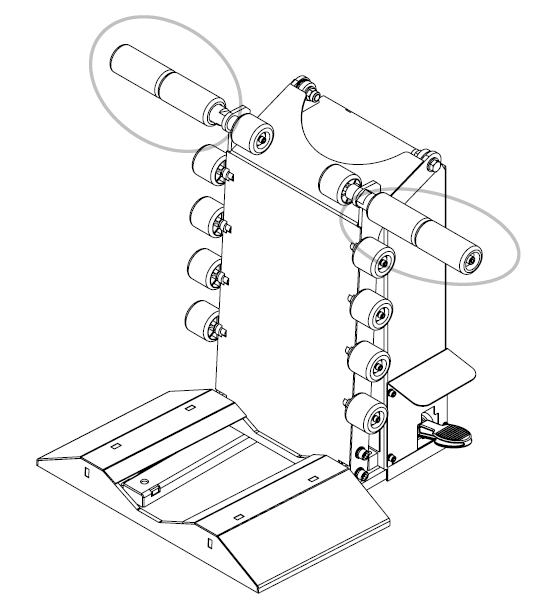

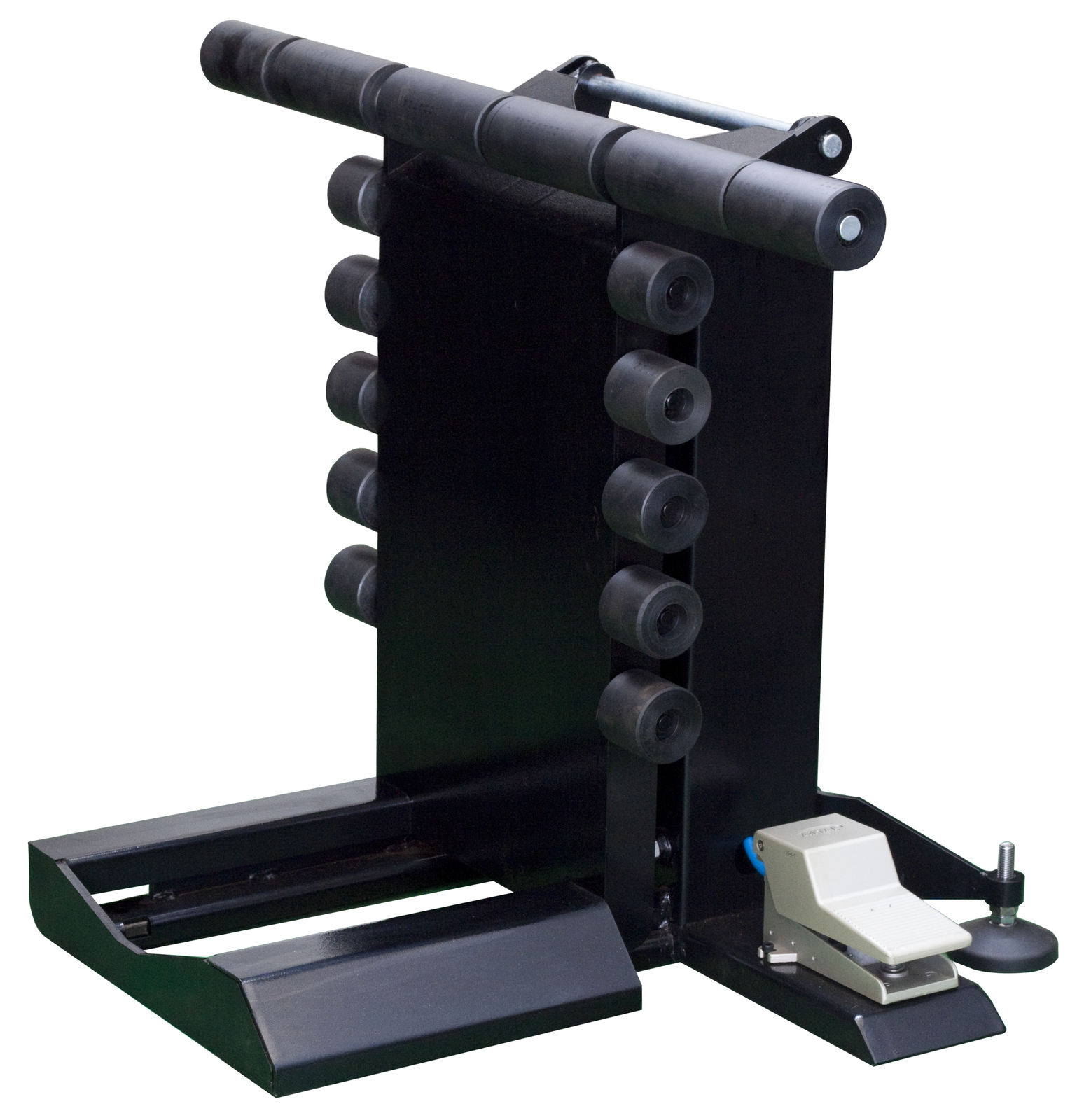

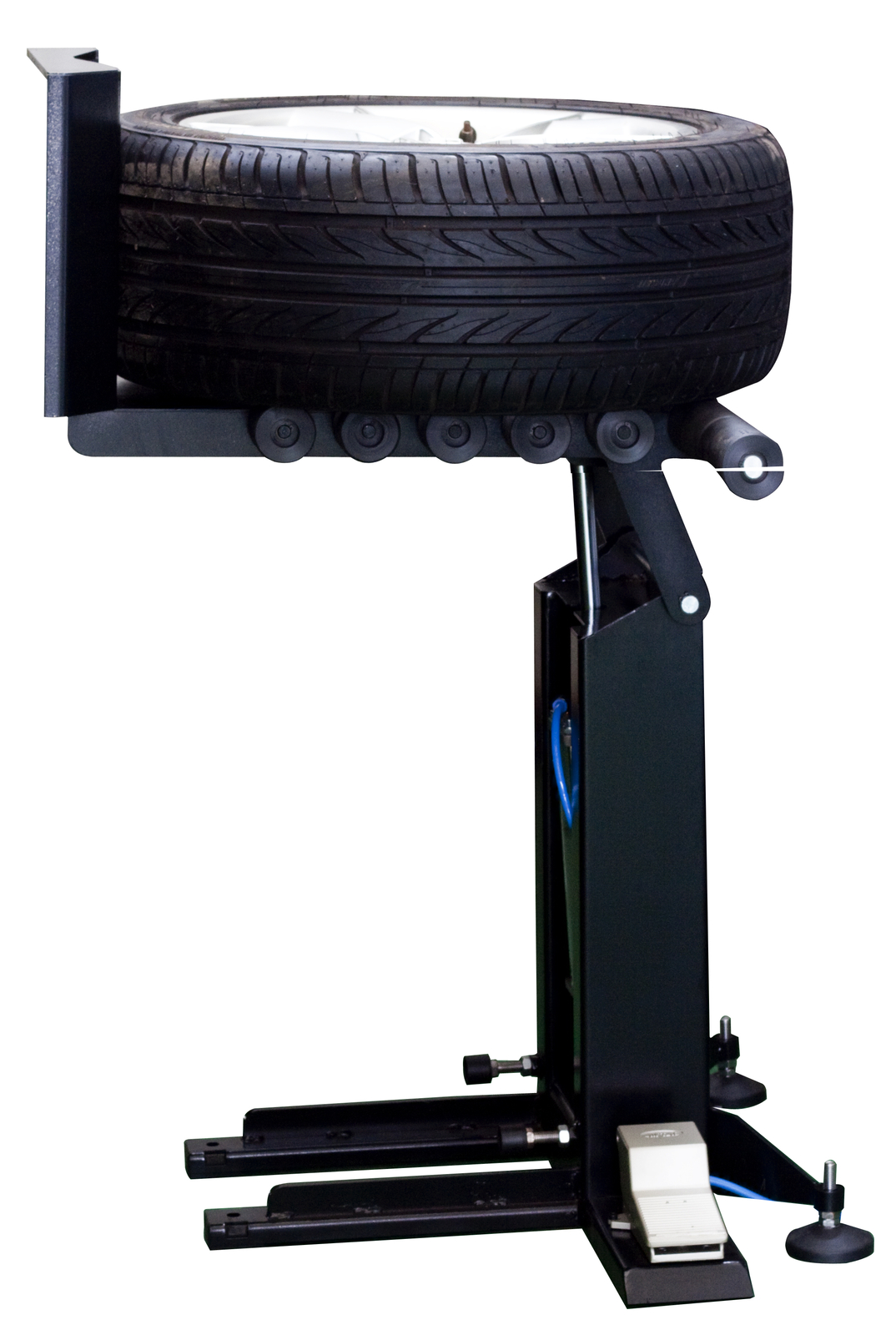

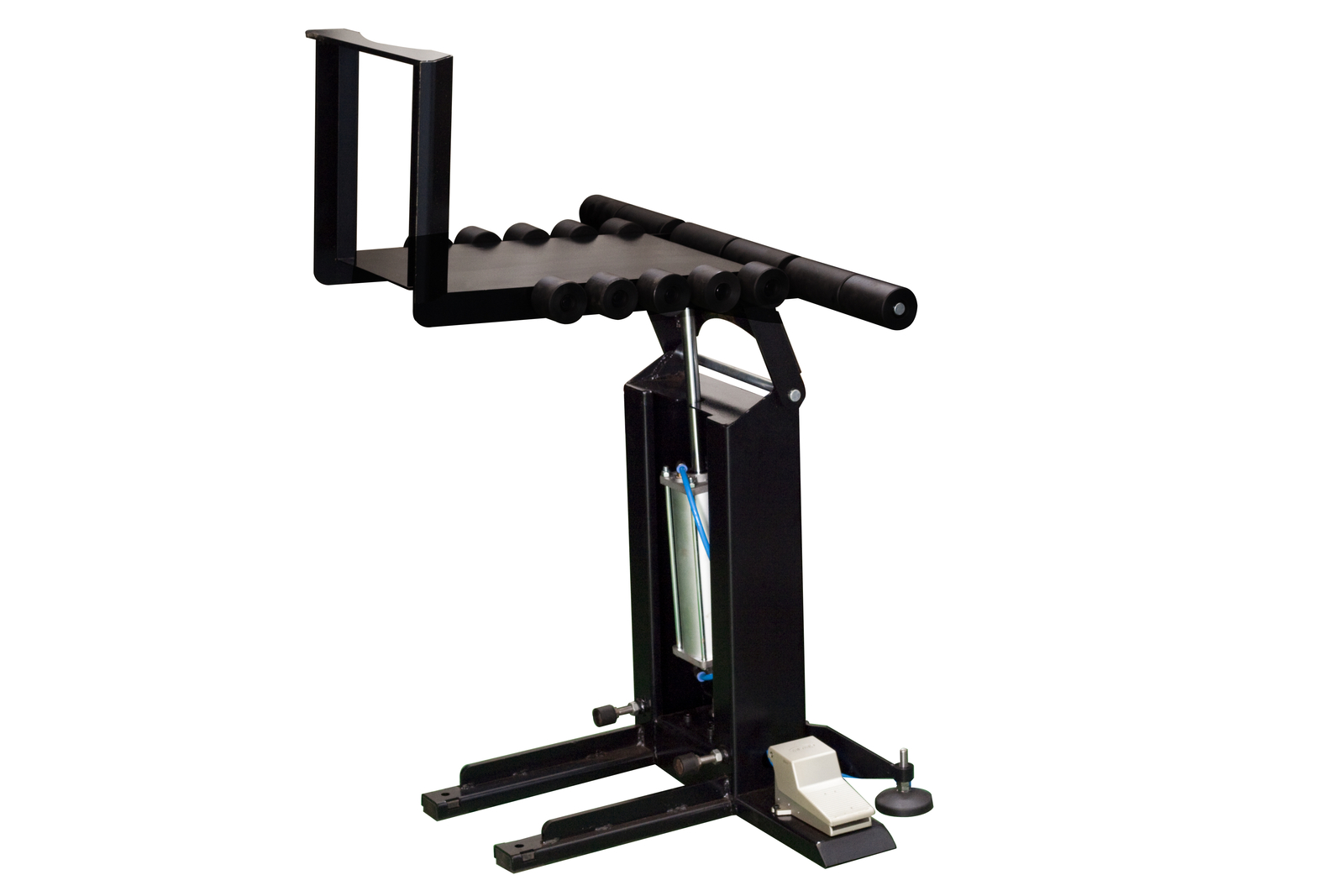

Check the listing for details. Universal Tire Changer Lift, Pneumatic Tyre Wheel Lifter for Tire Changers AA088. Condition: New. Listed at 359.10 USD. Universal Tire Changer Lift, Pneumatic Tyre Wheel Lifter for Tire Changers AA088 PRODUCT DESCRIPTION About this item This tire changer is made of sturdy iron, durable and sturdy to keep its shape. It provides stabilization and balance ideally under heavy wheels, makes work safe and convenient. The Pneumatic Tire Changer is an extremely efficient portable tire changing system that is a must have for any tire store. Suitable for both professional use and home garages, the Pneumatic Tire Changer does the job of dismantling at a fraction of the cost. Use this portable tire changer to quickly and easily remove and reinstall worn tires from rims. This Pneumatic tire changer requires no power connections to operate. Tire changer features all-steel construction for durability Max capacity : 75KGS;Max height : 740MM;Working : Pure pneumatic;Working pressure : 6-8KG/CM;Operating: two-position three-way foot valve control With versatile applications for car, motorcycle, and ATV tires. The installation steps are as follows: I Open the packing box, check according to the following product list, clean it for assembly 1. Main body of lifting frame 2. Long tire roller assembly (2 sets) 3. Left anchor assembly 4 Right anchor assembly 5. frame assembly 6. Bracket assembly 7. M10 hexagon nut (4 pieces) 8. Flat washer 10 (12 pieces) 9. Spring washer 10 (12 pieces) 10. M10×35 hexagon socket head cap screws (4 pieces) 11. M10×25 hexagon socket head cap screws (8 pieces) II install 1. Install the frame components As shown in Fig. 2, install the frame assembly (Fig. 1-5)Put it in the position shown in the figure, and then,Replace the M10×25 hexagon socket head cap screws. The spring pad and flat pad are assembled in corresponding positions.Tighten the screws to complete the installation FIG 1 2.Install the anchor assembly As shown in Fig. 3, install the left anchor assembly (Fig. 1-3) The right anchor assembly (fig.1-4) is shown on the right. Position, and then, put M10×25 hexagon socket.Head screws, spring pads and flat pads are assembled to the. Position, tighten the screws, and complete the installation. FIG 2 FIG 3 3. Install the bracket assembly. As shown in Figure 4, put the bracket assembly (Figure 1-6) Put it in the position shown, and then, M10×35 hexagon socket head cap screws, The spring pad and flat pad are assembled in corresponding positions, Tighten the screws to complete the installation. FIG 4 4. Install the long tire roller assembly. As shown in Figure 5, the long tire supporting roller.Components (Figure 1-2) are placed in the illustratedPosition, and then, tighten it with a wrench,Complete the installation. FIG 5 WARNING : Before installing PU pipe, the power supply and air supply of tire changer must be cut off! 5. As shown in Figure 6 and Figure 7, connect the PU pipe with.The tire changer and the air supply triplet are connected. FIG 6 FIG 7 III Connect the air source 1. Step on the pedal of the machine, the tire is raised, and then step on the pedal of the machine second time, the tire is lowered. 2. A speed control valve is installed on the air pipe of the cylinder, which can adjust the lifting and lowering speed of the tire. -------------------------- SHIPPING TERMS All items will be shipped to buyer's eBay address. Before you pay, please make sure your address in eBay matches the address you would like us to ship to. All items to domestic will be shipped with tracking information within 1-2 working days(except weekend and holiday) upon receipt of payment.In most cases, shipping to domestic takes 3-7 business days. We try our best to provide you the most reliable, affordable way of shipping service. But sometimes delivery is highly depended on the local customs and post service. If you do not receive your item on time, please contact us immediately for further assistance. We will be responsible for any damages or losses incurred in the shipping process. There is no local pickup service, no third party shipping carrier will be used. listings with shipping and handling charge: the charge covers mailing, packing, warehouse and distribution costs, not postage only. -------------------------- RETURN If any item is defective upon receipt, please contact us for the return address, return is accepted within 30 days after the buyer receiving the item. Returned item has to be in its original condition. After receiving the return we will make a replacement depends on our available stock, if not available, a refund will be issued. -------------------------- CONTACT US We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response. About item:For the functional products in our shop, we make sure that the functions are the same as description, but the actual color and shape may looks a little different from pictures because of the technical improvement and manufacturing variance. Please be advised before you bid. .Universal Tire Changer Lift, Pneumatic Tyre Wheel Lifter for Tire Changers AA088 PRODUCT DESCRIPTION About this item This tire changer is made of sturdy iron, durable and sturdy to keep its shape. It provides stabilization and balance ideally under heavy wheels, makes work safe and convenient. The Pneumatic Tire Changer is an extremely efficient portable tire changing system that is a must have for any tire store. Suitable for both professional use and home garages, the Pneumatic Tire Changer does the job of dismantling at a fraction of the cost. Use this portable tire changer to quickly and easily remove and reinstall worn tires from rims. This Pneumatic tire changer requires no power connections to operate. Tire changer features all-steel construction for durability Max capacity : 75KGS;Max height : 740MM;Working : Pure pneumatic;Working pressure : 6-8KG/CM;Operating: two-position three-way foot valve control With versatile applications for car, motorcycle, and ATV tires. The installation steps are as follows: I Open the packing box, check according to the following product list, clean it for assembly 1. Main body of lifting frame 2. Long tire roller assembly (2 sets) 3. Left anchor assembly 4 Right anchor assembly 5. frame assembly 6. Bracket assembly 7. M10 hexagon nut (4 pieces) 8. Flat washer 10 (12 pieces) 9. Spring washer 10 (12 pieces) 10. M10×35 hexagon socket head cap screws (4 pieces) 11. M10×25 hexagon socket head cap screws (8 pieces) II install 1. Install the frame components As shown in Fig. 2, install the frame assembly (Fig. 1-5)Put it in the position shown in the figure, and then,Replace the M10×25 hexagon socket head cap screws. The spring pad and flat pad are assembled in corresponding positions.Tighten the screws to complete the installation FIG 1 2.Install the anchor assembly As shown in Fig. 3, install the left anchor assembly (Fig. 1-3) The right anchor assembly (fig.1-4) is shown on the right. Position, and then, put M10×25 hexagon socket.Head screws, spring pads and flat pads are assembled to the. Position, tighten the screws, and complete the installation. FIG 2 FIG 3 3. Install the bracket assembly. As shown in Figure 4, put the bracket assembly (Figure 1-6) Put it in the position shown, and then, M10×35 hexagon socket head cap screws, The spring pad and flat pad are assembled in corresponding positions, Tighten the screws to complete the installation. FIG 4 4. Install the long tire roller assembly. As shown in Figure 5, the long tire supporting roller.Components (Figure 1-2) are placed in the illustratedPosition, and then, tighten it with a wrench,Complete the installation. FIG 5 WARNING : Before installing PU pipe, the power supply and air supply of tire changer must be cut off! 5. As shown in Figure 6 and Figure 7, connect the PU pipe with.The tire changer and the air supply triplet are connected. FIG 6 FIG 7 III Connect the air source 1. Step on the pedal of the machine, the tire is raised, and then step on the pedal of the machine second time, the tire is lowered. 2. A speed control valve is installed on the air pipe of the cylinder, which can adjust the lifting and lowering speed of the tire. -------------------------- SHIPPING TERMS All items will be shipped to buyer's eBay address. Before you pay, please make sure your address in eBay matches the address you would like us to ship to. All items to domestic will be shipped with tracking information within 1-2 working days(except weekend and holiday) upon receipt of payment.In most cases, shipping to domestic takes 3-7 business days. We try our best to provide you the most reliable, affordable way of shipping service. But sometimes delivery is highly depended on the local customs and post service. If you do not receive your item on time, please contact us immediately for further assistance. We will be responsible for any damages or losses incurred in the shipping process. There is no local pickup service, no third party shipping carrier will be used. listings with shipping and handling charge: the charge covers mailing, packing, warehouse and distribution costs, not postage only. -------------------------- RETURN If any item is defective upon receipt, please contact us for the return address, return is accepted within 30 days after the buyer receiving the item. Returned item has to be in its original condition. After receiving the return we will make a replacement depends on our available stock, if not available, a refund will be issued. -------------------------- CONTACT US We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response. About item:For the functional products in our shop, we make sure that the functions are the same as description, but the actual color and shape may looks a little different from pictures because of the technical improvement and manufacturing variance. Please be advised before you bid. .
