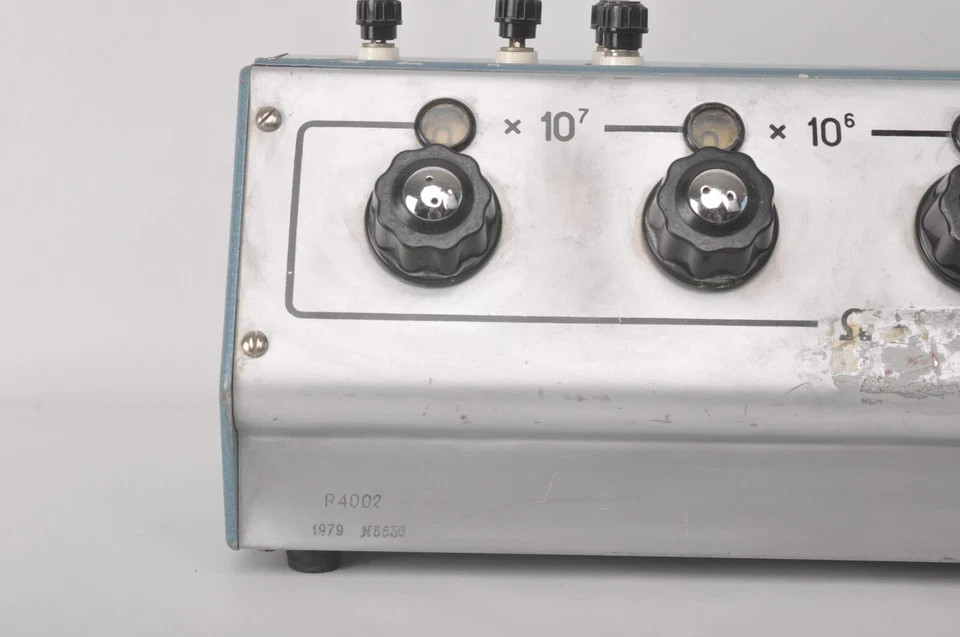

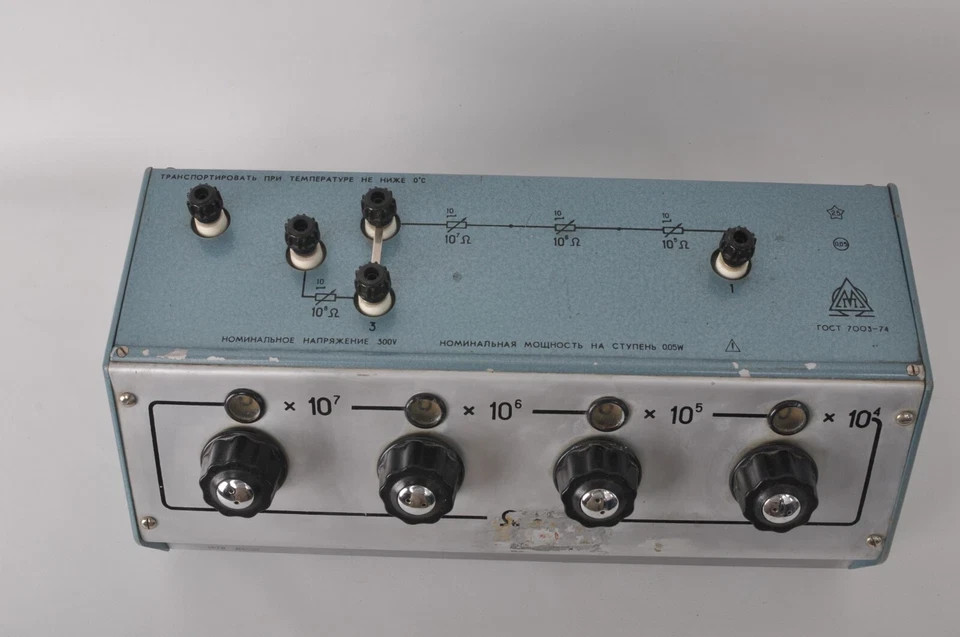

0.01-10 MOhm 0.05% P4002 Decade Resistance

Name: 0.01-10 MOhm 0.05% P4002 Decade Resistance
SKU: 358310571670
Price: 59.00 USD
Availability: InStock

$29.50

$59.00 -50%

Brand Unbranded

Condition Used

Item ID 358310571670

Brand	Unbranded
Decade Box Type	Resistance

Check the listing for details. 0.01-10 MOhm 0.05% P4002 Decade Resistance. Condition: Used. Listed at 59.00 USD. Nominal resistance of the step: 10 kOhm; 100 kOhm; 1 MOhm; 10 MOhm. ∙ High Accuracy class: 0.05%. ∙ Number of decades: 4. ∙ Number steps of decade: 3. ∙ Maximum power: 0.05 W. ∙ Nominal voltage: 0.3 kV. ∙ Insulation resistance: - for decade 10 MOhm - 2 TOhm; - for other decades - 200 GOhm. ∙ Ambient temperature: + 10 ° C to + 30 ° C (283 K to 303 K). ∙ Relative humidity: 25 to 80%. ∙ Atmospheric pressure: 650 to 800 mm Hg (86 to 106 kPa).
