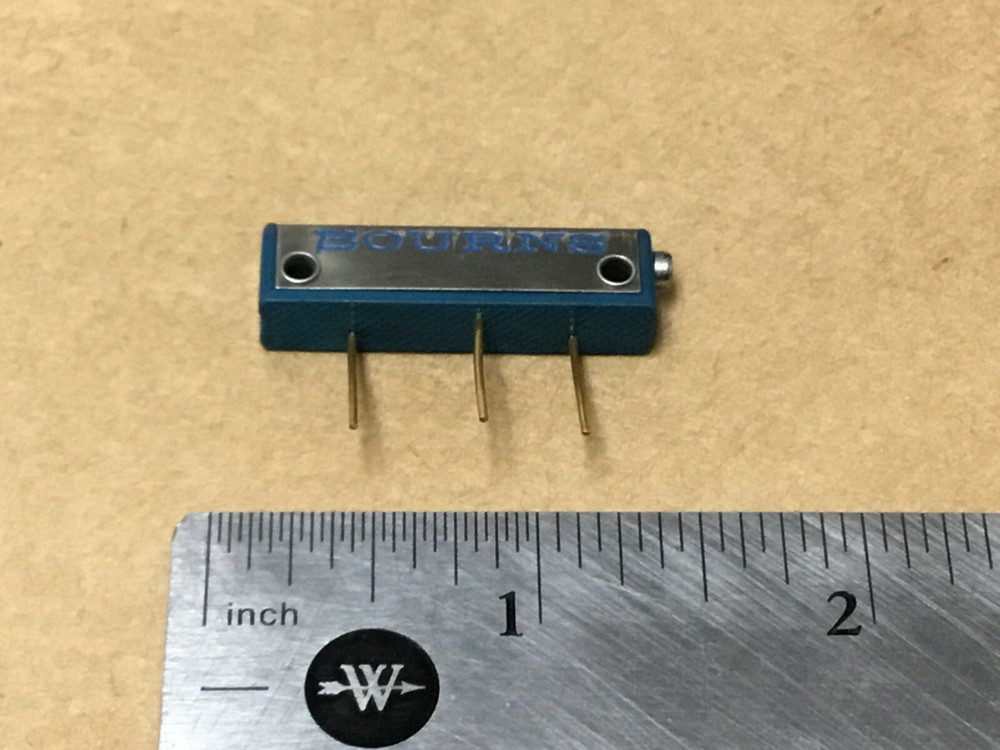

Check the listing for details. (1 PC) BOURNS 260P1-102 Wirewound Variable Resistor Trimmer. Condition: New – Open box. Listed at 7.95 USD. (1 PC) BOURNS 260P1-102 Wirewound Variable Resistor Trimmer NSN# 5905-00-808-4592 NEW OLD STOCK LOT 20078 CJ27 Characteristic Specifications SECTION QUANTITY 1 ELECTRICAL RESISTANCE PER SECTION 1.000 KILOHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT -10.0 TO 10.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION A SINGLE SECTION MAXIMUM STARTING TORQUE 7.50 INCH-OUNCES TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS -50.0 TO 50.0 SINGLE SECTION POWER DISSIPATION RATING PER SECTION IN WATTS 1.0 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER 70.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER 175.0 SINGLE SECTION BODY STYLE 26B RECTANGULAR W/MOUNTING HOLES/SLOTS BODY LENGTH 1.234 INCHES MINIMUM AND 1.266 INCHES MAXIMUM BODY WIDTH 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM BODY HEIGHT 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM ACTUATOR TYPE SINGLE SHAFT SHAFT STYLE 3C ROUND, SLOTTED SHAFT DIAMETER 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM SHAFT LENGTH 0.046 INCHES MINIMUM AND 0.204 INCHES MAXIMUM ROTARY ACTUATOR TRAVEL IN ANGULAR DEG 9000.0 NOMINAL ACTUATOR TRAVEL CONTROL FEATURE CONTINUOUS MOTION MOUNTING METHOD TERMINAL AND UNTHREADED HOLE MOUNTING FACILITY QUANTITY 2 MOUNTING HOLE DIAMETER 0.086 INCHES MINIMUM TERMINAL TYPE AND QUANTITY 3 PIN CENTER TO CENTER DISTANCE BETWEEN TERMINALS 0.690 INCHES MINIMUM AND 0.710 INCHES MAXIMUM CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM TERMINAL LENGTH 0.484 INCHES MINIMUM AND 0.516 INCHES MAXIMUM TERMINAL LOCATION LOWER ADJACENT SIDE SINGLE ROW CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS 0.100 INCHES NOMINAL RELIABILITY INDICATOR NOT ESTABLISHED III OVERALL LENGTH 1.208 INCHES MINIMUM AND 1.218 INCHES MAXIMUM III OVERALL HEIGHT 0.780 INCHES MINIMUM AND 0.844 INCHES MAXIMUM III OVERALL WIDTH 0.343 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
