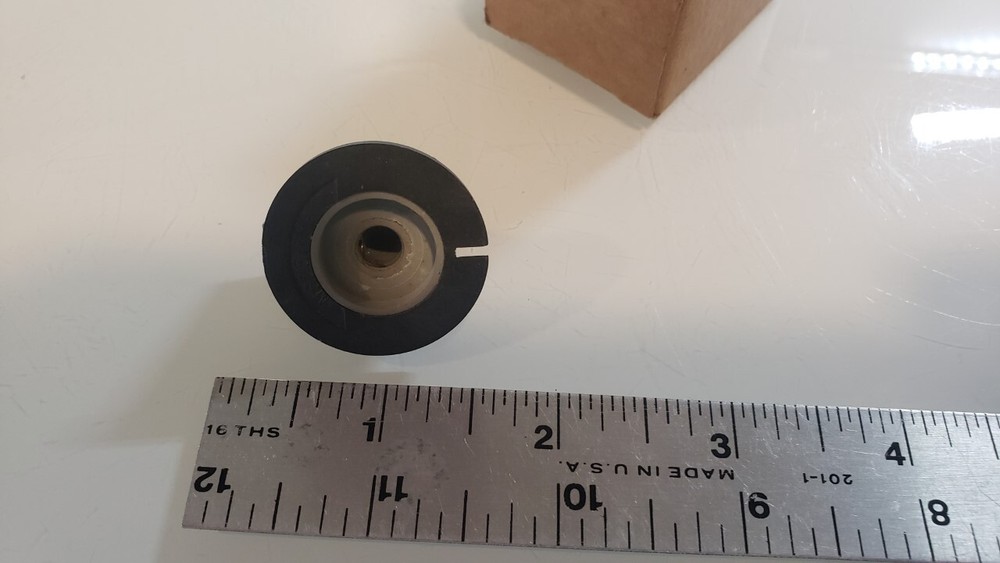

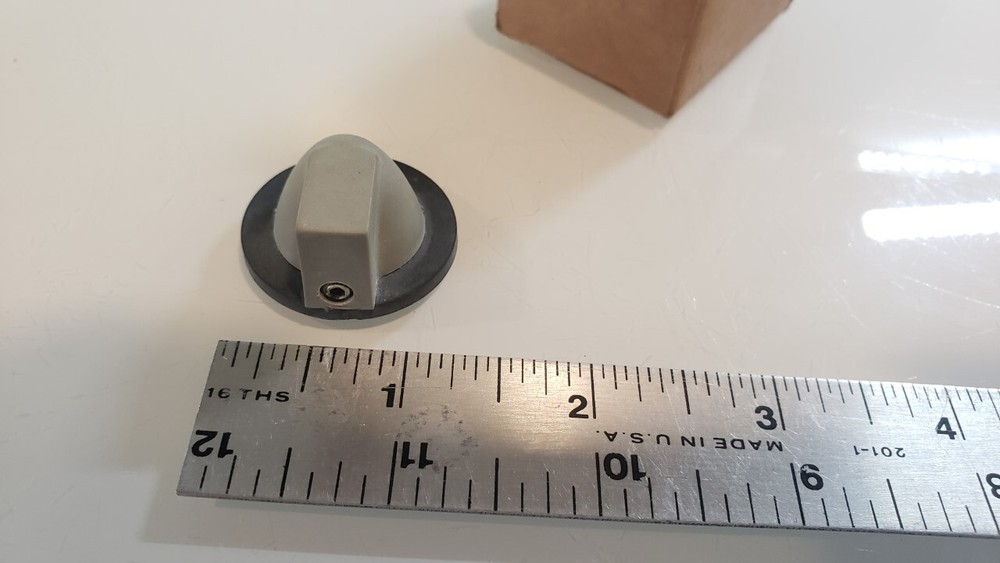

Check the listing for details. (10) KORRY ELECTRONICS KNOBS MS25169-2 5355-00-818-6359. Condition: New. Listed at 50.00 USD. TECHNICAL CHARACTERISTICS - FLIS -------------------------------- NSN: 5355-00-957-0040 INC: 03263 FIIG: A530M0 ITEM NAME: KNOB DEFINITION: An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). CHARACTERISTIC VALUE INSIDE DIAMETER 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM SETSCREW HOLE QUANTITY 1 DISTANCE FROM HOLE CENTER 0.250 INCHES NOMINAL TO KNOB/SKIRT BASE OVERALL DEPTH 0.500 INCHES NOMINAL WIDTH 0.875 INCHES NOMINAL GRIPPING SURFACE CONDITION SMOOTH SHAFT ACCOMMODATION STYLE FLATTED ONE SIDE LENGTH 1.500 INCHES NOMINAL SKIRT STYLE FLARED REFERENCE MARKING SLOT AND LINE ATTACHMENT METHOD SETSCREWS INSIDE WIDTH 0.222 INCHES MINIMUM AND 0.224 INCHES MAXIMUM OVERALL THICKNESS 0.688 INCHES NOMINAL SCREW DRIVE TYPE SLOT THREAD QUANTITY PER INCH 32 SCREW HOLE NOMINAL THREAD SIZE 0.164 INCHES SCREW HOLE SKIRT OUTSIDE DIAMETER 1.250 INCHES NOMINAL SKIRT DESIGN DETACHABLE DEFINITIVE GOVERNMENT MS25169P2A SPEC/STD REFERENCE SPEC/STD CONTROLLING DATA 96906 MANUFACTURERS CODE STYLE DESIGNATOR ROUND WITH BAR LEVER THREAD SERIES DESIGNATOR UNC SCREW HOLE
