| Value | 1K ohm |
|---|---|
| Quantity Unit Pack | 1 Pcs |
| Brand | Unbranded |
| Type | Multi Turn Potentiometer |
| Resistance Rating | 1 kΩ ~ 100 kΩ |
| Number of Turns | 10 |
| Termination Style | Pin |
| Mounting Style | PCB Mount |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | 125 °C |
| Tolerance Rating | ±5 % |
| Duty Cycle | No |
| Material | / |
| Power Rating | 2 W |
| Series | 3590S-2 |
| Item Diameter | 4 mm |
| Model | Potentiometer 3590S Wirewound |
| Item Length | 40 mm |
| Item Width | 22 mm |
| Item Height | 40 mm |
| Country/Region of Manufacture | China |

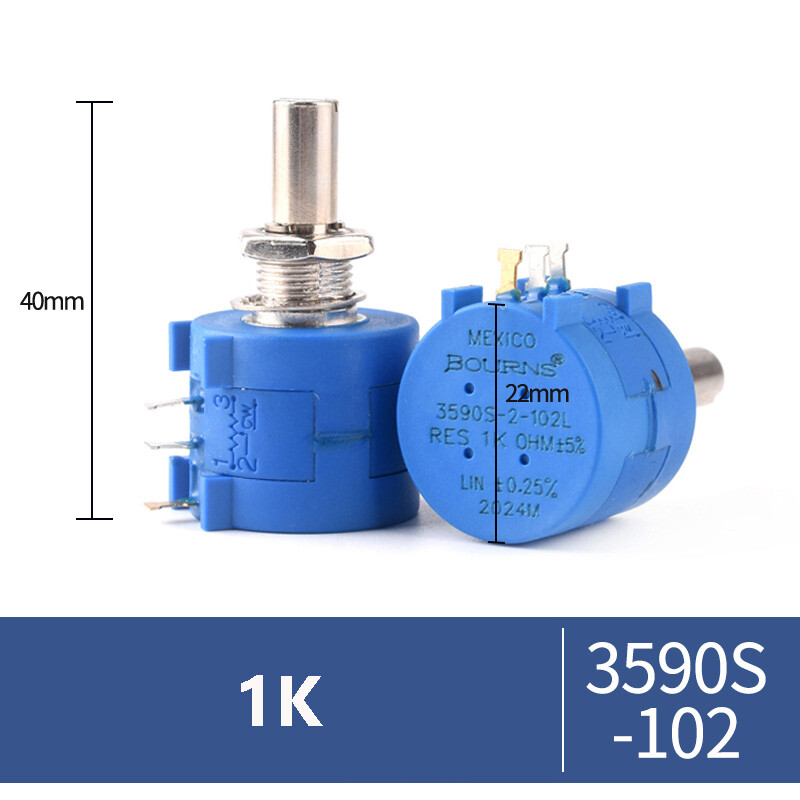

Check the listing for details. 10 Turn Potentiometer 3590S Wirewound Variable Resistor Precision Multi-turn POT. Condition: New. Listed at 2.96 USD. Allowable deviation of resistance value: ≧5%. Rotation noise: ≤3%R or 3Ω. Temperature variation: ∆R≤s2%R,A(Uab / Uac)≤s1%. Nominal resistance range: 100Ω-100KΩ. Insulation resistance: R1≥1GΩ. Effective electrical travel: ≥3600° -10°.
You may also like
$2.79
Lot of Xicon 100K Ohm Trimmer Resistor 1/3 Watt 6mm 20% Tolerance Metal Film Pot
$75
SERVO VARIABLE RESISTOR PART # 741-6230 NSN: 5905-00-985-3753
$5.49
RV097NS Single Double Potentiometer 5 10 20 50 100K With ON/OFF Switch 3 - 8 Pin
$15.99
CLAROSTAT 50 OHM 4 WATT WIREWOUND POTENTIOMETER f/ AUDIO / TELEVISION
$19.99
Ibanez Bass Preamp PHAT 2 EQ with B20K pot active bass boost 3EQ1MC0007 Phat II
$6
PIHER PT15LD50K OR PT15WB50K 50K OHM TRIMMER TRIM POT - LOT OF 5 POTENTIOMETERS
$6.94
5Pcs B10K 10K WH148 5 Pins Potentiometer with Switch Shaft 20mm 5 Pin
$631
Liebherr -Werk 6351 009 14 SPF5 Precision Potentiometer Liebherr 635100914 NEW#
$7.99
Lot 5 New Switch Co Rotary Switches? Potentiometers? D Shaft BOI-2-36, B01-2-36
$36.09

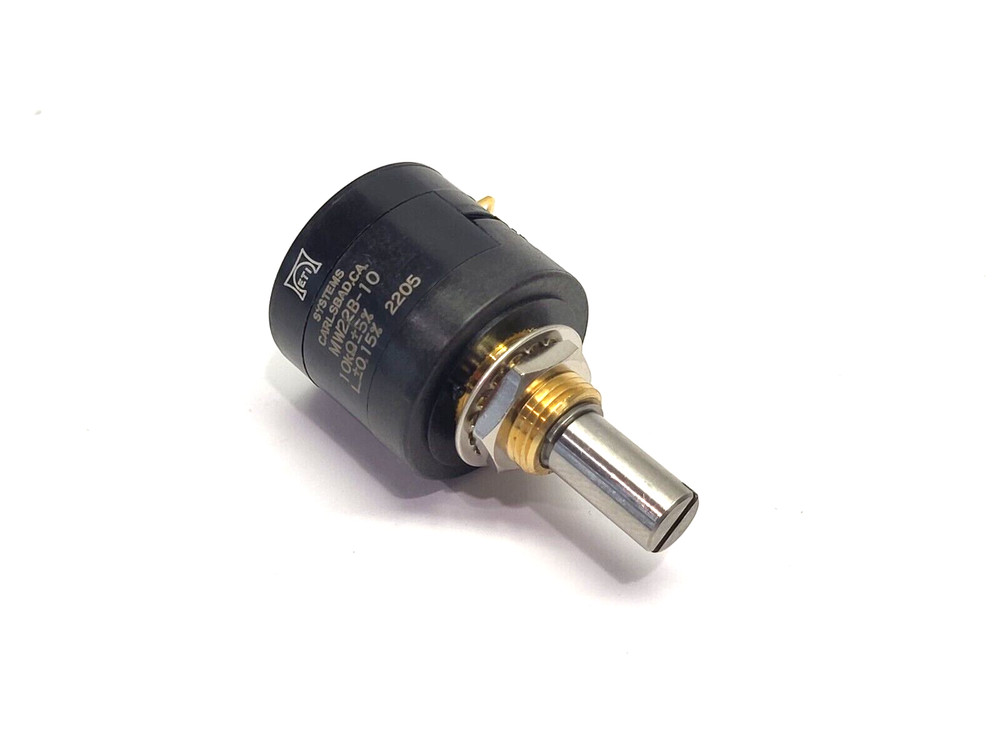

ETI Systems MW22B-10 Potentiometer
