| Current Rating | 100 Amps |
|---|---|
| Number of Items | 1 |
| Item Dimensions | 4 x 3.1 x 5.6 inches |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| Material Type | Copper |
| Terminal | Screw |
| Operating Voltage | 110 Volts |
| Contact Material | Copper |
| Specification Met | CCC, CE, UL |
| Number of Positions | 1 |
| Unit Count | 1.0 Count |
| Lower Temperature Rating | 24.8 Degrees Fahrenheit |
| Material | Copper |
| Circuit Type | 2-way |
| Included Components | 1PCS*ATS W2R 2P 100A AC110V+4PCS* Accessory cable+1PCS*Instructio |
| Item dimensions L x W x H | 4 x 3.1 x 5.6 inches |
| Connector Type | Plug In |
| Model | ATS W2R 2P 100A 110V |
| Mounting Type | DIN Rail Mount |
| Operation Mode | ON-ON-ON |
| Contact Type | Normally Open |
| Switch Type | Toggle |
| Size | ATS 2P 100A AC110V |
| UPC | 726084687981 |

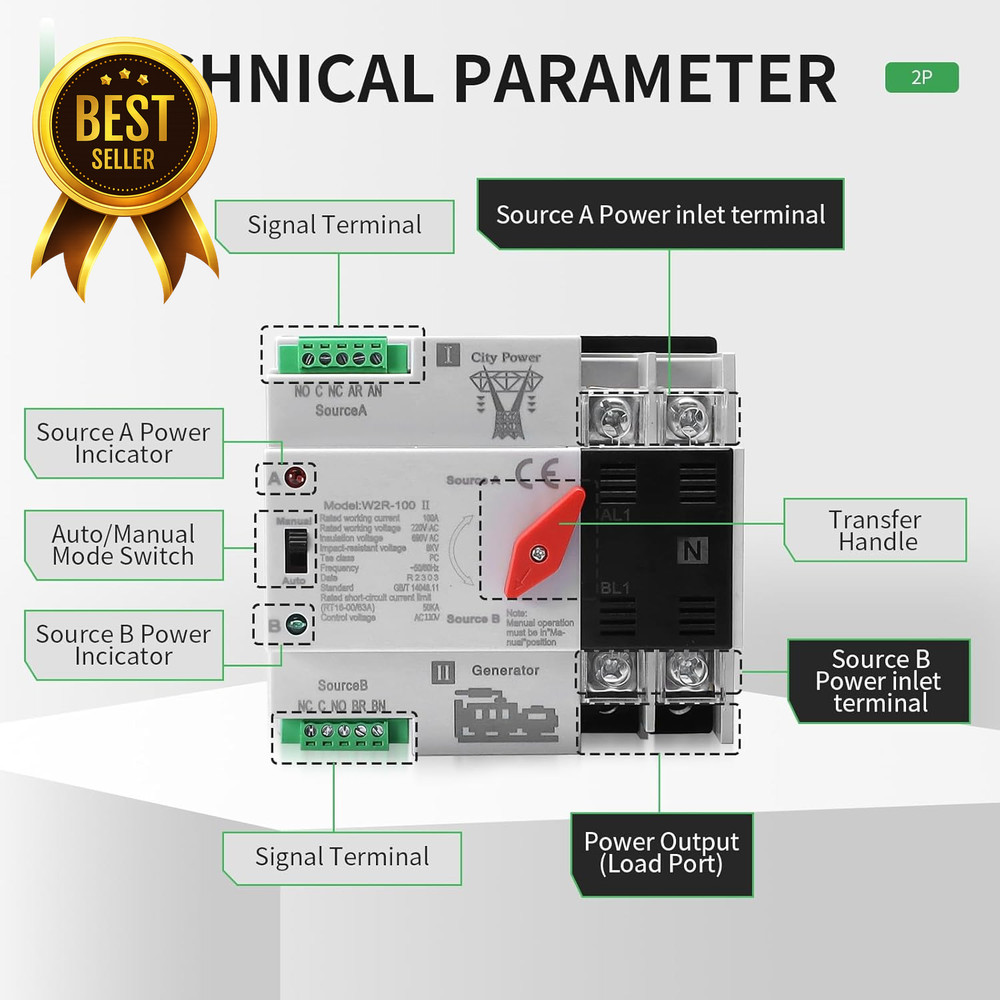

Check the listing for details. 100A Automatic Transfer Switch 2 Pole 110V Dual Power ATS Din Rail Generator. Condition: New. Listed at 50.01 USD. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 100A. Suitable for indoor and outdoor generators. Automatic Mode: ac 110v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A.
