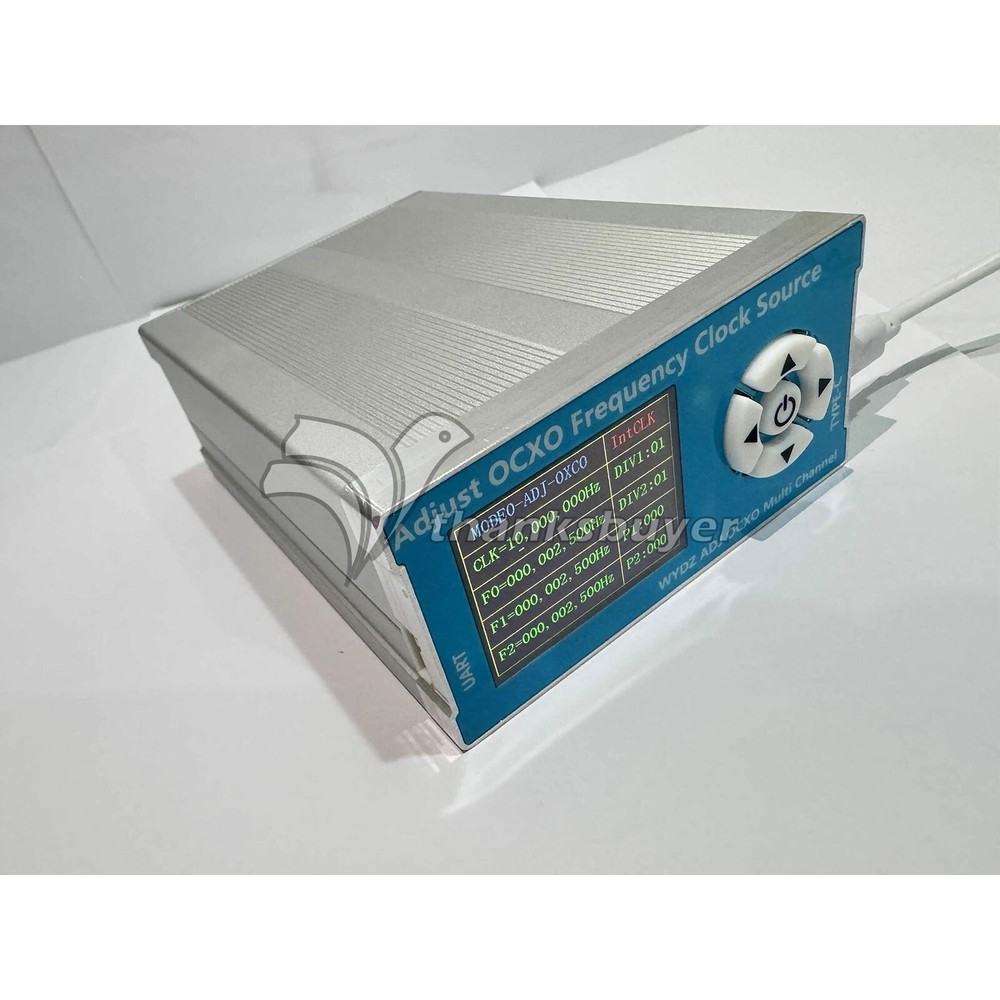

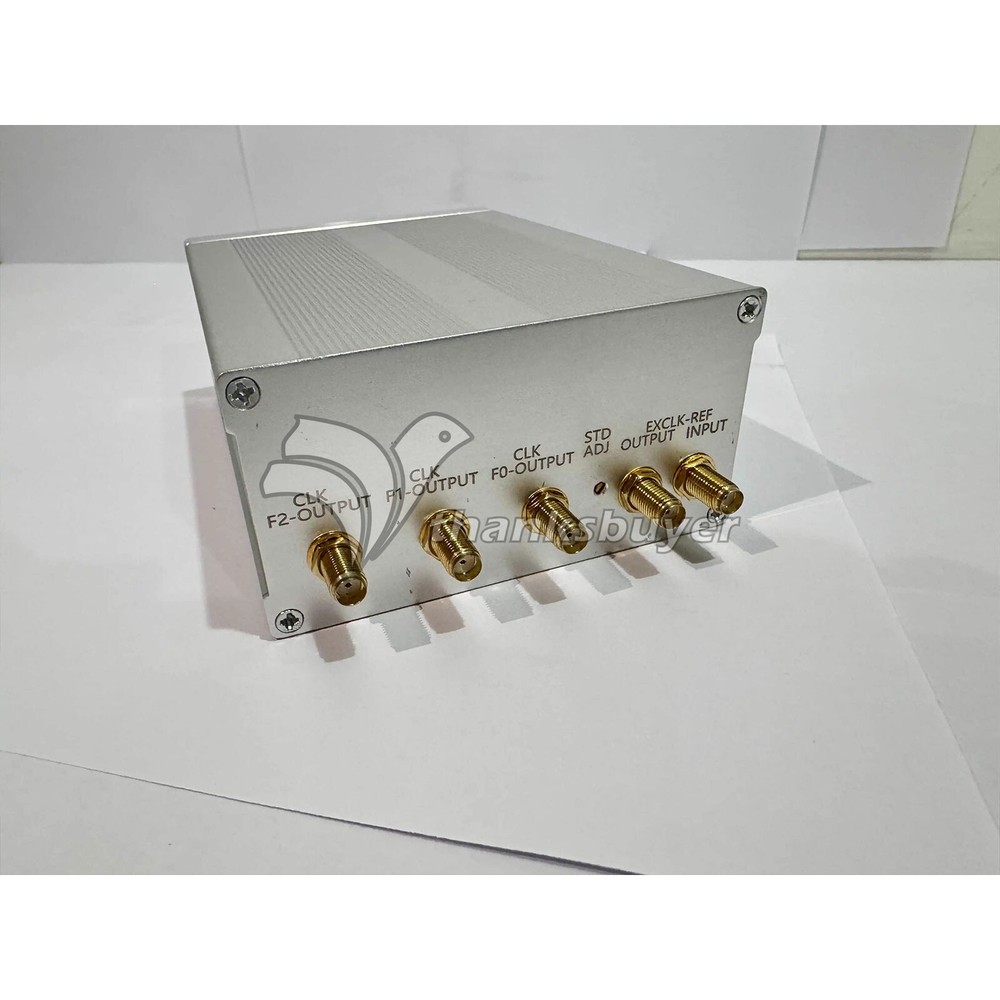

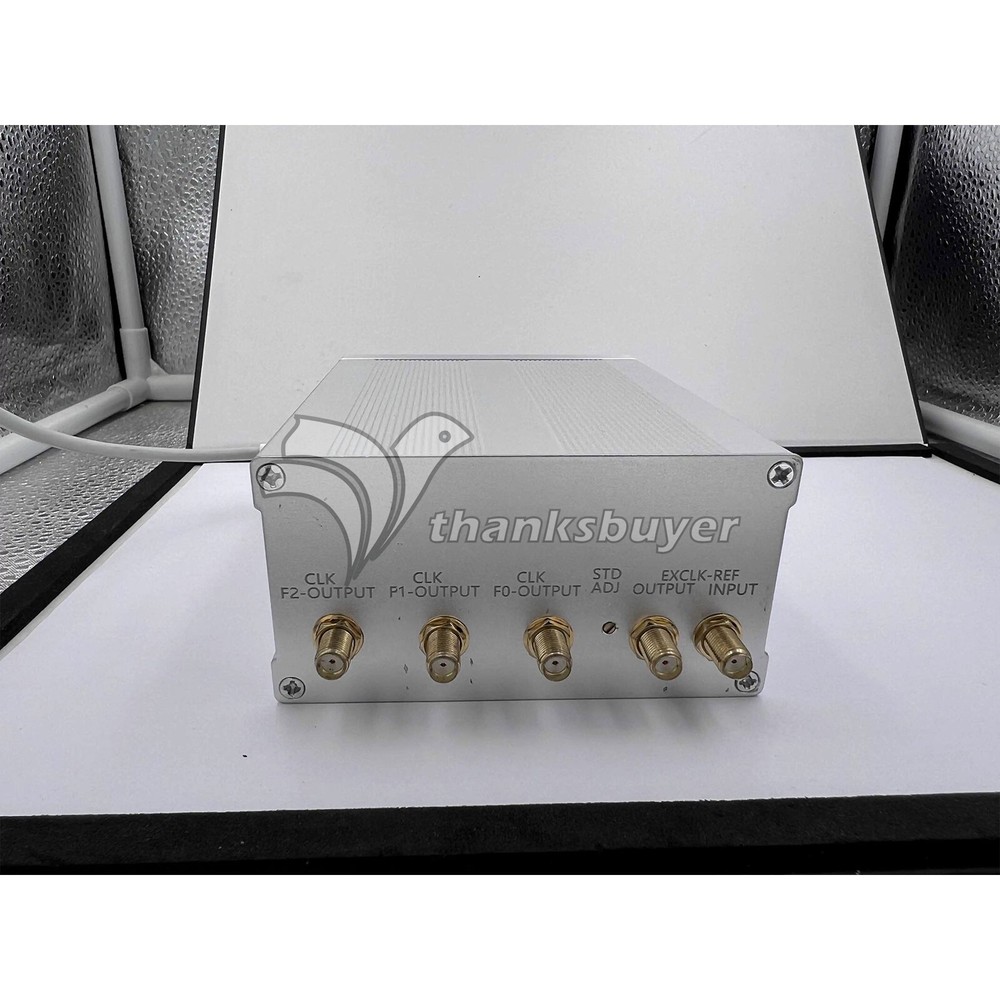

Check the listing for details. 10M 0.1ppm OCXO Adjustable Frequency Standard 2.5K-200M Clock Source Module tp1. Condition: New. Listed at 94.33 USD. Description 10M 0.1ppm OCXO Adjustable Frequency Standard 2.5K-200M Clock Source Module w/ SMA Female Connectors Clock Source Parameters: 1. Frequency range: 2500Hz-200MHz 2. Amplitude-peak-to-peak: MODE0: * F0: 3.21Vpp * F1: 3.23Vpp * F2: 3.21Vpp MODE1: * F0: 3.15Vpp * F1: 3.12Vpp * F2: 3.12Vpp 3. Power supply requirements: 5V 1A TYPE-C power supply. The power-up is at 800mA. The current will be 400mA after the internal OCXO is stabilized 4. Weight: 400g/0.9lb 5. Input and output interface: SMA female connectors 6. Size: 13cm x 9.6cm x 5cm/5.1" x 3.8" x 2" (LxWxH) Package Included: - 1 x Clock Source Module Packaging Details: - Weight: 0.65kg Introduction of Buttons: : Press and hold the button to switch modes; short press the button to increase the value; : Press and hold the button to save the data; short press the button to reduce the value; : Short press the button, and the indicator cursor will go to the left; : Short press the button, and the indicator cursor will go to the right; : Press and hold the button to power off; short press the button to power on. MODE0: CLK stands for clock source frequency. F0 represents the signal frequency of channel 1. DIV1 and DIV2 are division factors. F1=F0/DIV1 and F2=F0/DIV2. P1 is the phase difference between F0 and F1, and P2 is the phase difference between F0 and F2. As shown in the figure above, F0 = 50 MHz, division factor DIV1 = DIV2 = 10, F1 = F0/DIV1 = 5 MHz, and F2 = F0/DIV2 = 5 MHz. MODE1: CLK stands for clock source frequency. F0 represents the signal frequency of channel 1. DIV1 is the division factor. F2=F1/DIV1. P1 is the phase difference between F1 and F2. As shown in the figure above, F0 = 120 MHz and the division factor DIV1 = 10. F0 is an independent frequency. F2=F1/DIV1=1.01MHz. PC CLK Source Controller: Waveform Data Graph: MODE0 Oscillogram at 2500Hz and 50M: MODE1 Oscillogram at 2500Hz and 50M: Clock Frequency Meter to Measure Its Accuracy: Payment Terms 1. We accept PayPal,Payoneer,Visa Card,Google pay,Credit card etc. 2. We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping Terms 1. We will process the order within the handling time ,if you have any questions, please contact us via eBay message or email. 2. For remote regions of DHL/FedEx..., extra shipping costs might be charged. Usually it costs about 30USD-50USD. We will contact you if shipping company informed us your address belongs to remote area. Thanks for your understanding. Return Terms If you receive the item that not satisfied or defective, please do not open case and kindly notify us within 30 days. We will guide you the returning process for replacement or refund. Custom Duties & Taxes 1. It is buyer's responsibility to cover the import duties, taxes.We do not charge any taxes and fees, and the possible taxes and fees will be collected by the platform or by third parties such as customs and carriers. 2. Please check with your country's customs office and inform us what/how much should declare before shipping. Feedback 1. Please kindly leave us a positive feedback and 5 star DSR if you satisfied with our product and service. Please feel free to contact us firstly if you have any problem with your order, we are responsible and credible seller and will solve the issue it for you asap. 2. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. On Oct 7, 2024 at 03:30:31 PDT, seller added the following information:
