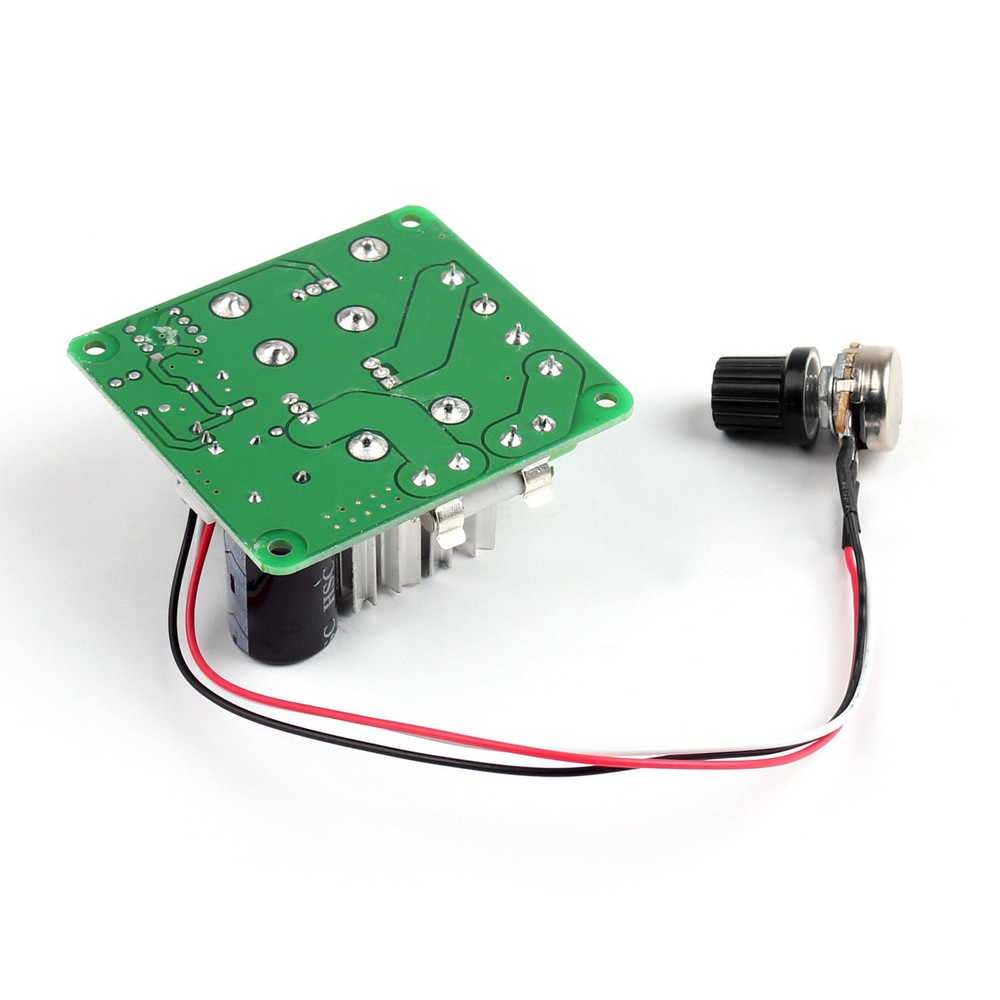

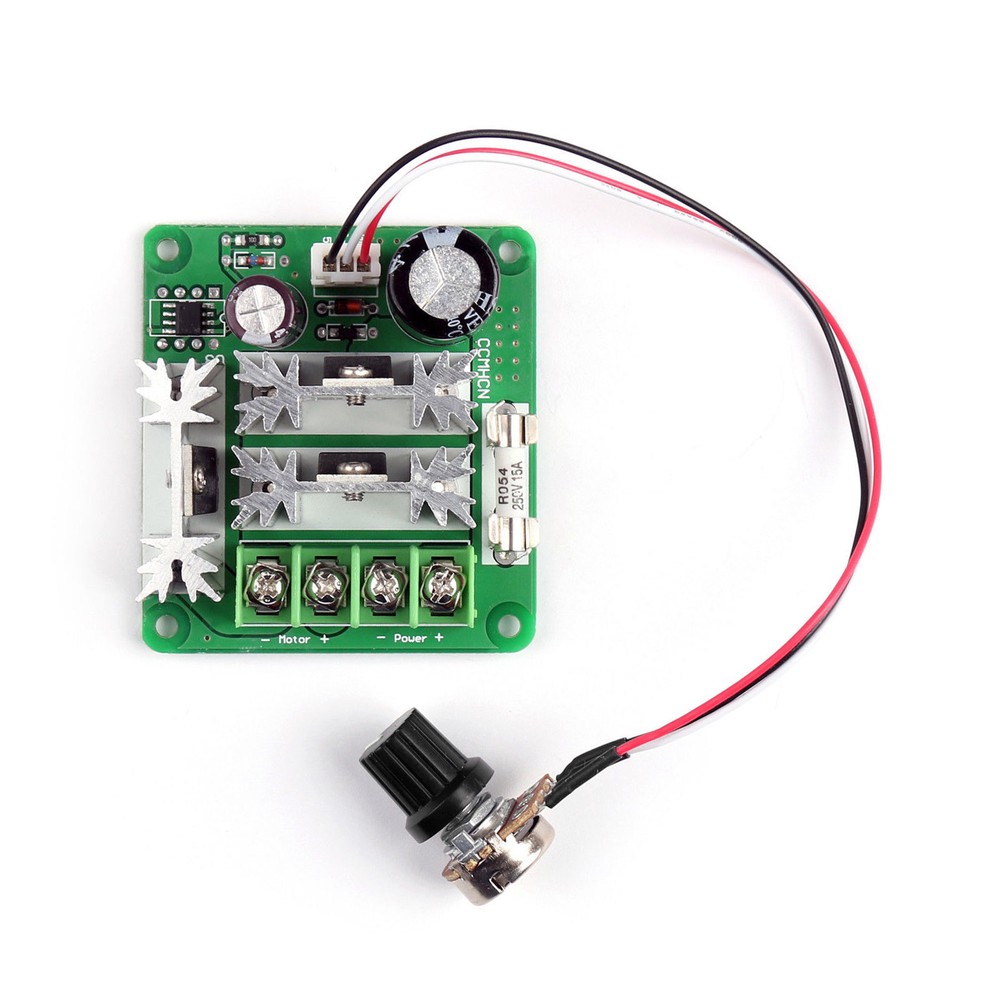

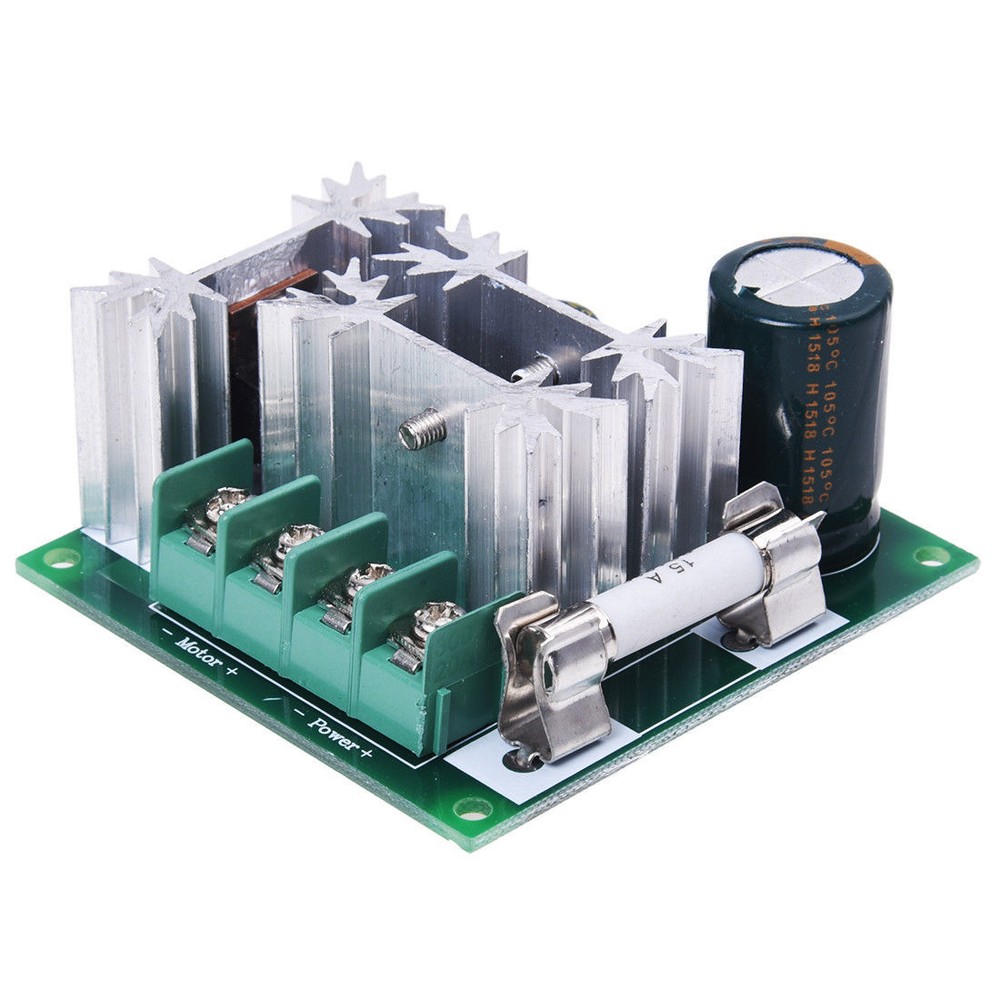

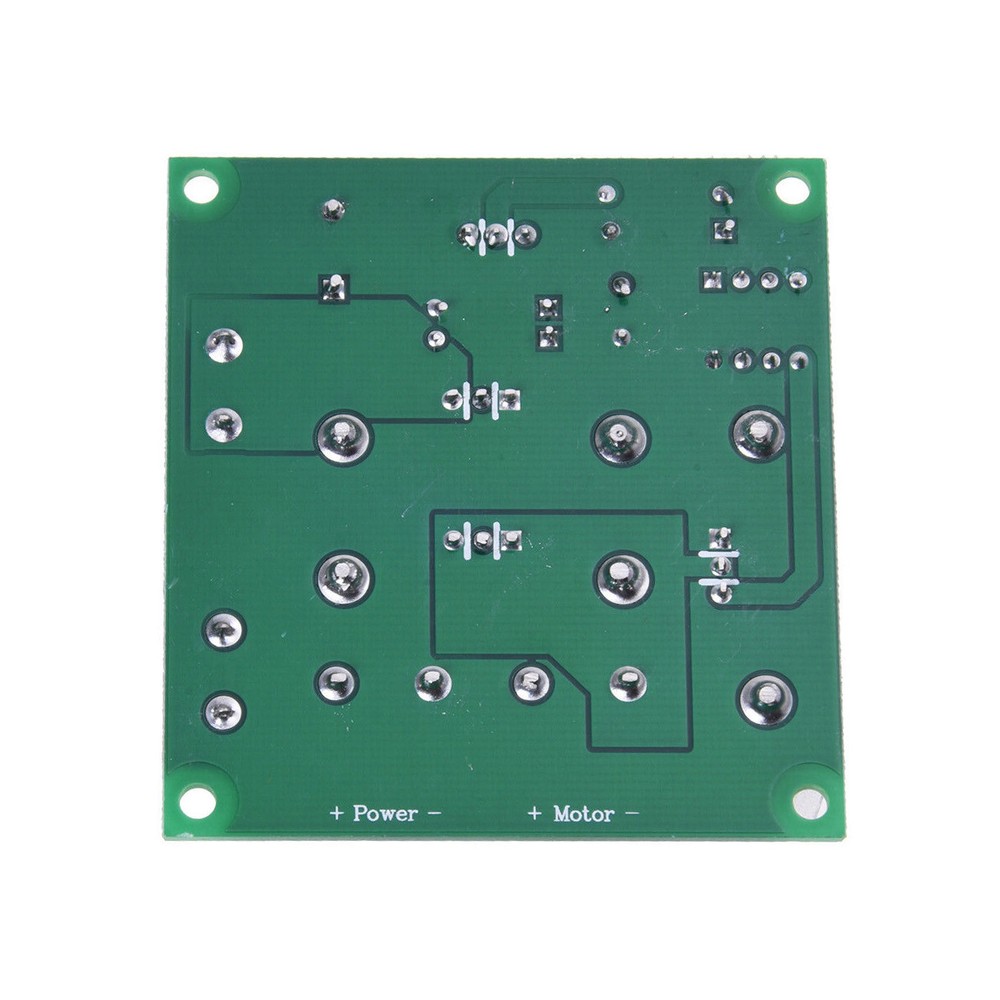

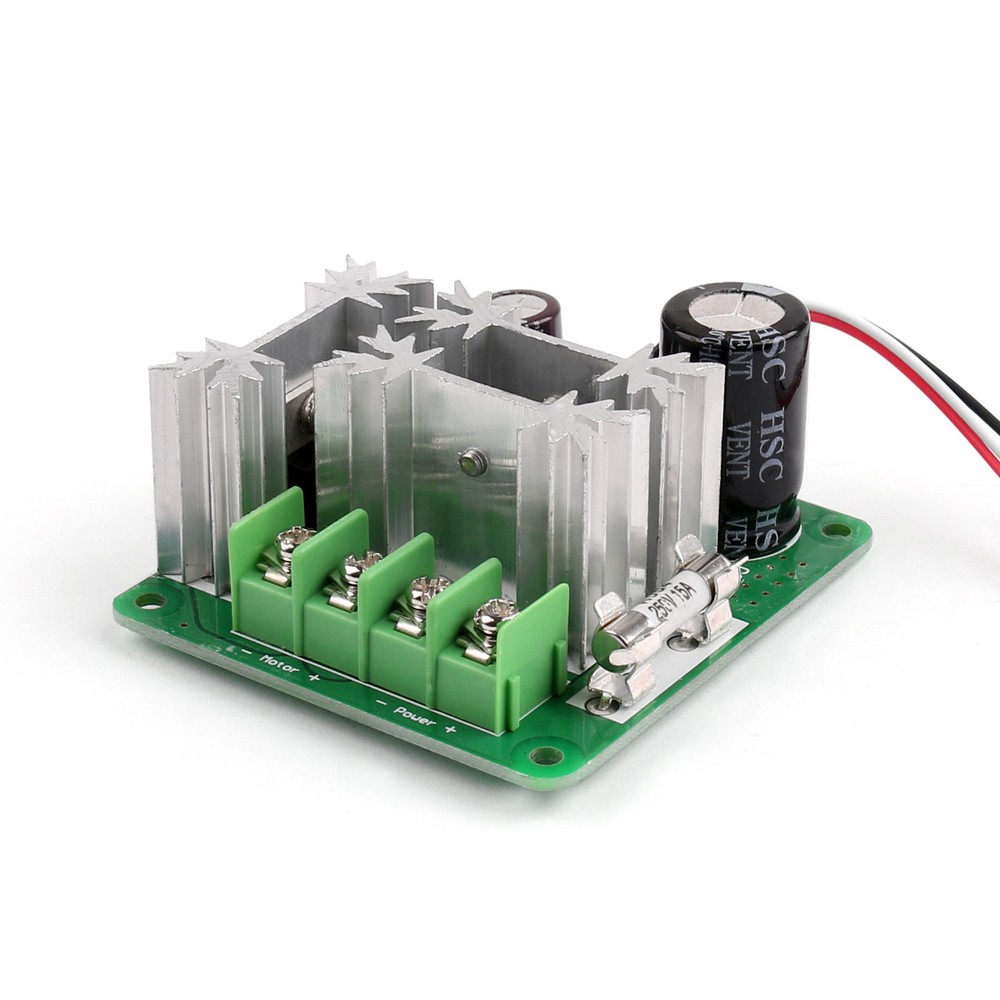

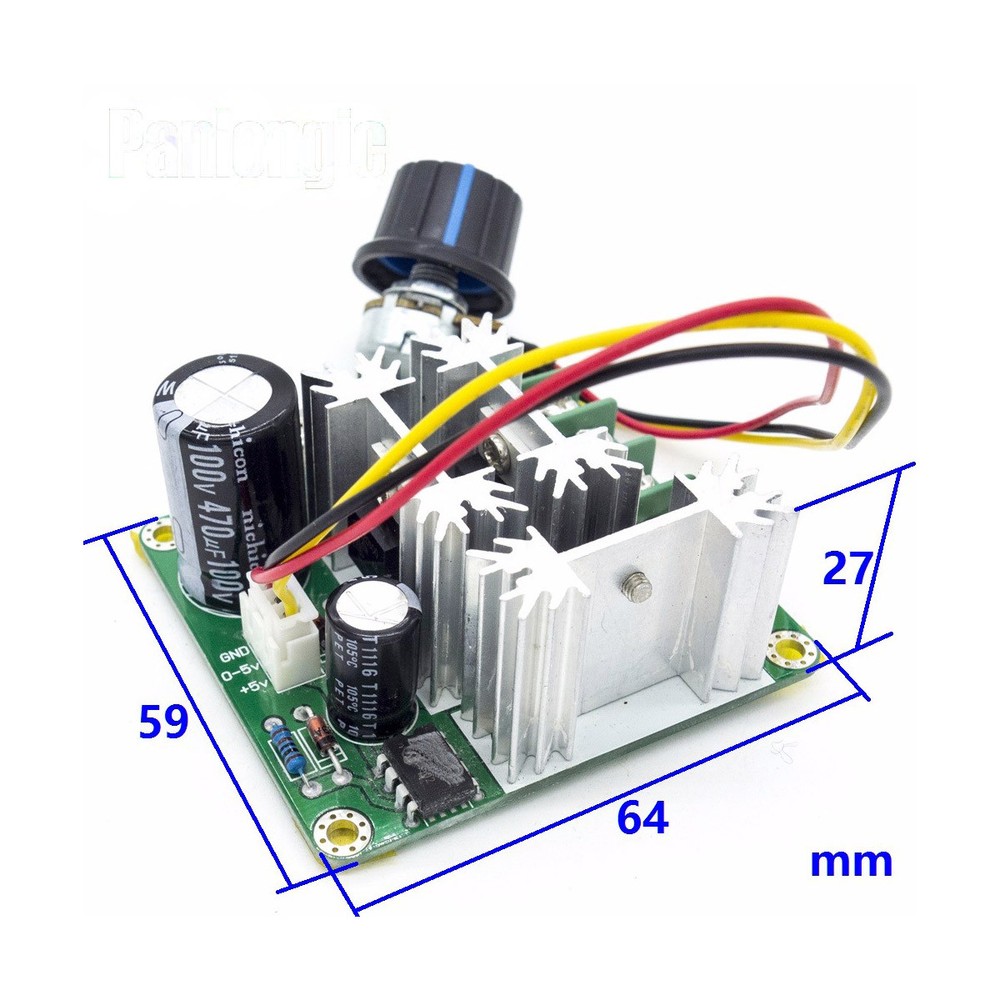

Check the listing for details. 15A 6V-90V Pulse Width Modulator PWM Stepless DC Motor Speed Controller US. Condition: New. Listed at 9.89 USD. 15A 6V-90V Pulse Width Modulated PWM DC Motor Speed Controller / Regulator This DC Motor Speed Controller controls the speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a duty cycle continuously adjustable from 0%-100% with a panel-mount potentiometer which is included with the module. A panel-mount potentiometer for the speed control is included with the module. The duty cycle can also be controlled by a 0-5V analog control signal in place of the potentiometer. The motor speed controller can provide a continuous current of 15A to your DC motor or other DC load. The module includes a user-replaceable board-mounted 15A fuse to protect the motor and controller from overcurrent conditions. Specifications:Input supply voltage: 6V - 90V DCMaximum output power: 1000WMaximum continuous output current: 15AOverload and short circuit protection current (fuse): 15AStatic Current: 0.005 A ( Standby )PWM frequency: 15kHzDuty Cycle: 0%-100% continuously adjustable via the potentiometer, or with a 0-5V analog control signalOperating environment temperature: -20°c to 40°cPotentiometer shaft diameter: 1/4"Size (L*W*H): 64mm x 59mm x 27mm / 2.5" x 2.3" x 1.1"(approx)Net weight: 69g NOTE: This controller cannot be used with a BRUSHLESS motor. Package includes:1x 15A 6V-90V Pulse Width Modulated PWM DC Motor Speed Controller with PotentiometerLink to online installation and operation notes Contact us for quantity/OEM pricing. Get it faster! Stocks and ships from our US Colorado office for quick delivery! We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
