| Country of Origin | China |
|---|---|
| MPN | MT8-E08W150A06-AA500 |
| Brand | Switch Electronics |
| Contact Configuration | SPDT |
| Current Rating | 3A |
| Unit Quantity | 1 |
| Current Type | AC/DC |
| Maximum Amperage | 3A |
| Application | Electronics |
| Termination Type | 500mm 20AWG Leads |
| Number of Positions | 2 |
| IP Rating | IP67 |
| Electrical Connection | 500mm 20AWG Leads |
| Coil Voltage | 250VAC |
| EAN | 5063200127293 |

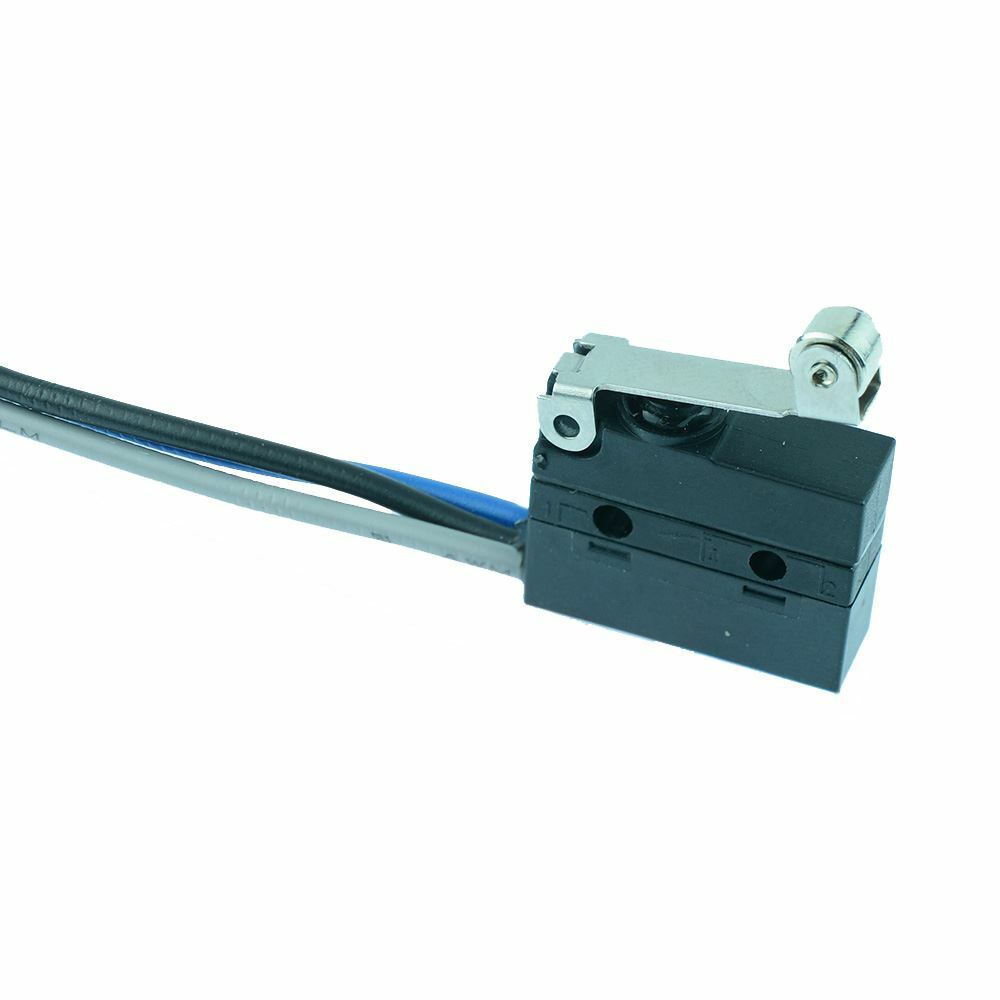

Check the listing for details. 17mm Roller Lever Waterproof Prewired Microswitch SPDT 3A IP67 Micro Switch. Condition: New, Made in China. Listed at 16.85 USD. 17mm Roller Lever Waterproof Prewired Microswitch SPDT 3A IP67 Micro Switch 17mm Roller Lever Waterproof Prewired Microswitch SPDT 3A IP67 Micro Switch 5.19 Ask a question Miniature microswitch featuring a 17mm roller lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications. 17.5mm roller lever actuator Rating: 3A 250VAC / 48VDC NO / NC contacts 500mm 20AWG flying leads Operating force: 110gf max Release force: 25gf min Pre-travel: 4.3mm max Over-travel 0.6mm min Differential travel: 0.7mm max Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height) About Us Shop related items eBay & Ecommerce Stores By.
