| ◆ Maximum Wire Size | 16awg |
|---|---|
| Item Dimensions L X W X H | 3.23"l X 1.77"w X 0.83"h |
| ◆ System Voltage | 12v/24v Auto Adapt |
| ◆ Discharge Reconnect Voltage | 12.6v/25.2v |
| ◆ Size/weight | 82x45x21mm/120g |
| ◆ Color | Black |
| Upc | 661748132509 |
| Material Type | Plastic |
| Product Dimensions | 3.23"l X 1.77"w X 0.83"h |
| ◆ Housing | Aluminum Alloy |
| ◆ Rated Discharging Current | 20a |
| Display Type | Lcd Or Led |
| ◆ Operating Temperature | -20 ~+60℃ |
| Voltage | 24 Volts |
| ◆ Rated Charging Current | 20a |
| ◆ Bulk Constant Charging Voltage | 14.2v/28.4v |
| ◆ Max Solar Input Voltage | ＜50v |
| Color | Black |
| Material | Plastic |
| ◆ Equalize Charging Voltage | 14.4v/28.8v |
| ◆ Discharge Stop Voltage | 11.2v/22.4v |
| Brand | Unbranded |
| ◆ Self Consume | ＜10ma |
| Resistance Properties | Waterproof |
| ◆ Float Charging | 13.8v/27.6v |
| Item Weight | 0.12 Kilograms |

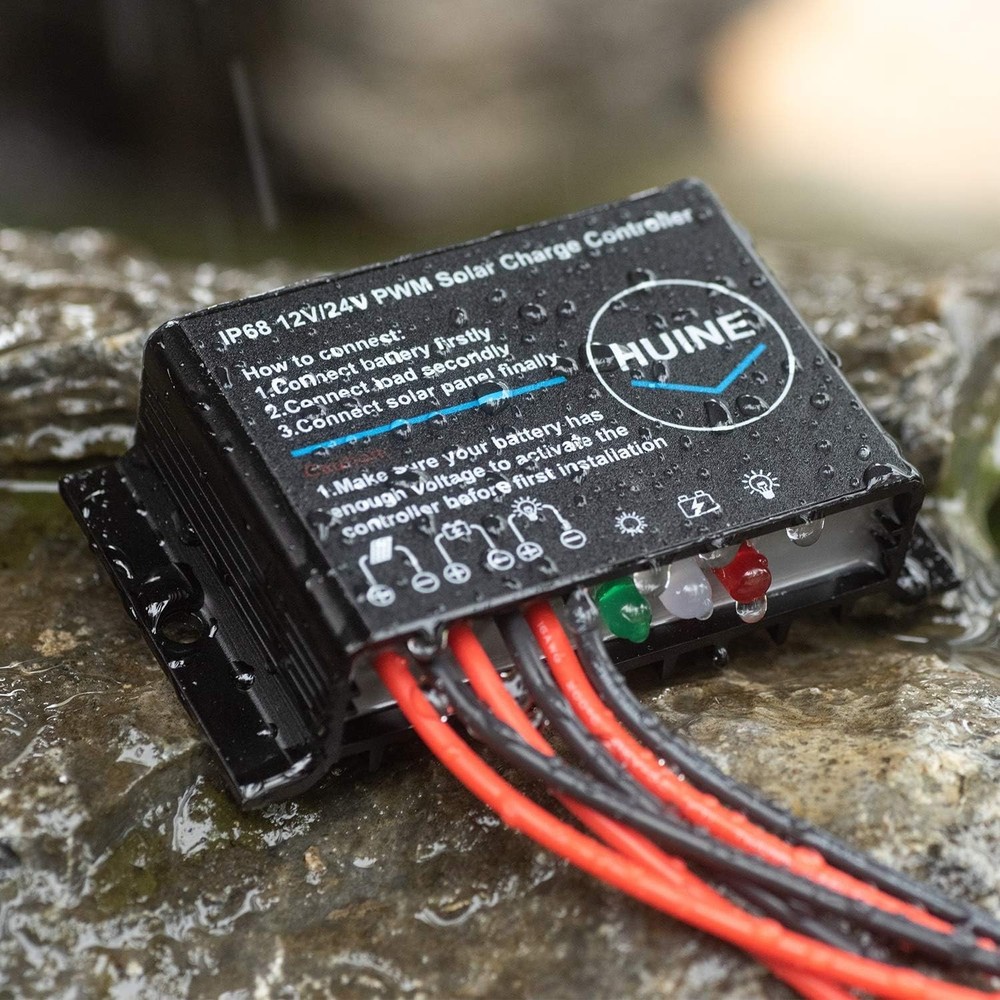

Check the listing for details. 20A 12V 24V Auto Waterproof PWM Solar Charge Controller Solar Panel Battery .... Color: Black, Condition: New. Listed at 35.95 USD. (B) The battery cable should be as short as possible to minimize loss. ♥ Note: The reverse order applies when deinstalling. With short cables for connecting with solar panel, battery and load, and three LED lights can help you to know solar charging status, battery level, and load status.
You may also like
$17.2
Victron Mains Cord NEMA 5-15P 120VAC f/Smart IP43 SKYLLA-S Phoenix - 2M Power Co
$115.79
1000W Solar Micro Inverter Grid Tie Solar Panel Inverter MPPT Pure Sine Wave NEW
$55.65
PWM 40A 12V 24V 48V Solar Charge Controller For Lifepo4 Lead Acid Gel Battery
$105
Pure Sine Wave Solar Inverter 500W 24V 120V DC to AC Power converter Solar Panel
$1285.99
VertaMax 3000 Watt 12V Battery Power Inverter DC to AC Car, RV, Solar, RV
$12.55
30A PWM Solar Charge Controller 12V/24V Battery Solar Panel PV Regulator DualUSB
$56.92
Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit 4 String
$12000
Tel.X-Plus 48 VDC Battery Rack 80-05226-05
$169.19
3000W MPPT Hybrid Solar Wind Charge Controller 12V24V Windturbine PV Regulator
$12.36
PWM Solar Charge Controller 12/24V/48V Voltage Regulator Battery Charger LCD USB
$267.76
120W Portable and Fodable Solar Panel for 300/500/1000/1500W Power Black
$16.99

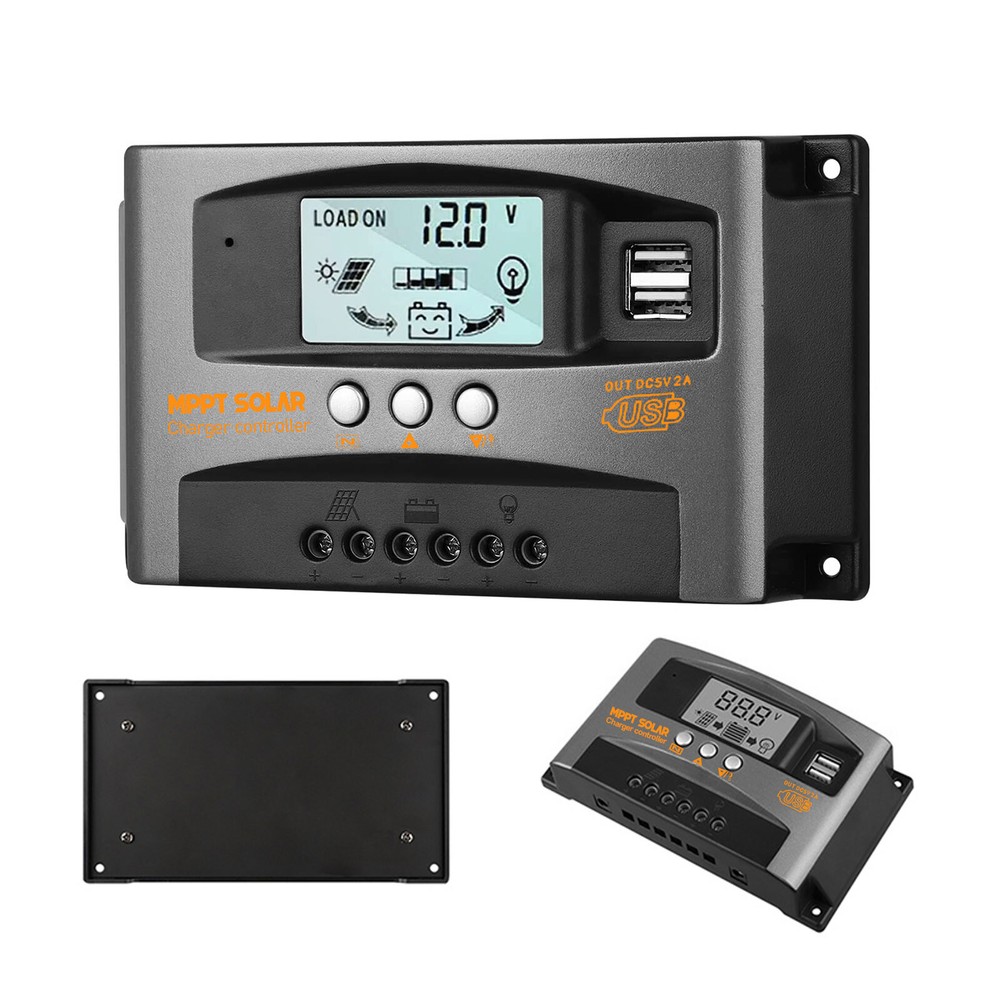

30/60A MPPT Solar Panel Charge Controller 12V/24V LCD Regulator Auto Dual USB
