| All returns accepted | ReturnsNotAccepted |
|---|---|
| Maximum Amperage | 250 A |
| Color | Silver |
| Current Rating | 5A |
| Fuse Type | Switch |
| Material | ABS/Plastic |
| MPN | HBS1-AW(AP) |
| Switch Style | Push Button/Retractive |
| Smart Home Compatibility | ---- |
| Suitable For | ---- |
| Brand | Unbranded |
| Operation Method | On/Off |
| Current Type | AC/DC |
| Type | Round Selector Switch |
| Termination Type | Solder Lug |
| Model | HBS1-AW(AP) |
| Coil Voltage | 220V |
| Features | Illuminated |
| Smart Home Protocol | ---- |
| Finish | Plastic |
| Application | Automotive |

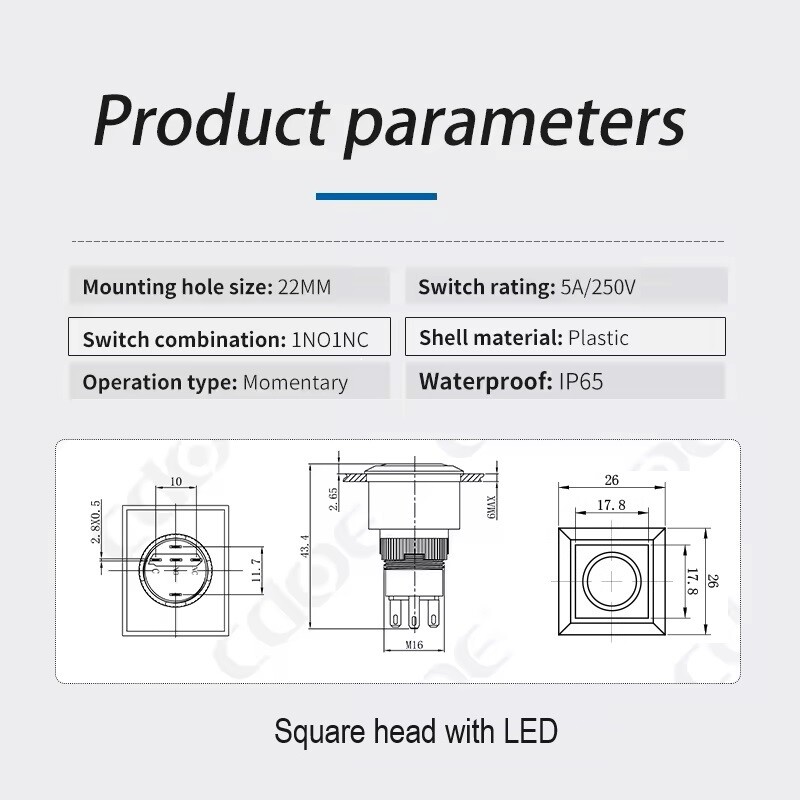

Check the listing for details. 22mm SPDT/DPDT 5A250VAC Square Head Illuminated Switch Plastic Push Button Cover. Color: Silver, Condition: New. Listed at 9.60 USD. Item specifics Model Number:HBS1-AW(AP) Protection Level:IP40/IP65 Max. Current:5A Max. Voltage:250VDC Front Head:Flat Round with ring illuminated Product name:22mm led Illuminated waterproof momentary push button switch Terminal type:Pin terminal Operation type:Momentary Or Latching Shell Material:PC Contact Material:Silver plated Gold Contact configuration:1NO1NC or 2NO2NC Protection Degree:IP65,IK09 Wire Socket:Acceptable Certificate:Ce RoHS UL ISO9001Product DescriptionPanel cutout size: 22mmIth: 5A, Ui: 250VContact Configuration: 1NO1NC(2NO2NC is available)Operation Type: Latching (We also have momentary version, you can check our product list or ask us for information)LED Color: Red , Green , Yellow , Blue , Orange , White and Dual colorLED Voltage: Made to orderTerminal Type: Pin Terminal(2.8X0.5)IP degree: IP40 (IP65 is available but with a little higher price)Packaging Details Unit Type: lot ( pieces/lot) Package Weight: 0.04kg (0.09lb.) Package Size: 3cm x 3cm x 3cm (1.18in x 1.18in x 1.18in)
