| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | SUMMIT COLLARS |
| Unit Type | Unit |
| Chain Size | #60 |
| Chain Link Type | Offset Link |
| Manufacturer Part Number | #60-1ROL/2PK |
| MPN | #60-1ROL/2PK |
| Chain Pitch | 3/4 in |
| Unit Quantity | 2 |

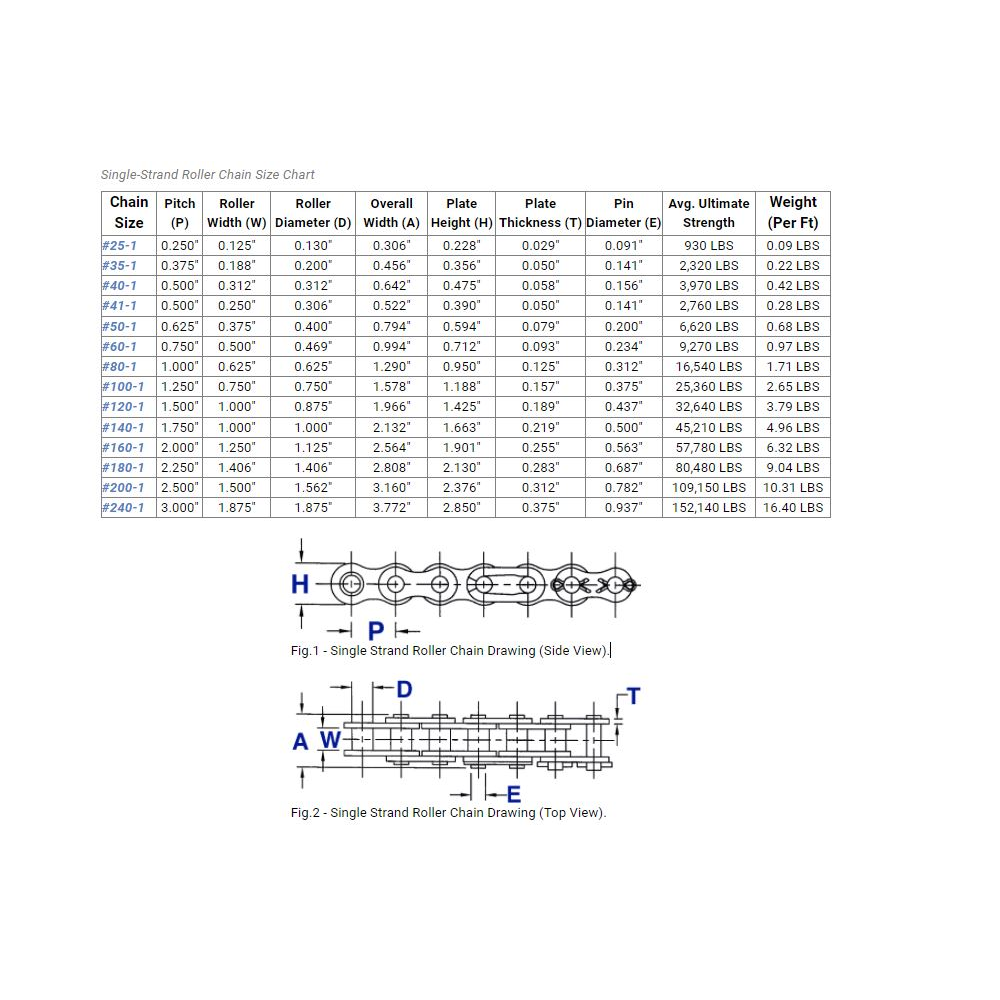

Check the listing for details. (2PK) #60 Roller Chain Offset Links - 3/4" Pitch - Half Link- Great Quality!. Condition: New. Listed at 9.95 USD. WE SELL ONLY HIGH-QUALITY BRAND-NEW INVENTORY! Owned and Operated in the U.S.A. Below are the specifications for the chain that uses this half link: ANSI Chain No.: #60 Pitch (P): 0.75 inch (19.050 mm) Roller Diameter (d1 max): 0.469 inch (11.91 mm) Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm) Pin Diameter (d2 max): 0.234 inch (5.94 mm) Pin Length (L max): 1.02 inch (25.90 mm) Pin Length (Lc max): 1.09 inch (27.70 mm) Inner Plate Depth (h2 max): 0.708 inch (18.00 mm) Plate Thickness (T max): 0.095 inch (2.42 mm) Ultimate Tensile Strength (Q min): 31.80/7227 kN/LB Average Tensile Strength (Qo): 41.5 kN Weight (q): 1.008 lb/ft (1.5 kg/m)
