| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | Minster |
| Control | Automatic |
| Machine Type | Flywheel Punch Press |
| Capacity | 32 ton |
| Power Source | Electric |
| Model | 4F |
| Country/Region of Manufacture | United States |

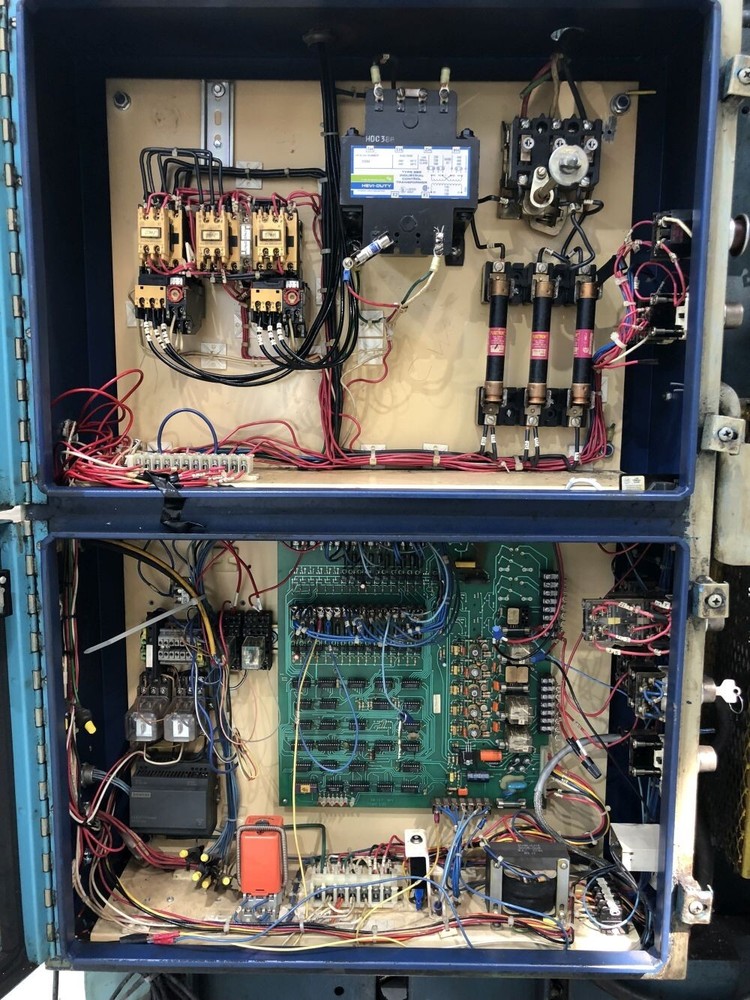

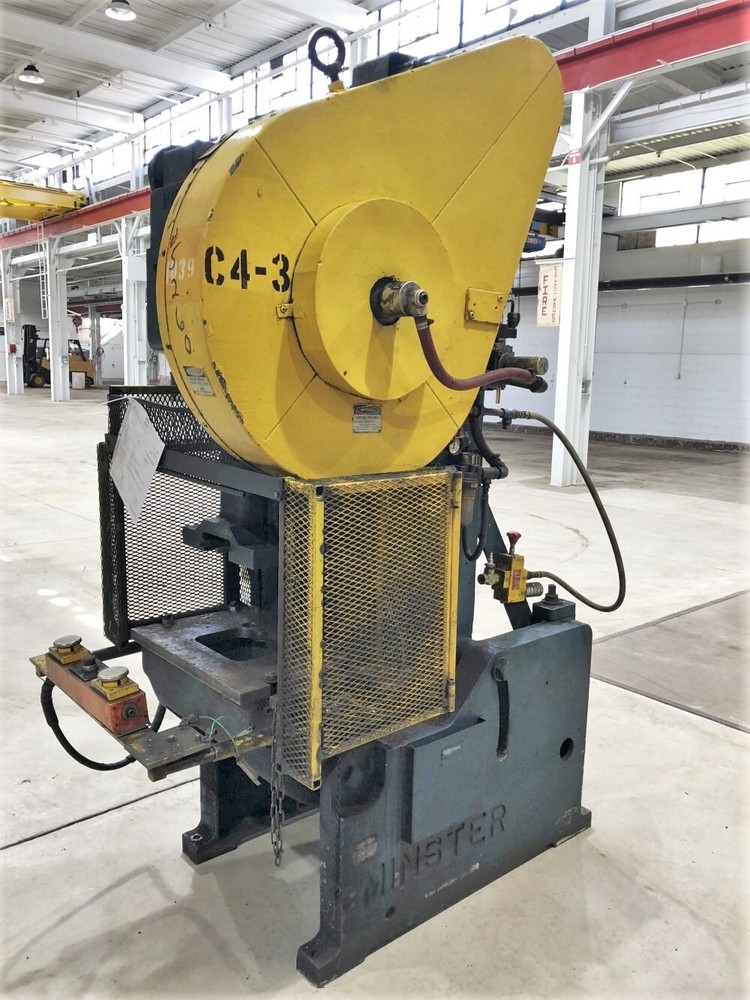

Check the listing for details. 32 Ton Minster #4F • Stamping Press with Variable Speed (65-130 SPM). Condition: Used. Listed at 16500.00 USD. CAPACITY 32 TONSTROKE 2"MAX SHUT HEIGHT TO BED 10" SDAUBED AREA 24" X 15" (RL X FB)SPEED 65 - 130 SPMRAM ADJUSTMENT 2.25" MANUALRAM AREA 15" X 11.25" (RL X FB) (FLANGED)BOLSTER PLATE 24" X 15" (RL X FB) X 2" THICKDIST UPRIGHTS 11"FLOOR TO BED 34"CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATIONELECTRICS 5 HP 1800 RPM 240/480V-3-60 EDDY CURRENT DELCO MOTOR & MINSTER RELAY CONTROLAPPROX DIMENSIONS 48" X 60" (RL X FB) X 96" HIGHAPPROX WEIGHT 6,500 LBS CAST IRON FRAME, FLOOR STANDING, INCLINABLE, TWO HAND CONTROL
You may also like
$2425.49
L&J No 18 Mechanical OBI Punch Press 18 Ton 2" Stroke 6" Throat 1.5Hp 3Ph
$32500
32-Ton Minster No. 4SS Flywheel Type Fixed Base Superstock OBS Press
$791.17
Oil Adjustment Machine Small Ink Mixer Electric Solder Paste Blender 220V
$69500
150 TON MINSTER P2-150-54 "PIECE-MAKER" STRAIGHT SIDE PRESS
$719.95
AMP USA 91112-3 OR 91112-6 PNEUMATIC ARBOR PRESS *UNTESTED*
$149
C FRAME PUNCH sheet metal hole press brake tool unit UNIPUNCH USA 12B 2 1/4
$43.26
7PCS 210mm Heavy Duty Roll Pin Punch Tools Alloy Steel for Accurate Repair
$209.62
Aluminum Plate Pneumatic Punching Gun Adjustable Edge Distance Hole Diameter
$49500
250 TON NIAGARA OBI PRESS: YODER #70534
$9950

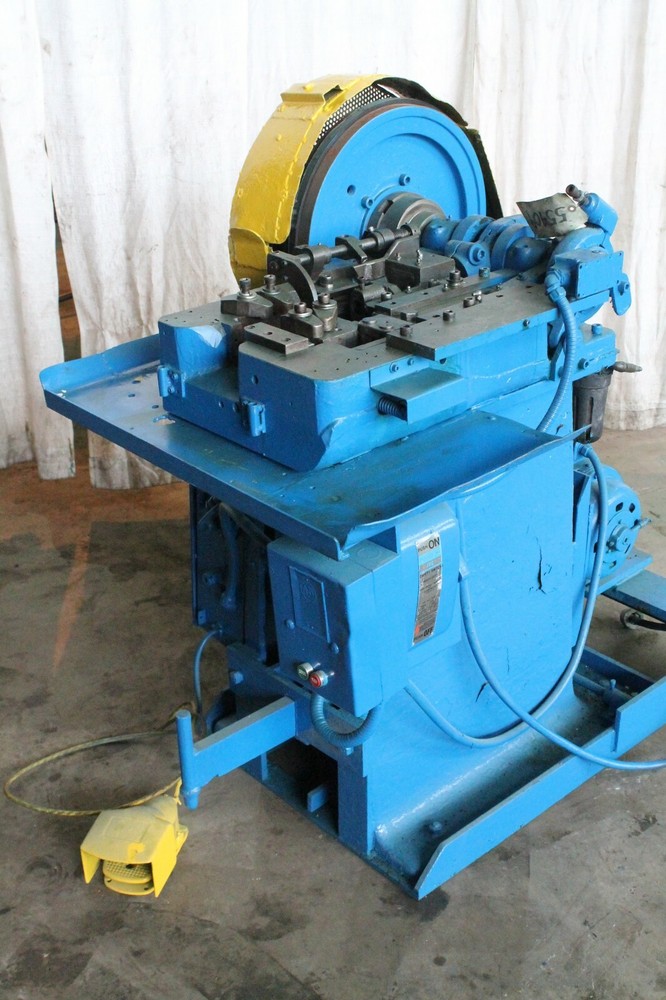

ROBERTS SINGLE STROKE END FORMING PRESS: YODER #55409
