| Backlight | backlight brightness can be set |
|---|---|
| Bandwidth | 50MHZ |
| Bandwidth Limit | Supports 20MHz limit |
| Battery | 4000mAh lithium battery (built-in) |
| Brand | Unbranded |
| Channel | dual-channel |
| Input coupling | AC/DC |
| Input impedance | 1MΩ |
| Model | FNIRSI-2C53P |
| Peak voltage | ±400V |
| Probe attenuation factor | 1x/10x |
| Real-time sampling rate | 250MSa/s |
| Storage depth | up to 64kByte |
| Storage space | 13M |
| Time base range | 10ns/div-10s/div |
| Trigger level range | 8 cells (positive and negative) |
| Trigger type | rising edge/falling edge |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 10mv/div-10v/div |
| Waveform display mode | YT/XY/Scroll |

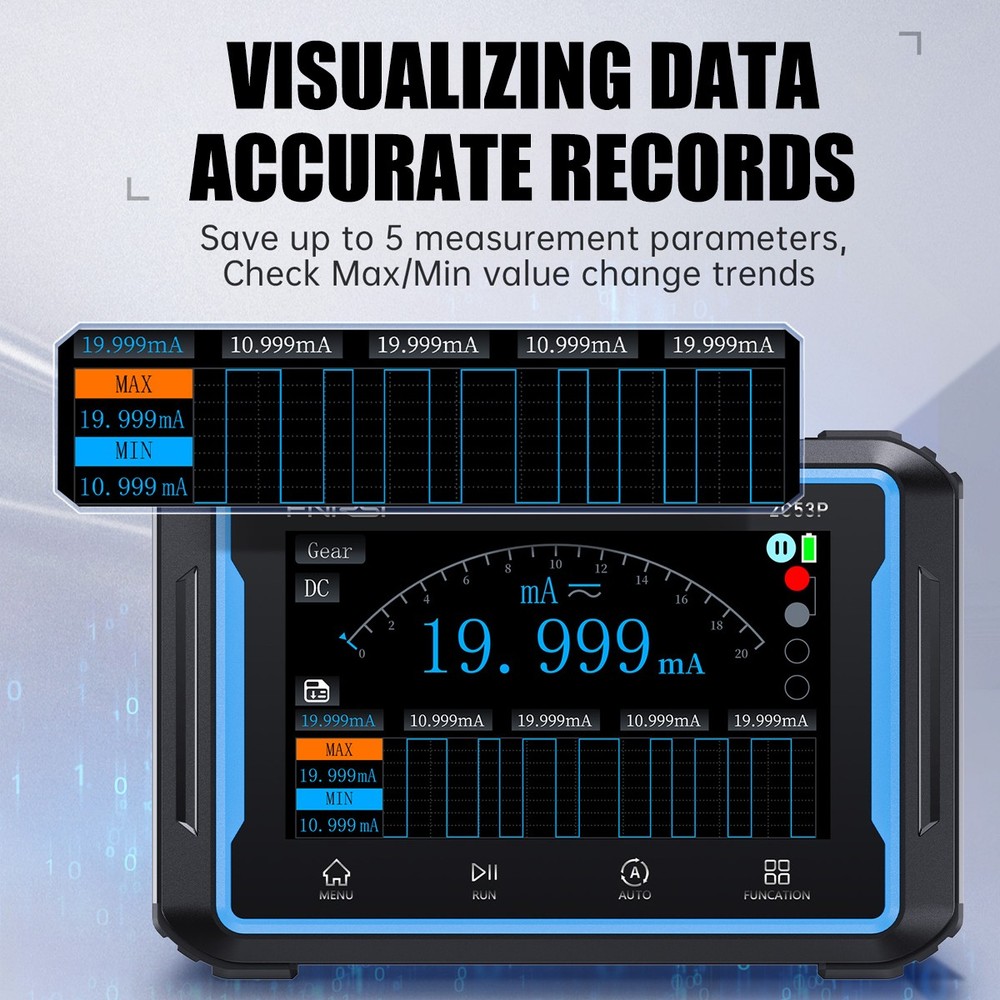

Check the listing for details. 3in-1 Dual Channel Flat Panel Oscilloscope 4.5 Digit Multimeter Signal Generator. Condition: New. Listed at 128.99 USD. 【Feature-rich】The DDS signal generator can output 12 waveforms, the maximum waveform output frequency can reach 10MHz. 【Long-lasting battery life】The digital oscilloscope has a built-in 4000mAh lithium battery with a battery life of about 4 hours, and supports Type-C interface charging to ensure uninterrupted work.
