| Brand | EATSSODE |
|---|---|
| Type | Combiner Box |
| Material | ABS, PC |
| Manufacturer Warranty | 5 Years |
| Features | 3-digital combination lock, Waterproof and Dustproof |
| Color | White |
| Model | YLLNZ98O99ZFP |
| Application | solar panel systems |
| Highlights | Creative Design,Durable Material,Beautiful Appearance |
| *Feature* | Compact Design,Unique Appearance，High Reliability |
| Input | 4 Strings |
| Surface Finish 1 | Made of high quality material |
| Mounting Type | Wall Mount |
| Materials sourced from | China |
| Circuit Breaker Type | Standard |
| Operating Temperature | -30~70℃/-22~158℉ |
| Output | 1 String |
| Number Of Poles | 4 |
| Current Rating | 63A |
| Number Of Max. Connection PV Array | 4 |
| Max. Input Current of Single PV Array | 10A |
| Total Input Current of PV Array | 40A |
| Max Input Voltage of Single PV Array | 1000V |
| Max Output Voltage | 600V |
| Protection Grade | IP65 |
| Relative Humidity | 0-95%, No Condensation |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 2 |
| Surge Protection Device | 40KA, 600V |
| Number of Circuit Breakers | 1 |
| Circuit Breaker | 63A, 550V |
| System Configuration | on-grid/off-grid |
| Highlight | Local Warehouse!Fast Shipping! |

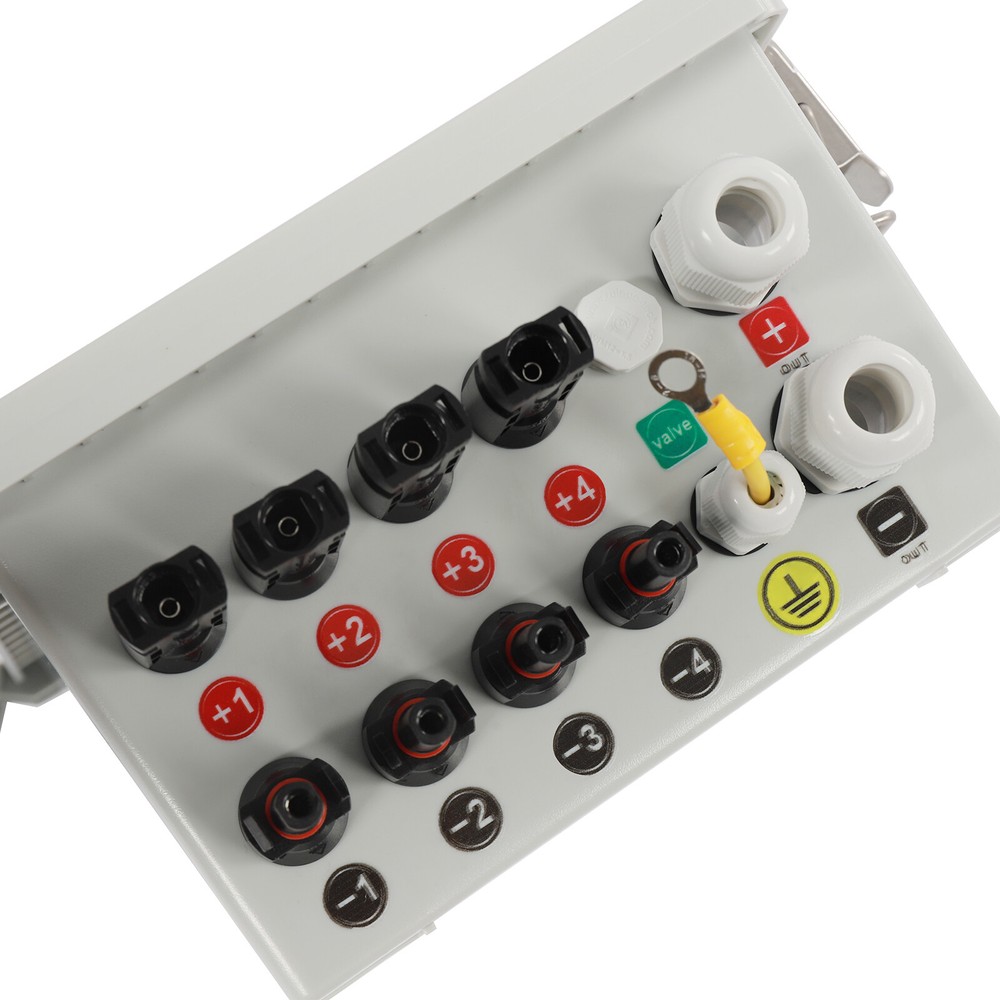

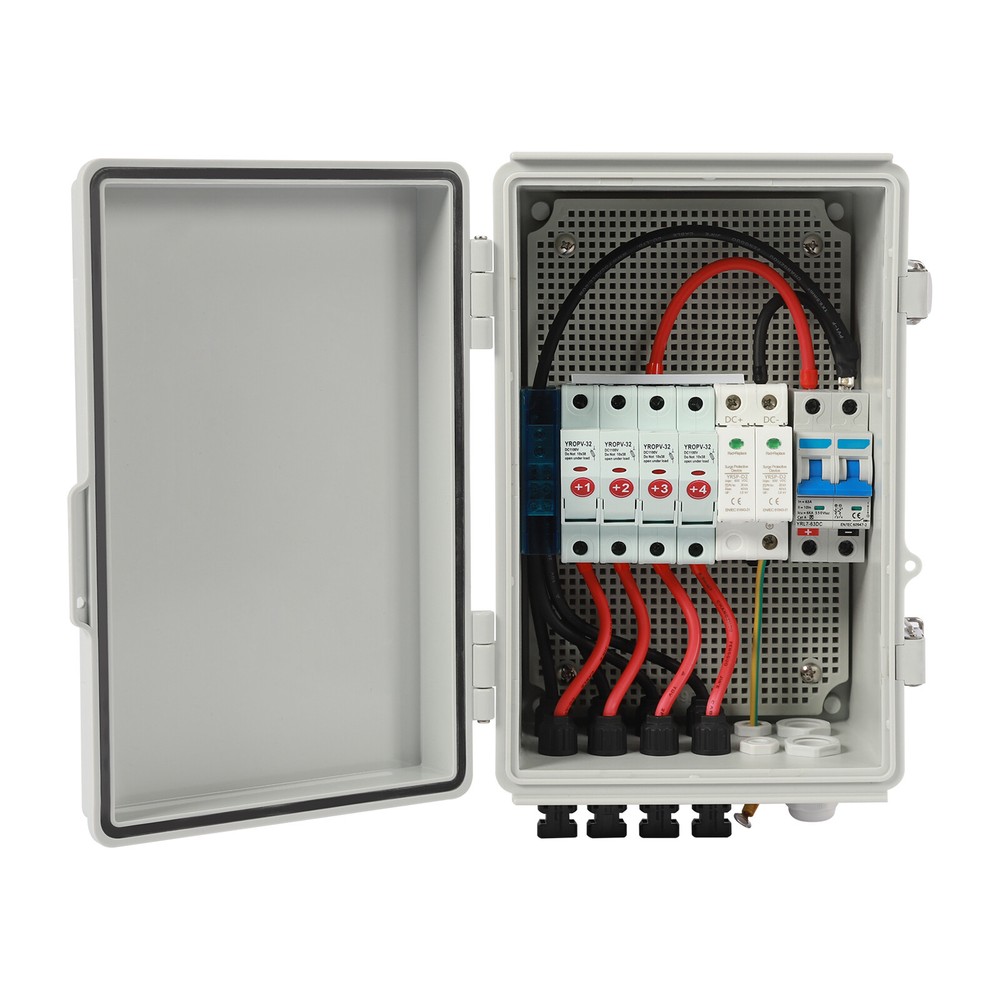

Check the listing for details. 4 String Solar Combiner Box PV Combiner Circuit Breaker 63A For Solar Panel Kit. Color: White, Condition: New. Listed at 59.84 USD. Package Included 1* PV Combiner Box 1* Combination Lock 4* Mounting Plates Other Accessories for Assembly Specification Color: White Material: ABS, PC Style: Modern Circuit Breaker Type: Standard Mounting Type: Wall Mount Operating Temperature: -30~70℃/-22~158℉ Input: 4 Strings Output: 1 String Number Of Poles: 4 Current Rating: 63A Number Of Max. Connection PV Array: 4 Max. Input Current of Single PV Array: 10A Total Input Current of PV Array: 40A Max Input Voltage of Single PV Array: 1000V Max Output Voltage: 600V Protection Grade: IP65 Relative Humidity: 0-95%, No Condensation Cooling Method: Natural Cooling Number of Surge Protection Devices: 2 Surge Protection Device: 40KA, 600V Number of Circuit Breakers: 1 Circuit Breaker: 63A, 550V.
