| Country of Origin | United States |
|---|---|
| Brand | gggreatparts |
| MPN | GRE216150 |
| Type | Chain |
| Chain Pitch | 0.625 Inch |
| Chain Length | 10 ft |
| Features | Double Strand |
| Model | #50-2Rx10 |
| Warranty | 1 Year |

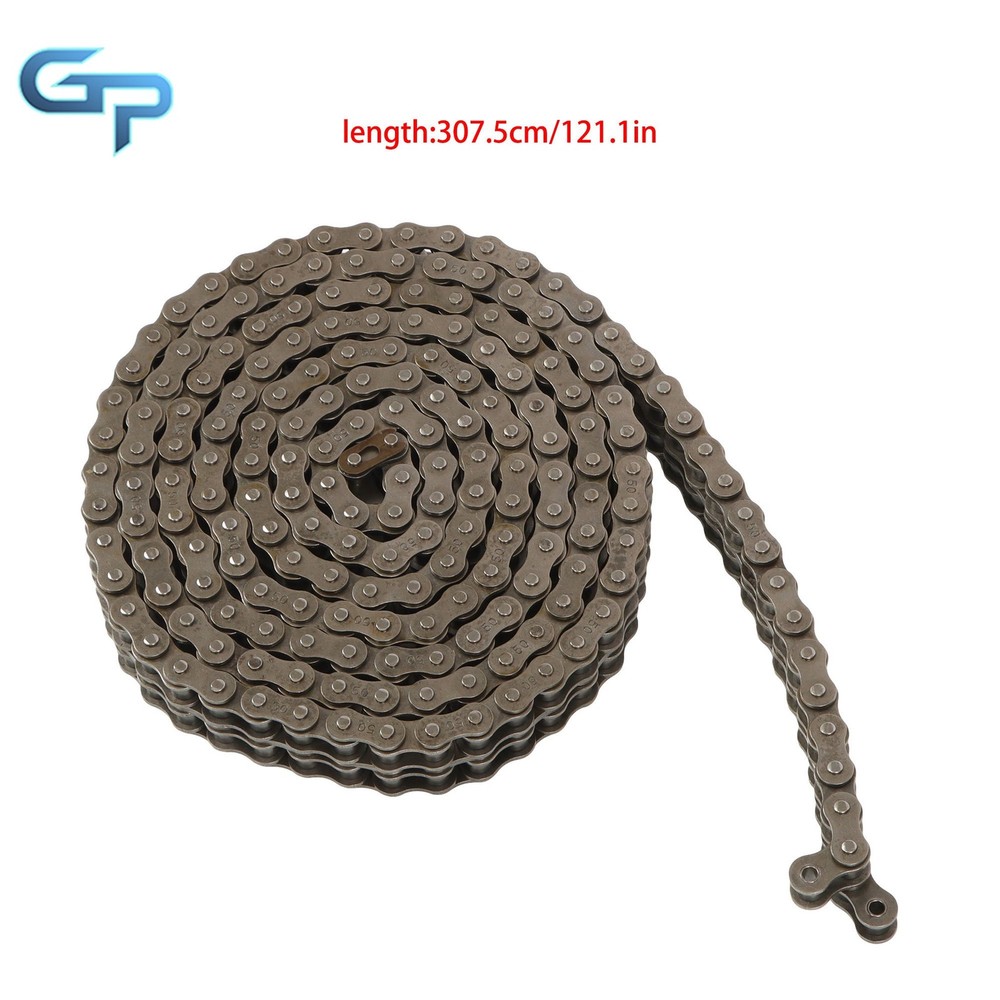

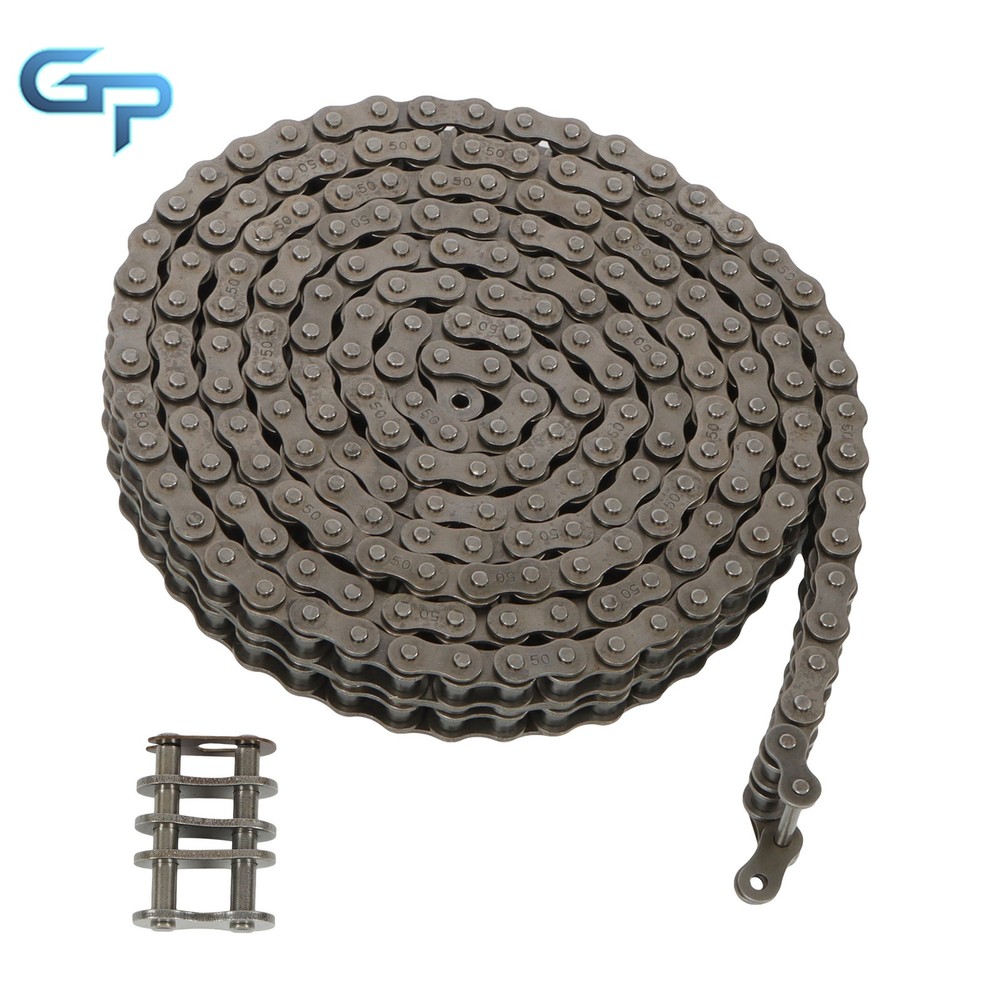

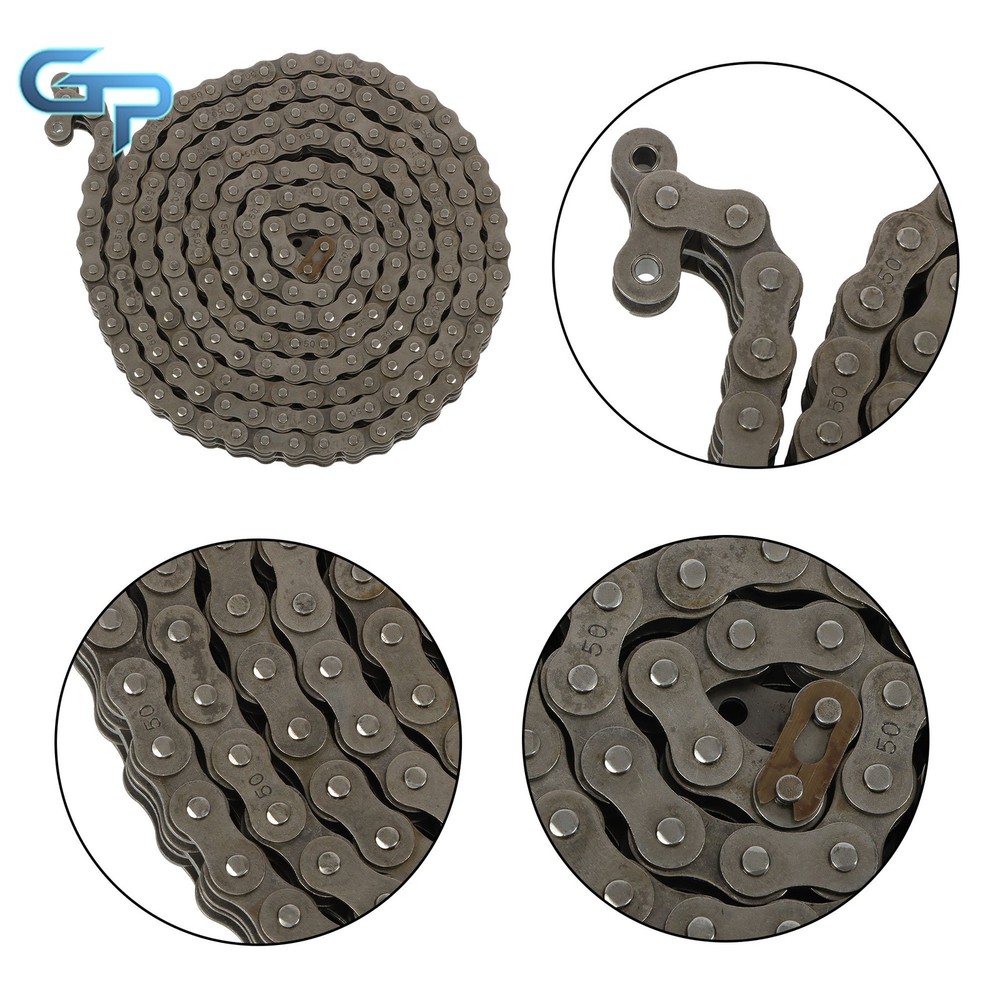

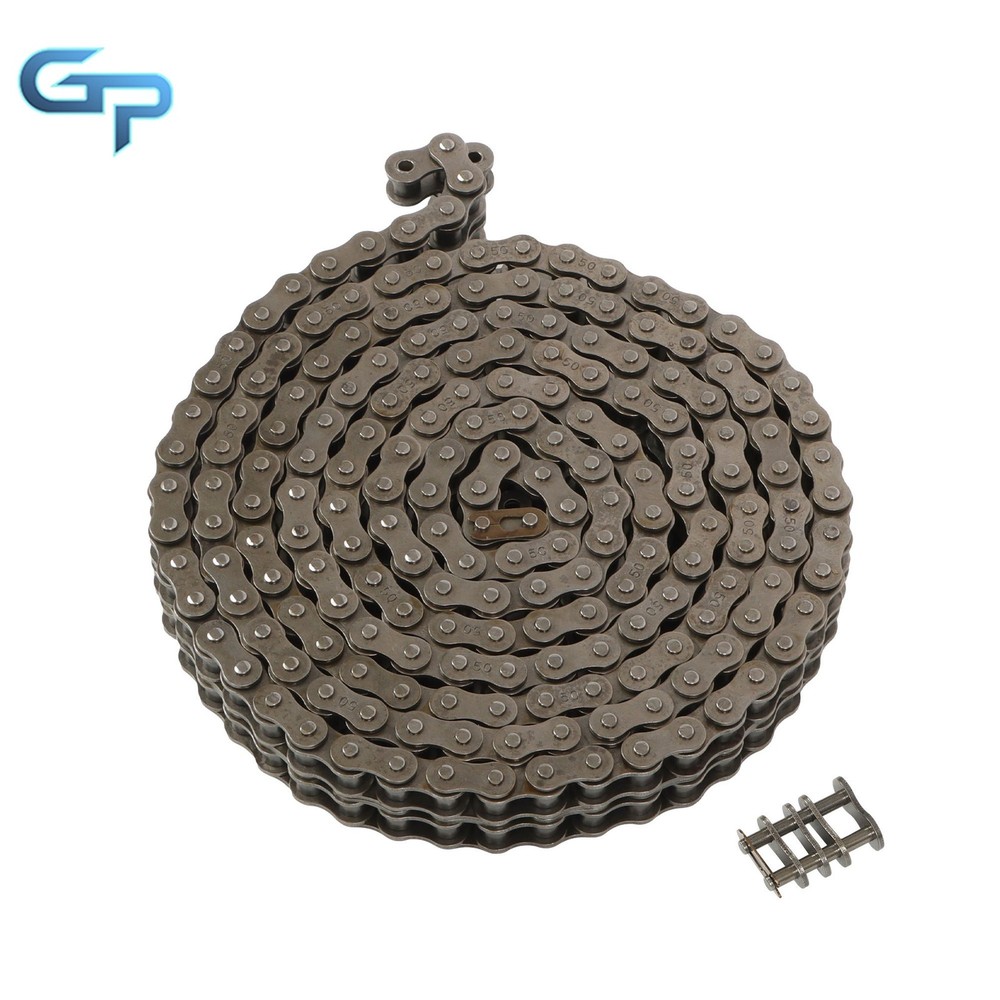

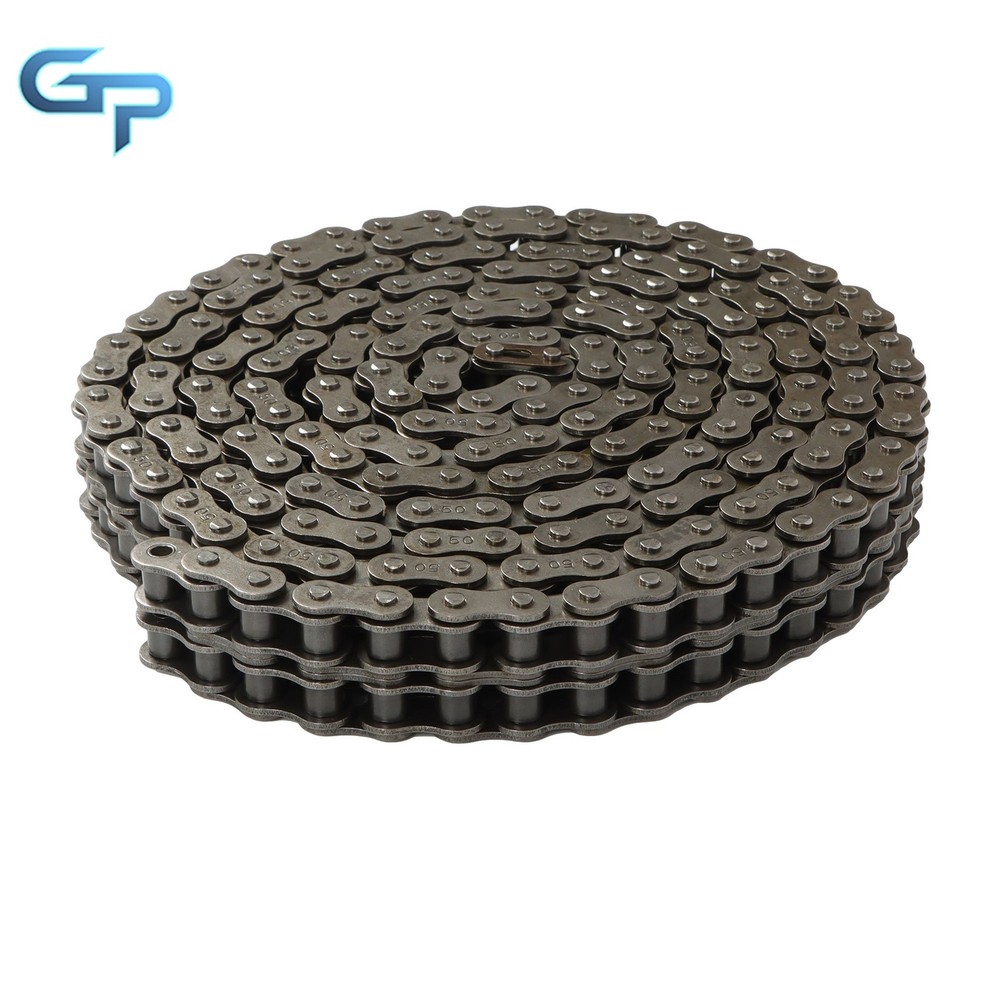

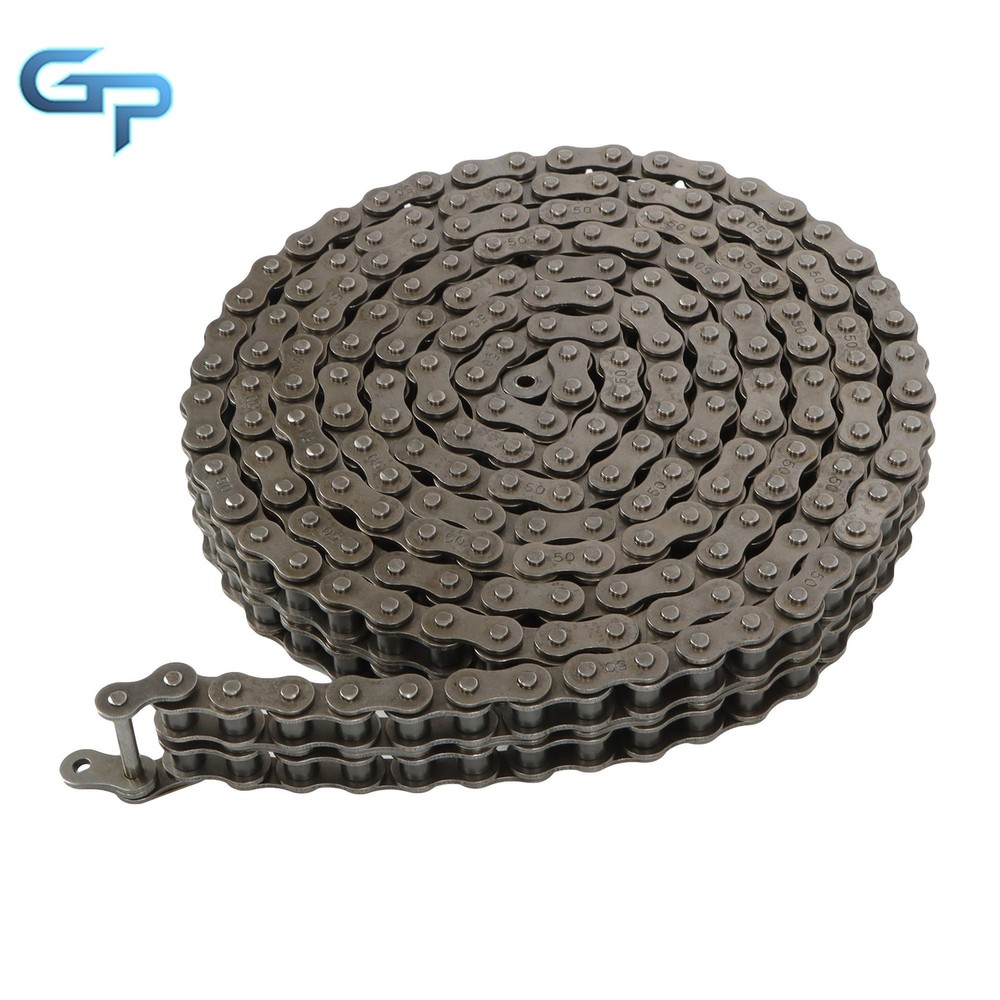

Check the listing for details. #50-2 Double Strand Duplex Roller Chain 10 Ft with 2 Connecting Link. Condition: New, Made in United States. Listed at 61.80 USD. Feature： ANSI Chain No.: #50-2 Lenght: 10 feet Description： Pitch (P): 0.62 inch (15.87 mm) Roller Diameter (d1 max): 0.4 inch (10.16 mm) Width Between Inner Plates (b1 min): 0.37 inch (9.40 mm) Pin Diameter (d2 max): 0.2 inch (5.08 mm) Pin Lenght (L max): 1.53 inch (38.9 mm) Pin Lenght (Lc max): 1.59 inch (40.4 mm) Inner Plate Depth (h2 max): 0.59 inch (15.09 mm) Plate Thickness (T max): 0.07 inch (2.03 mm) Transversal Pitch (Pt): 0.71 (18.11 mm) Ultimate Tensile Strenght (Q min): 44.40/10091 kN/LB Average Tensile Strenght (Qo): 58.1 kN Weight (q): 2.00 lb/ft (0.907 kg/m) Package List: .
