| Brand | Raytheon |
|---|---|
| Characteristic Impedance in Ohms | 50.0 single antenna element |
| Country/Region of Manufacture | United States |
| Design Type | Whip single antenna element |
| Electromagnetic Polarization Type | Vertical single antenna element |
| End Item Identification | PSC-5 |
| Frequency Rating | 30 MHz min. & 90 MHz max. single antenna element |
| Interchange Part Number | Denke 1Y00350A |
| Manufacturer Part Number | 366223-1 |
| NSN | 5985-01-550-5480 |
| Overall Length | 18.000 inches minimum and 52.000 inches maximum |
| Overall Width | 1.380 inches nominal |
| Part Name Assigned BY Controlling Agency | Antenna - flexible, vhf (30-90MHZ) |
| Power Gain in Decibels | 10.00 single antenna element |
| Power Rating | 35.000 watts cw single antenna element |
| Radiation Pattern | Omnidirectional single antenna element |
| Special Features | Max operating TEMP:130 f; min operating temp: -40F |
| Terminal Type | Connector, receptacle single antenna element |
| Warranty | No Warranty |

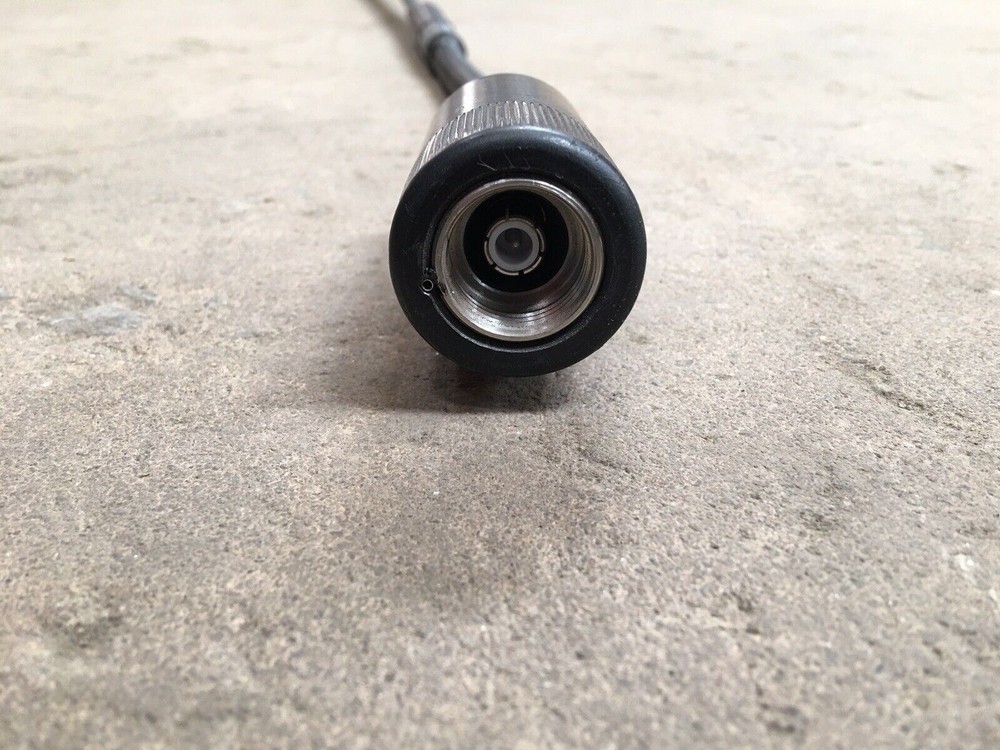

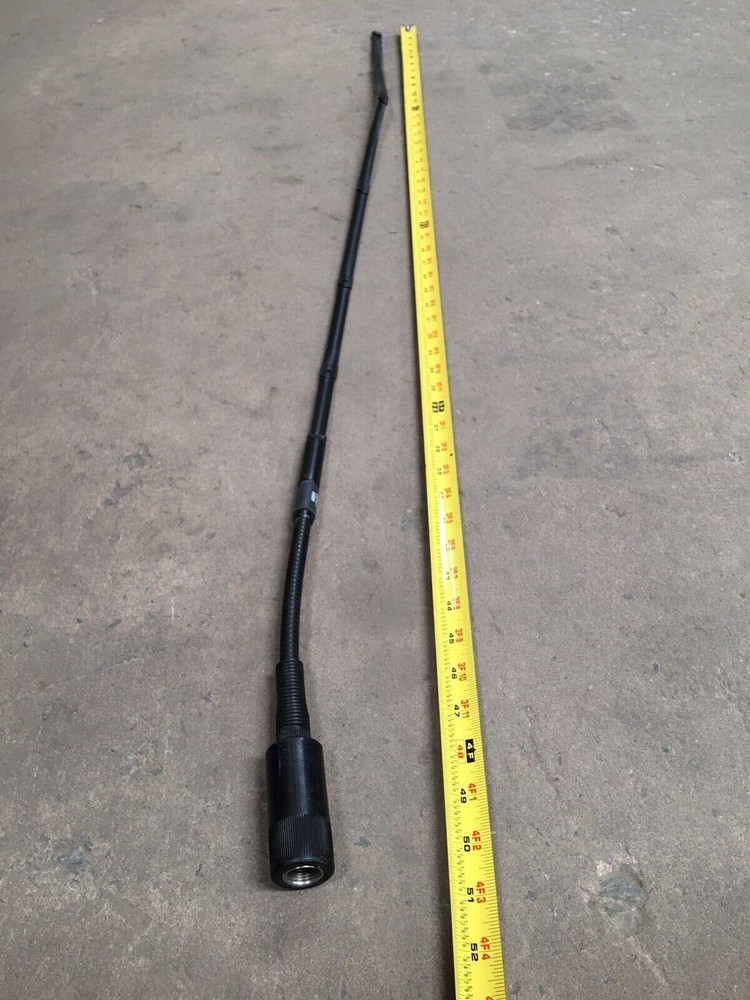

Check the listing for details. 52" Antenna 366223-1 Raytheon PSC-5 SOCON. Condition: Used. Listed at 189.99 USD. Up for sale is a 18" min. to 52" max. long antenna that is manufactured by Raytheon. Item listed is new or slightly used in good condition. EX N Los Angeles Class Ssn (688).
You may also like
$50.99
Wood Freeman Boat Compass Metal Housing Lot of 3 - Free Shipping
$70.99
Northstar Simrad Navman AA010113 Y-Cable for M84 M121 M8120 NX45 Radar *NEW*
$20.99
Simrad Robertson D100 Dual Control Distribution Panel f/AP100/200/200DL - REV D
$3429.99
Raymarine 4kW 72" Magnum Open Array System w/ NEW 10m Cable E70484 *LOW HOURS!*
$586.99
Furuno - RSB0071-057 F/ NavNet VX1, VX2 - 4KW Radome Add-On w/ 20M Cable
$105.99
Simrad Power PCB Assembly F/ AC10/J3000X Autopilot Computers 22081715 *NEW*
$275
Garmin GHP Reactor and Malema Sensors Bi-Directional Flow Switch
$329
ST8002 Plus Autopilot Control Head Raymarine Autohelm Raytheon, NEW LCD
$13.99
Garmin TR-1 Gladiator Autopilot Alarm/Buzzer- Free Shipping
$130
Furuno 1700 Radar Display
$59.99
Raymarine 3D Printed Plastic Replacement Tabs for Analog & Digital Dome Radar
$1899

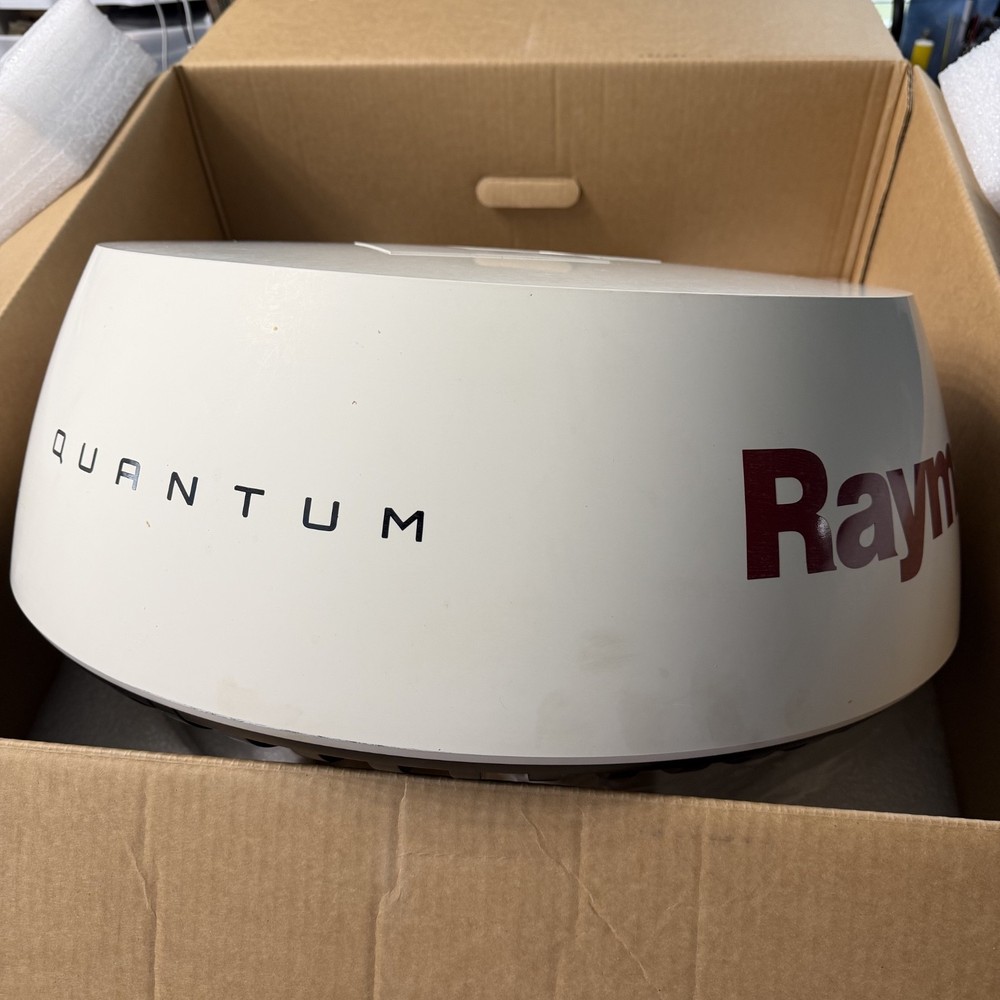

Raymarine Quantum Radome without cables E70210
