| Brand | ARCCAPTAIN |
|---|---|
| Item Type | Plasma Cutter |
| Input Amperage | 55A |
| Function | Large LED Display, Non-Touch Pilot ARC,2T/4T Automatic cutting |
| Features | Powerful & Portable,Dual Voltage, IGBT Inverter |
| Models | CUT55 |
| Rated input power supply | Single-phase AC240V 50/60Hz；Single-phase AC120V 50/60Hz |
| Rated input capacity (kVA) | 7.4/5.5 |
| Power factor | 0.7 |
| Rated output (A/V) | 45/98；35/94 |
| Rated duty cycle (%) | 60 |
| No-load voltage (V) | 270V |
| Output current range (A) | 20~35 |
| Arc ignition mode | HF Non-Contact |
| Air Flow Rate (CFM) | 150L/min |
| Post-flow time (s) | 5 |
| Gas pressure range (Mpa) | 0.3~0.5 |
| Insulation grade | H |
| Cooling mode | Air cooling |
| Enclosure ingress protection | IP21S |
| Efficiency (%) | 85 |
| Cutting Thickness | 3/4" maximum severance cut；1/2" ideal clean cut |
| Overall size (L*W*H) | 16.4*5.9*9.6 inch |
| Weight (kg) | 19.8lb |

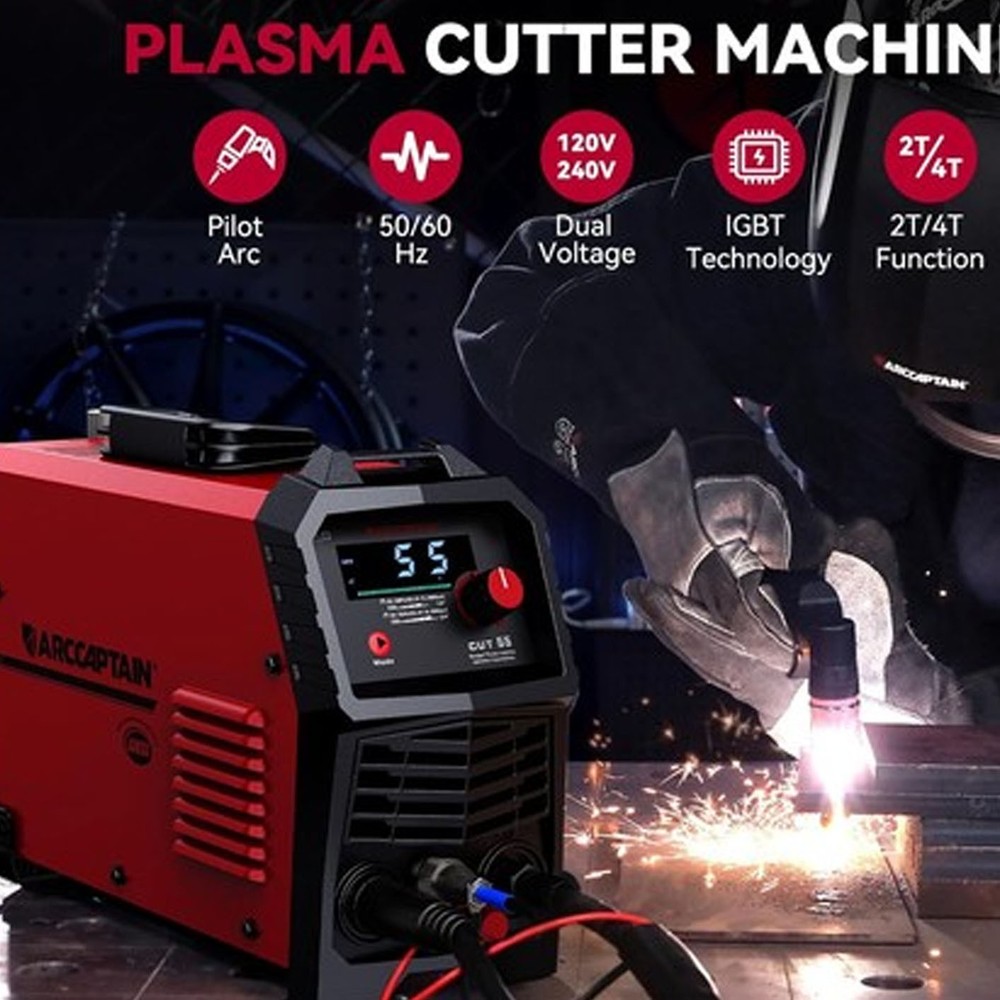

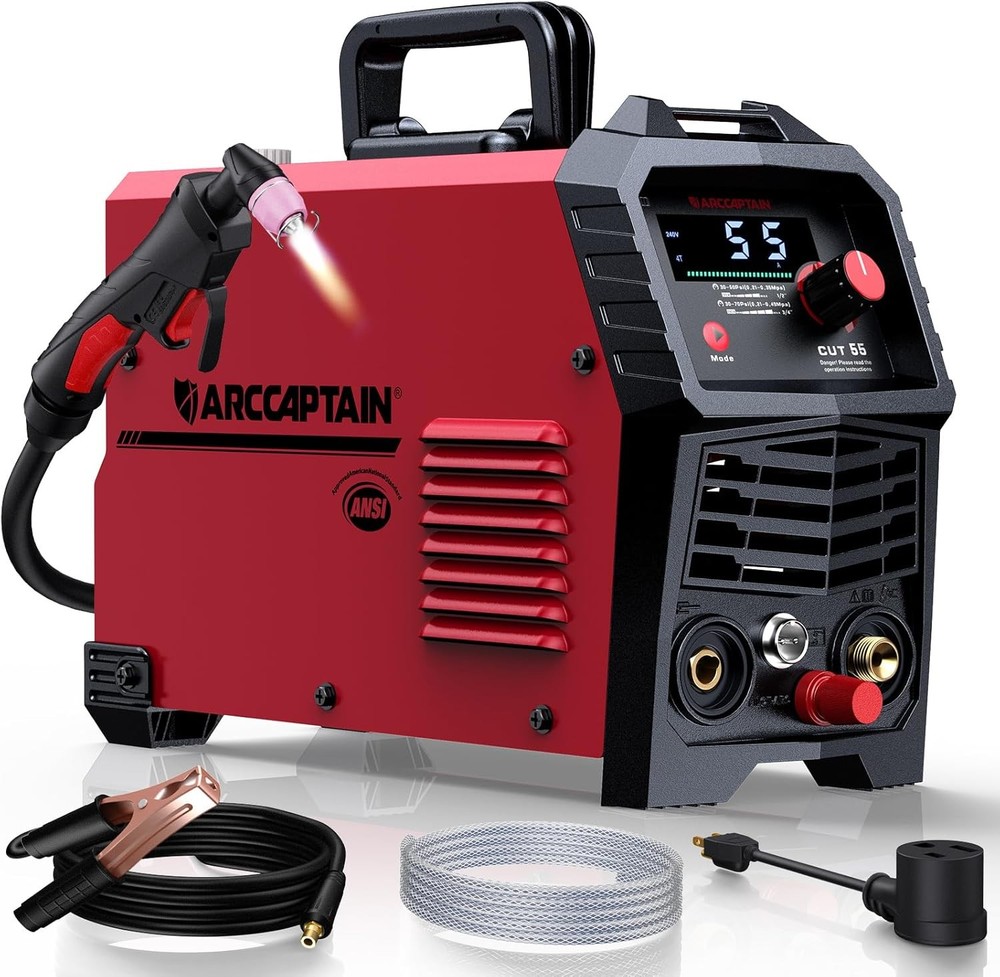

Check the listing for details. 55A Plasma Cutter, Large LED Display, Non-Touch Pilot ARC Plasma Cutting Machine. Condition: New. Listed at 269.98 USD. Moreover, the plasma cutting machine only weighs 19.8LB & compact, we also provide a shoulder strap, make it easy to carry from one place to another. 【Non-Touch Pilot Arc Function】The plasma cutter features a high frequency non-touch arc starting mode.
You may also like
$37.9
20pk KP2844-1 KP2844-4 Plasma Electrode Nozzle 60AMP For Tomahaw 1000 LC65 Torch
$31.5
Thermal Dynamics Pak-5XT Plasma Cutter Operator, Service & Parts Manual *340
$190
Plasma Cutter CNC THC Torch Height Controller Up ,Down, Arc On outputs
$369.99
6 in1 MIG/CUT/TIG/MMA Welder 220V,250A Gas/Gasless Welding Machine Plasma Cutter
$17.99
5pc 120578 55A Extended Nozzle 020547 Mfg in US by PlasmaDyn *US FAST SHIP*
$269.99
520TSCPF 3-IN-1 110V/220V Plasma Cutter Welder Machine HF 50A CUT/200A TIG/Stick
$35.56
NEW Fits Hypertherm 600 800 900 MAX 40cs MAX42 43 PAC 121 123 125
$213.99
HITBOX Air Plasma Cutter Non Touch Pilot Arc 45A Cutting Machine 110V 220V HBC45
$105

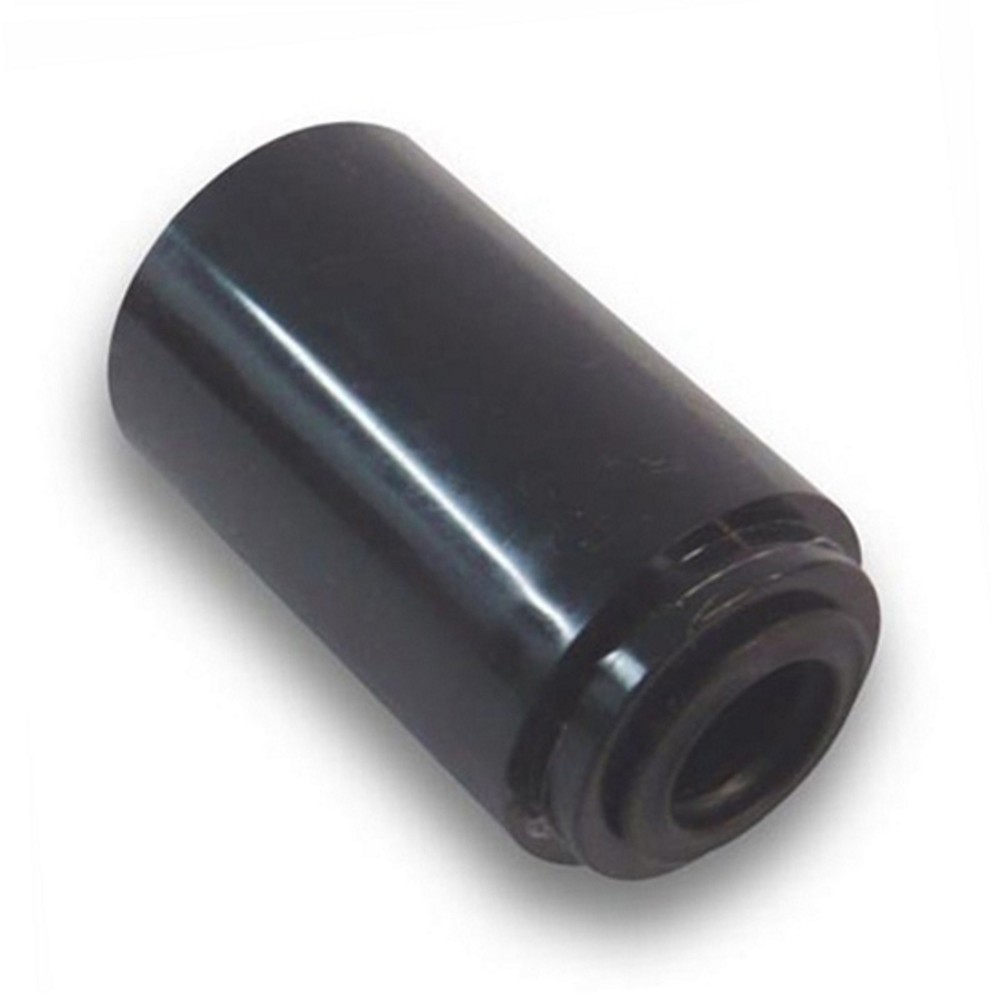

Hypertherm Air Filter Element (011092)
