| * Feature * | Fast shipping from US Warehouse |
|---|---|
| Brand | Unbranded |
| Color | White |
| Material | ABS, PC |
| Style | Modern |
| Circuit Breaker Type | Standard |
| Mounting Type | Wall Mount |
| Operating Temperature | -30~70℃/-22~158℉ |
| Input | 6 Strings |
| Output | 1 String |
| Number Of Poles | 6 |
| Current Rating | 63A |
| Number Of Max. Connection PV Array | 6 |
| Max. Input Current of Single PV Array | 15A |
| Total Input Current of PV Array | 90A |
| Max Input Voltage of Single PV Array | 1000V |
| Max Output Voltage | 550V |
| Protection Grade | IP65 |
| Relative Humidity | 0-95%, No Condensation |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 1 |
| Surge Protection Device | 40KA, 600V |
| Number of Circuit Breakers | 1 |
| Circuit Breaker | 63A, 550V |

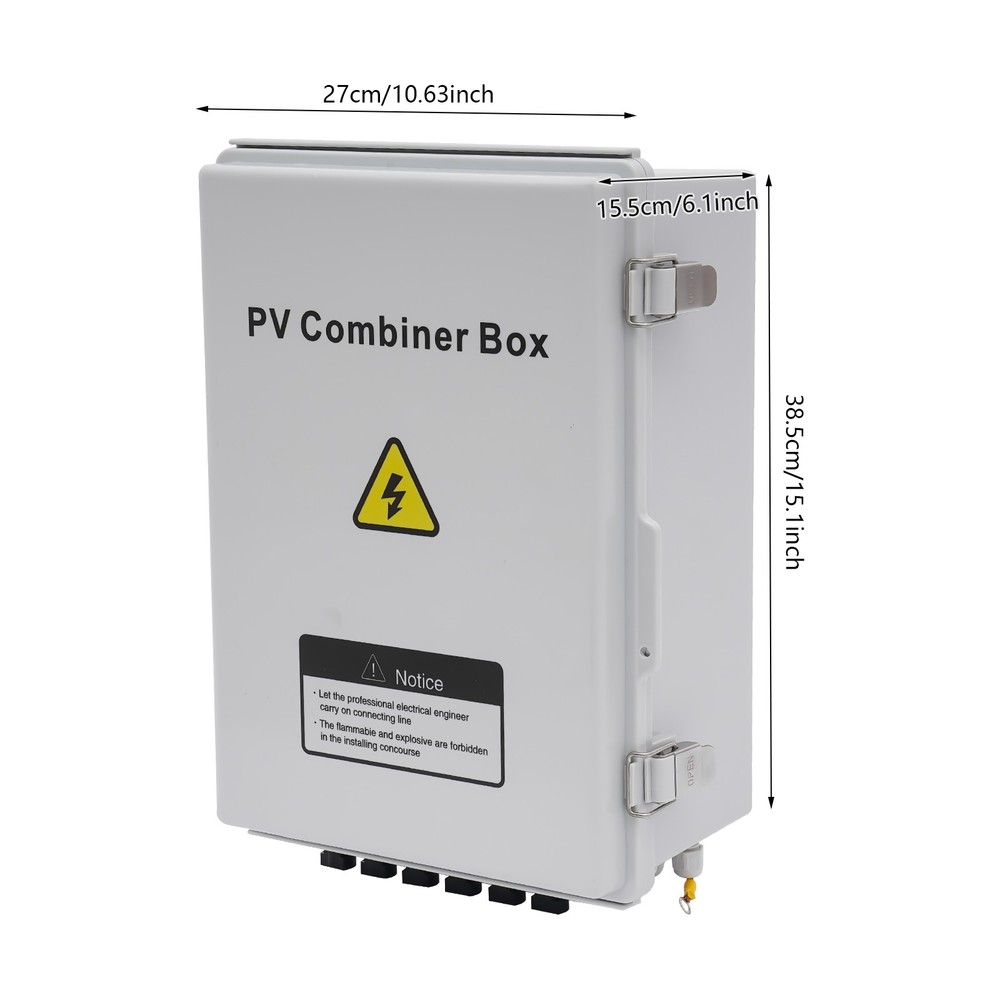

| Product Size | 27*15*39cm/10.6*5.9*15.35inch |
| Package Size | 35*25*15cm/13.78*9.84*5.9inch |
| Net Weight | 3.2kg/7.05 lbs |
| Gross Weight | 3.5kg/7.7 lbs |
| Type | PV Combiner Box |
| Application | industrial |
| Features | Waterproof |
| Resistance Properties | Dustproof |
| Voltage | 600V-1000V |

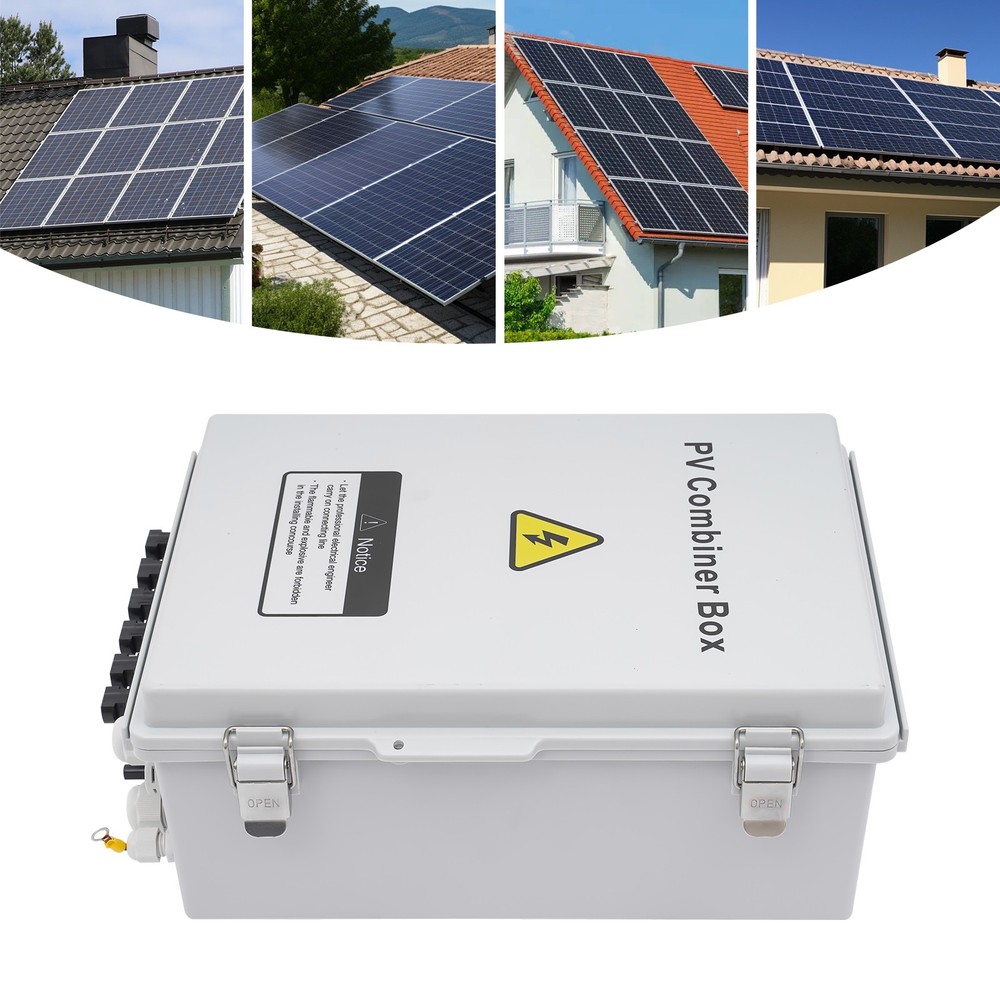

Check the listing for details. 6 String PV Combiner Box with 15A Circuit Breaker for Solar Panel Systems. Color: White, Condition: New. Listed at 102.26 USD. PV Combiner Box for Solar Power Systems. Unlock the potential of your solar energy setup with ourPV Combiner Box, engineered for durability and efficiency. 🌞 Crafted from high-quality ABS and PC materials, this robust box is designed to boost your photovoltaic system's performance while ensuring safety and reliability.
