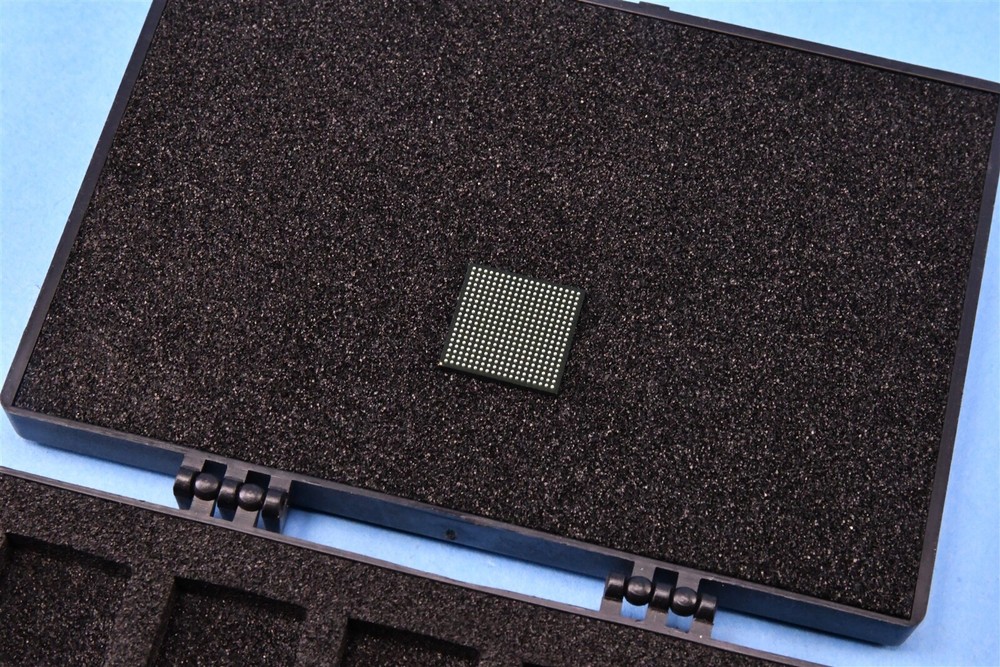

Check the listing for details. 6 Vatics H.264 Encoder SoC with Integrated Fisheye Correction and DDR Function. Condition: New. Listed at 29.95 USD. This is a new lot of 6 Vatics H.264 Encoder SoC with Integrated Fisheye Correction and DDR Function M3C SiP Series H.264 Encoder SoC with Integrated Fisheye Correction and DDR Function Models M3851C M3881C M3882C Host Controller ARM926EJ™ 600MHz Video Compression H.264 Profile H.264/MPEG-4 AVC (ISO/IEC 14496-10) baseline, main, and high profile@Level 4.1 H.264 Performance 1080p@30fps+D1@30fps H.264 ROI Encoding Up to 8 independent ROI windows. Support different quality and frame rate in each ROI region. H.264 SVC-T Encoding Up to 4 layers MJPEG Performance 2M@30fps Video Input I/F Bayer Up to two 12-bit channels MIPI Rx Up to one 2-lane channel BT.1120 Up to one channel BT.656 Up to two channels (including one MUX-4 channel) BT.601 Up to two channels Video Output I/F 8-bit BT.656 Support 16-bit BT.1120 Support RGB 888 Support sRGB (i80-50MP) Support CVBS Support Image Pipeline Up to two channels Fisheye Correction (Hardware) No Yes Image Signal Processing Geometric lens distortion correction Lens shading correction Chromatic aberration correction Fixed pattern noise removal Saturation, Brightness and Contrast adjustment Statistic data output for customized 3A process Static and dynamic defect pixel correction Separated black clamp for R/GR/GB/B Crop, mirror, flip, rotation Color correction (3x3 RGB to RGB matrix with offset) Gamma correction (12-bit to 8-bit correction table) Separated digital gain control for R/G/B Digital WDR (local tone mapping) 2D/3D noise reduction Edge enhancement Motion detection De-interlace Privacy mask (support arbitray mask shape) Resize (support arbitrary scaling ratio from 1/4x to 4x, up to four size-down channels simultaneously) Video Analytic Intelligent classifier Audio Interface Built-in audio codec with LSPK (mono differential output up to 500mW) Full duplex Single channel I2S I/F x1 Embedded SDRAM 128MB DDR3-800 SDRAM 256MB DDR3-800 SDRAM USB USB 2.0 OTG x1 Ethernet MAC 10/100/1000M (support MII, RMII, and 3.3V RGMII) MMC/SD/SDIO x2, support up to UHS-1 SDXC; One for SDIO only NAND Flash x1 UART x4 Tx/Rx, or x2 Tx/Rx and x1 RS485, or x1 full function ADC x4, 10-bit resolution I2C x3 RTC x1 (
