| Country of Origin | China |
|---|---|
| Features | ★Special Fashion Design★ |
| Manufacturer Warranty | 3 Years |
| Transportation does not include | canarias |
| Application | Applicable to 30V or 36V solar panels, 36V batteries |
| Current Output | / |
| Current Type | / |
| System Configuration | / |
| Current Rating | / |
| Charging Mode | / |
| Resistance Properties | / |
| Model | WVC-700W |
| Color | Silver |
| Material | Aluminium Alloy |
| Power | 700W |
| Voltage | 110V |
| Plug Type | US Standard |
| Maximum Input DC Voltage | 54V |
| Peak Power Tracking Voltage | 22-45V |
| Operating Voltage Range | 17-50V |
| Min/Max Start-up Voltage | 22-50V |
| Maximum DC Short Circuit Current | 40A |
| Maximum Input Operating Current | 30A |
| Output Peak Power | 700watt |
| Rated Output Power | 650watt |
| Rated Output Current | 6.36A |
| Rated Voltage Range | 80-160VAC |
| Rated Frequency Range | 57-62.5Hz |
| Power Factor | ＞99% |
| Number of Circuit Connections Per String | 6 |
| Static MPPT Efficiency | 99.5% |
| Maximum Output Efficiency | 91.2% |
| Operating Temperature Range | ﹣40℃~60℃/﹣40℉~140℉ |
| Waterproof Rating | IP65 |
| Cooling Method | Self-cooling |
| Communication Mode | Power Line Carrier |
| Power Transmission Mode | Reverse Transmission, Load Priority |
| Brand | Unbranded |
| Type | Solar Grid Tie Micro Inverter |
| Recommended Environment | Outdoor |
| Size | 21.3*5.8*25cm/8.39*2.28*9.84inch |

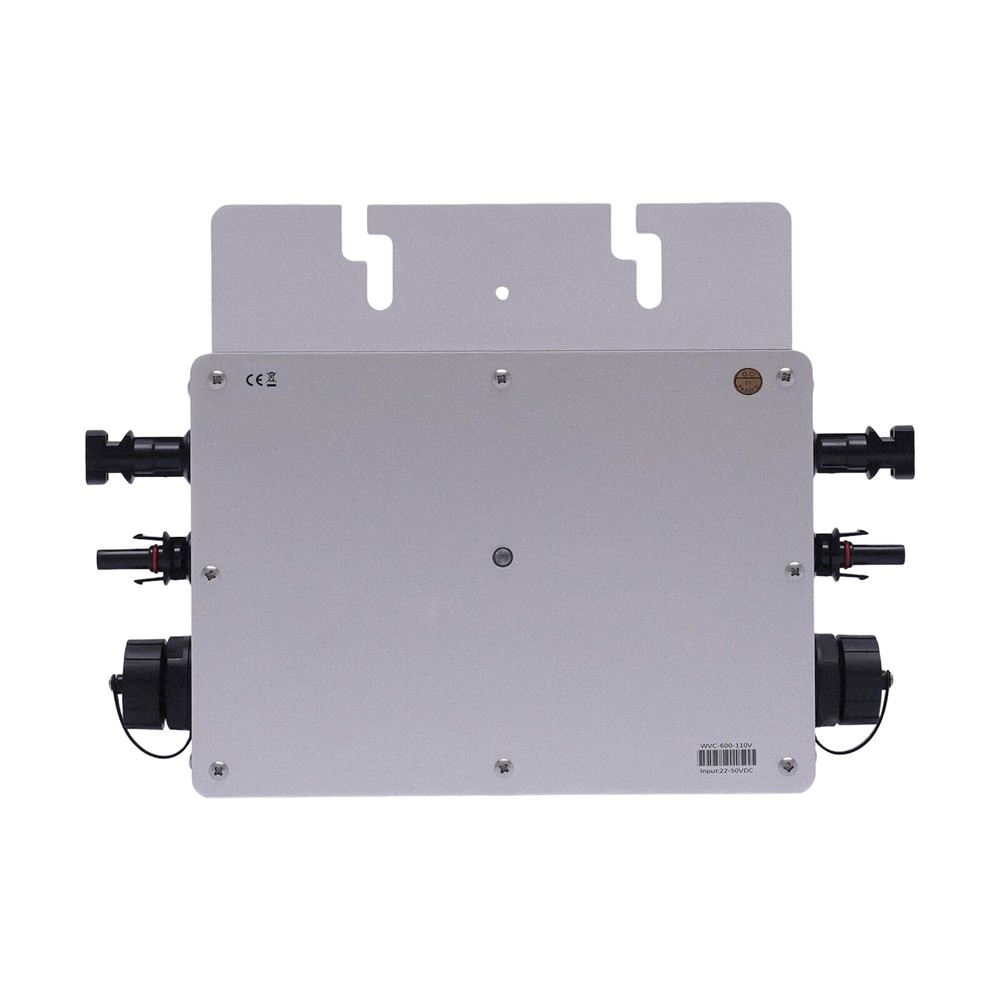

Check the listing for details. 700W Solar Grid Tie Micro Inverter Fit Solar Panel Waterproof Grid Tie Inverter. Color: Silver, Condition: New, Made in China. Listed at 120.50 USD. Power: 700W. Heat Dissipation Holes: The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter. An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances.
