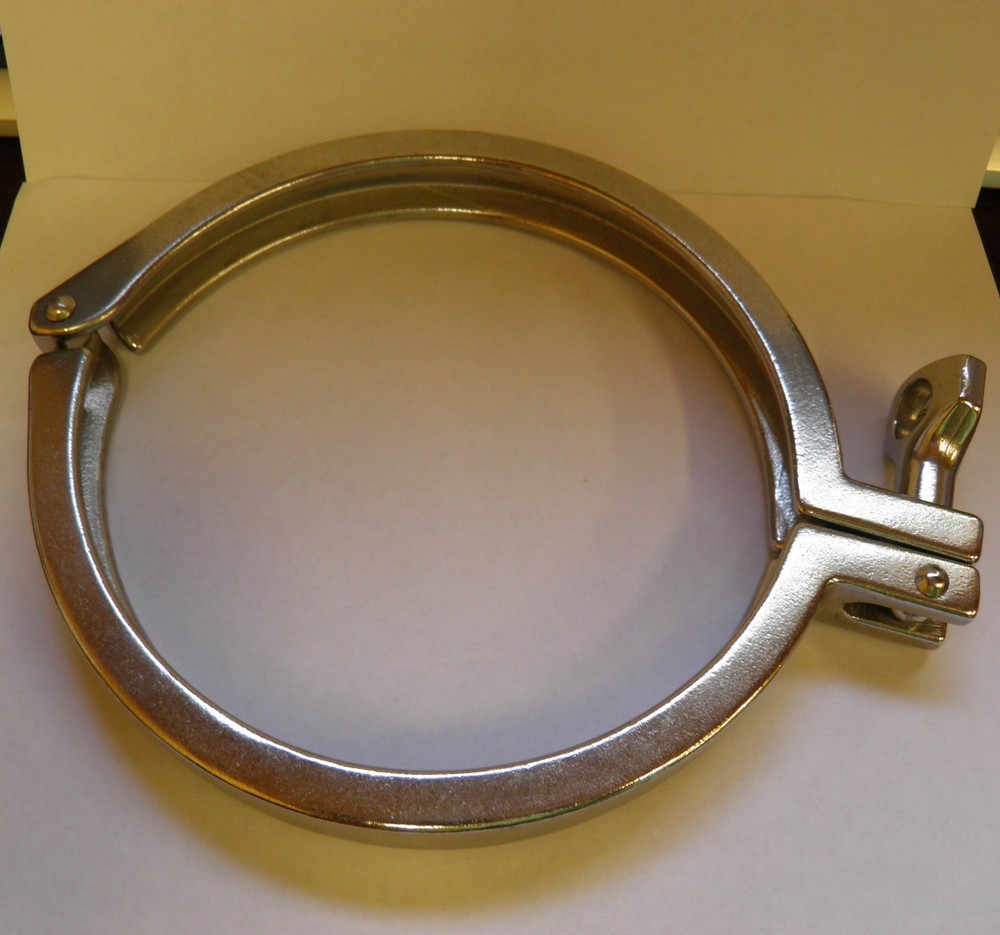

Check the listing for details. 8" Single Hinge Sanitary Tri Clover/Tri Clamp SS304. Condition: New. Listed at 63.08 USD. 8" Single Hinge Sanitary Tri Clover/Tri Clamp SS304 These tri clover clamps are used to connect two 8" tri clamp/tri clover style connections. These clamps are manufactured from 304 food grade stainless steel, and meet all of today's sanitary standards for sanitary fittings. At 70° F, these tri clover clamps are rated for a maximum pressure of 100 PSI.At 250° F, these tri clover clamps are rated for a maximum pressure of 50 PSI.DETERMINING TRI CLAMP SIZETri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" Hose Barb Adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting. If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us. Pipe Outer Diameter AFlange Outer Diameter BPipe Inner Diameter C1"1.98".87"1.5"1.98"1.37"2"2.52"1.87"2.5"3.05"2.37"3"3.58"2.87"4"4.68"3.83"6"6.57"5.78"8"8.57"7.78"10"10.57"9.69"12"12.57"11.81"
