| Country of Origin | United States |
|---|---|
| Brand | findmall |
| MPN | IN3424356AL |
| Type | Roller Chain |
| Quantity | 1 PC |
| Specification | NO |
| Roller Diameter (d1 max) | 0.625 inch (15.88 mm) |
| Width Between Inner Plates (b1 min) | 0.620 inch (15.75 mm) |
| Custom Bundle | No |
| Bundle Description | No |
| Modified Item | No |
| Modification Description | No |
| Average Tensile Strenght (Qo) | 71.4 kN |
| Ultimate Tensile Strenght (Q min) | 56.70/12886 kN/LB |
| Chain Pitch | 1.0 inch (25.400 mm) |
| Chain Length | 10 ft |
| Chain Size | #80H |
| Feature | ESCP |
| Warranty | 1 Year |

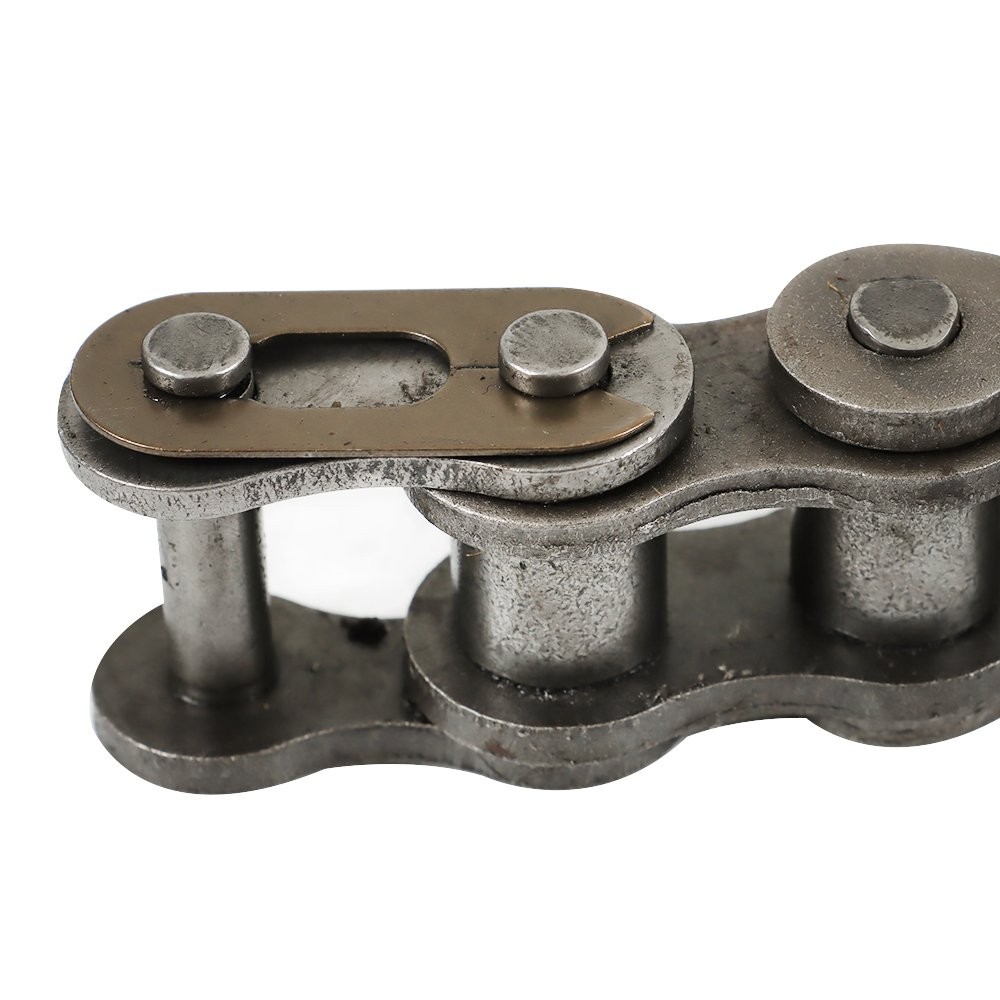

Check the listing for details. #80H Heavy Duty Roller Chain × 10 Feet With 1 Connecting Link US. Condition: New, Made in United States. Listed at 47.34 USD. Feature： ANSI Chain No.: #80H Lenght: 10 feet Pitch (P): 1.0 inch (25.400 mm) Roller Diameter (d1 max): 0.625 inch (15.88 mm) Width Between Inner Plates (b1 min): 0.620 inch (15.75 mm) Pin Diameter (d2 max): 0.311 inch (7.92 mm) Pin Lenght (L max): 1.425 inch (36.20 mm) Pin Lenght (Lc max): 1.484 inch (37.70 mm) Inner Plate Depth (h2 max): 0.944 inch (24.00 mm) Plate Thickness (T max): 0.157 inch (4.00 mm) Ultimate Tensile Strenght (Q min): 56.70/12886 kN/LB Average Tensile Strenght (Qo): 71.4 kN Weight (q): 2.083 lb/ft (3.1 kg/m) Description： This product has undergone rigorous quality testing .
