| Operation Mode | OFF-NONE-ON |
|---|---|
| Current Rating | 350 Amps |
| Operating Voltage | 32 Volts |
| Contact Type | Normally Open |
| Connector Type | Plug In |
| Switch Type | Selector 4 Position |
| Terminal | Screw |
| Material | Plastic |
| Item dimensions L x W x H | 2.9 x 6.38 x 8.63 inches |
| Circuit Type | 4-way |
| Mounting Type | Panel Mount |
| Actuator Type | Rotary |
| Number of Positions | 4 |
| Lower Temperature Rating | 40 Degrees Celsius |
| Upper Temperature Rating | 85 Degrees Celsius |
| Controller Type | Ring |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Wattage | 4200 watts |
| Color | Black |
| Item Dimensions | 2.9 x 6.38 x 8.63 inches |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Material Type | Plastic |
| Contact Material | Corrosion-resistant |
| International Protection Rating | IP66 |
| Specification Met | Iso |
| EU Spare Part Availability Duration | 5 Years |
| Model | 9001e |
| Global Trade Identification Number | 00632085900151 |
| upc | 632085900151 |
| Item Type Name | Blue Sea 9001e e-Series Battery Switch Selector |
| Included Components | Blue Sea 9001e e-Series Battery Switch Selector |
| Item Weight | 0.59 Kilograms |
| Warranty Description | Warranty |
| Item Length | 1 |
| Item Height | 1 |
| Item Width | 1 |
| Pattern Name | Switch |
| Style | Selector 4 Pos. |
| UPC | 632085900151 |

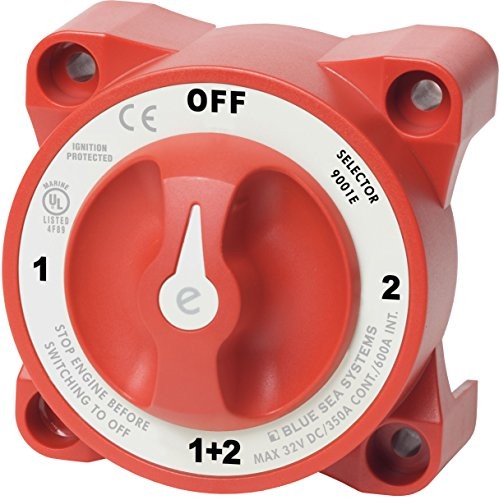

Check the listing for details. 9001E e-Series Compact Battery 4 Position Selector 32V Switch Selector 4 Pos.. Color: Black, Condition: New. Listed at 63.29 USD. 9001E e-Series Compact Battery Switch 4 Position Selector Switch, 32V DC, 325A, Red. Compact design makes installation in tight places easy. One piece copper studs are 7/8" long and accept multiple cables.
