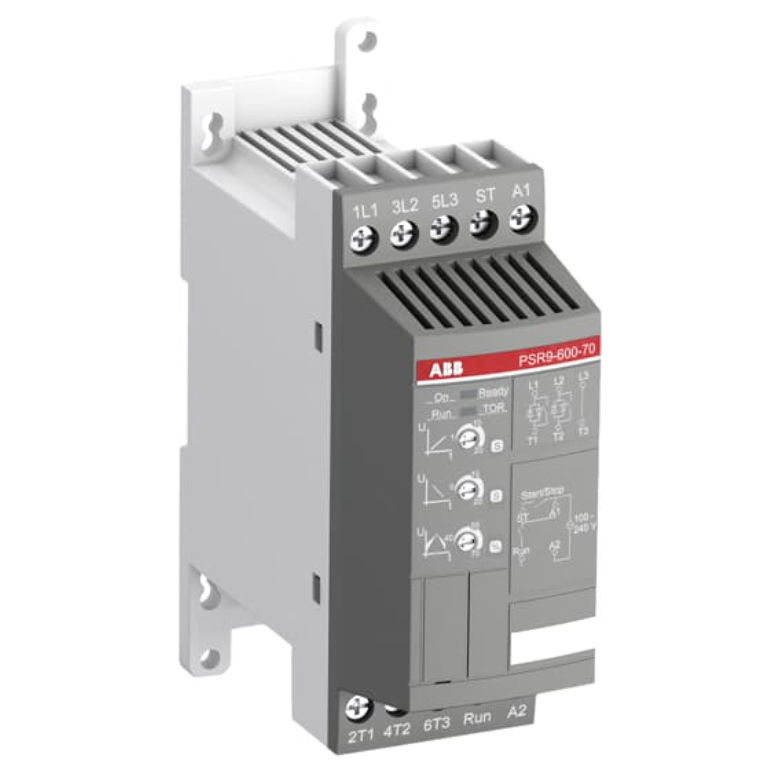

Check the listing for details. ABB PSR9-600-70 Soft Starter 4kW New. Condition: New. Listed at 268.99 USD. Store Categories Store Categories PLC Sensors Cooling Fans Power Supplies IC & DIY Industrial & Electrical Other Hot Items Hot Items SICK Photoelectric Switch GSE6-P1112 GSE6-P1111 $50 Free Shipping Sick 1003865 PL80A Reflector NewKd $19.17 Free Shipping Sick LL3-DB01 Photoelectric Sensor New✦Kd $23.32 Free Shipping SICK WL250-2P2431 Photoelectric Retro-reflective Sensor ,PNP,New✦Kd $92.12 Free Shipping Sick WL170-P420 Sensor New✦Kd $63.23 Free Shipping --> --> Product Description PSR9-600-70 General Information Global Commercial Alias:PSR9-600-70 Extended Product Type:PSR9-600-70 Product ID:1SFA896105R7000 ABB Type Designation:PSR9-600-70 EAN:7320500338223 Catalog Description:PSR9-600-70 Softstarter - 9 A - 208 ... 600 V AC Long Description:The softstarter PSR9-600-70 has a rated maximum operational current of 9 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors. Categories Products » Drives » Softstarters » Softstarters » PSR Softstarters » PSR9 Products » Low Voltage Products and Systems » Control Products » Softstarters » Softstarters » PSR Softstarters » PSR9 Previous ImageNext Image PSR9-600-70 - image 0 PSR9-600-70 - image 1 PSR9-600-70 - image 2 + Accessories Ordering Minimum Order Quantity:1 piece Customs Tariff Number:85371091 Popular Downloads Data Sheet, Technical Information:1SFC132012C0201 Instructions and Manuals:1SFC132030M0001 CAD Dimensional Drawing:2CDC001079B0201 Wiring Diagram:N/A Dimensions Product Net Width:114 mm Product Net Height:140 mm Product Net Depth / Length:45 mm Product Net Weight:0.4 kg Technical Rated Operational Voltage:208 ... 600 V AC Rated Control Supply Voltage (Us):100 ... 240 V AC Rated Control Circuit Voltage (Uc):24 V DC Rated Frequency (f):50/60 Hz Main Circuit 50 / 60 Hz Rated Operational Power - In-Line Connection (Pe):(230 V) 2.2 kW (400 V) 4 kW (500 V) 4 kW Rated Operational Current - In-Line Connection (Ie):9 A Service Factor Percentage:100 % Overload Protection:Recommended MS116 6.30 ... 10.00 Integrated Electronic Overload:No Adjustable Rated Motor Current Ie:No Starting Capacity at Maximum Rated Current Ie:4xIe for 6s Ramp Time:0 ... 20 second [unit of time] 1 ... 10 second [unit of time] Initial Voltage During Start:40 ... 70 % Step Down Voltage Special Ramp:100 ... 60 % Current Limit Function:No Switch for Inside Delta Connection:No Run Signal Relay:Yes By-pass Signal Relay:No Fault Signal Relay:No Overload Signal Relay:No Signal Indication Completed Start Ramp (LED):Green Signal Indication Ready to Start/Standby ON (LED):Green Signal Indication Running R (LED):Green Signal Indication Ramping Up/Down (LED):Green Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:10 Communication:FiledBusPlug(Optional) Degree of Protection:IP20 Terminal Type:Screw Terminals Connecting Capacity Main Circuit:Rigid 1/2 x 0.75 ... 2.5 mm² Connecting Capacity Control Circuit:1 x 0.75 ... 2.5 2 x 0.75 ... 2.5 mm² Rigid 1/2 x 0.75 ... 2.5 mm² Connecting Capacity Supply Circuit:Rigid 1/2 x 0.75 ... 2.5 mm² Tightening Torque:Control Circuit 1 N·m Main Circuit 1 N·m Supply Circuit 1 N·m Product Main Type:PSR9 Function:Soft start with voltage ramp Soft stop with voltage ramp Technical UL/CSA Maximum Operating Voltage UL/CSA:Main Circuit 600 V Tightening Torque UL/CSA:Control Circuit 8.9 in·lb Main Circuit 8.9 Supply Circuit 8.9 in·lb Environmental Ambient Air Temperature:Operation -25 ... +60 °C Storage -40 ... +70 °C Degree of Protection:IP20 RoHS Information:1SFC132031D0202 RoHS Status:Following EU Directive 2002/95/EC August 18, 2005 and amendment Certificates and Declarations CQC Certificate:CQC2006010304208085 Declaration of Conformity - CCC:2020980304001087 Declaration of Conformity - CE:1SFA1-86 Container Information Package Level 1 Width:121 mm Package Level 1 Depth / Length:50 mm Package Level 1 Height:156 mm Package Level 1 Gross Weight:0.5 kg Package Level 1 EAN:7320500338223 Package Level 1 Units:box 1 piece Classifications Object Classification Code:Q ETIM 7:EC000640 - Soft starter ETIM 8:EC000640 - Soft starter ETIM 9:EC000640 - Soft starter eClass:V11.0 : 27370907 UNSPSC:39121521 IDEA Granular Category Code (IGCC):4740 >> Soft starter Payment Policy Shipping Policy Returns Policy About us Payment Policy Shipping Policy Returns Policy About us You may like --> --> --> --> --> --> --> --> --> --> --> -->
