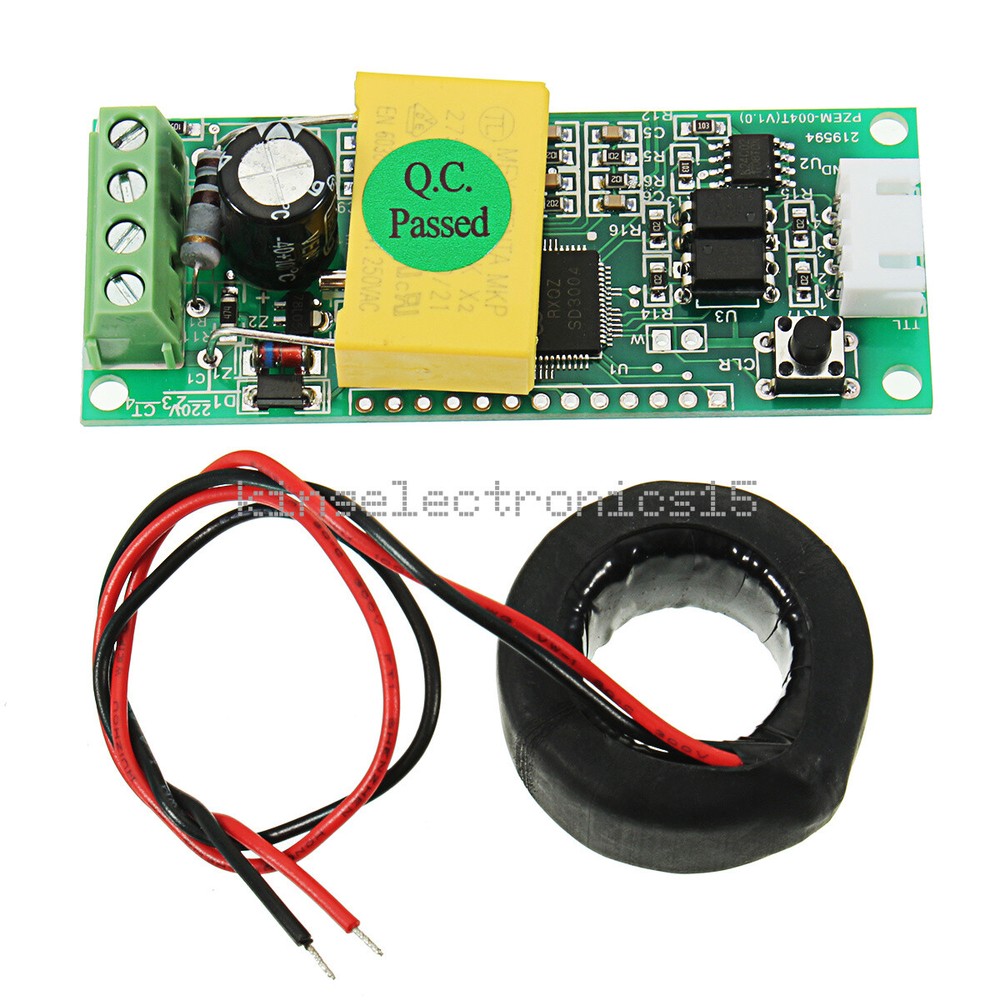

Check the listing for details. AC Digital Multifunction Meter Watt Power Volt Amp Current Test Module PZEM-004T. Condition: New. Listed at 6.72 USD. AC Digital Multifunction Meter Watt Power Volt Amp Current Test Module PZEM-004TProduct Image: Product Description: A. Function1. electrical parameter measurement function (voltage, current, active power).2. The power button clear function.3. Power-down data storage function (cumulative power down before saving).4. PC PC display function (display voltage, current, active power).5. The serial communication function (comes with TTL serial interface, via various terminals communicate with the adapter plate, read, and set the parameters).B. front display and keyone. UIPC display window composed of four, used to display the voltage, current, power, power parameters, as shown in FIG.two. Display Format1. Power: measurement range 0 ~ 22kW0 ~ 10kW within the display format of 0.000 to 9.999;Within 10 ~ 22kW display format 10.00 ~ 22.00.2. Power: measurement range 0 ~ 9999kWh0 ~ 10kWh within the display format of 0.000 to 9.999;10 ~ 100kWh within the display format of 10.00 to 99.99;100 ~ 1000kWh within the display format of 100.0 to 999.9;1000 ~ 9999kWh and above the display format from 1000 to 9999.3. Voltage: Test Range 80 ~ 260VACDisplay Format 110.0 ~ 220.0.4. Current: measurement range 0 ~ 100ADisplay Format 00.00 to 99.99.three. buttonA built-in button on the panel, used to make electricity clear function, as shown in Figure 2.Electricity clear method: Press ZERO key five seconds, then release the button! Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.C. Serial CommunicationThe module is equipped with a TTL serial data communication interface via the serial port can be read and set the relevant parameters; but if you want a device with a USB or RS232 (such as computers) to communicate, then you need to be equipped with different TTL adapter hardware board (USB communication needs with TTL to USB adapter plate; RS232 communication needs with TTL to RS232 adapter plate), the adapter plate of the specific connection details can be found in FIG.D. Description of the communications1. Connect the hardware according to the wiring diagram.2. Connect the line after a good first select the communication port of the PC software module supports communication port COM2 \ COM3 \ COM4, through the Device Manager to view, if not more than a few ports you need to modify the port over.E. Considerations1. This module is suitable for indoor, not outdoor use.2. the applied load should not exceed the rated power.3. The wiring can not be wrong.F. Specifications1. Working voltage: 80 ~ 260VAC2. Test voltage: 80 ~ 260VAC2. Rated power: 100A / 22000W3. Working Frequency: 45-65Hz4. Measurement accuracy: 1.0Package include: 1x Digital Multi-function Meter1x Coil FeedbackWarrantyShipmentFeedbackWe appreciate your feedback very much. As it will motivate us do better. If you have any questions with our goods or service, Please kindly contact us firstly before leaving negative feedback. Thank you in advance Warranty1. All merchandise will be carefully test before shipping. We will try our best to avoid any quality problem. 2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer. 3. If you are not satisfied with the product, Please contact us. We'll provide you a satisfying solution.Shipment1.Normmly we will send the goods within 1-3 working days after your payment is verified . 2.Please check if the goods are in good condition and sign before the delivery man leaves.If you find the product is lost or damaged on the way. Please take photo and let the delivery men confirm it. Then we will help you let the shipping company compensate you.On May 26, 2022 at 10:55:11 PDT, seller added the following information:
