| Brand | Unbranded |
|---|---|
| Model | none |
| Type | Logarithmic Detector |
| Country/Region of Manufacture | China |

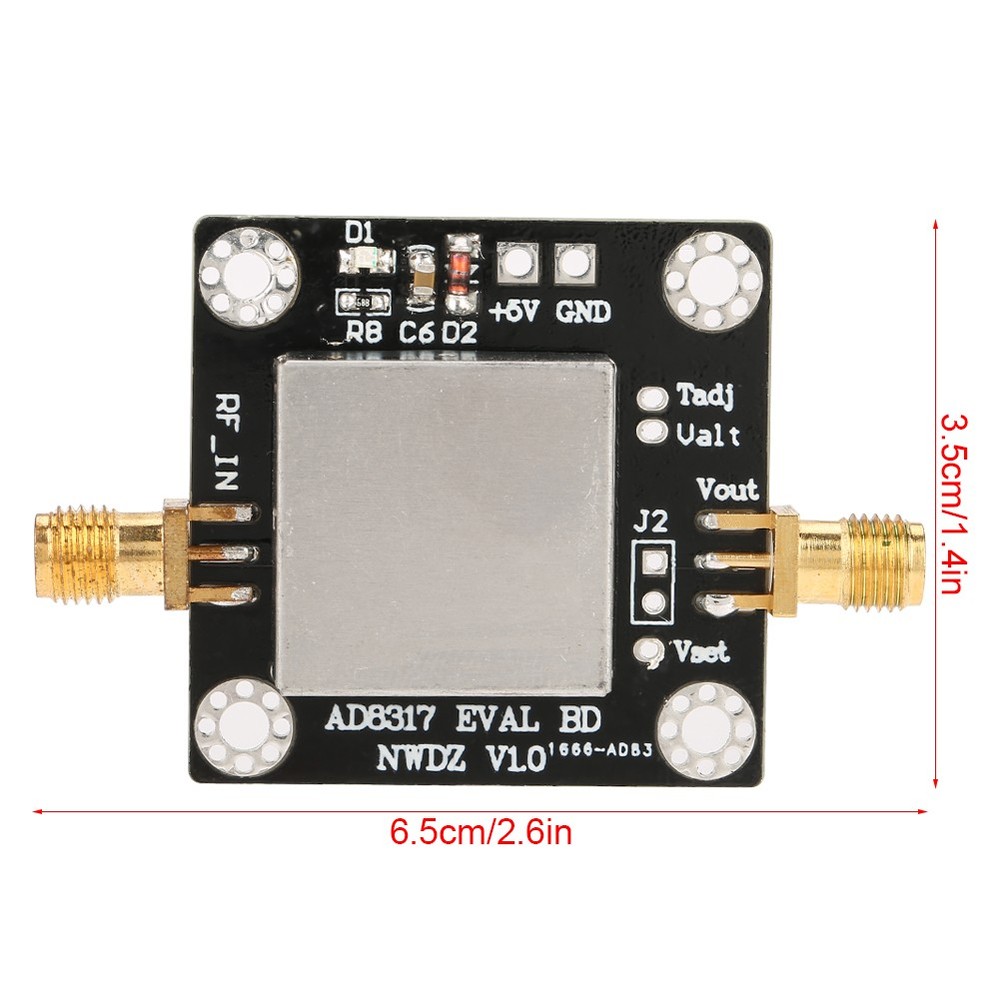

| Size | 6.5*3.5cm/2.6*1.4in |
| Input impedance | 50 Ohms |
| Output impedance | 50 Ohms (video impedance) |
| Working frequency Freq | 1MHz ~ 10GHz |
| Output voltage range | 1.6 ~ 0.4v (corresponding to -55 ~ 0 dBm) |
| Input/output ratio | 22mv /dBm |
| Input dynamic range | 60 ~ +5dBm (high linear dynamic range: -55 ~ 0 dBm) |
| Power supply voltage | +3.3~5V.DC @20mA |

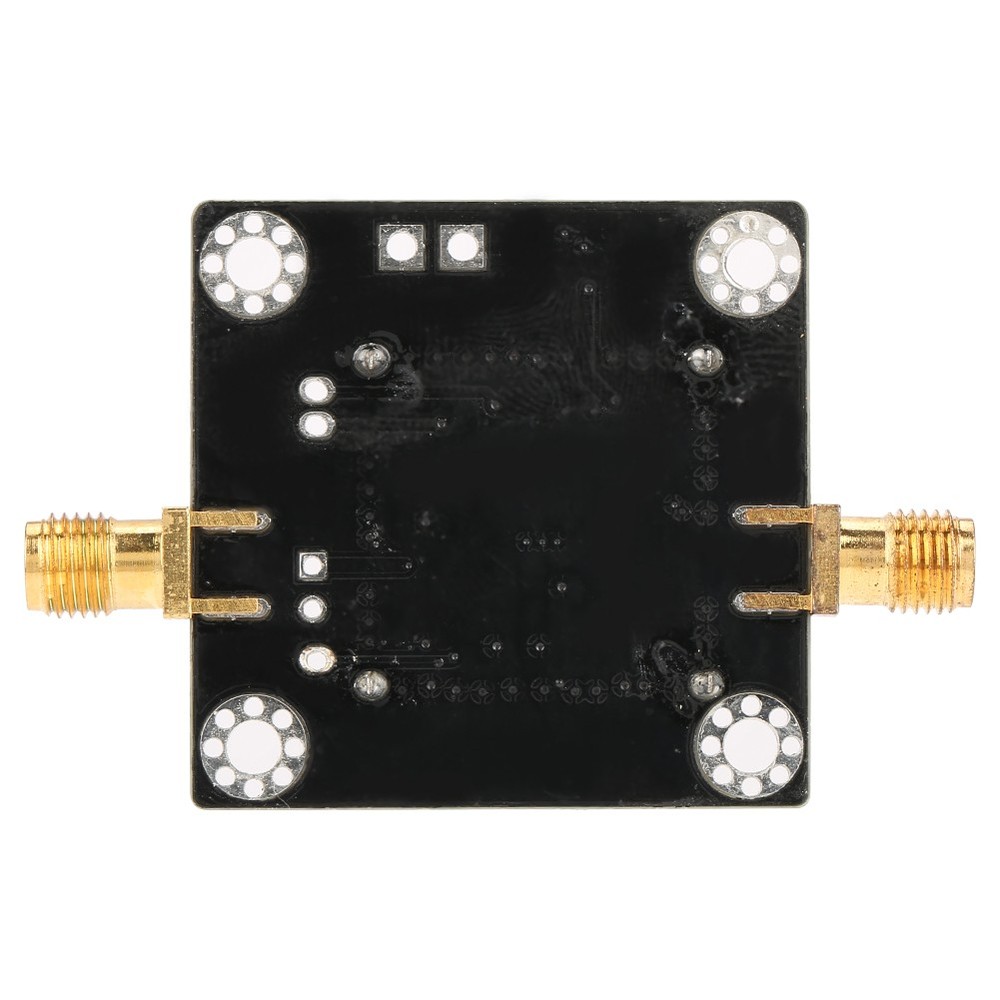

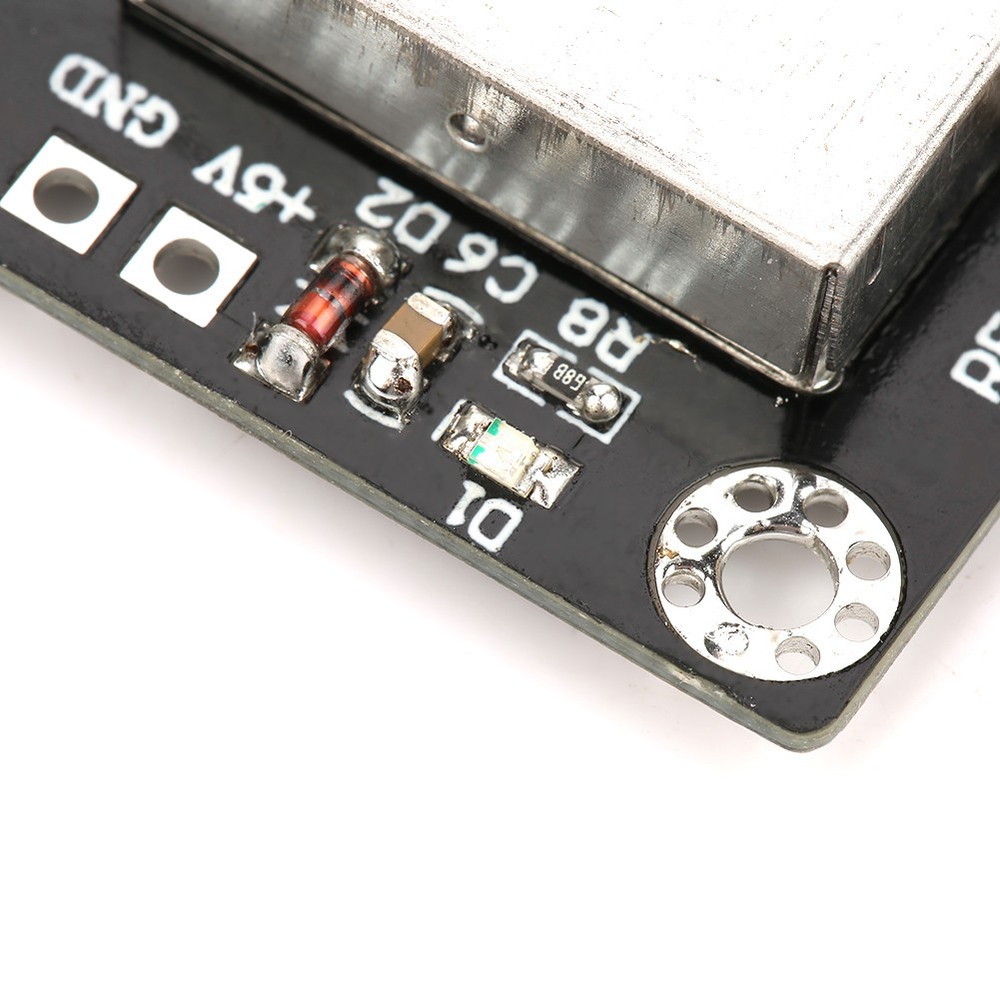

Check the listing for details. AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector Controller For. Condition: New. Listed at 16.11 USD. The product is designed by using AD8317 chip, and is used for RF signal power detection. Working frequency Freq: 1MHz ~ 10GHz. If you do not receive our reply within 48 hours, pls. If you are satisfied with our service, pls.
